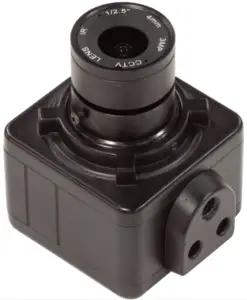

ArduCam 4mm Manual Focus USB Camera Module 2MP AR0230 Instructions
INTRODUCTION
- About Arducam
Arducam has been a professional designer and manufacturer of SPI, MIPI, DVP and USB cameras since 2012. We also offer customized turnkey design and manufacturing solution services for customers who want their products to be unique. - About this USB Camera
The B0358 is a new member of the Arducam’s USB camera family. It’s a 2MP, UVC compliant, manual focus USB 2.0 camera. This USB camera is based on the 1/2.7” AR0230 image sensor, and you can read more about its specs in the next chapter. Arducam also provides the sample application that demonstrates some of the features of this camera. - About UVC
The B0358 is a UVC-compliant camera. The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed. - About Customer Service
If you need our help or want to customize other models of USB cameras, feel free to contact us at [email protected]

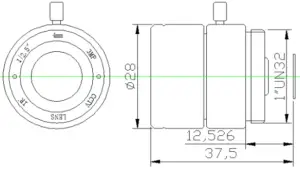

LENS DIAGRAM
QUICK START
- How to download the program
Download the APP Amcap from the following link https://www.arducam.com/downloads/app/ AMCap.exe
NOTE:
- For Mac OS, please open the native software facetime and select the video camera “USB Camera” .
- If used with the Andriod device, USB Camera APP and connect adapter are needed.
- How to connect the camera
Connect the one end of the USB cable to the connector provided on the back of B0358, and connect the other end to the USB 2.0 host controller on the computer.
SPECS
| Sensor | Camera 1/2.7″ AR0230 |
| Resolution | 2MP 1928H x 1088V |
| Data Format | MJPG/YUY2 |
| Dynamic Ran e | U. to 96 dB |
| Frame rate | MJPG 30fps@1080P/720P/1280 x 1024/800 x 600/640 x 480; YUY2 5fps@1080P/720P; 20fps@800 x 600/960 x 540; 30fps@640 x 480 |
| Field of View (FOV) | Lens 75′ (H) |
| Lens Mount | CS |
| Focal Length | 4mm |
| IR Sensitivity Functionality Auto Controlled Features | Int ral IR filter, visible li ht onl and Compatibility |
| Contrast/ Saturation/ Exposure / White balance /Acutance | |
| System Compatibility Power Su I | Win7/8/10, Linux and Mac with UVC Power DC 5V |
| Workln. Current Operating Temp. | MAX 300mA |
| Physical | |
| -4°F-158°F (-20°C-+70°C) | |
| Dimension | 50x50x65mm |
| Connector No. | USB 2.0 Type-B |
| Cable Length | 6.56ft (2M) |
How to use the program (Windows demo only)
The Menu bar at the top of the shown image contains few menu items and the current preview resolution and the frame rate are displayed on the bottom bar when the application is running. The following sec-

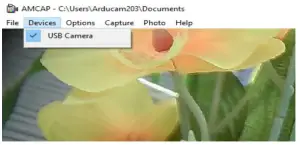

- Menu>Devices
This menu will show the available video devices to host PC. The B0358 named “USB Camera”.

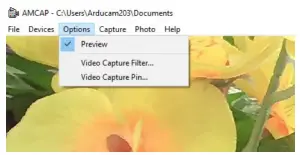

- Menu>Options
The options menu can be used to select the preview and image parameters supported by this camera.

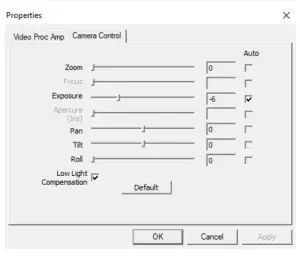

- Video Capture Filter -> Video Proc Amp/Camera Control

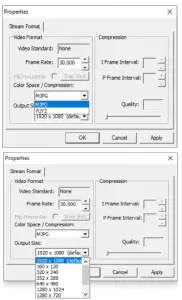

- Video Capture Pin

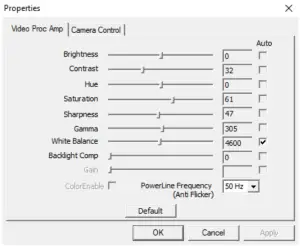

- Video Capture Filter -> Video Proc Amp/Camera Control

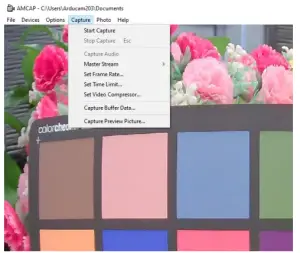

- Menu> Capture
The capture menu is used to capture the still image and video by using this application. You can also select the related parameters.
