Msi Creator Z17 A12uht-048 - 17" - Core I9 12900h User Guide

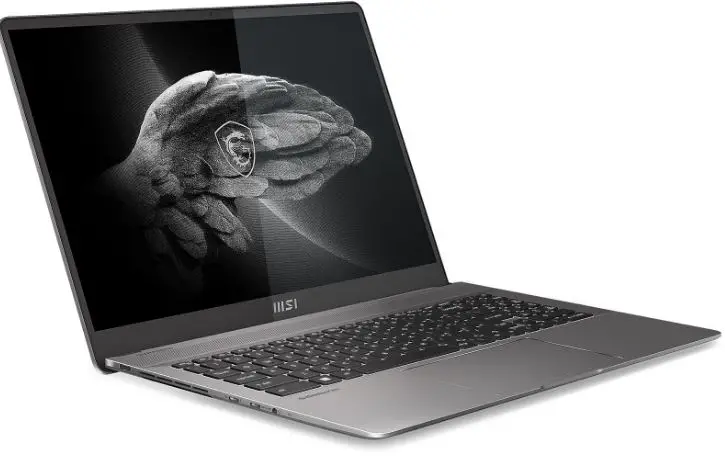

MSI Creator Z17 A12UHT-048 – 17″ – Core i9 12900H

Product Overview

1. Webcam/ Webcam LED
   Internal Microphone
2. .Touch Screen Monitor (optional)
3. Power Key/ Power LED
4. Status LED
5. Keyboard
6. Fingerprint Sensor
7. Touchpad
8. Status LED
9. MSI Pen (proactive stylus) (optional)
10. Card Reader
11. HDMI Connector
12. USB 3.2 Gen 2 Port
13. Power Connector
14. Thunderbolt (Type-C) combo port
15. Thunderbolt (Type-C) port
16. .Status LED
    Battery Status
    Continuously blinking if the battery Efails. If the problem persists, please
    contact your local authorized retailer or service center.
17. Combo Audio Port
18. Ventilator
19. Battery Reset Hole
20. Stereo Speakers

Getting Started

• .Connect the AC Power
• Power On the Notebook

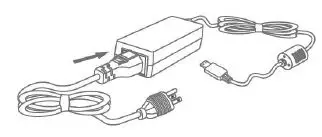

Connect the AC Power

It is strongly recommended to connect the AC/DC  adapter to the notebook and use the AC power while using this notebook for the first time since some models may require the AC/DC adapter to be connected in order to power on the notebook safely and properly

1. Unpack the package to find the AC/IDC adapter and power cord.
2. Attach the power cord to the connector of the AC/IDC adapter.
3. Plug the DC end of the adapter to the notebook, and the male end of the power cord to the  electrical outlet.

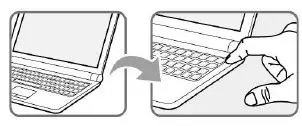

Power On the Notebook
When the AC power is connected, press the power button to turn the notebook on.

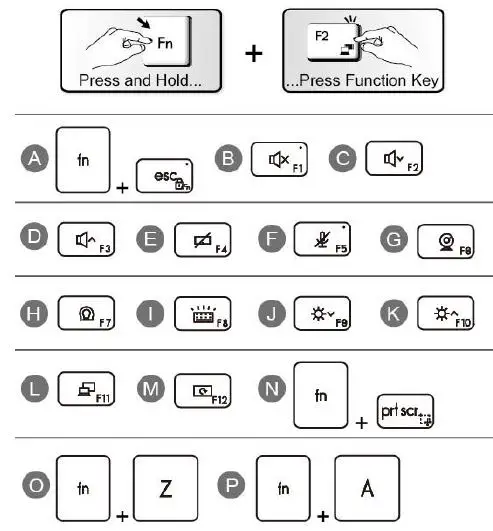

 Function Keys

• A. Enable or disable the default Quick Fn Launch Keys.
• B. Mute the built-in speakers.
• C. Decrease the built-in speaker’s volume.
• D. Increase the built-in speaker’s volume.
• E. Enable or disable the touchpad function.
• F. Enable or disable the microphone function.
• G. Enable or disable the Webcam function.
• H.Use this key to switch the User Scenario in
• MSI Center Pro.
• I.Select a keyboard backlight LED level.
• J. Decrease the LCD brightness.
• K. Increase the LCD brightness.
• L. Switch the display output mode.
• . Rotate the screen upside down for 180 derees.
• N. Take a screen capture.
• O. Launch the True Color application. (optional)
• P. Change different view modes in True Color. (optional)
