Msi 1076113370 Gaming Notebooks User Guide

QUICK GUIDE
Gaming I Content Creation I Business & Productivity

Product overview

for reference only

1. Webcam/ Webcam LED/ Internal Microphone
2. Touch Screen Monitor (optional)
3. Power Key/ Power LED
4. Keyboard
5. Fingerprint Sensor
6. Touch pad
7. Status LED [A cars toe
8. Combo Audio Port
9. Webcam Lock Switch
10. Card Reader
11. USB 3.2 Gen 2 Port
12. HDMI Connector
13. Status LED
    Battery Status; Continuously blinking if the battery [ tails. If the problem persists, please contact your local authorized retailer or service center.
14. Power/ Thunderbolt (Type-CJ combo connectors (optional)
15. Ventilator
16. Battery Reset Hole
17. Stereo Speakers
18. MSI Pen (proactive stylus) (optional)

Optional Accessories – MSI Pen
Enhance your creativity with MSI Pen
Configuration may vary by models. We recommend you check with local supplier for exact offers and details specifications

http://msi.gm/MSIPEN1P14?r=qr

Gatting Started

for reference only

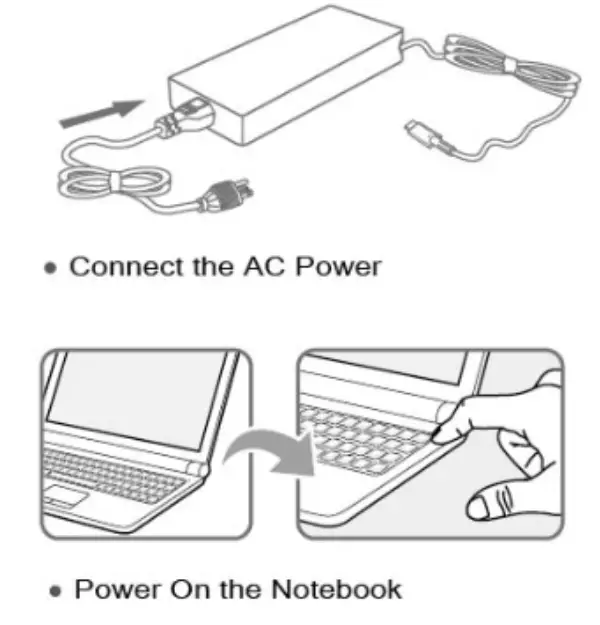

I- Connect the AC Power
It is strongly recommended to connect the AC/DC adapter to the notebook and use the AC power while using this notebook for the first time since some models may require the AC/DC adapter to be connected in order to power on the notebook safely and properly.
i. Unpack the package to find the AC/DC adapter and power cord.
ii. Attach the power cord to the connector of the
AC/DC adapter.
ii. Plug the DC end of the adapter to the notebook, and the male end of the power cord to the elect rical outlet.
II- Power On the Notebook
When the AC power is connect ed, press the power button to tum the no tebookon.

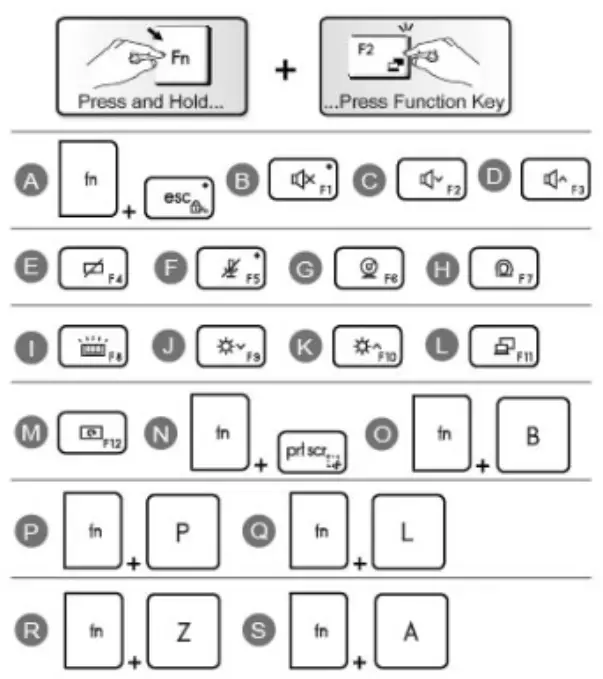

Function Keys

Ill- Function Keys
A. Enable or disable the default Quick Fn Launch Keys.
B. Mute the built-in speakers.
C. Decrease the built-in speaker’s volume.
D. Increase the built-in speaker’s volume.
E. Enable or disable the touchpad function.
F. Enable or disable the microphone function.
G. Enable or disable the Webcam function.
H. Use this key to switch the User Scenario in MSI Center Pro.
I. Select a keyboard backlight LED level.
J. Decrease the LCD brightness.
K. Increase the LCD brightness.
L. Switch the display output mode.
M. Rotate the screen upside down for 180 degrees.
N. Launch Snip & Sketch application.
O. Works as Break key by using both keys.
P.Works as Pause key by using both keys.
Q. Works as Scroll Loc k key by using both keys.
R. Launch the True Color application. (optional)
S. Change different view modes in True Color. (optional)
CE Conformity
Products bearing the CE marking comply with one or more of the following EU Directives as may be applicable:
RED 2014/53/EU; Low Voltage Directive 2014/35/EU; EMC Directive
2014/30/EU; ROHS Directive 2011/65/EU; Erp Directive 2009/125/EC.
Compliance with these directives is assessed using applicable European Harmonized Standards.
Th e point of contact for regulatory matters is MSI, MS-NL Eindhoven 5706 56 92 ER Son.
Products with Radio Functionality (EMF)
This product incorporates a radio transmitting and receiving device. For notebook computers in normal use, a separation distance of 20 cm ensures that radio frequency exposure levels comply with EU requirements. Products designed to be operated at closer proximities, such as tablet computers, comply with applicable EU requirements in typical operating positions. Products can be operated without maintaining a separation distance unless otherwise indicated in instructions specific to the product.
Restrictions fo r Products with Radio Functionality (select products only)

	CAUTION EEE 802.11x witless LAN with 5.15-5.35 GHz frequency band k Testi( ted fa hdoor use only In al European Union member states, EFTA (Iceland. Norway, Liechtenstein), all most other European countries (e.g., Switzerland, Turkey, Repubic of Serbia). Using this HAAN application o Indoors might lead 0 Interference issues with existhg radio services.
	CAUTION: Fixed outdoor installations S WiGig application (57–66 GHz frequency band) are excluded h all European Union member slates, EFTA (Iceland, Norway, Liechtenstein), and other European countries (e.g., Switzerland, Turkey, Republic d Serbia).
	Radio frequency bands and maximum power levels
	Features	802.11 a/b/g/rVac, BT
	Frequency Range	24 GI-12, 5 GI-12
	Modulation	FHSS. DSSS, OFDM
	Power Output	10, 20, Z3
	Channel Bandwidth	1, 5, 20, 40, B) MHz

Find User Manual at C:\Windows\User Manual\User Manual

http://www.msi.com
