Taifond Lws006 3 Light Matte Black Metal Vanity Light Wall Sconces Lighting Instructions

TAIFOND LWS006 3 Light Matte Black Metal Vanity Light Wall Sconces Lighting

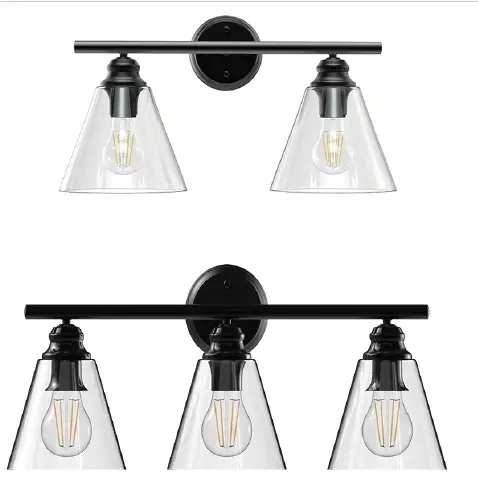

Product Information

The product comes in various models: WSWL003-B2, WSWL004-B3, WSWL005-B, WSWL005-B2, WSWL007-B, WSWL008-B, WS-FNW3-60B, WS-FNW4-60B, WS-FNW5-60B, WS-FNW6-60B, WS-FNW10-60B, and WS-FNW11-60B. It has a maximum power output of 60 watts and is available in 2xMAX.60W, 3xMAX.60W, and 1xMAX.60W configurations. The product is made of metal and plastic or metal and glass materials and operates on a voltage range of 110-120V. The product is available in black or white color options.

Product Usage Instructions

1. Identify the model of the product from the list provided above.
2. Determine the maximum power output configuration for your model (2xMAX.60W, 3xMAX.60W, or 1xMAX.60W).
3. Ensure that the voltage range of your power source is within 110-120V.
4. Choose between the metal and plastic or metal and glass material options for your product.
5. Select the appropriate color option (black or white) for your product.
6. Install the product using the provided installation instructions.
7. Connect the product to your power source.
8. Turn on the product using the ON switch.

Note:

1. The lamps may only be installed by authorized and qualified technicians according the valid regulations for electrical installation.
2. The manufacturer does not accept any responsibility for injuries or damage resulting from improper use of the light.
3.  Attention! Before starting the installation work, make sure that the mains
   power line is voltage-free-turn off safety cutout or unscrew the protection fuse. The switch must be “OFF”.
4. Warning! Before drilling the mounting holes, make sure that no gas, water
   or electricity pipes and wires can be drilled through or damaged in your chos -en mounting location.
5. Description of the supply terminals: L = Phase N = Neutral conductor @= Earthed conductor.

Parts missing or damaged?
Don’t need to return to the store. Just contact us via email, We will help you
solve the problem as soon as possible.
[email protected] (NA Market)
[email protected]m (EU Market)

Part list

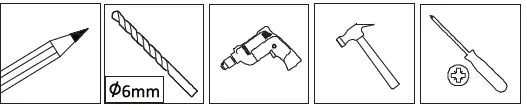

You will Need

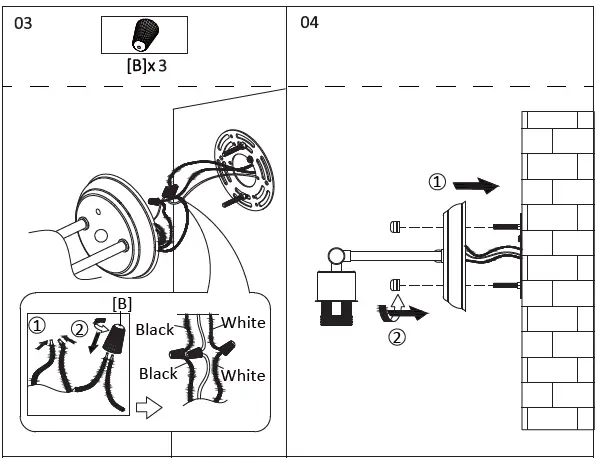

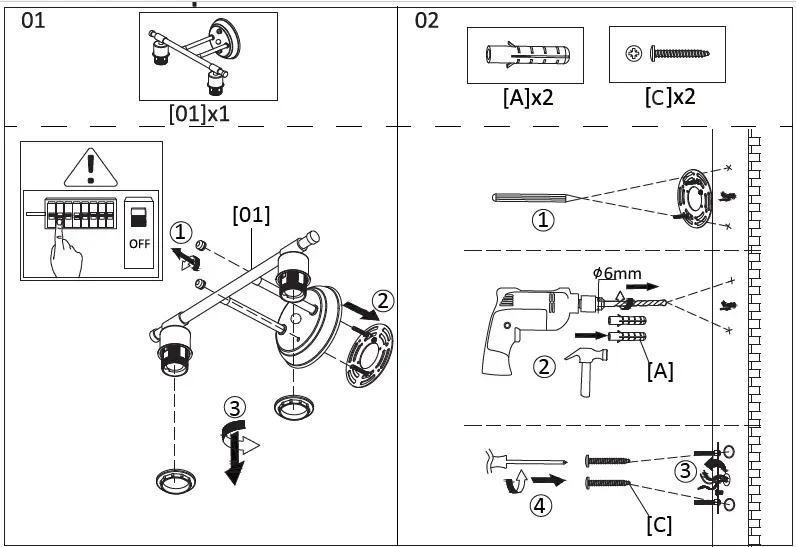

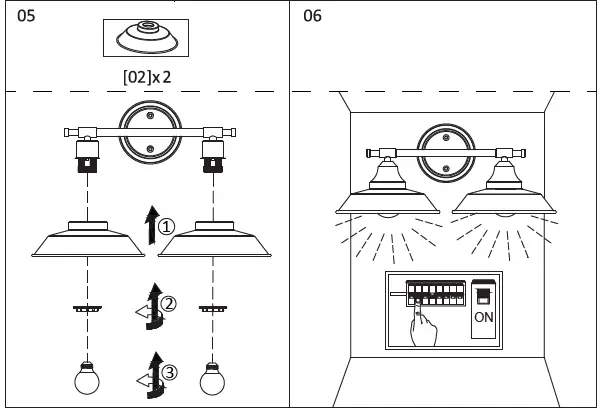

Installation Step
