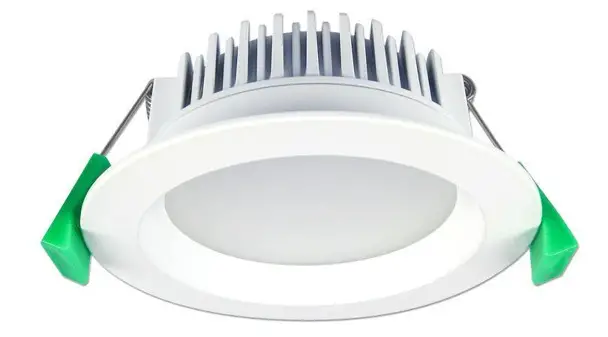

GEO12 12W LED Downlight
User Guide
Important Safety Instructions
Basic safety precautions should always be followed when installing, including the following:
- Read all instructions.
- Licensed electrician for installation only.
- Always ensure the power is OFF and the fitting has cooled down before performing any maintenance, cleaning, changing the globe, or adjustment to the fitting.
- Do not install any luminaire near the heat source.
- Do not exceed the nominal supply voltage or amperage ratings.
- To avoid injury or damage to the fitting, please ensure that power leads and screws are secure before connecting the power.
WARNING

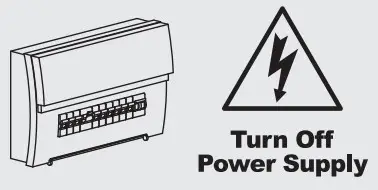

- Switch off before installation.
- Switch on only after complete installation and examination of the circuit.
- Professional electrician for installation and maintenance only.
NOTE: Before installation, please check the information of the driver below.
| Non-dim | Can not be used with any dimmer. |
| Triac dim | Compliable with recommended TRIAC dimmers. |
| DALI | Only work with the DALI dimming system. |
NOTE: Before installation, please check the IP label on the luminaire to choose the right place to install it.
| IP20 | Indoor use only, do not use in wet or damp places. |
| IP65 | Suitable for outdoor areas, not suitable for water immersion. |
INSTALLATION
Round downlight
| Code | Diameter | Cutout |
| JPL-SA80V-5W | Ø80 | Ø68-72 |
| JPL-SA80V-8W | Ø80 | Ø68-72 |
| JPL-SA80H-8W | Ø80 | Ø68-72 |
| JPL-SA80M-8W | Ø80 | Ø68-72 |
| JPL-SA90V-10W | Ø90 | Ø75-80 |
| JPL-SA90H-10W | Ø90 | Ø75-80 |
Square downlights
| Code | Size | Cutout |
| JPL-SAN80V-8W | 80*80 | Ø68-75 |
| JPL-SAN80M-8W | 80*80 | Ø68-75 |

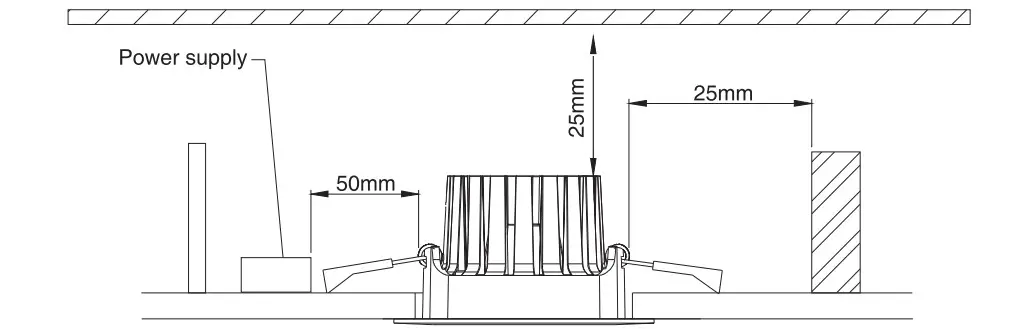

Fig.1: Installation spacing

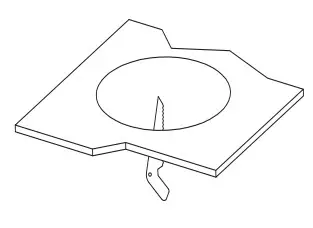

- Open a hole according to the cutout size of LED downlight.

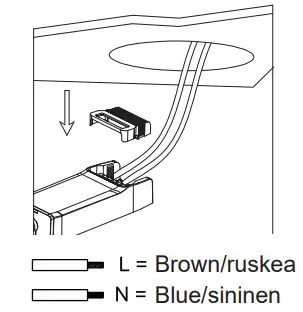

- Use a screwdriver to open the driver terminal cover, feed the main AC wire in the terminal block respectively, then fix the cover back.

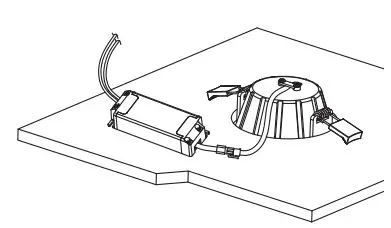

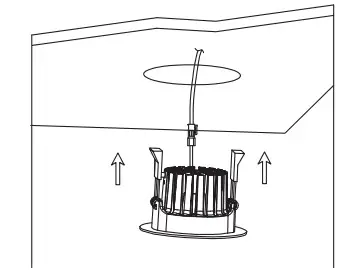

- Connect the LED downlight with the driver, hold back the spring clip, then push the LED downlight into the hole.
- Make sure the LED downlight is fixed tightly in the ceiling, and turn on the power.
