TS 8601.080
Base/plinth trim panels, side, 100 mm
State: 09/10/2022 (Source: rittal.com/com-en)

Contents hide

1 TS 8601.080 Base Covers

2 Features

3 Approvals

4 Documents / Resources

4.1 References

5 Related Posts

TS 8601.080 Base Covers

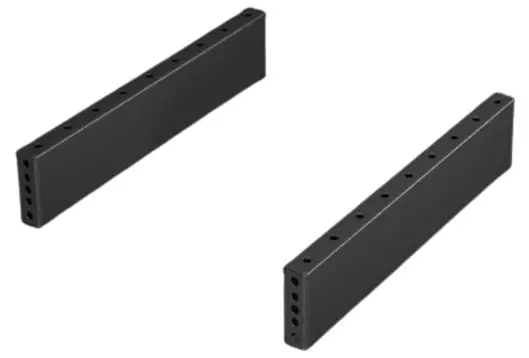

TS 8601.080 – Base/plinth trim panels, side, 100 mm for base/plinth components front and rear
For mounting between the base/plinth components. At 200 mm height, two 100 mm base/plinth trims may be used. Base/plinth trims may be installed rotated through 90° in order to stabilise bayed base/plinth components.

Features

Model No.	TS 8601.080
Product description	For mounting between the base/plinth components. At 200 mm height, two 100 mm base/plinth trim panels may be used.
Material	Sheet steel
Surface finish	Spray-finished
Colour	RAL 7022
Supply includes	2 base/plinth trim panels Assembly parts
Assembly instruction	Base/plinth trim panels, side, 100 mm, may be installed rotated through 90° to stabilise bayed base/plinth components. The base/ plinth baying bracket is required for this purpose
Dimensions	Height: 100 mm
To fit	Enclosure type: TS: = 800 mm Enclosure type: SE Enclosure type: CM Enclosure type: TP Enclosure type: PC Enclosure type: IW Enclosure type: TS IT
Packs of	2 pc(s).
Weight/pack	2.86 kg
Copper weight (kg per piece)	0
Customs tariff number	94039910
EAN	4.02818E+12
ETIM 7.0	EC000721
ECLASS 8.0	27182003
