Schneider Electric EVH4A11NC EVlink Home Smart 3P Attach cable

Product Information

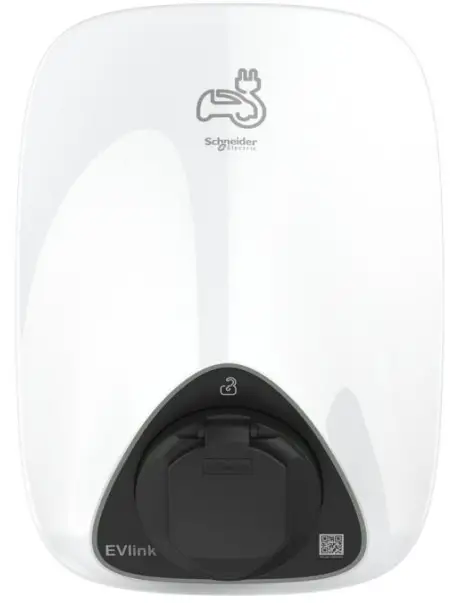

The EVlink Home Smart 3P Attach cable 5m 11 kW 16A with RDC-DD Filter (product reference: EVH4A11NC) is a wallbox charging station designed for private individuals to charge their electric vehicles.
The product dimensions are 282mm x 409mm x 165mm, and it weighs 6400g.
The product comes with a 5m cable, which has a maximum charging rate of 11 kW and a maximum current rating of 16A. It also includes an RDC-DD filter, which helps to protect the electrical system from damage caused by ground faults and other electrical disturbances.
This product is part of the European Union directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). It must be disposed of according to the legislation of the country.

Product Usage Instructions

Before using the EVlink Home Smart 3P Attach cable 5m 11 kW 16A with RDC-DD Filter, ensure that your electric vehicle is compatible with the charging station.

To use the product, follow these steps:

Connect the wallbox charging station to a power source.
Plug the cable into your electric vehicle’s charging port.
The product will automatically begin charging your vehicle.
When your vehicle is fully charged, unplug the cable from your vehicle’s charging port and return it to the wallbox charging station.

Always follow the manufacturer’s instructions for use and safety guidelines when operating this product. If you have any questions or concerns, contact the Schneider Electric Industries SAS customer care center at http://www.schneider-electric.com/contact.

End-of-Life Instructions

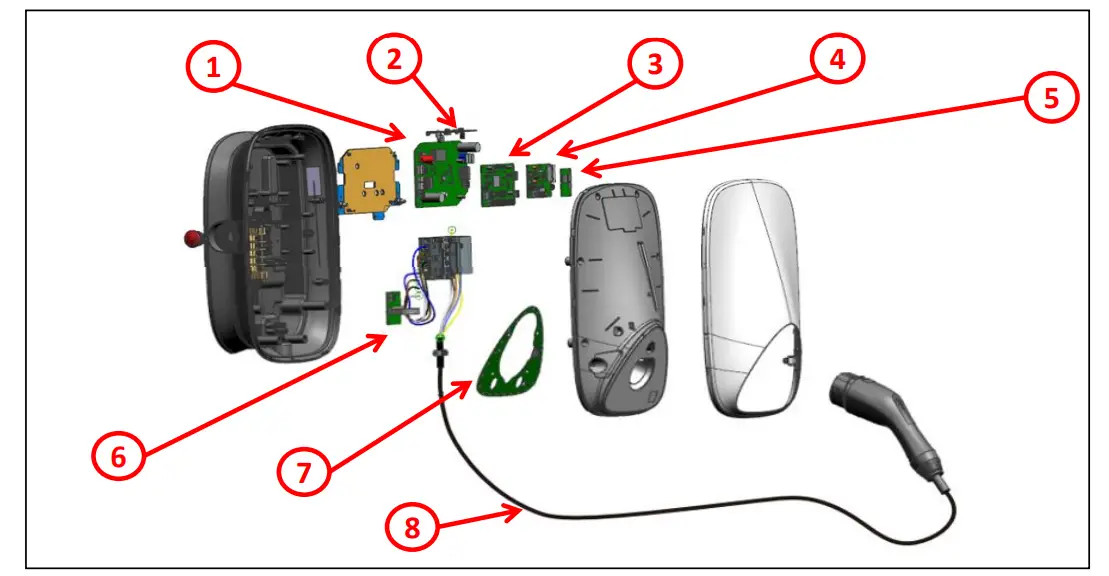

Recommendation	Number on drawing	Component / Material	Weight (in g)	Comment
To be depolluted	1	Electronic Board (Power) > 10cm²	44.5	176cm²
To be depolluted	2	Electronic Board (Power) > 10cm²	95.82	37.2cm²
To be depolluted	3	Electronic Board (Power) > 10cm²	54.7	72cm²
To be depolluted	4	Electronic Board (Communication) > 10cm²	42.46	41.61cm²
To be depolluted	5	Electronic Board (Power) > 10cm²	19.99	31.8cm²
To be depolluted	6	Electronic Board (Power) > 10cm²	37.62	23.52cm²
To be depolluted	7	Electronic Board (Power) > 10cm²	132.65	300.53cm²
To be depolluted	8	External electric cables	1253

Product Description

Manufacturer identification	Schneider Electric Industries SAS
Brand name	Schneider Electric
Product function	The EVlink Smart Wallbox station is designed to allow private persons to have a charging point dedicated to their electric vehicle.
Product reference	EVH4A11NC
Additional similar product references	EVH4A11NC
Total representative product mass	6400 g
Representative product dimensions	282mm x 409mm x 165mm
Accessories	None
Date of information release	09/2022

Additional information

Legal information	This product family is in the scope of European Union directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The product family must be disposed according to the legislation of the country. This document is intended for use by end of life recyclers or treatment facilities. It provides the basic information to assure an appropriate end of life treatment for the components and materials of the product.
In case of special transportation: transportation method	No
Recyclability potential	55%	Based on the “ECO’DEEE recyclability and recoverability calculation method” (version V1, 20 Sep. 2008 presented to the French Agency for Environment and Energy Management: ADEME).
