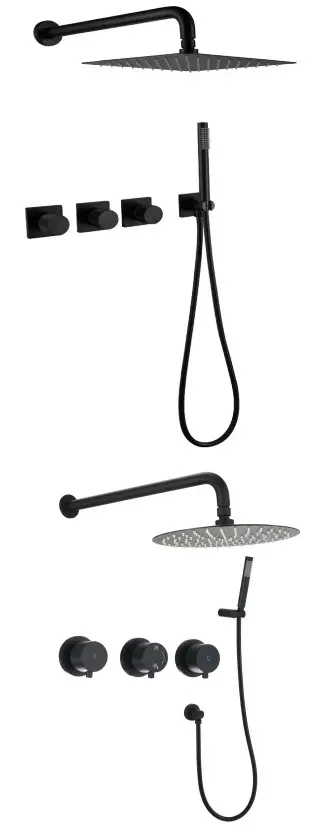

PRAERX749MB 3 Handle 2 Spray Round High Pressure Shower Faucet
Instruction Manual
MB/BN/BG/CH/ORB
SHOWER SYSTEM FAUCET
Installation instruction
CARE INSTRUCTIONS
Rinse the product with clear water. Dry the product with a soft cloth.
DO NOT:
Use abrasive cleansers, cloths, or paper towels. Use any cleaning agents containing acid, polish, wax, alcohol, ammonia, bleach, solvent or any other corrosive or harsh cheminalc cleansers.
IMPORTANT
We recommends using a professional plumber for all installtion and repair. Please inform yourself about the canadian plumbing code`s regulations and your local municipality plumbing codes before instaillation.the canadian plumbing code requires the installation of urge arresting devices to eliminate water hammering.allow an adequate opening in orderto easilyaccess connections or other plumbing devicesfor maintenance or repair.
RECOMMENDED TOOLS
* Apply plumber’s putty under the plastic cover deck plcta to seal your installation.
The model shown in the installation steps may differ from the one in box however connection type and installation steps are the same.
CONNECTION ADVICE

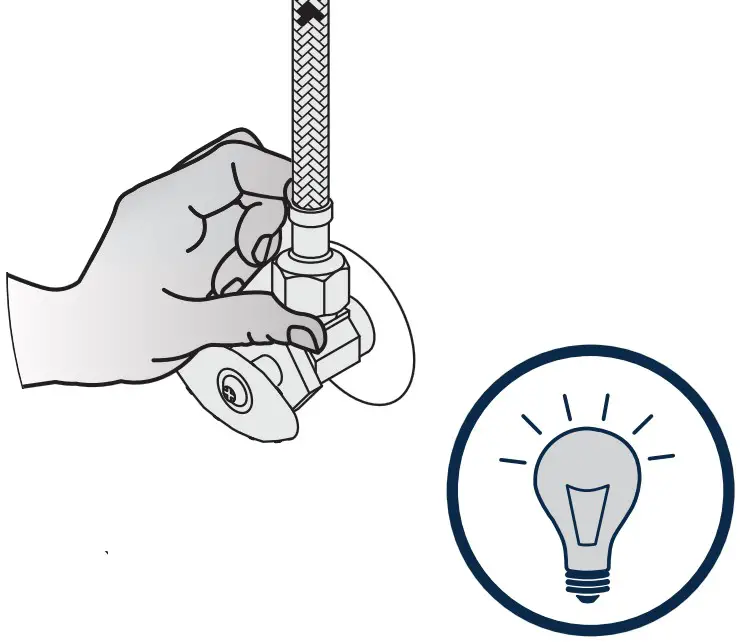

Firmly hand tighten the hose to the valve and add a quarter turn using the proper wrench Tighten more if needed

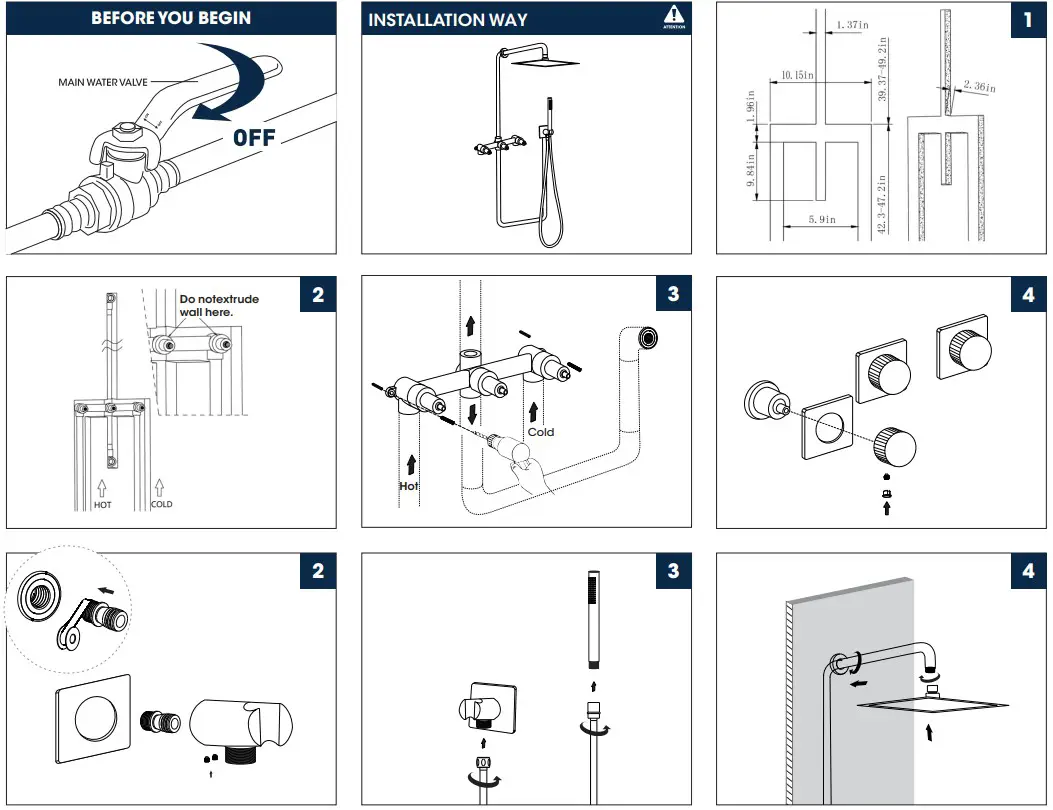

INSTALLATION STEPS

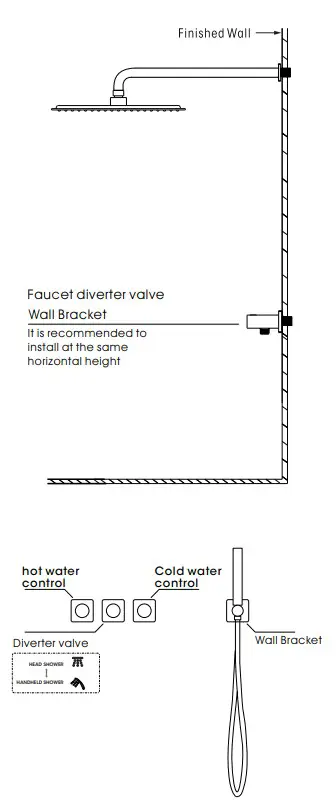

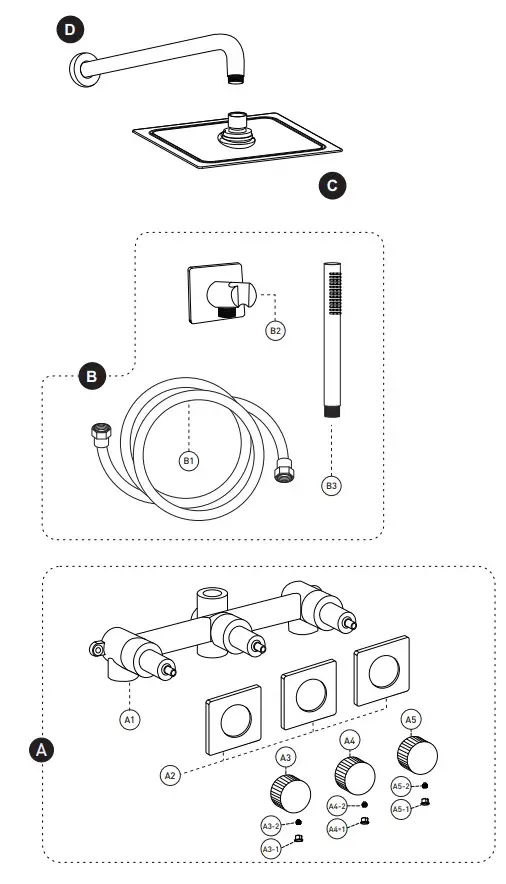

PRODUCT DRAWING
| No. | Description |
| A | Pressure balanced diverter valve |
| Al | Valve |
| A2 | Face plate with sealjoint |
| A3 | Adjusting knob (Hot) |
| A3-1 | Trim cap (A-3 included ) |
| A3-2 | Allen screw (A-3 included ) |
| A4 | Diverter knob kit |
| A4-1 | Trim cap (A-4 included ) |
| A4-2 | Allen screw (A-4 included ) |
| A5 | Adjusting knob (Cold) |
| A5-1 | Trim cap (A-5 included ) |
| A5-2 | Allen screw (A-5 included ) |
| B | Handheld Shower Kit with Flexible Hose |
| BI | Flexible hose |
| B2 | Wall Bracket |
| B3 | Handheld Shower |
| C | Shower head |
| D | Shower arm and flange kit |
