436977BK Aluminum Park Bench without Backrest
User’s manual
Customer Service
US: 1-800-645-2986

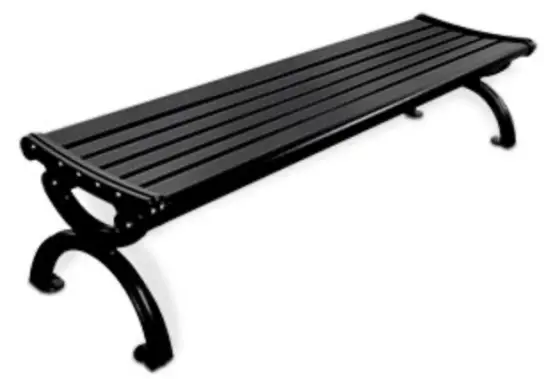

Aluminum Park Bench Without Backrest
Models: 436977BK
NOTE: Mounting hardware is not included.
Warning
- Assembly and installation of equipment should be performed by 2 people.
- Workers should use OSHA approved safety and lifting equipment.
- Ensure that the bench is installed on a level surface.
- Ensure surface is of a strong material, preferably concrete.
- Use proper mountinghardware.
- Do not climb on, under or through tables and benches.
- Two people required to move tables and benches.
- Do not use if any parts of bench or table are broken or damaged.
- Inspect and tighten hardware every six months.
- Replace rusted hardware and damaged components.
Aluminum Park Bench Without Backrest

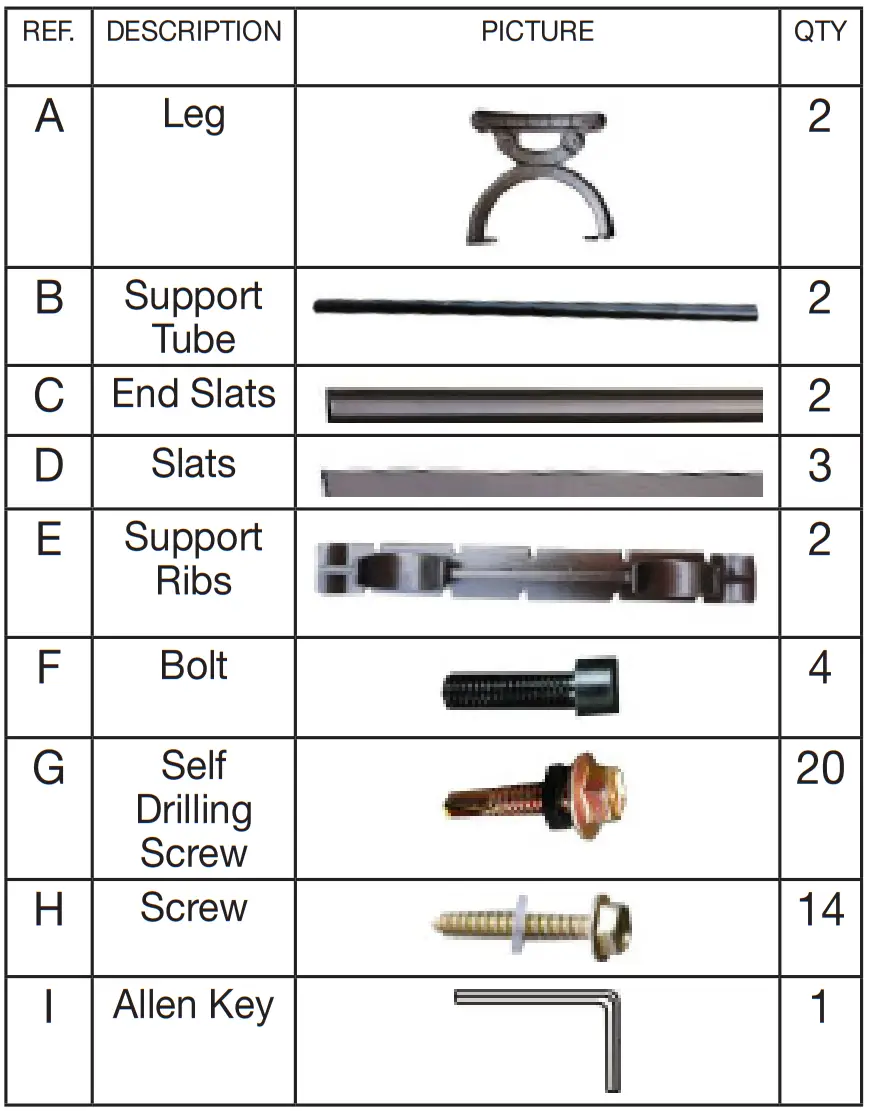

Step 1: Connect the 2 support tubes (Ref. B) with both legs (Ref. A) with bolts (Ref F). Do not fully tighten.
Step 2: Place both support ribs (Ref. E) evenly spaced on top of the support tubes.

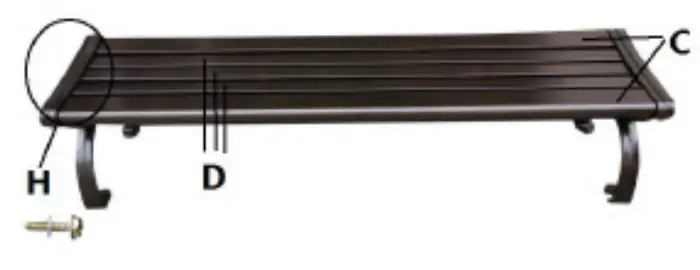

Step 3: Insert and connect both endslats and slats (Ref. C and Ref. D) in between the legs with screws (Ref. H) on both ends. Do not fully tighten.

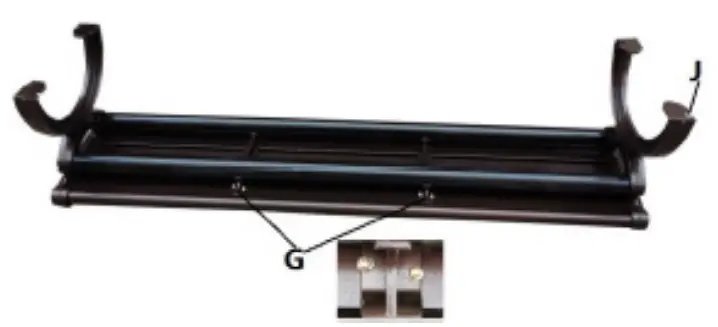

Step 4: Flip bench over and screw down the support ribs with the self drilling screws (Ref. G). Flipbench with legs down and fully fasten all screws
NOTE: Mounting hardware is not included.
