GLOBAL INDUSTRIAL 262112BKKD Steel Park Bench without Back
Product Information
- Product Name: Steel Park Bench without Back
- Models: 262112%.KD, 262112GYKD, 262113BKKD, 262113GYKD, 262114BKKD, 262114GYKD
- Description: This steel park bench is designed without a backrest. It is available in various models with different finishes.
- Part No: 1 (Handle), 2 (Seat)
Hardware:
- H1: M10X35 hexagon bolt (Qty: 8)
- H2: M10 flat gasket (Qty: 8)
- H3: M10 spring pad (Qty: 8)
Product Usage Instructions

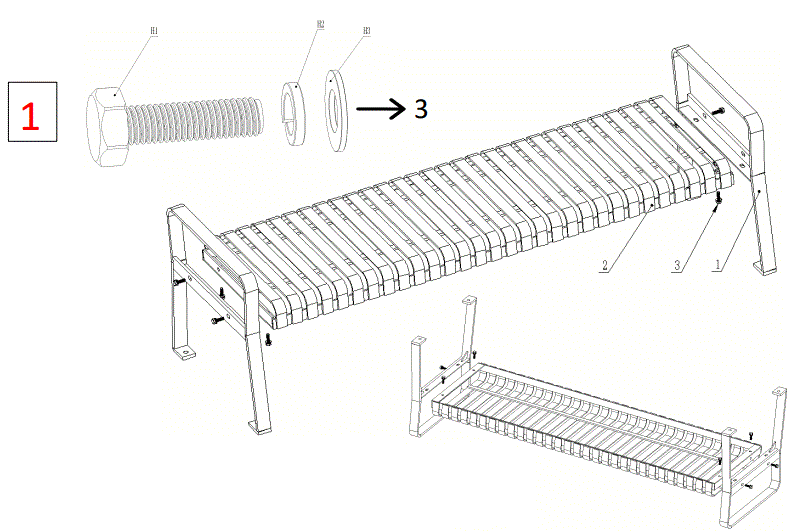

- Assemble the bench by following these steps:
- Attach the handle (Part No. 1) to the seat (Part No. 2) using the provided M10X35 hexagon bolts (H1). Use a total of 8 bolts.
- Place a flat gasket (H2) between each bolt and the seat for secure fastening. Use a total of 8 gaskets.
- Insert a spring pad (H3) between each bolt and the seat for added stability. Use a total of 8 spring pads.
- Ensure all bolts are tightened securely to avoid any instability or wobbling.
- Warning: Read and follow all safety instructions provided in the user manual before using the bench.
If you have any further questions or need assistance, please contact our Customer Service at 1-800-645-2986.
PARTS Description
Steel Park Bench without Back
Models
262112 KD 262113BKKD 262114BKKD 1 262112GYKD 26 2113GYKD 262114GYKD
| Part No | Description | Qty |
| 1 | Handle | 2 |
| 2 | Seat | 1 |
| Hardware No. | Description | Qty |
| H1 | M10X35 hexagon bolt | 8 |
| H2 | M10 flat gasket | 8 |
| H3 | M10 spring pad | 8 |
Warning
- Assembly and installation should be performed by 2-3 people.
- Do not climb on or under the bench.
- Two people are required to move the bench.
- Do not use if any parts of the bench or table are broken or damaged.
- Inspect and tighten hardware every six months
Customer Service
- US: 1-800-645-2986
