INSTALLATION INSTRUCTIONS

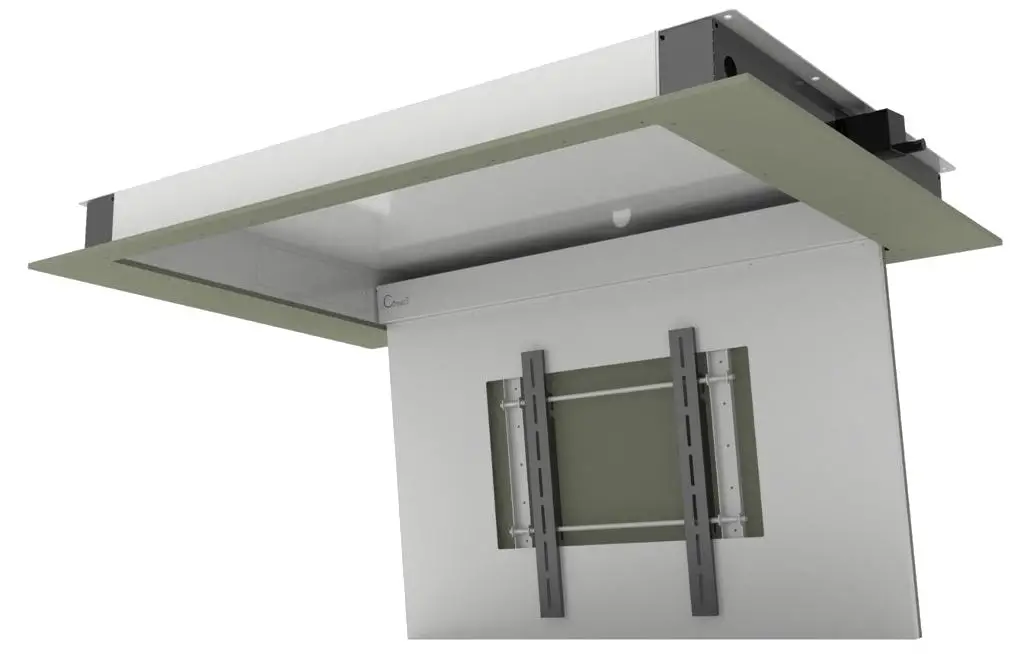

Fold Down Ceiling Tv Lift
TVL-RH
Thank you for buying iConnect products.
The TVL-RH is the latest technology in fold-down ceiling Tv lifts.
Please read this manual carefully before assembling.
Safety
Fold-down ceiling Tv lift TVL-RH must be installed by specialized personnel only.
Before installing the Fold down ceiling Tv lift, please read the following instructions carefully
- The Fold down ceiling Tv lift must be used indoors only.
- It is forbidden to stay under the lift.
- never connect more than one lift motor to the same switch.
- In case of maintenance, unplug the power supply.
- Incorrect use, including exceeding the maximum lifting weight, would be dangerous and invalidate the warranty.
- The manufacturer do not take responsibility for any damage to property or personal injury if the lift is used outside of recommended specifications.
- Incorrect servicing could lead to risk of electric shock.
- For any repairing, please contact directly the dealer you purchased the unit from.
- Check at least once a year that the screws of the steel cables are well tightened

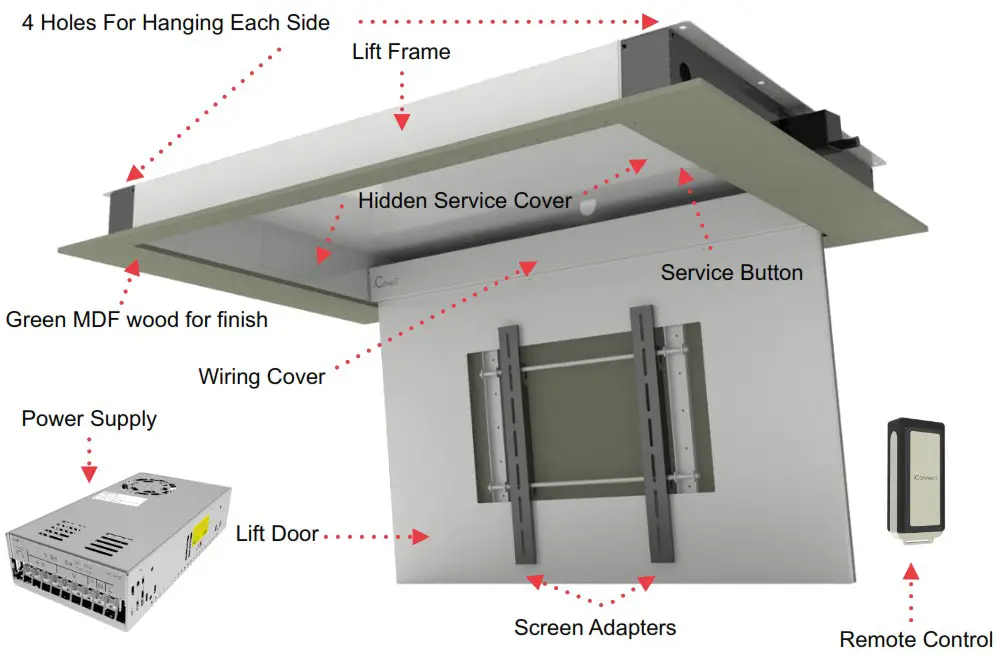

Overview

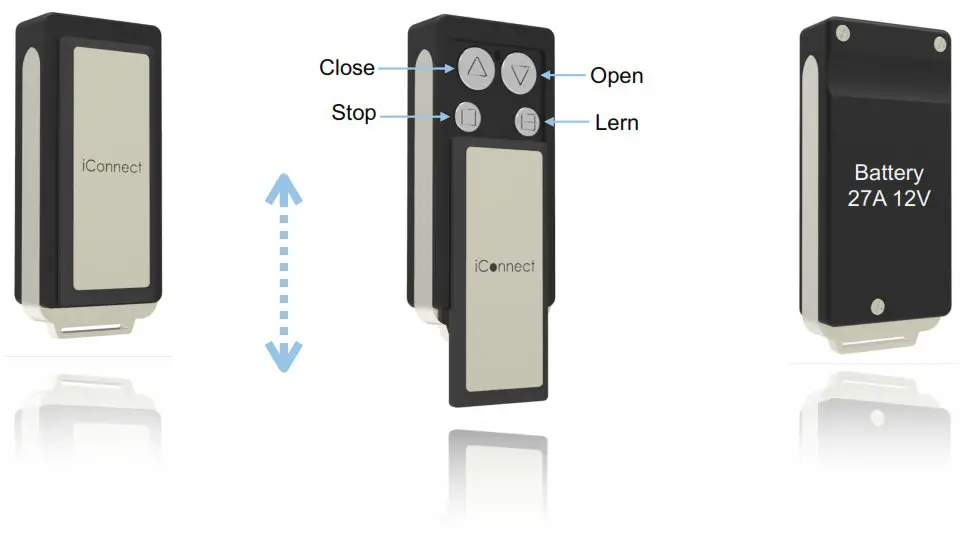

Remote Control
Power Supply
Lift Installation

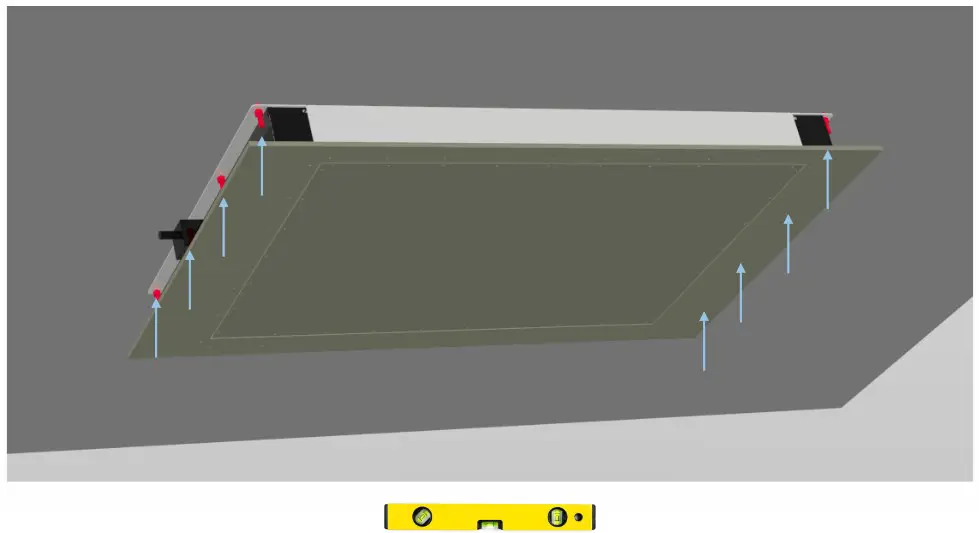

Mark 8 to 6 holes in the ceiling Ceiling drilled 8 holes diameter 10-12mm and install the lift to the desired height
Make sure the lift is level and entrenched

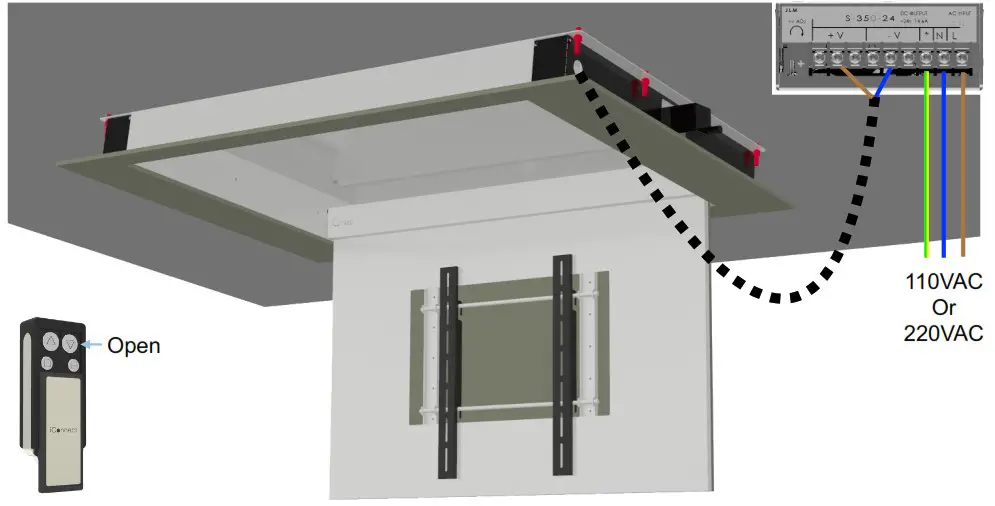

Connect the power supply to a power source 110v or 220v. Connect the main cable that runs from the opening round elevator power supply
according described.
Click the Open button on the remote control one time, and wait until the Lift door opening.

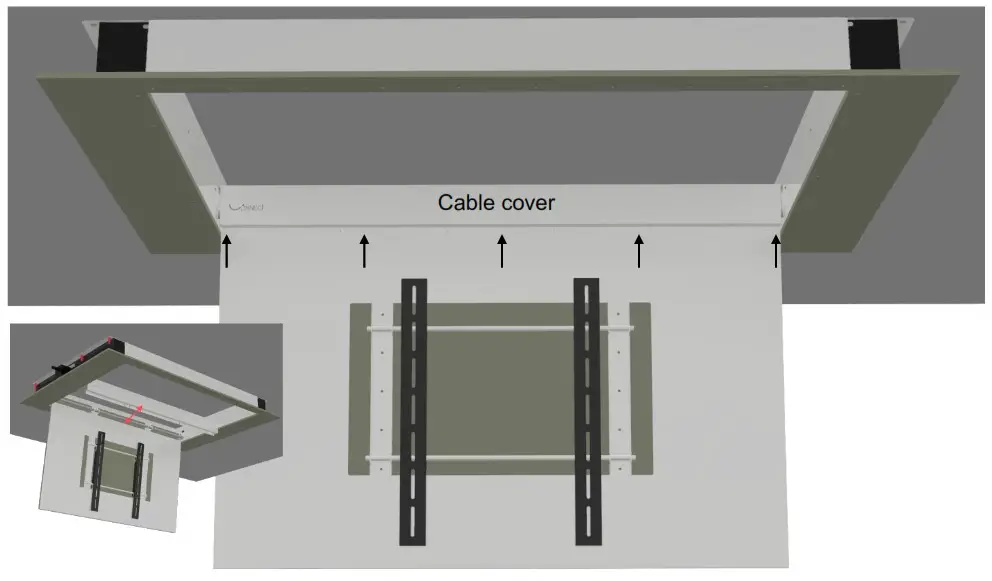

Loosen the screws of the cable cover
Move the wiring for the screen according to the description
Close the cover back

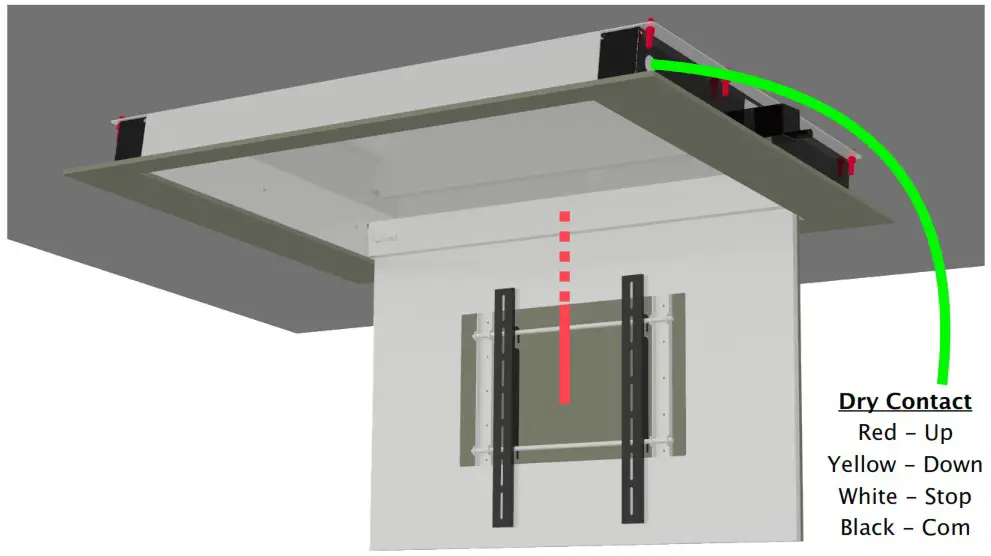

The Red line represents the wiring for the TV screen
The Green line represents the wiring for 24V DC and dry contact command

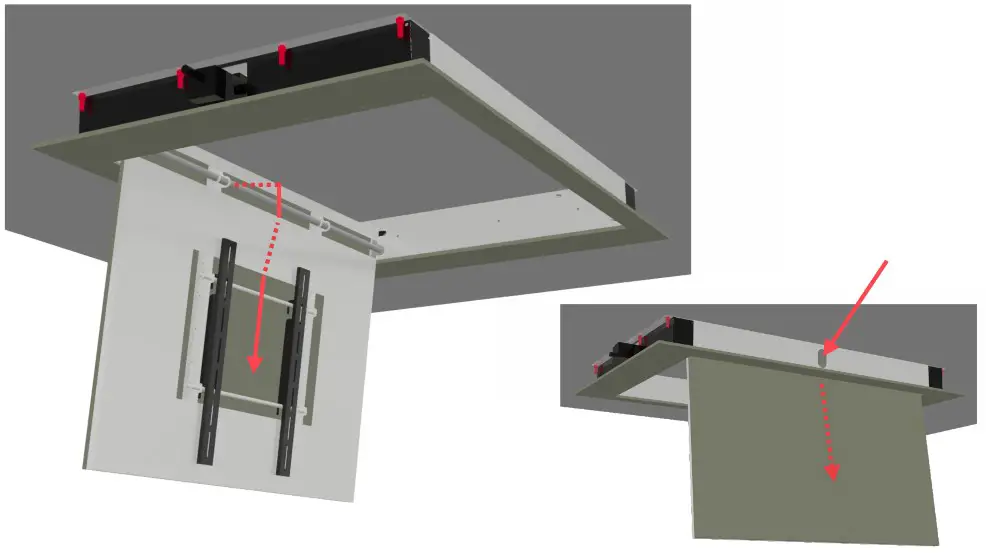

Install the TV screen display adapters
Connect the wiring to the screen

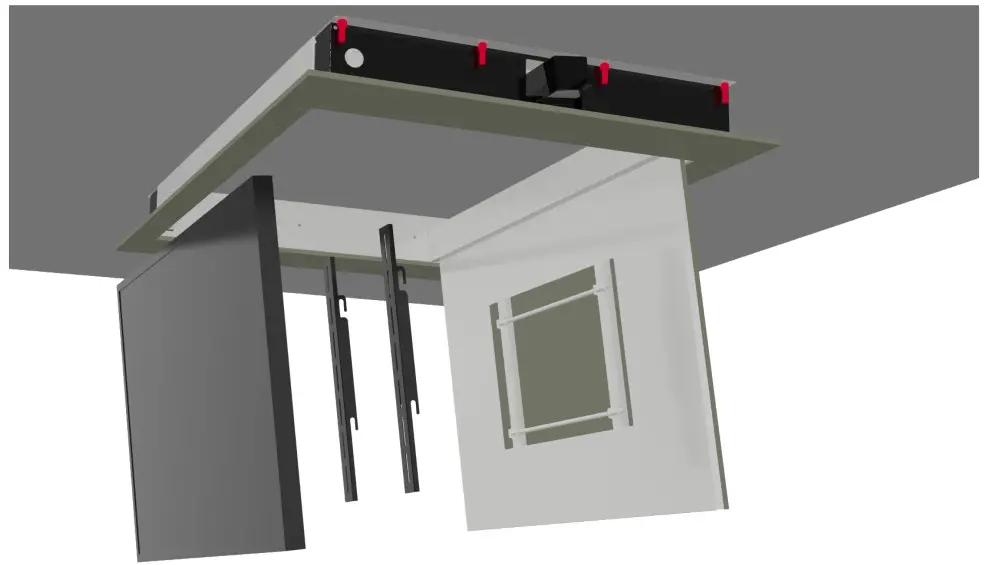

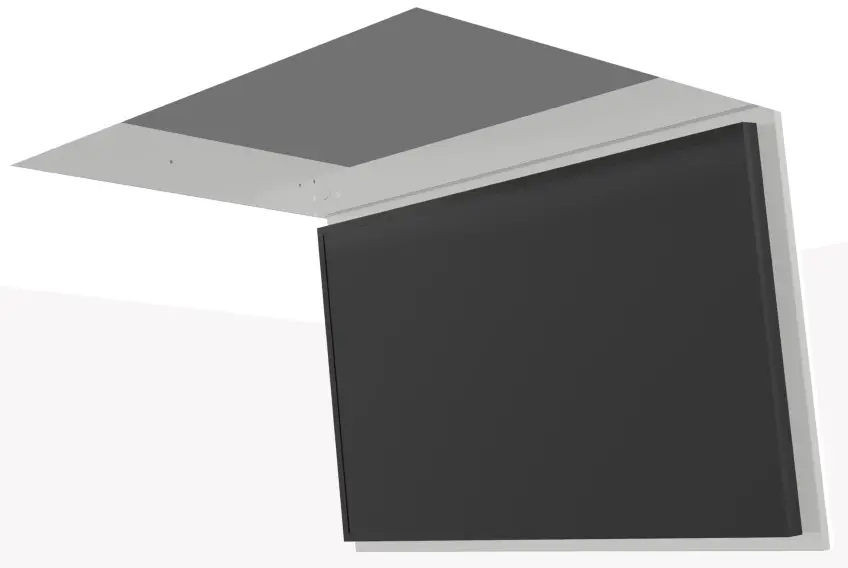

Mount the screen on the brackets lift door

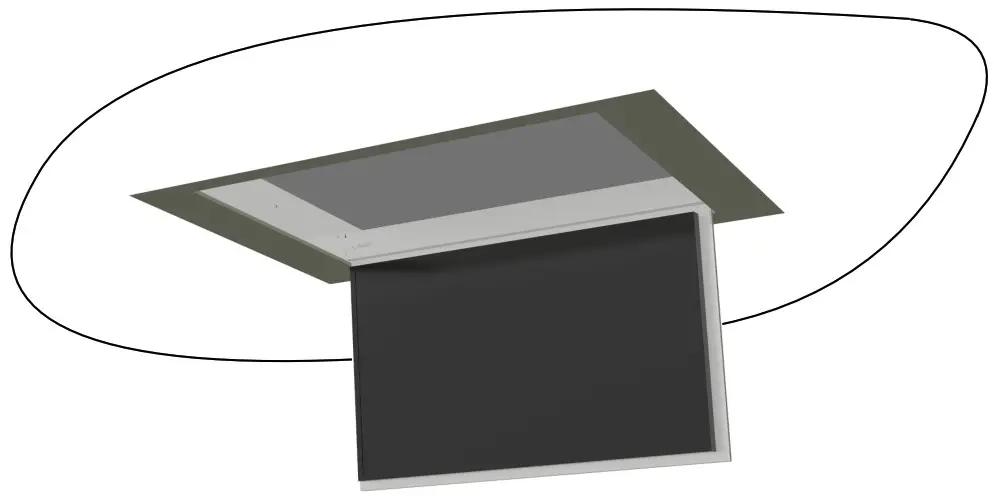

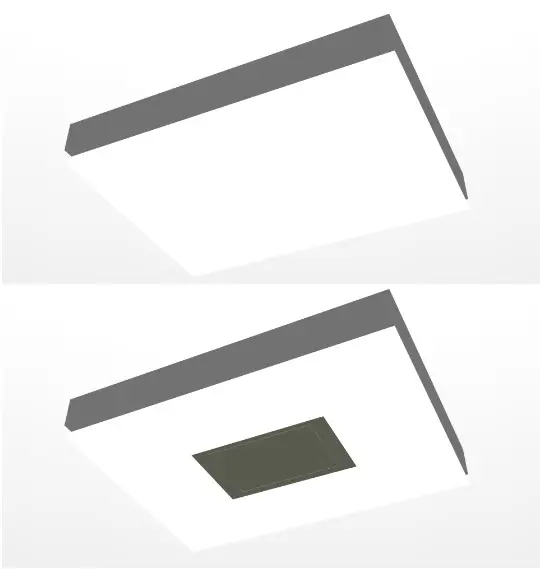

Adjust the plaster ceiling wooden frame
Polisher connections, painted the ceiling
Enjoy your product
