Delonghi Nsm 90 N 90cm 8 Function Built-in Life Ove Owner's Manual

Delonghi Nsm 90 N 90cm 8 Function Built-in Life Ove Owner's Manual

DelonghiNSM-LOGO

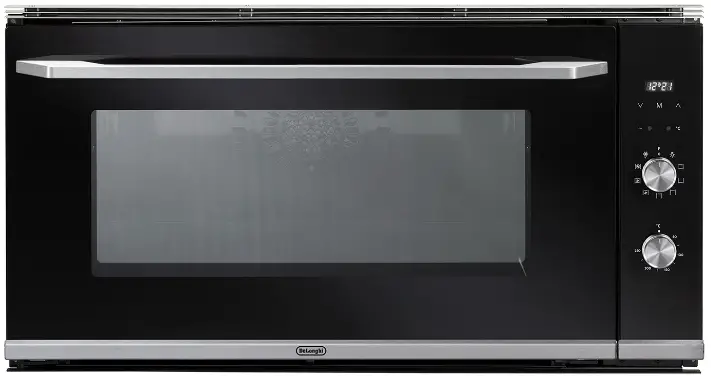

Delonghi NSM 90 N 90cm 8 Function Built-In Life Ove

DelonghiNSM-90-N-90cm-8-Function-Built-In-Life-Ove-PRODUCT

FEATURES

  • 100L gross capacity
  • 8 cooking functions
  • 2400W closed door grilling
  • Included telescopic shelf
  • Fully programmable electronic touch timer
  • Dual rear 25W halogen lighting
  • Wide viewing door
  • Door and oven cooling system
  • Double glazed oven door
  • Removable full glass oven door
  • Sturdy hinges with soft closing system
  • Anti-Tip shelving
  • Stainless steel oven fan filter
  • Drop down grill for cleaning

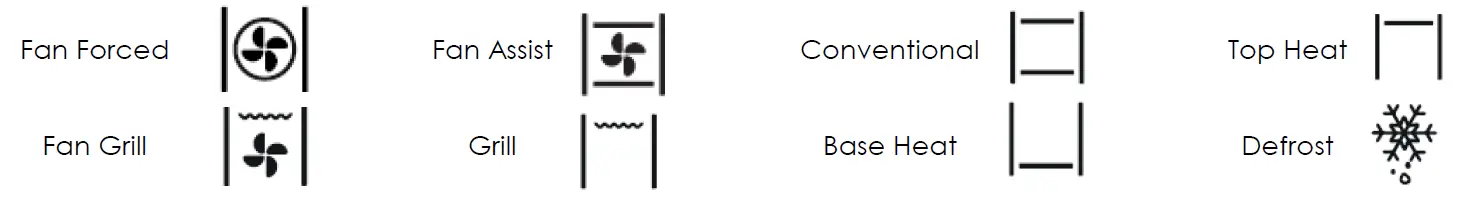

Included AccessoriesDelonghiNSM-90-N-90cm-8-Function-Built-In-Life-Ove-FIG-1

1 Wire Rack, 1 Roasting/Grilling Tray, 1 Grilling Rack + 2 Handles, 1 Stainless Steel Fan Filter, 1 Air Fry tray

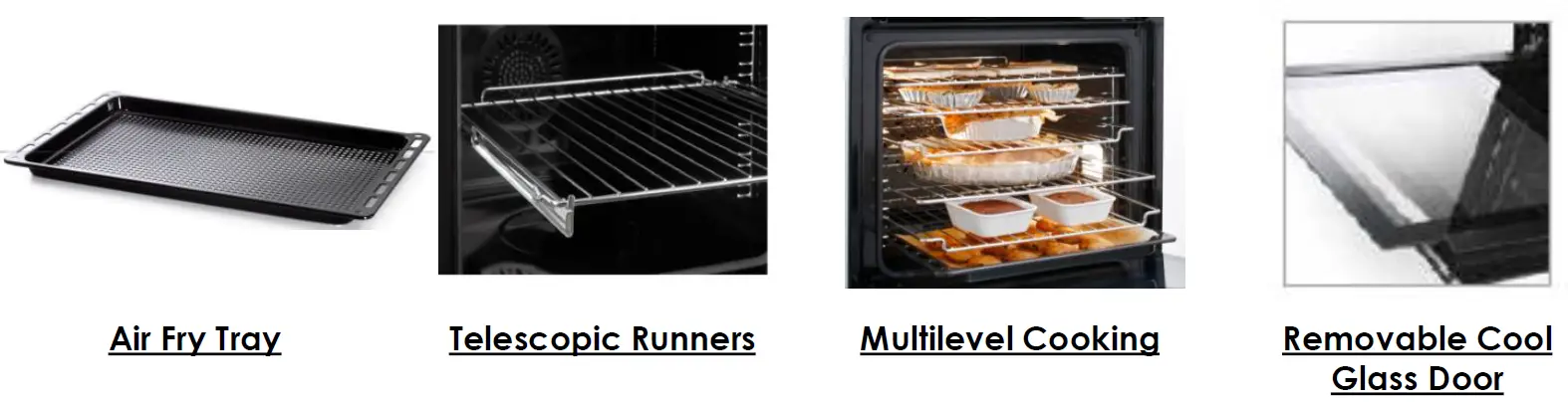

DelonghiNSM-90-N-90cm-8-Function-Built-In-Life-Ove-FIG-2

  • Using little to no oil, your favourite fried foods can be enjoyed guilt free.
  • Allows easier access to cooking, holding up to 15kg.
  • 3D Cooking, various types of dishes can be cooked together to save on time, but not on performance.
  • Keeps the outside of the oven cool and safe to touch. Easy removal when cleaning is needed.

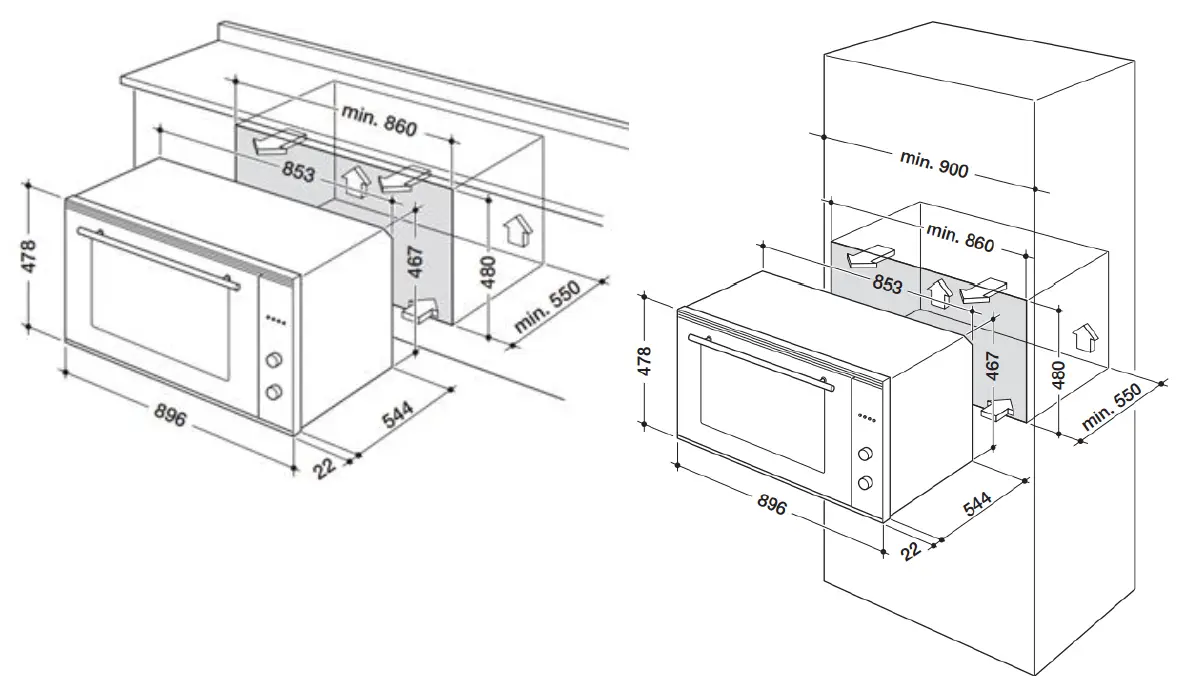

Installation

  • Base Installation
  • Column InstallationDelonghiNSM-90-N-90cm-8-Function-Built-In-Life-Ove-FIG-3

TECHNICAL SPECIFICATIONS

Product Dimensions (H x W x D)mm478 x 896 x 566
Gross Oven CapacityL100L
Temperature Range°C50-250
VoltageV220-240
CurrentA13.26
LightingW2 x 25W Halogen
Grilling PowerW2400
Top Element PowerW1200
Fan Element PowerW2200
Bottom Element PowerW1750
Total WattageW3050
Warranty 2 Years

The product dimensions and specifications on this page apply to the specific model at the time of issue. Dimensions & specifications may change at any time.
Diagrams are a guide only. Final fittings should be made with actual product.

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
