V-2500B Single-Handle Tub-Shower Pressure Balancing Valve
Installation Guide
OLYMPIA FAUCETS, INC.
3325 S. Garfield Ave. Commerce, CA 90040 (888)
772-7701 www.olympiafaucets.com
Model Number: V-2500B
V-2500B Single-Handle Tub-Shower Pressure Balancing Valve
Warnings and Notes: Check with local plumbing code requirements before installation. This product should be installed by a local listed plumber. Do not use plumbers putty on threads.
INSTALLATION
Tools
Installation Steps:

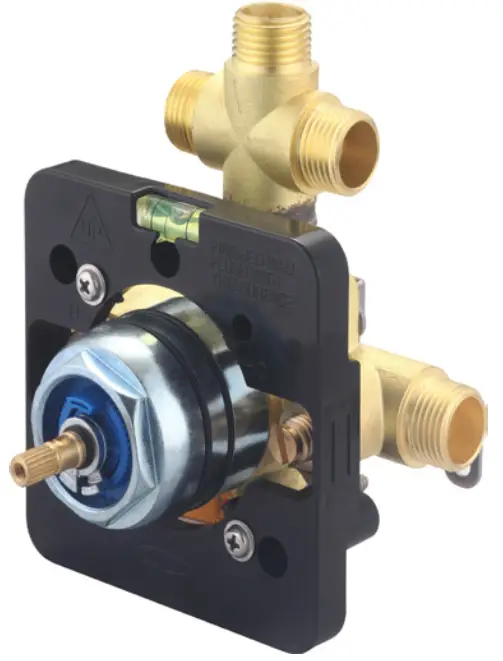

Single Handle Tub/Shower Pressure Balancing Valve With Built-in 2 Way Diverter
 | ||

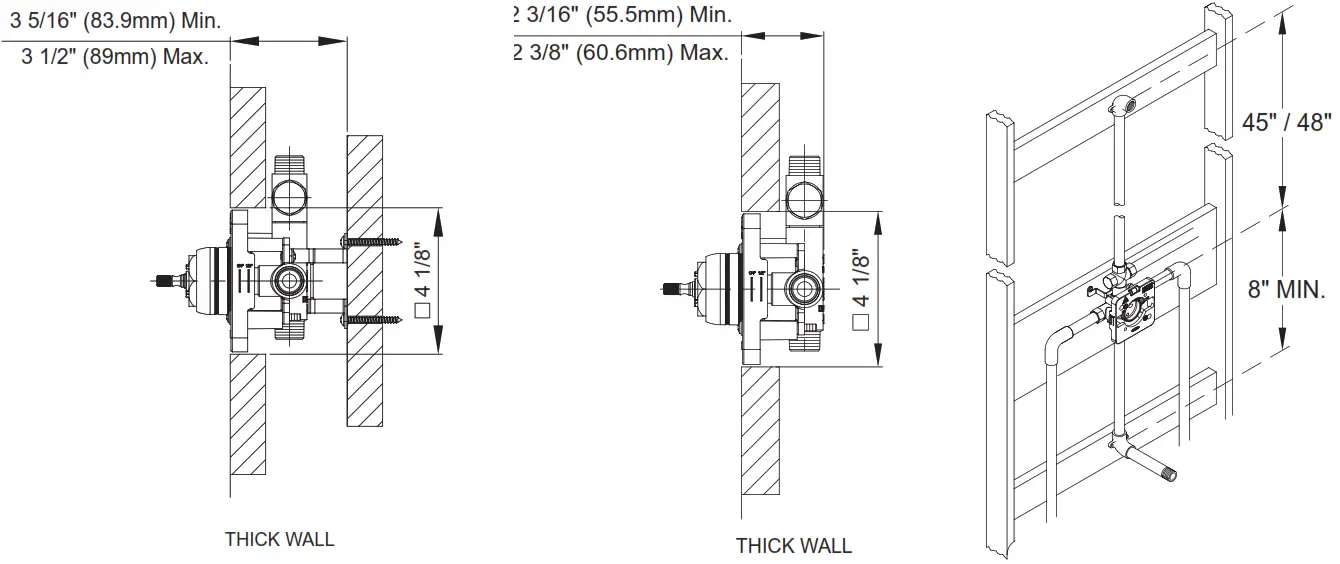

| (1) Installation Distance With Bracket. | (2) Installation Distance Without Bracket. | (3) For Tub Spout Use 1/2″ copper or IPS Pipe Only For Shower Only Use Provided 1/2″ Cap to cap tub outlet. |
 | ||

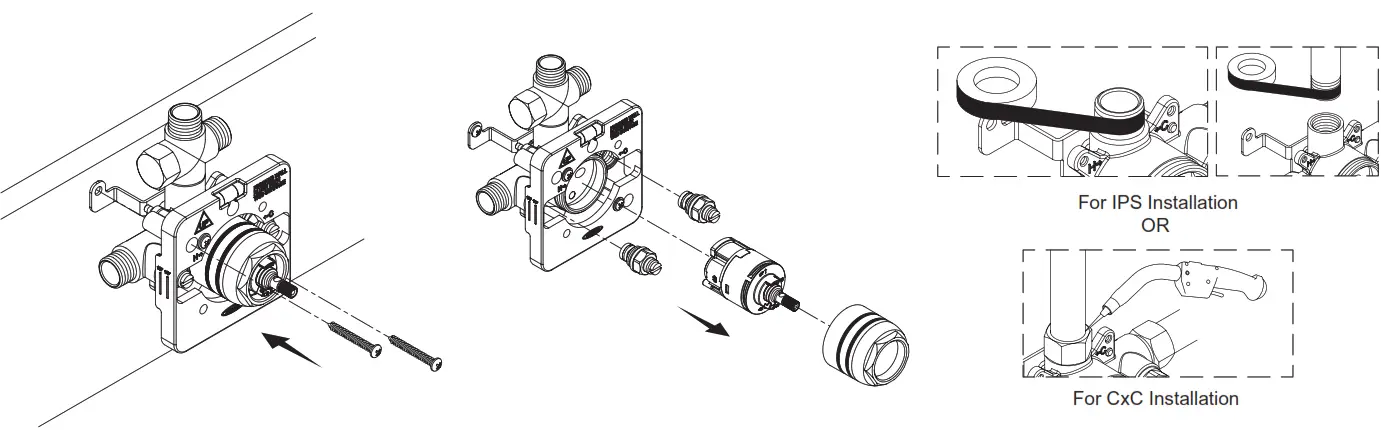

| (4) Install Valve with 2 Wood screws provided. | (5) For CXC Installation :- Remove Sleeve Nut, | (6) Connect valve body to water inlets using the Cartridge and Inlet Stop Assemblies before proper fittings (Copper, IPS, PEX-Crimp, PEX-soldering. Cold Expansion, CPVC). Note:- For PEX, be sure to use the right fitting for crimping and the right fitting for Cold Expansion. |
 | ||

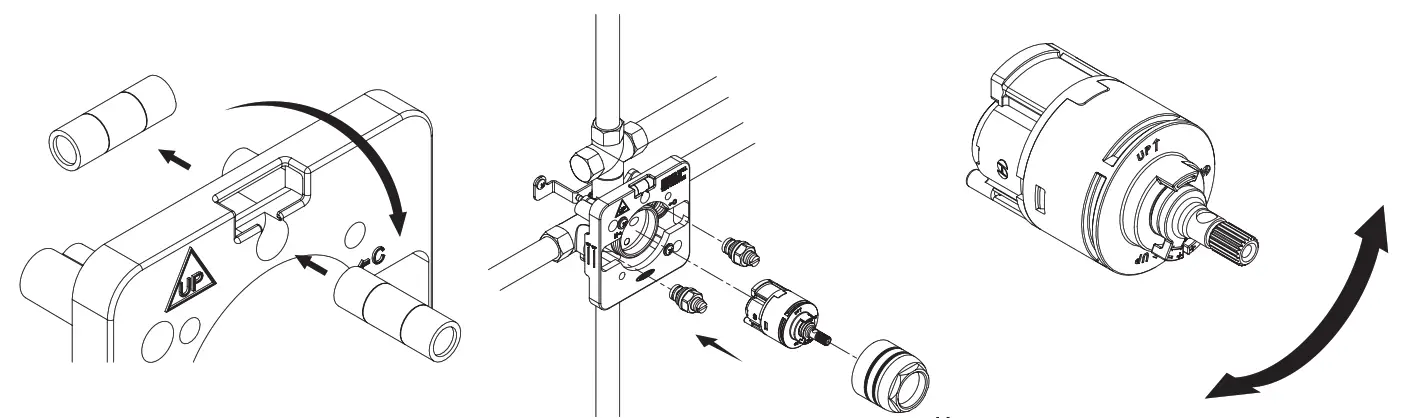

| (7) Ensure Valve is leveled. To check vertical | (8) For CXC Installation :- Assemble Cartridge, Sleeve Nut and Inlet Stop Assemblies afterinstallation was completed. | (9) Turn on water supplies then turn the cartridge leveling remove level and put in the front hole in to the left and to the right to test the valve func-mud guard. tion properly. |

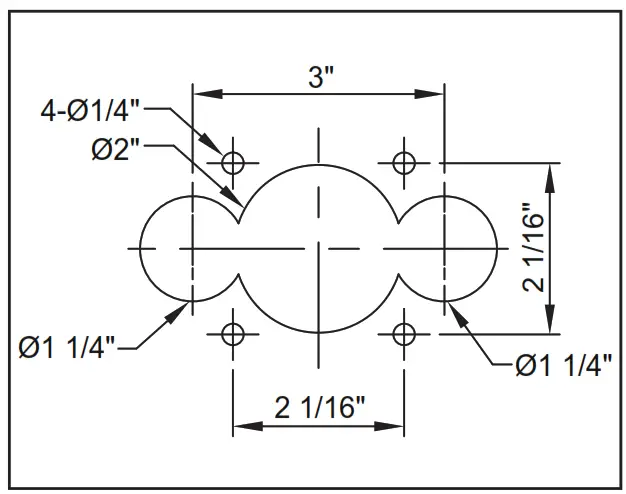

(10) For Thin Wall Installation:- Use Provided template for thin wall installation.
 | |

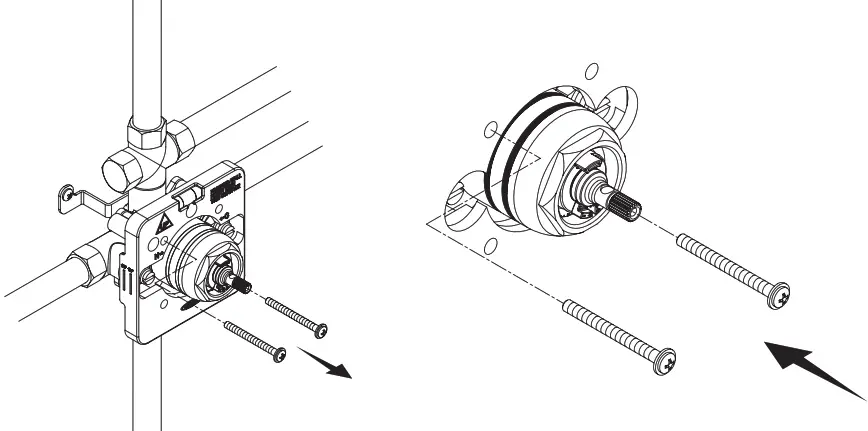

| (11) Remove Mud guard screws. | (12) Use Mud guard screws to secure valve to thin wall. |

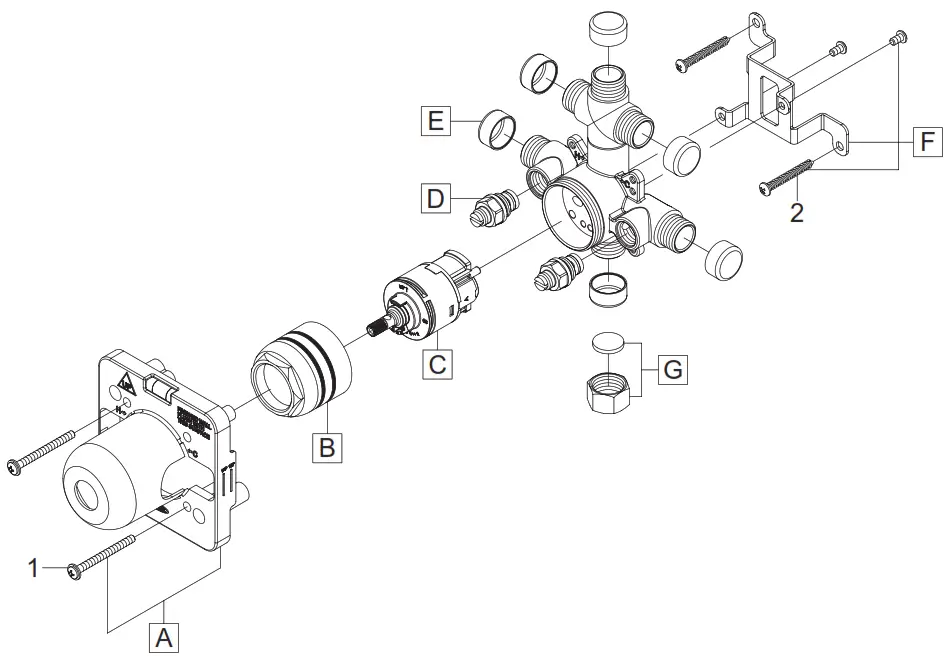

Exploded Drawing
| ITEM # | DESCRIPTION | |
| A | OP-440059 | Mud Guard |
| B | OP-440053 | Sleeve Nut |
| C | X-3400008 | Pressure Balancing Two Way Diverter Cartridge |
| D | OP-440007 | Inlet Stop Assembly |
| E | OP-440023 | Protective Cap |
| F | OP-540003 | Mounting Bracket With Screws |
| G | X-4900025 | Cap and Washe |
| 1 | OP-440063 | Mud Guard Screw |
| 2 | X-4900055 | Mounting Bracket Screws |
For more care information or trouble shooting inquiries
about your Olympia product, Please call:
OLYMPIA FAUCETS, INC. (888) 772-7701
Monday-Friday 8 AM to 8 PM EST (5 AM to 5 PM PST)
www.olympiafaucets.com
