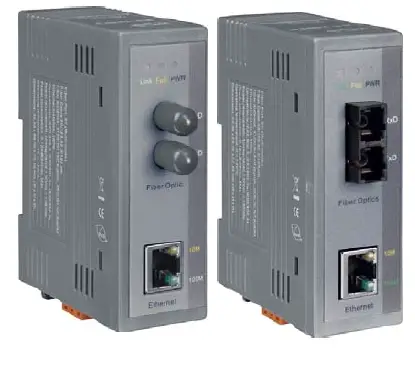

Logicbus NS-200AFT-T Industrial 10-100 Base-T to 100 Base-FX Media Converter
Introduction:
The NS-200AF series is a Ethernet (10/100 Base-TX) to Media (100 Base-FX) converter. The Ethernet supports 10/100M auto negotiation feature and auto MDI/MDI-X function.
NS-200A can work normally from -30 ~ 75°C and accepts a wide voltage range from +12 ~ 48 VDC.
Features:
- Automatic MDI/MDI-X crossover for plug-and-play
- Supports both 10/100 Mbps speed auto negotiation
- Store-and-forward
- Full duplex IEEE 802.3x
- Supports +12 ~ +48 VDC voltage
- Supports operating temperatures range -30 ~ 75°C
- DIN-Rail
Specifications
| Technology | |
| Standards | IEEE802.3, 802.3u, 802.3x |
| Processing Type | Store & forward; wire speed switching |
| MAC Addresses | 1024 |
| Memory Bandwidth | 1.4 Gbps |
| Interface | |
| RJ-45 Port | 10/100BaseT(X) auto negotiation speed, Full duplex mode, and auto MDI/MDI-X connection |
| Fiber Port | 100 Base-FX (SC/ST connectors) |
| LED Indicators | 10/100M, Link/Act, Full duplex for Fiber Port |
| Ethernet Isolation | 1500 Vrms 1 minute |
| Frame Ground for EMS Protection | Yes |
| Multi Mode (NS-200AFT-T, NS200AFC-T ) | Multi mode fiber cables: 50/125, 62.5/125 or 100/140 μm |
| Distance: 2 km, (62.5/125 μm recommended) for full duplex | |
| Wavelength: 1300 or 1310nm | |
| Min. TX Output: -20 dBm | |
| Max. TX Output: -14 dBm | |
| RX Sensitivity: -32 dBm | |
| Single Mode (NS 200AFCS-T, NS-200AFCS-60T) | Single-mode fiber cables: 9/125μm |
| Distance: 30 km for NS-200AFCS-T Distance: 60 km for NS-200AFCS-60T | |
| Wavelength: 1300 ~ 1310nm | |
| Min. TX Output: – 15 dBm for NS-200AFCS-T Min. TX Output: – 5 dBm for NS-200AFCS-60T | |
| Max. TX Output: -8 dBm for NS-200AFCS-T | |
| Max. TX Output: 0 dBm for NS-200AFCS-60T | |
| RX Sensitivity: -34 dBm for NS-200AFCS-T RX Sensitivity: -35 dBm for NS-200AFCS-60T | |
| Ethernet Transmission distance | Ethernet: 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100-ohm |
| Fast Ethernet: 2-pair UTP/STP Cat. 5, EIA/TIA-568 100-ohm | |
| Power | |
| Input Voltage Range | +12 ~ +48 VDC (Non-isolation) |
| Power consumption | 0.12A@24 VDC |
| LED Indicator | Yes |
| Protection | Power reverse polarity protection |
| Frame Ground for EMS Protection | Yes |
| Case | |
| Mechanical | Plastic (Flammability UL 94V-0) |
| Dimensions (W x L x H) | 33mm x 85mm x 107mm |
| Installation | DIN-Rail |
| Environmental | |
| Operating Temperature | -30°C ~ +75°C |
| Storage Temperature | -30 ~ +85°C |
| Ambient Relative Humidity | 10% ~ 90% HR, non-condensing |
NS-200AF Series User’s Manual (Version 1.2, Sep/2011) ————— 1
LED functions

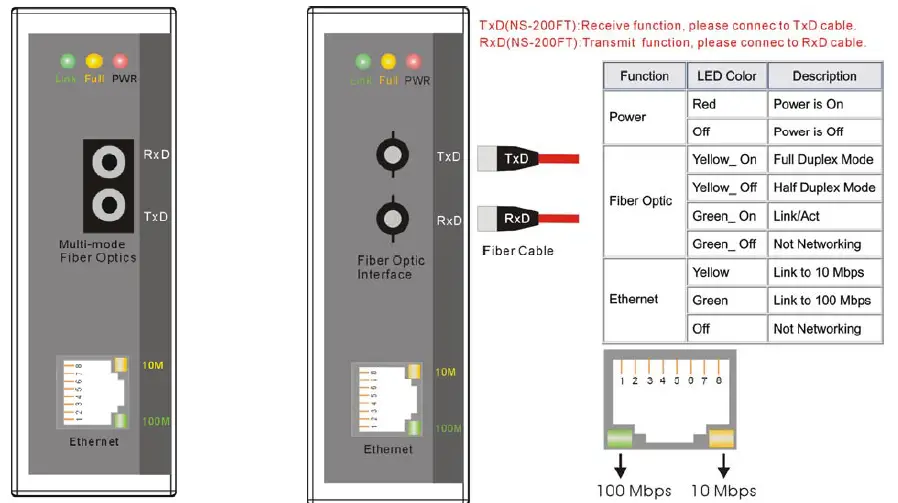

Standard RJ45 female connectors are provided. A standard RJ45 plug cable is necessary to connect your device to the unit since switch that supports auto crossover. Figure1 shows the LED indicator functions. The module includes an internal.
Figure1:
NS-200AFC-T/AFCS-T/ AFCS-60T
NS-200AFT-T
Pin Function for Terminal Block
External power supply is connected using the removable terminal block:
+Vs : Power input (+12 ~ +48 VDC) and should be connected to the power supply (+) GND : Ground and should be connected to the power supply (-)
F.G. : F.G. stands for Frame Ground (protective ground). It is optional. If you use this pin, it can reduce EMI radiation; improve EMI performance and ESD protection.
