3MP HD TWDR IR IP Camera
Instruction Manual
Features:
- Adopt 1/2.8″ Sony 3.21MP progressive scan, 120fps Exmor CMOS
- Encoding system: H.264+/H.264/MJPEG, dual stream output
- 3MP full real-time recording
- 2.8-12mm Motorized Lens, autofocus
- Support ONVIF
- Support TWDR, intelligent analysis
- Support mobile phone, WEB, client, and platform management software
- Alarm linkage snapshot and Email sending
- POE power supply, DC12V
Specifications:
| MODEL | Bullet ir |
| CAMERA | |
| Image sensor Min. illumination IR distance Electronic shutter Day/ Night Scan system Sync system Lens Lens interface R/N ratio Output WDR Video Parameter | 1/2.8″SONY 3.21MP progressive scan, 120fps Exmor CMOS 0Lux/F1.4 (IR ON) 40-50M (3xIRIII IR leds) Auto/ Manual(1/25~1/10000), FLK ICR switch, Auto, Colour, B/W, Ext Progressive scan Internal 2.8- 12mm motorized lens (auto fucus) M14 ≥50db (AGC OFF) PAL/NTSC adjustable T-WDR(105dB) Mirror, 3D Noise reduction, Sharpness/Brightness adjustable |
AUDIO/VIDEO COMPRESSION
| Video compression Encoding features Max. image resolution Video bit rate Stream type Audio compression Audio bit rate | H.264+/H.264/MJPEG Dual-stream; mainstream : 2048×1536 @30fps substream: D1@30fps 2048×1536 Constant bit rate, variable bit rate (16kbps~8000kbps) Complex stream / Video stream G.711A 64Kbps |
NETWORK
| Motion detection Privacy zones Snapshot Password protection Character display Alarm function Intelligent analysis Mobile Surveillance Protocol Port protocol | Can be set to a single detection zone, and Multi-level sensitivity can be set 4 zones Support JPEG format, max. resolution based on a snapshot resolution Support Support (Channel, Date) Video loss, network anomaly, tampering alarm, storage exception, motion detection, etc. intelligent alarm Target counting, article-inspecting, region detection, virtual cordon, intelligent motion detection, videognosis, voice alarm, fire recognition, face recognition, license plate recognition Apple, android TCP/IP, UDP, HTTP, DHCP, RTSP, DNS, NTP, PPPOEUPNP, SMTP, ONVIF ONVIF |

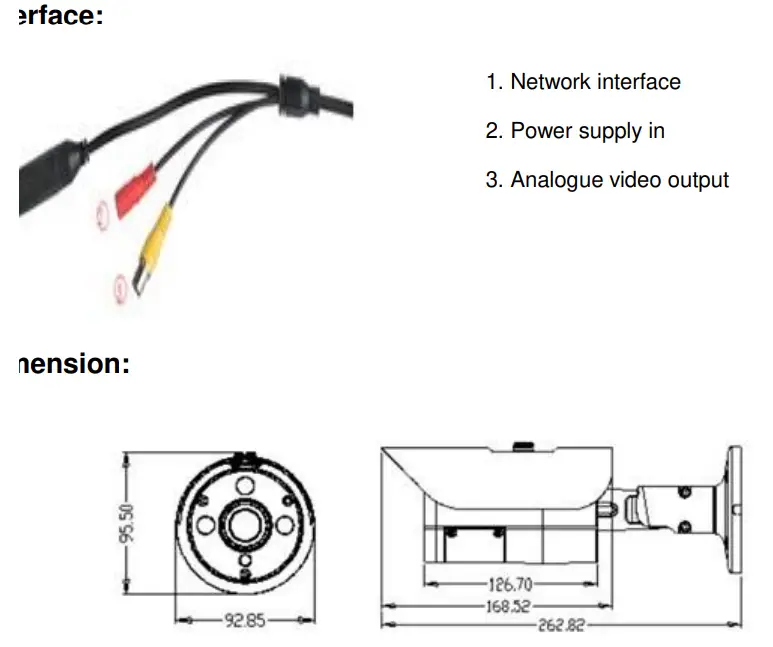

INTERFACE
| Network Interface Analog video output Audio Alarm MicroSD card RS485 Reset | RJ45 10M/100M adaptive 1CH 1.0Vp-p composite video output N/A N/A N/A N/A N/A |
GENERAL
| Operating temperature/humidity Protection grade Power supply Power consumption (max Dimensions(mm) Weight/PCS(g) | -20°C ~ 55°C/0%-90% IP66 DC12V /POE <9W 92.85(w)*95.5(H)*262.82(L)mm 904g |
