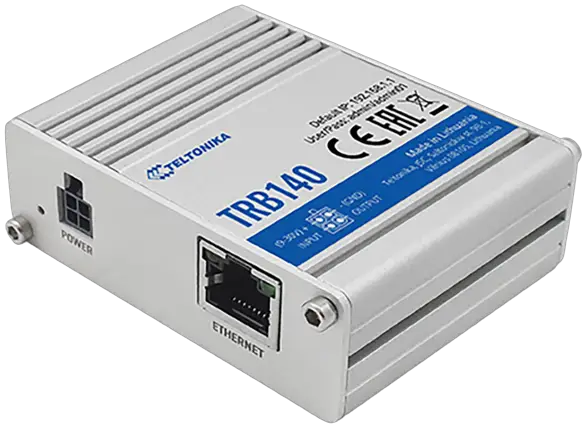

TELTONIKA TRB140 4G or LTE Ethernet Gateway User Guide
Product Overview

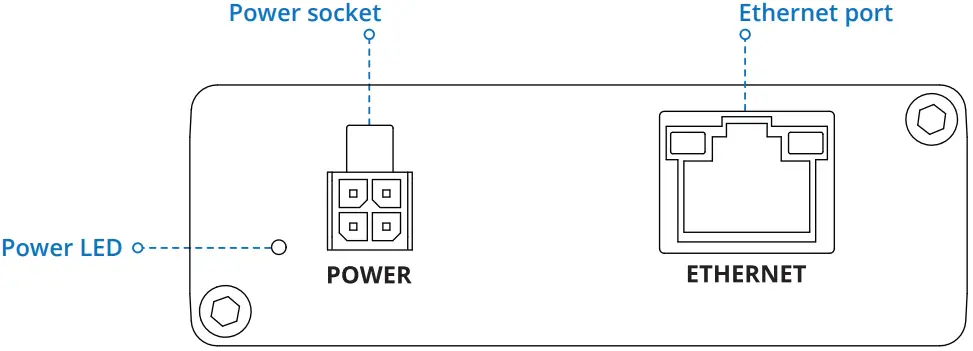

FRONT VIEW

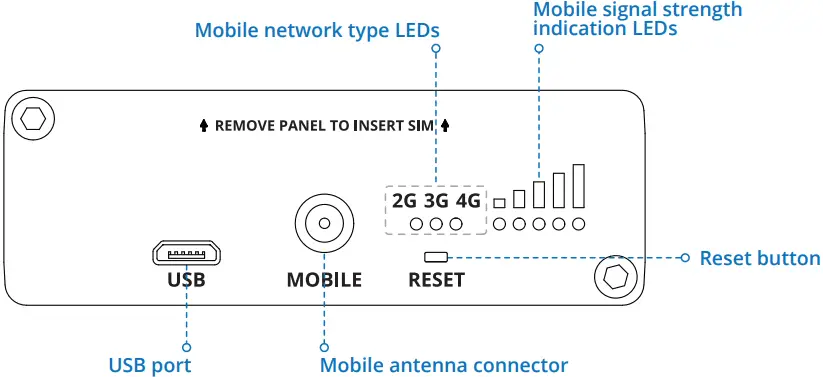

BACK VIEW
POWER SOCKET PINOUT

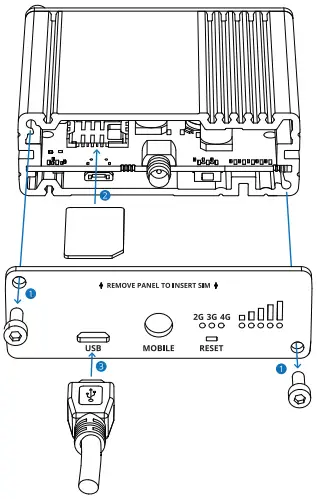

HARDWARE INSTALLATION
- Unscrew two back panel hex bolts.
- Remove the back panel.
- Insert your SIM card into the SIM socket.
- Attach the panel and tighten the hex bolts.
- Attach the LTE antenna torque (max torque 0.4 Nm 3.5 in-lbs) and connect the USB cable.
- Connect the power adapter to the socket on the front of the device.
Then plug the other end of the power adapter into a power outlet.
DEVICE CONFIGURATION
- Power on the device and connect the USB cable to your computer.
- Allow the gateway to boot up. This might take up to 30 seconds.
- Your computer’s OS should detect the USB device and install the drivers for the virtual NDIS network adapter.
The IP address is set automatically via DCHP. - Use a Web browser to go to address http://192.168.2.1

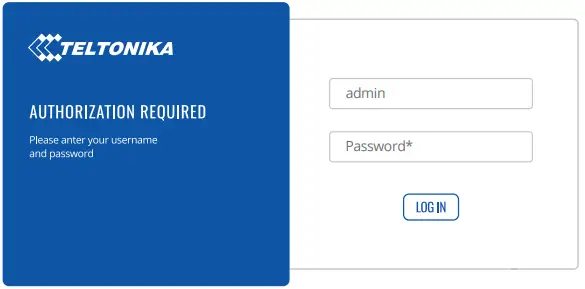

- Use login information shown in image A when prompted for authentication.

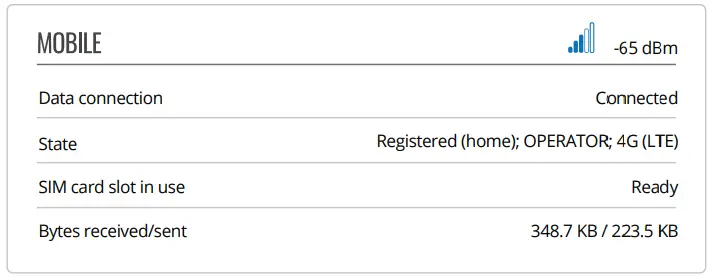

- After logging in pay attention to the Signal Strength indication displayed in the Mobile widget (image B).
To maximize the cellular performance try adjusting the antennas or changing the location of your device to achieve the best signal conditions.
A.
B.
TECHNICAL INFORMATION
| Radio specifications | |
| RF technologies | GSM, GPRS, EDGE, UMTS/HSPA+, LTE |
| Max RF power | 33 dBm@GSM. 24 dBm@WCDMA. 23 dBm@LTE |
| Bundled antenna specifications* | |
| Power | AC/DC power adapter 9 V, 0.5 A, 4 pin plug |
| GSM/WCDMA/LTE antenna | 698-868/1850-2690 MHz, 50 Ω, VSWR < 2, gain** 2 dBi, omnidirectional, SMA male connector |
Order code dependent.
Higher gain antenna can be connected to compensate for cable attenuation when a cable is used.
The user is responsible for the compliance with the legal regulations
DECLARATION OF CONFORMITY
TRB140 gateway must be used in compliance with any and all applicable national and international laws and with any special restrictions regulating the utilization of the
communication module in prescribed applications and environments.
 | Hereby, TELTONIKA declares that this TRB140 is in compliance with the essential requirements and other relevant provisions of Directive RED. |
Declaration of Conformity (DoC) can be obtained by visiting: https://teltonika.lt/product/trb140/
Instruction Manual: Connect the power adapter to turn on the device.
Open 192.168.2.1 in your web browser to configure it.
More information on https://wiki.teltonika.lt
