Moza Racing 40mm To 66mm Hole Spacing Adapter Plate User Manual

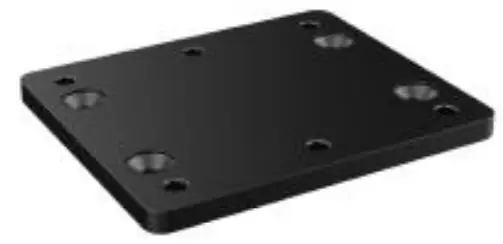

40mm to 66mm Hole Spacing Adapter Plate

Product Introduction

1. Add 66mm hole spacings to adapt to more racing rigs.

2. CNC machined with 5mm-thick high-strength steel, race easily at max FFB.

3. Applicable products: bases with 40mm hole spacings such as the R5 base.

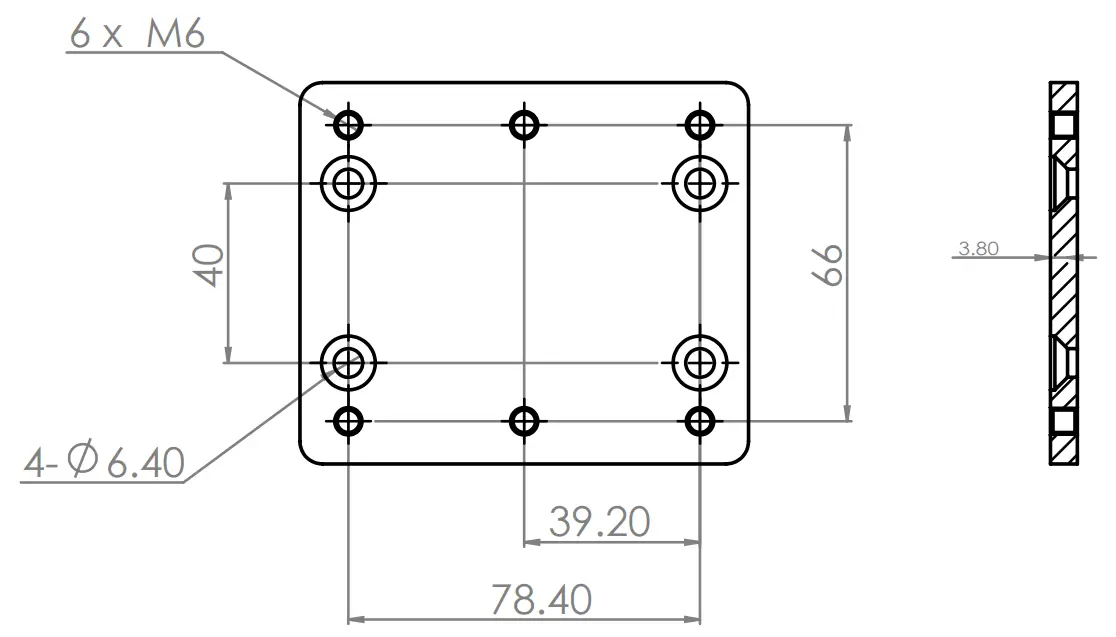

Specifications & Dimensions

Fixaition

Fix the adapter board on the wheelbase with countersunk screws through the four 40mm- spacings holes and then fix the wheelbase on the racing rig through the holes with 66mm spacings.

Acessories

• Adapter board
• 4 * M6 countersunk head screw
• 4 * M5 cup head screw
• 2 * Allen keys
