User Manual
Product Video Information
| Chopin MAX Product Video | Chopin MAX Installation Guide Video |
 |  |
| https://youtu.be/0uTF3Pt7Dig | https://youtu.be/9B5LO5S2uNw |
Product Story
Luxe Little Legend

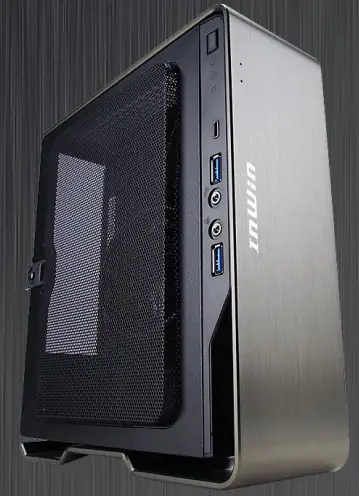

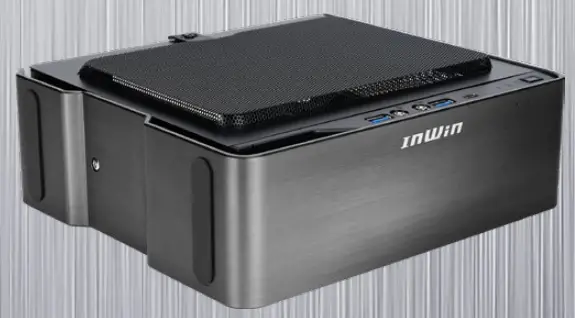

The Chopin MAX is an ultra slim form factor case designed with the intention of being a multifaceted PC case with a small footprint. Uncompromised quality and functionality developed in a 3.3-liter chassis. Chopin MAX features a 4 mm brushed aluminium shell that completes a clean and sleek chassis frontal.
Specifications
InWin Chopin MAX Chassis
| Model | Chopin MAX |
| Model Number | IW-CS-CHOPINMAXGRE-PS200W IW-CS-CHOPINMAXBLK-PS200W IW-CS-CHOPINMAXSIL-PS200W |

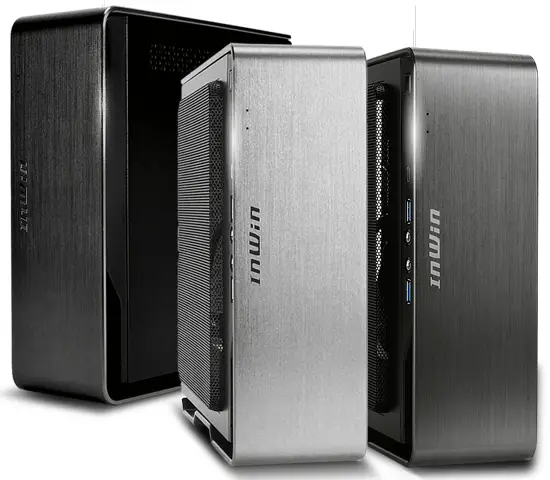

| Colors | Titanium Grey, Black, Silver |
| Case Type | Mini-ITX Tower |
| Materials | Aluminium, SECC |
| M/B Compatibility | Mini-ITX |
| I/O Ports | 1 x USB 3.2 Gen 2×2 Type-C 2 x USB 3.2 Gen 1 HD Audio |
| CPU Heatsink Height | Up to 54 mm |
| Internal Drive Bays | 2 x 2.5″ (H 9.5 mm Max.) |
| Power Supply Compatibility | InWin 200W 80 PLUS Gold PSU Included |
| Product Dimensions (L x W x H) | 217 x 84 x 244 mm 8.54 x 3.3 x 9.6″ |
| Package Dimensions (L x W x H) | 270 x 120 x 276 mm 10.6 x 4.72 x 10.8″ |
| Net Weight | 2.2 kg / 4.85 lbs |
| Gross Weight | 2.5 kg / 5.5 lbs |
* InWin’s products comply with RoHS regulations.
* Specifications may vary based on different regions.
InWin 200W 80PLUS GOLD PSU
| Model | IP-AD200C7-2 |
| Total Power | 200W |
| Material | SECC |
| Type | ITX |
| PFC | Active PFC |
| Efficiency | 80 PLUS Gold |
| MTBF (Hours) | > 100,000 |
| AC Input | 100 – 240 Vac. 50-60Hz |
| Operating Temperature Range(° C) | 0~40° C |
| Full Protection | OVP / UVP / SCP / OPP |
| Safety Certifications | TUV / cTUVus / BSMI / CB / CE / FCC / EAC / RCM / CCC |
| Dimensions (L x W x H) | 52 x 40 x 170 mm 2.05 x 1. x 6.7″ |
| Warranty | 3 Years |
| Connectors | 20+4 Pin Motherboard 1 8 (4+4) Pin CPU 1 8 (6+2) Pin PCI-E 0 4 Pin Peripheral 0 SATA (90 Degree) 1 Floppy 0 |
* InWin’s products comply with RoHS regulations.
* Specifications may vary based on different regions.
Package Contents
https://www.in-win.com/en/manual/gaming-chassis/c
Accessories Bag
| Hexagon Head Screw x 5 | 2.5” SSD Screws x 8 |
 |  |

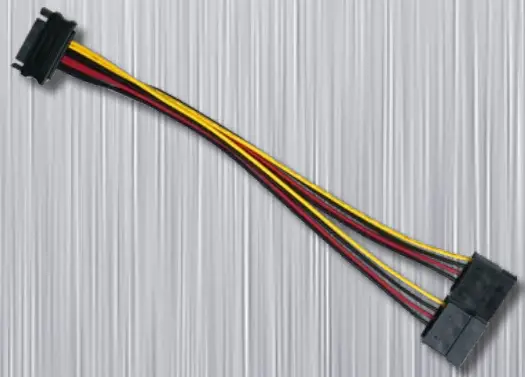

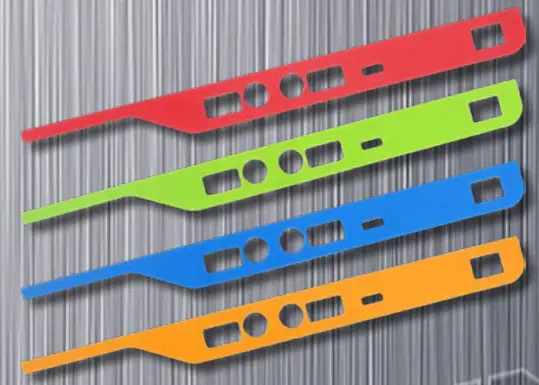

| SATA Power Y Splitter Cable x 1 | Side Panel Mylar (Red, Green, Blue, Orange) x 4 Set |
 |  |

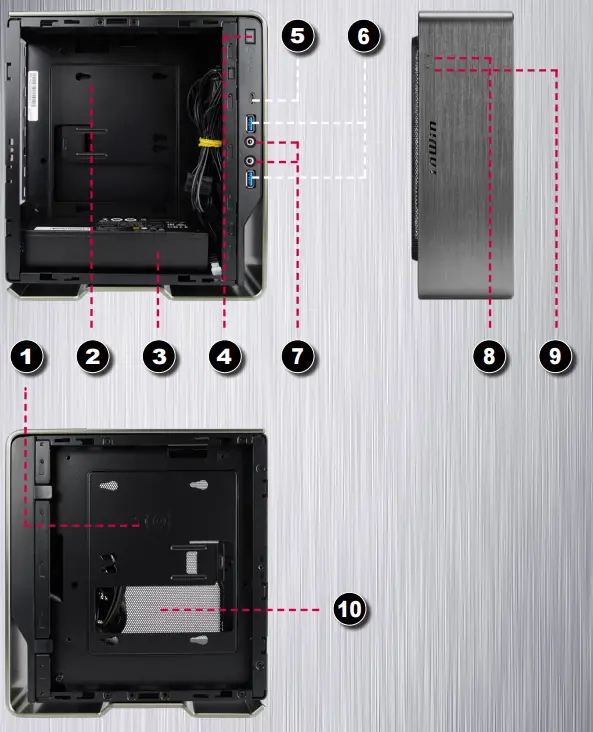

Case Structure
- 2.5″ Drive Bay
- Motherboard Mounting Area
- 200W 80 PLUS Gold PSU Included
- Power Button
- USB 3.2 Gen 2×2 Type-C
- USB 3.2 Gen 1
- Audio Ports (Earphone and Microphone)
- Power Indicator
- HDD Indicator
- M.2 SSD Installation Cut-Out Hole
Connection Cables

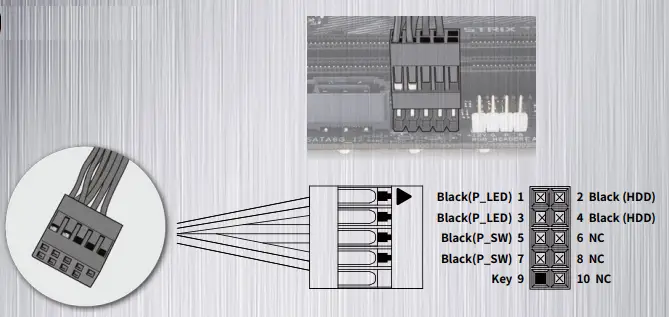

I/O Wires x1

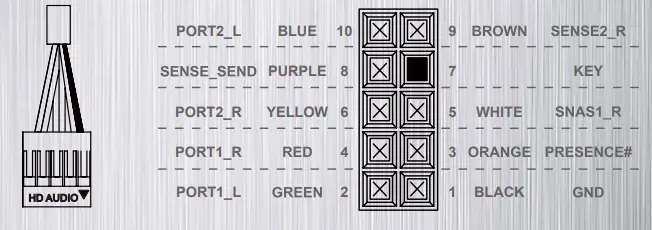

HD Audio Header x1
USB 3.2 Gen 1 x1

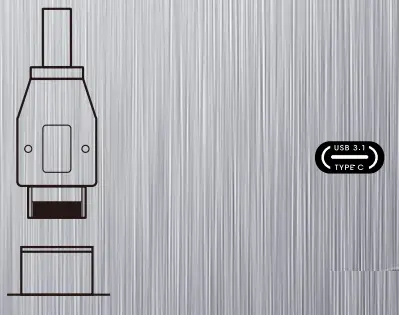

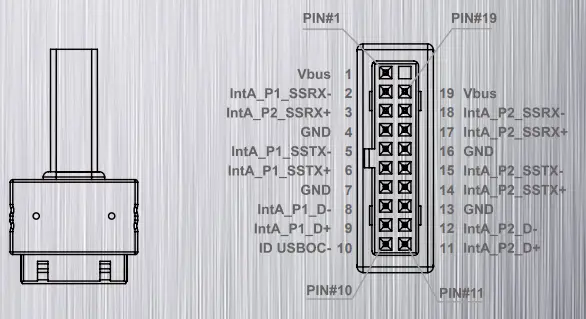

USB 3.2 Gen 2×2 Type-C x1
Notices and Warranty
Notices
- Please follow the user manual for installation guidelines.
- When installing computer components, please use the antistatic precautions to prevent ESD (electrostatic discharge) damage. This can cause injury to the installer and/or damage to the machine. Incorrect installation may burn your motherboard and other system components.
- To avoid any damages, please do not use this product for any other purpose than its intended use.
- Any modifications may damage the product.
- Please remove all internal devices before shipping or moving. (Including power supply, hard drives, CD-ROM, motherboard and CPU, etc)
- When storing the case, please keep this product away from high temperatures.
Keep away from machines such as heaters that might cause high temperatures. - For more technical support, please visit the InWin Forum at https://forum.in-win.com/
Warranty
- For more detailed warranty information, please visit the InWin retail website at www.in-win.com
- The actual product is subject to change without prior notice.
In Win Development Inc. reserves the right to make any final modifications.
CONTEMPRARY & INNOVATIVE
www.in-win.com
Copyright © 2022 In Win Development Inc. All Rights Reserved.
