InWin IW-CS-CHOPINGRE-PS200W Chopin Pro Mini-ITX Tower User Manual

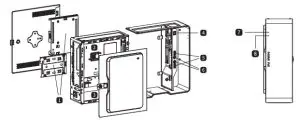

Case Structure
- 2.5” Drive Bay
- Motherboard Mounting Area
- 200W 80 PLUS Gold PSU Included
- Power Button
- USB 3.0 Port
- Audio Ports (Earphone and Microphone)
- Power Indicator
- HDD Indicator

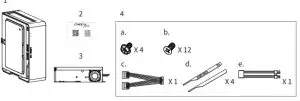

Package Content
- Chopin Pro chassis x 1
- QR Code Card x 1
- 200W 80 PLUS Gold PSU x 1
- Accessories Bag x 1
a. Motherboard Screws x 4
b. 2.5″ HDD Screw x 12
c . SATA Power Y Splitter Cable x 1
d. Side Panel Mylar(Red, Green, Blue, Orange) x 4 Set
e. PSU Extension Cable x 1
Specifications
| Case Type | Mini-ITX Tower |
| Colors | Titanium Grey |
| Materials | Aluminium, SECC |
| Internal Drive Bays | 2 x 2.5″ |
| M/B Compatibility | Mini-ITX |
| CPowmepraStiubpilpitly | 200W 80 PLUS Gold PSU Included |
| I/O Ports | 2HDx UASuBdi3o.0 |
| MCoamxipmautimbility | CPU Heatsink Height: 43 mm |
| P(LroxdWucxtHD)imensions | 924.64xx38.43 x 281.67″mm |

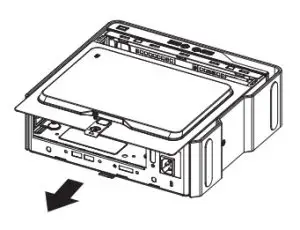

- Remove the Left Panel

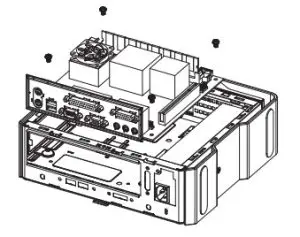

- Motherboard Installation
Parts Required: Motherboard Screws

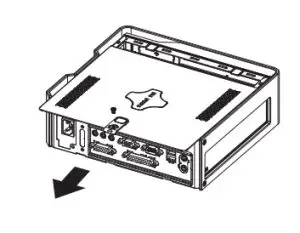

- Remove the Right Panel

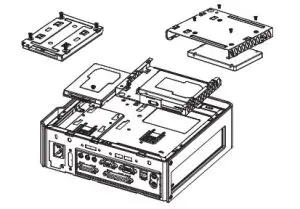

- Internal 2.5″ Drive Installation
Parts Required: 2.5″ HDD Screws

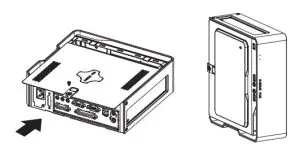

- Complete the installation
Switch/LED Connector
Notices and Warranty
Notices
- Please follow the user manual for installation.
- When installing the computer components, please use the antistatic precautions to prevent ESD (electrostatic discharge) damage.
This can cause injury to the installer and/or damage to the machine. Incorrect installation may burn motherboard and other system components. - To avoid any damages, please do not use this product for any other purpose than its intended use.
- Any modifications may damage the product.
- Please remove all internal devices before shipping or moving. (Including power supply, hard drive, CD-ROM, motherboard and CPU, etc)
Warranty
- For more detailed warranty information, please visit the In Win retail website at www.in-win.com.
- The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to make final modifications.
