Dan Dryer 3192 Column Large Capacity Hand Sanitiser User Manual

USER MANUAL
COLUMN

MODEL: 3192/3193/3194 (ADAPTER)
MODEL: 3196/3197/3198 (BATTERY)

3192 Column Large Capacity Hand Sanitiser

IMPORTANT!
 This product falls within the scope of the WEEE directive on recycling and recovery of waste electrical and electronic equipment.

• This product should not be disposed of with general household waste
• This product must be reused if possible
• Contact your local authority for further details
• This product may also be returned to the manufacturer/retailer for proper treatment, recovery, and recycling

DIMENSIONS AND TECHNICAL SPECIFICATIONS

Dimensions
Unit of measurement: mm

TECHNICAL SPECIFICATIONS

PRODUCT TYPE / MODEL

Adapter
3192 Sanitiser stand, white
3193 Sanitiser stand, black
3194 Sanitiser stand, RAL Classic
Battery
3196 Sanitiser stand, white
3197 Sanitiser stand, black
3198 Sanitiser stand, RAL Classic

GENERAL SAFETY INFORMATION

WARNING

• Turn off the power to the unit before servicing or cleaning
• Never make alterations to the product
• Never insert objects into any opening in the product
• The product is not intended for playing purposes
• Cleaning and maintenance only by qualified persons
• The product may only be used for the applications described in this manual
• Do not use any accessories not recommended by the manufacturer
• The product should be checked on a regular basis. Never use a defective or malfunctioning unit
• Never make alterations to the product affecting its performance. DAN DRYER’s product warranty does not cover product problems that result from misuse or alteration

NOTE
If the power cord is damaged, it must be replaced immediately. Disconnect the electricity supply cord according to instructions.
This product is not intended for use by persons (inclusive children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they are
supervised or have been given instructions concerning use of the product by a person responsible for their safety.
Children should be supervised to ensure this product is used correctly.

INSTALLATION

Make sure the main breaker is turned off. Installation must be carried out by a qualified person in accordance with applicable standards in the country concerned.

1. Use the special key supplied to open the door.

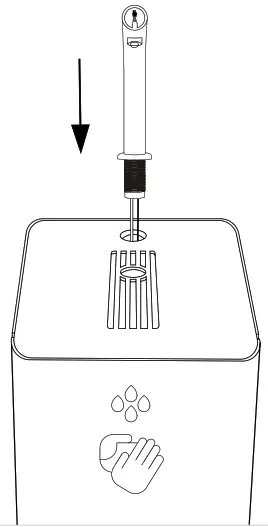

2. Pull wire, plastic tube, and faucet coupling through the hole in the top plate.

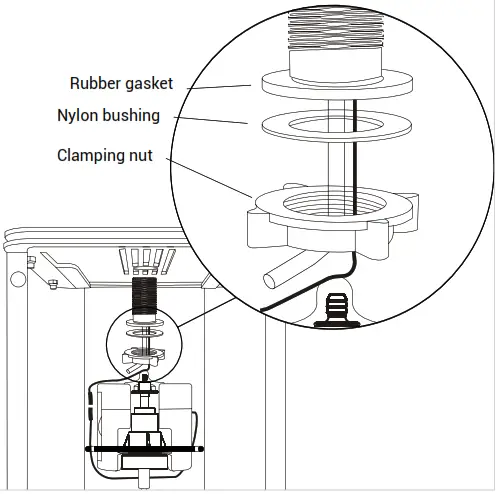

3. Pull the tube and wire through the rubber gasket, nylon bushing, and clamping nut.

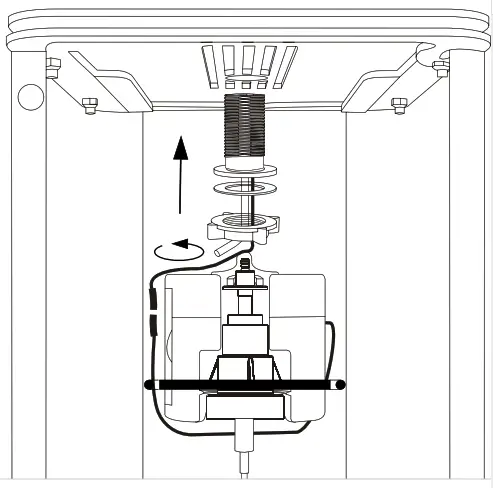

4. Place the faucet in the center before tightening the nut. Do not use any tools.

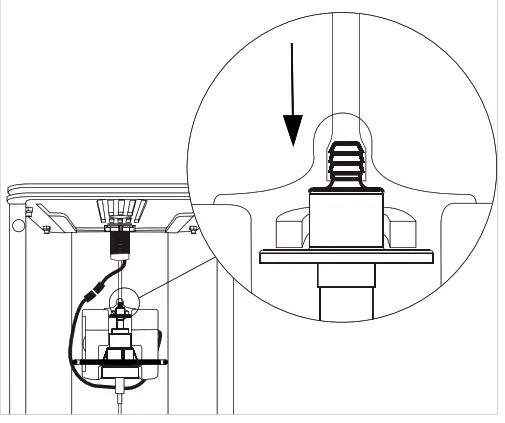

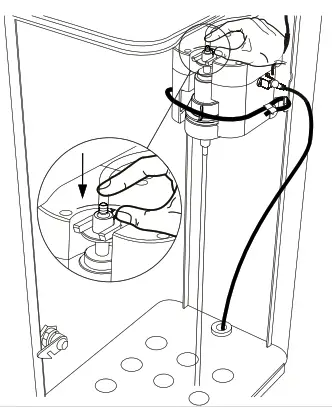

5. Attach the transparent plastic hose to the pump nozzle piece.

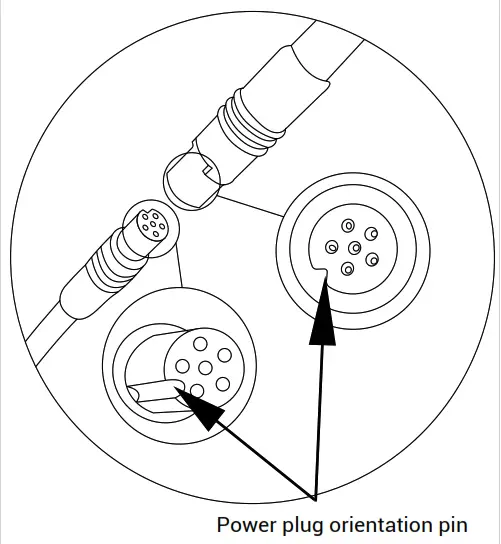

6.  Pay attention to power plug orientation pin.
7. Connect the plugs on the wires between faucet and the control box.

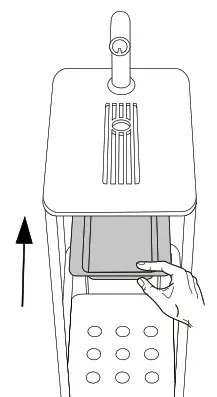

8. Insert drip tray in the support rails, lengthwise, under the top plate.ADAPTER (MODEL 3192-3194)

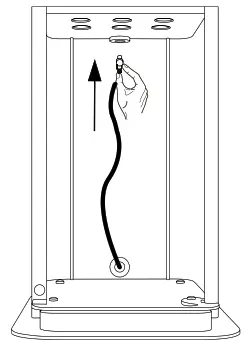

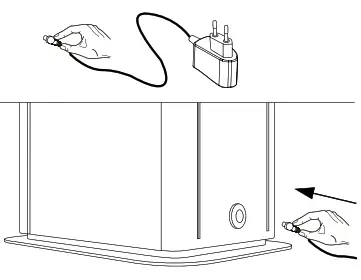

9. 1A) Connection with an adapter. Push the cable through the cable lead-in at the bottom of COLUMN.ADAPTER (MODEL 3192-3194)
   9,2A) Push cable further upward and through the ’rack’.BATTERY (MODEL 3196-3198)

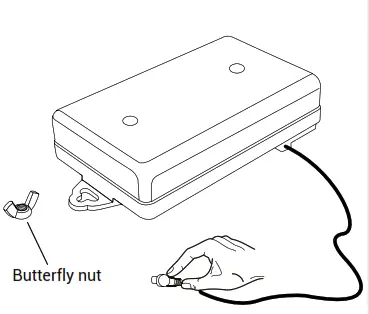

   9,1B) Connect to the external battery box. Install the battery box on the backplate bracket in the lower storage space. Tighten using the butterfly nut.BATTERY (MODEL 3196-3198)
   9,2B) Push cable through the rack via the cable lead-in.
10. Power connection to box. Connect plug to the control box.

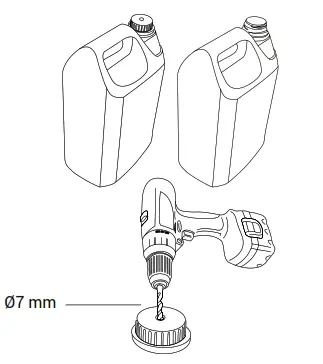

11.  Take off 5 litre bottle screw lid. We recommend you drill a Ø7 hole for the hose. Or remove the lid completely.

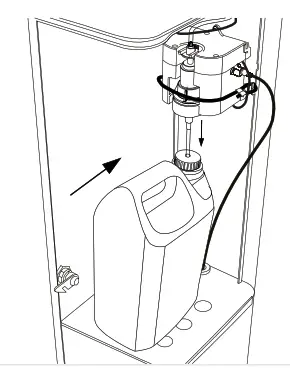

12. Place the 5 litre bottle on the rack. Insert the tube through the hole in the lid and into the bottle.

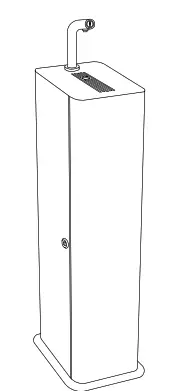

13.  Close front cover and the unit is ready for use.


    REPLACEMENT OF BATTERIES AND PUMP

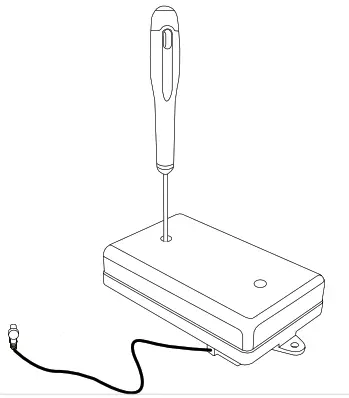

14.  Open the battery pack with a screwdriver PH2.

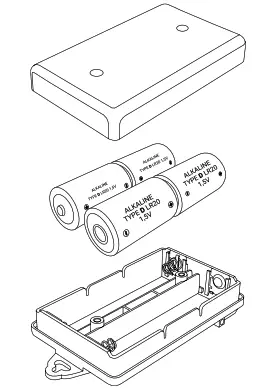

15.  Replace (4) D batteries in the battery pack.
16. Replacement of pump unit. Remove the tube from the pump unit.

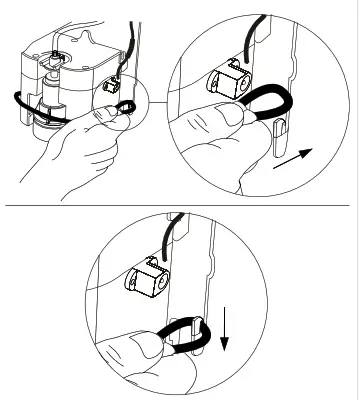

17. Detach clip from hooks as shown.

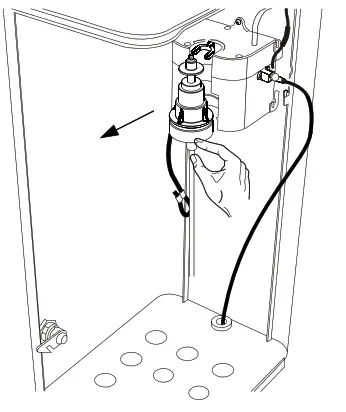

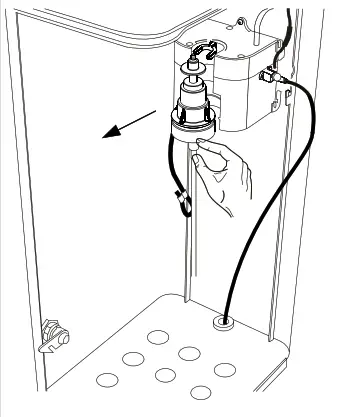

18. Remove the existing pump unit.

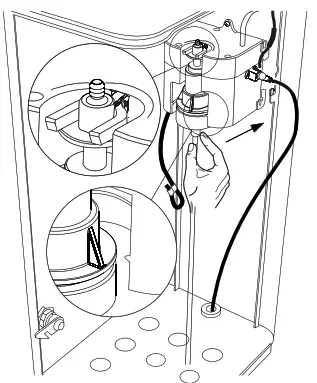

19. Insert new pump. Make sure the pump guideways fit those of the control box. See illustrations.
20. Attach the clip on the hooks as shown.
21.  Attach tube to the new pump unit.

PRODUCT APPLICATION

• Place hands approx 2-10 cm under the sensor to activate the dispenser. The dispenser will release 1-1.2 ml. disinfectant gel
• Move hands away after disinfectant release
• Stops automatically when hands are moved away
  IMPORTANT!
• Ensure easy access to cleaning and maintenance of the product
• Do not bend the plastic tube too sharp. It will cause reduced dosage or total block total blockage in ture
• Ensure the unit is placed on a firm and stable base

LIGHT INDICATOR (ADAPTER)

LIGHT INDICATOR (BATTERIES)

CLEANING AND MAINTENANCE

Routine cleaning and maintenance is recommended

REPLACEMENT OF DISINFECTANT BOTTLE

• Use the key supplied to open the door
• Remove the empty bottle from the rack
• Replace with the new bottle
• Insert the pump tube into the bottle
• Close the door

CLEANING AND MAINTENANCE OF THE CONTROL BOX

• Cut the power
• Remove any dust and dirt
• Do not rinse with running water
• Use a damp cloth and mild cleaning solution. Never use cleaning detergents with an abrasive effect

CLEANING AND MAINTENANCE OF TAP/SENSOR

• Do not rinse with running water
• Use a damp cloth and mild cleaning solution. Never use cleaning detergents with an abrasive effect
• Clean the sensor for dust and dirt to prevent unintentional activation

TROUBLESHOOTING AND CORRECTIVE ACTIONS

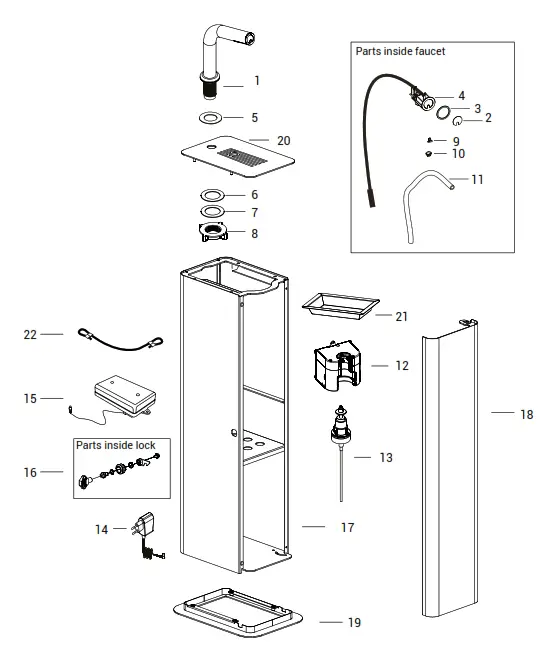

PARTS LIST

DAN DRYER A/S
Alsikevej 8
DK – 8920 Randers NV
Tel: +45 8641 5711
Email: [email protected]
dandryer.com
