Calix BLAST u4m GigaSpire Mesh
INSTALLATION
Connect BLAST u4m to power outlet.

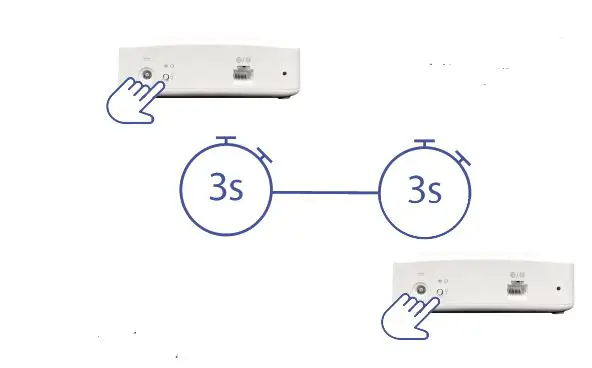

When the LED is flashing red, you can pair the BLAST u4m with the BLAST u4. Press and hold the WPS buttons on the BLAST u4m and then the BLAST u4 for 3 seconds each (less than 30 seconds apart). The LED flash green while attempting to pair.

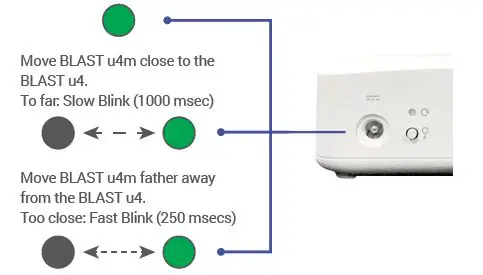

Use the solid green LED indicator (displays for 60 seconds at end of pairing cycle) to determine ideal location for the GigaMesh. If necessary, relocate it to a more ideal distance from the BLAST and confirm successful pairing after the GigaMesh reboots
(repeating steps 2-3 as needed).
If applicable, use the CommandIQ app to set up the BLAST. See the CommandIQ Quick Start Guide for guidance.
Need help?
Contact support :Contact your service provider for more information.
