Accessory Reference Guide
Architectural Speaker
User Guide
KEF architectural speaker accessories

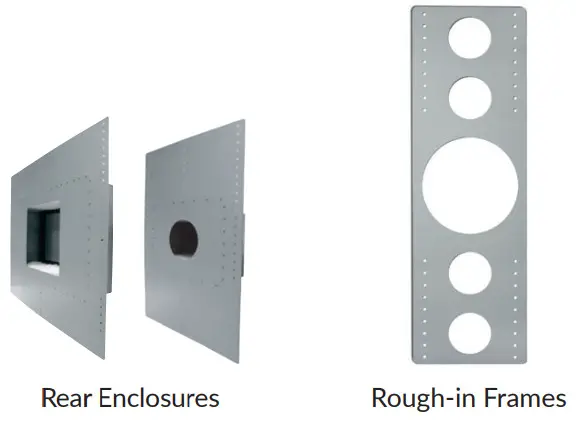

Rough-in Frames (new construction brackets) are used with in-wall and in-ceiling speakers and are available for most models. Installed during the pre-wiring of a new construction installation, they allow the installer to reserve the space in the wall or ceiling and simplify cutting the perfect hole size.
Metal Rear Enclosures (back boxes) are available for most models of KEF Architectural Speaker. Installed during the pre-wiring of a new construction installation they provide a sealed enclosure for the loudspeaker and reduce sound transmission to the room behind the speaker.
Specifications

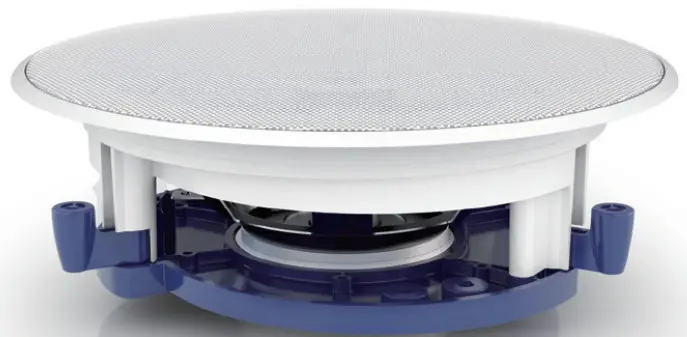

| Shape | Round | Round | Round | Round | Round | Rectangle | Rectangle |
| Size | Ci200R | Ci160R | Ci130R | Ci100R | Ci50R | Ci200L | Ci160L |
| Cut Out (mm) | Ø240mm | Ø196mm | Ø158mm | Ø118mm | Ø65mm** | 334 x 238mm | 274 x 194mm |
| Cut Out (in.) | Ø9.45in. | Ø7.71in. | Ø6.22in. | Ø4.65in. | Ø2.56in.** | 13.15 x 9.37in. | 10.79 x 7.64in, |
| Rough-in Frame | RIF200R | RIF160R | RIF130R | RIF100R | N/A | RIF200L | RIF160L |
| Rear Enclosure | RNC200R | RNC160R | RNC130R | RNC100R | Ci50CAN** | RNC200L | RNC160L |
| Speakers | Ci200TRb Ci200QR Ci200.2CR Ci200ER Ci160ST* Ci200RR-THX++ | Ci160TR Ci160QR Ci160.2CR Ci160CRds Ci160ER Ci110FCT* Ci115QCT* Ci160RR-THX++ | Ci130QR Ci130.2CR Ci130ER | Ci100.2QR+ | Ci50R | Ci200QL | Ci160QL Ci160.2CL |
| Shape | Square | Square | Square | Square | Tall Rectangle | Tall Rectangle | Tall Rectangle |
| Size | Ci200S | Ci160S | Ci130S | Ci100S | Ci4100L | Ci3160L | Ci5160L |
| Cut Out (mm) | 238 x 238mm | 194 x 194mm | 158 x 158mm | 112 x 112mm | 476 x 114mm | 660 x 209mm | 1052 x 209mm |
| Cut Out (in.) | 9.37 x 9.37in. | 7.64 x 7.64in. | 6.22 x 6.22in. | 4.41 x 4.41in. | 18.74 x 4.49in. | 25.98 x 8.23in. | 41.42 x 8.23in. |
| Rough-in Frame | RIF200S | RIF160S | RIF130S | RIF100S | RIF4100L | RIF3160L | RIF5160L |
| Rear Enclosure | RNC200S | RNC160S | RNC130S | RNC100S | N/A | N/A | N/A |
| Speakers | Ci200QSb-THX++ Ci200RS-THX++ Ci200QS | Ci160TS Ci160QS Ci160.2CS Ci160CSds Ci160ES | Ci130QS Ci130.2CS | Ci100QS | Ci4100QL-THX | Ci3160RL-THX Ci3160Rlb-THX Ci3160REFM-THX | Ci5160RL-THX Ci5160REFM-THX |
* Due to integrated back can this unit is not compatible with the rear enclosure.
** CiSOR cut out is 70mm (2.76in.) with the rear can. The CiSO rear can is able to be used in a retro-fit installation.
+ Use of metal rear enclosure with these models requires removal of integrated plastic rear can.
++ This unit is not compatible with the rear enclosure.
NOTE: Not all accessories available in every market. Check with local KEF Sales office for availability.
KEF reserves the right, in line with continuing research and development, to amend or change specifications. E&OE. THX and the THX logo are trademarks of THX Ltd. which are registered in some jurisdictions. All rights reserved.
02.2023 I Architectural Speaker Accessory Reference Guide
