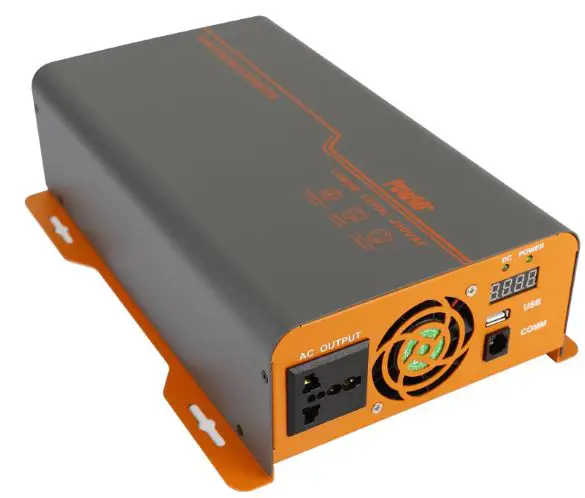

PowMr POW-LV1.2K-12V Inverter Charger
POW-LV1.2K-12V POW-HV1.2K-12V
Safety Instruction
- Please confirm the rated battery voltage before installation.
- Please confirm the positive and negative poles of the battery. and the machine (red for positive pole, black for negative pole).
- Please install the machine in a well-ventilated place to avoid water inflow.
- After the inverter works continuously, the temperature of the case is high, which is a normal phenomenon.
Usage
- Connect the input end of the machine to the battery correctly.
- Correctly connect the electrical equipment to the output socket, please confirm whether the power of the machine matches the power of the electrical equipment before use.
Product Features
- Pure sine wave.
- Maximum efficiency 90%.
- Intelligent fan speed regulation: start to work when the load is greater than 600W, and the fan speed will be controlled according to the load and the internal temperature.
- Protection function: low voltage protection, charged over protection, overload protection, short circuit protection,
over-temperature protection. - Application: home, office, vehicle, yacht, and other occasions.

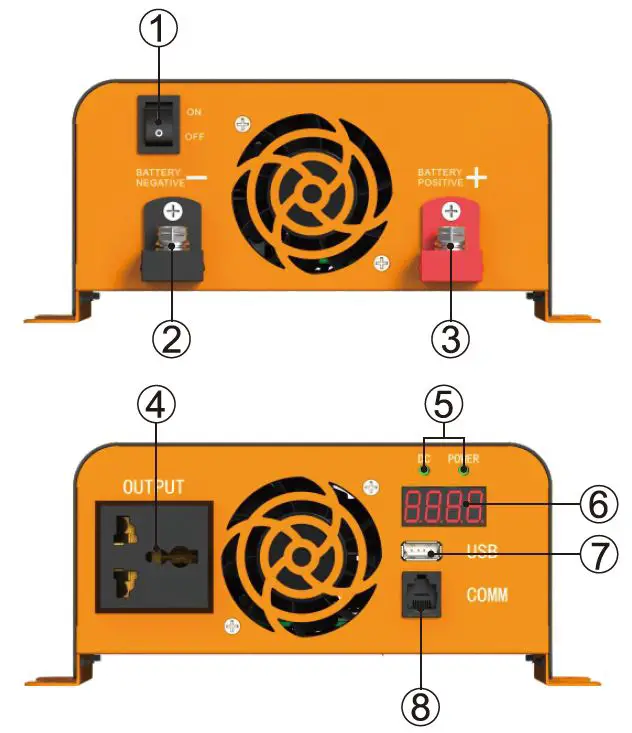

Panel Function Introduction
| 1 | ON/ OFF | 5 | LED Indicators |
| 2 | Battery Negative | 6 | LED Display |
| 3 | Battery Positive | 7 | USB |
| 4 | Output | 8 | COMM |

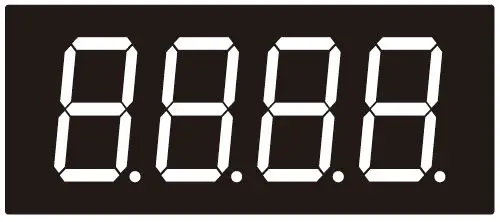

LED Display
Indicator Light Description
- The DC indicator light is on, indicating that the content displayed by the nixie tube is the battery voltage(V);
- The POWER indicator light is on, indicating that the content displayed on the nixie tube is the output power(W);
- The DC indicator light is on, indicating that the content displayed by the nixie tube is the battery voltage.
Fault Code
| Fault code | Description |
| 1 | BUS soft start failed |
| 2 | BUS voltage is too high |
| 3 | BUS voltage is too low |
| 4 | Inverter start failure |
| 5 | Inverter high voltage |
| 6 | Inverter low voltage |
| 7 | Output short circuit |
| 8 | Battery overvoltage |
| 9 | Battery low voltage |
| 10 | Over-temperature |
| 11 | Overlovd |
