Surpeer B0bzxs445n Infrared Thermometer Temperature Gun User Guide

B0BZXS445N
Infrared Thermometer
Temperature Gun
User Guide

Overview

This thermometer is a working radiation thermometer (hereinafter referred to as a product) that can determine its surface temperature by measuring the infrared energy radiated from the surface of the target body.
Warning
Before using the product, please read all safety instructions.
Table 1 Symbol

symbol	meaning	symbol	meaning
	Danger. Important information. See manual		The product symbol is required by the WEEE Directive (2002/96/EC). The affixed label indicates that electrical/electronic products must not be discarded as household waste. Product category: According to the equipment type in the WEEE Directive Appendix 1, the product is classified as a category 9 “monitoring and control instrument” product. Do not dispose of this product as unsorted municipal waste.

Safety notice

Warnings indicate conditions and operations that are dangerous to the user. Be careful Or the condition and operation of the equipment under test causing damage.
The symbols used in the product and this manual are listed in Table 1
warning
To prevent eye damage or personal injury:

• Before using the product, please read the “Safety Instructions”.
• Do not use if the product works abnormally.
• Please use the product only for the designated purpose, otherwise the protection provided by the product may be weakened.
• Before using the product, check the case. If the product is damaged, do not use it.Check for cracks or missing plastic parts.
• Please refer to the emissivity information for the actual temperature. Reflecting objects will cause the measuredThe temperature is lower than the actual temperature. These objects pose a risk of burns.
• Do not use optical tools (such as binoculars, telescopes, microscopes, etc.) to look directly laser. Optical tools may focus the laser light and damage the eyes
• Do not look directly at the laser. Do not aim the laser directly at people or animals or from reflective surfaces Indirect exposure.
• Please replace the battery when the low battery indicator is displayed to prevent incorrect measurement.
• Do not use the product around explosive gas, steam or in a humid environment.
• Please use the product only in accordance with the relevant instructions, otherwise you may be exposed to dangerous laser shots.

Maintain

Note To avoid damage to the product, do not put the thermometer at high temperature On or near objects.
How to replace the battery
To install or replace the 6F22 9V laminated battery, open the battery compartment And replace the battery as shown on page 14
How to clean the product
Use a sponge or soft cloth moistened with soapy water to clean the product shell. Wet with Wipe the surface carefully with a cotton swab.
The cotton swab can be moistened with water.
Standards and Agency Certification

meets the ———– EN/IEC 61010-1:
Laser safety ———– EN 60825-1 2
Executive standard ———– Q/S20150116CN

Specification

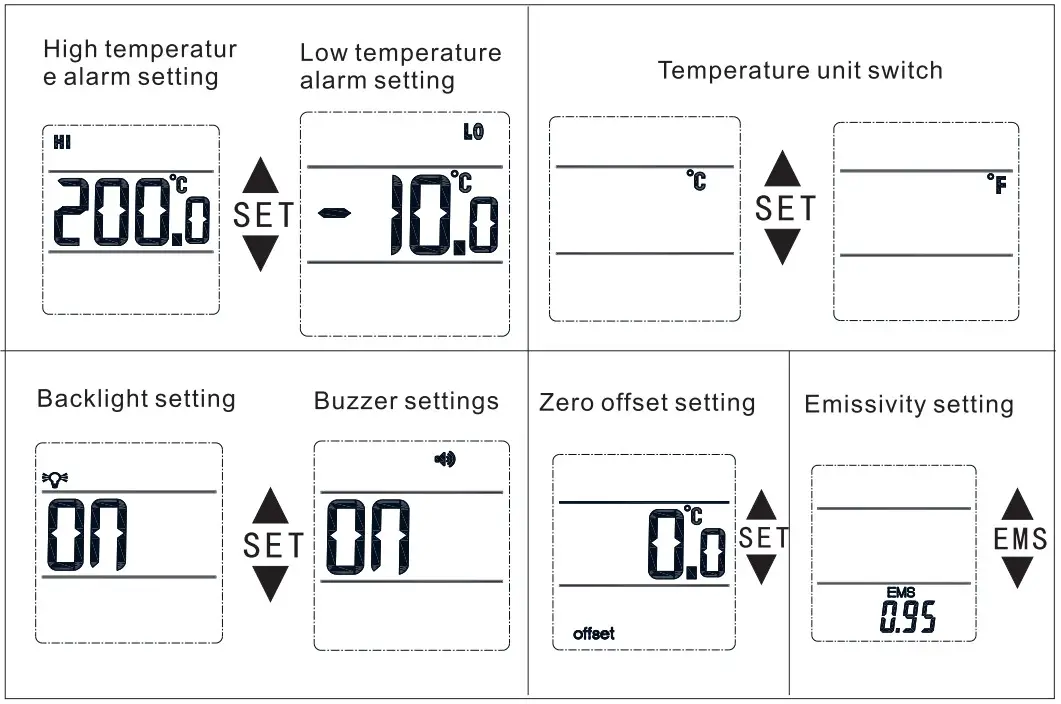

Note: After the setting is completed, you need to pull the trigger to confirm, the instrument returns to the measurement interface, Pull the trigger this time to start measuring

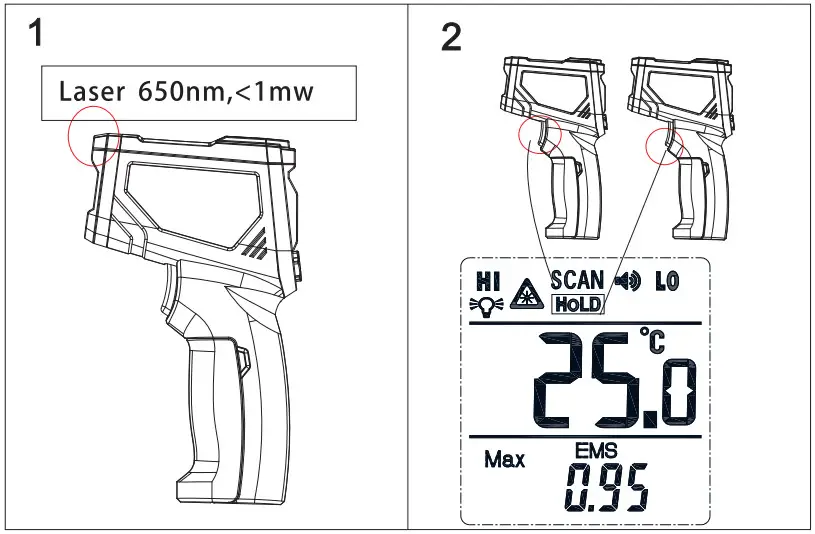

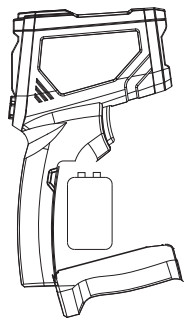

1. Open the battery cover and install 9V battery

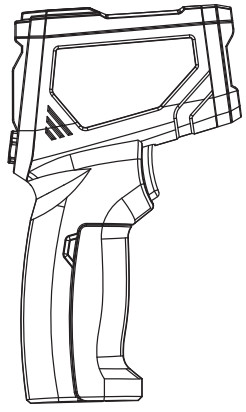

2. Hold the trigger and start measuring

COMMON OBJECT EMISSIVITY FROM (1)

COMMON OBJECT EMISSIVITY FROM (2)
