DLA+ 2.0 WIRELESS | QUICKSTART GUIDE

INSTALL DRIVERS:

1. Close running applications.
2. Users can download adapter drivers online by visiting: www.noregon.com/adapter-drivers and clicking the “Instructions and Driver Download” button from the DLA+ 2.0 Wireless Adapter section of the adapter driver landing page.
3. Once the download is complete, launch the installer and follow the prompts.
   USB CONNECTION:

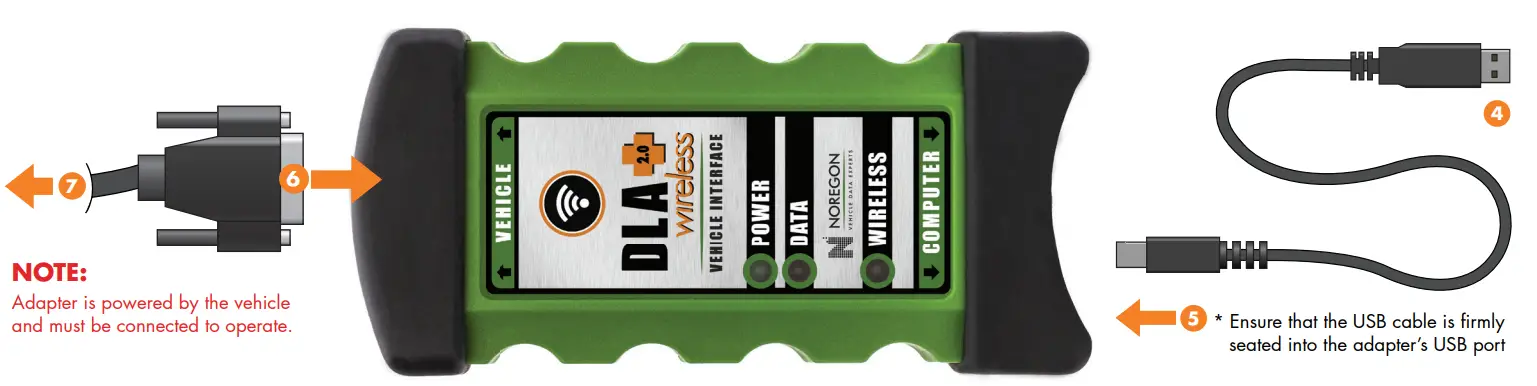

4. Plug the USB cable into the USB port on the PC.
5. Connect the other end of the USB cable to the port labeled Computer on the DLA+ 2.0 Wireless Adapter.
6. Connect the diagnostic cable to the 26-pin connector on the DLA+ 2.0 Wireless Adapter.
7. Attach the diagnostic cable’s connector to the diagnostic port on the vehicle.

WIRELESS CONFIGURATION: Refer to the DLA+ 2.0 Wireless Configuration section of the DLA+ 2.0 Adapter Family User’s Manual for information on configuring the adapter for wireless connectivity. Find the User’s Guide by clicking on the Windows Start button, then select All Programs ⇒Noregon ⇒DLA+ 2.0 Wireless Adapter and click the DLA+ 2.0 Adapter Family User’s Manual menu item.

QUESTIONS?
Call: (855) 889-5776
For driver updates & more, visit:
WWW.NOREGON.COM
