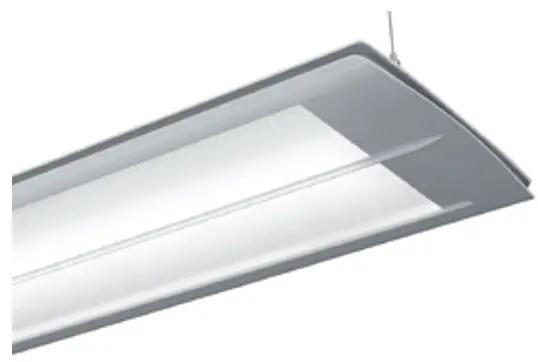

Corelite Divide – DSI
WaveStream™ LED
Suspended
Direct / Indirect
Typical Applications
Office • Education • Healthcare • Hospitality • Retail
Top Product Features
- Leverages our patented WaveStream™ Technology with AccuAim™ optics
- Advanced optical control with optimal illumination
- Multiple lumen packages with efficacies up to 140 lumens per watt
- Modern, ultra-shallow design
- Available in 4′, 8′, and Continous runs
- Options to meet Buy American Act requirements
Product Certification
Product Features

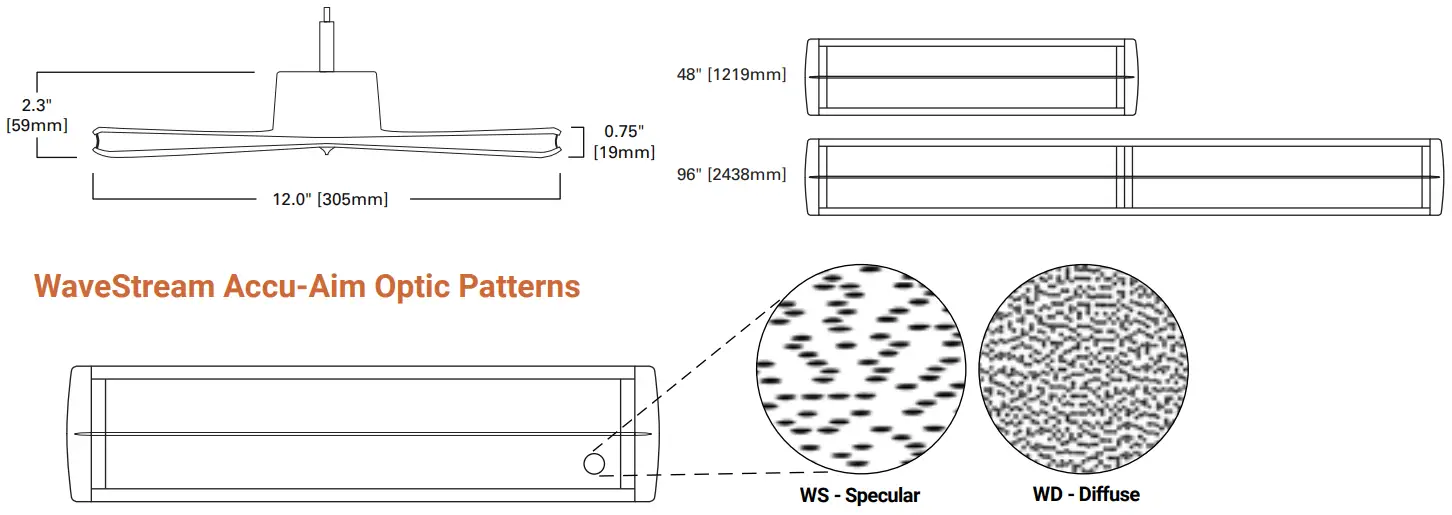

Dimensions and Fixture Lengths
Order Information
SAMPLE ORDER NUMBER: DSI-WS-40L835-1D-UNV-STD-WAA-DC-W-AC48-T1-16
| Domestic Preference | Series | Shielding | Lumen Package Nominal per 4′ section | CRI | Color Temperature | Number of Circuits | Additional Circuiting | Input Voltage |
| [Blank]=Standard | DSI=Divide | WS=WaveStream Specular Optic | 20L=2000 Lumens, (500 lms/ft) | 8=80+CRI | 30=3000K | 1=Single | D=None (Default Dimming) | 120=120V |
| BAA=Buy American Act | Suspended Direct / Indirect | WD=WaveStream Diffuse Optic | 30L=3000 Lumens, (750 lms/ft) 40L=4000 Lumens, (1,000 lms/ft) 50L=5000 Lumens, (1,250 lms/ft) 60L=6000 Lumens, (1,500l ms/ft) | 9=90+CRI | 35=3500K 40=4000K 50=5000K | Circuit | E=Emergency Circuit S=Secondary Circuit N=Emergency + Secondary Circuit | 277=277V UNV=Universal (120V-277V) 347=347V |
| Notes Only product configurations with this designated prefix are built to be compliant with the Buy Amer– ican Act of 1933 (BAA). Please refer to DOMESTIC PREFERENCES website for more information. Components shipped separately may be separately analyzed under domestic preference requirements. | Notes Refer to performance table on Page 3 for more detail. | Notes Additional lead-time may apply for 930, 935 and 940 configurations. | Notes Refers to wiring in cross section. | Notes Secondary circuit not available with integrated sensor options. | Notes Integral 347V driver with STD 0-10V option only. Factory supplied 347V remote transformer for all other driver options. | |||
| Driver / Dimming Options | Integral Sensor | Integral Emergency | Top Cover | Finish | Suspension Length | Ceiling Type | Run Length |
| STD=Standard 0-10V (1%-100%) | WAA=WaveLinx Wireless Integrated | EL14W=14-watt, 120V-277V | DC=Dust Cover | W=White | Adj. Cable | T1=15/16″ T-Bar | 4=4 ft |
| SR=Sensor Ready (1%-100%) 5LT=Fifth Light DALI (1%-100%) LH=Lutron HiLume 1% EcoSystems | Sensor WAB=WaveLinx Lite Wireless Integrated Sensor LWIPD1=Enlighted Wireless Integrated Sensor | Emergency Battery Pack EPC=UL924 Bypass Relay | FC=Frosted Cover SC=Solid Cover (100% Down) (blank)=No Cover | S=Silver B=Black CC=Custom Color | AC48=48″ AC120=120″ AC240=240″ AC300=300″ AC360=360″ | T9=9/16″ T-Bar TS=Slotted T-Bar JB=Junction Box /Structure UM=Universal Ceiling Kit (T1, T9, JB) S=Swivel at Cancopy ( =T1, | 8=8 ft XX=Specify Row Length |
| T9, TS or JB) | |||||||
| Notes LH driver option not available in 20L lumen package. | Notes WAA and WAB sensor must be used with “STD” driver. LWI sensor must be used with “SR” sensor ready driver. Integrated Sensors combined with Emergency Circuit require one UL924 Bypass Relay per emergency section. SWPD1 has been renamed to WAA, but remains the same sensor. | Notes EPC option used to bypass local control during outage. Must be used in conjunction with UL1008 device (provided by others). | Notes Refer to photometric IES file data for top cover performance. | Notes White mounting hardware standard; for black mounting hardware, add “-B” after ceiling type. | Notes Standard row configurations over 8′ consist of 4′ and 8′ luminaires. | ||
Product Specifications
Construction
- Constructed from extruded aluminum housing
- 2-1/4″ x 12″ housing
- Die-formed 20 gauge cold rolled steel
End Caps
- Precision engineered 2-piece die cast aluminum allo
- Attach mechanically to the end of the fixture without exposed fasteners
- End cap adds 2-1/8″ at each end
Lengths
- Available in 4 ft and 8ft sections
- Modular design eliminates the need for starter, intermediate, and end of run sections
Finish
- Electrostatically applied polyester powder coat paint
- White, Silver, or Black finish offered as standard
- RAL custom colors are available
Mounting
- Aircraft cable mounts on 4′-0″ and 8′-0″ on centers
- Fixture is balanced to allow for minimal leveling
- All sections are continuously wired with push-in connectors for fast installation
- Fixtures can be joined for straight continuous runs using Quick-Tab alignment features
- Refer to installation instructions for various ceiling interface details
Shielding / Optics
- Optical grade acrylic embedded with patented Accu-Aim™ micro-optics for optimal distribution, low glare, and high performance
- Specular (WS) or diffuse (WD) optical patterns are available to achieve the right look for any application
- Dust Cover (DC) option is a clear formed polycarbonate for worry free cleaning and protection
- Frosted Cover (FC) option is a frosted formed polycarbonate for worry free cleaning, reduced uplight, and protection
- Solid Cover (SC) option is a high reflectance white powder coat painted steel reflector for 100% downlight
LED and Light Engine
- LED’s are available in 3000K, 3500K, 4000K
- CRI options of either ≥80CRI or ≥90CRI
- Lumen output will be affected – please refer to the lumen adjustment factor tables
- TM21 life at 60,000 hours up to L87 and calculated L70 exceeds 256,000 hrs
- Drivers available in 120-277V and 347V
Integrated Controls
- 0-10V dimming to 1% standard
- WaveLinx sensor compatible for IoT capability
- Enlighted sensor compatible for IoT capability
- WaveLinx Lite compatible for out-of-the-box functionality
Emergency Options
- Optional 14-watt 120-277V emergency battery illuminates a 4 ft. down-light section
- 90-minute backup period for code compliance
- Test switch/indicator button located on the top side of the luminaire
- Patented EZ Key prevents accidental discharge of the battery during construction
- For approximate delivered lumens multiply the lumens per watt of the desired fixture by the wattage of the emergency battery pack (100 lm/W x 14 = 1400 lumens)
- The combination of integrated sensor and emergency circuit options require an EPC UL924 bypass relay that disables sensor control of emergency sections when
normal power is lost - UL 924 emergency/generator transfer options available
Weight
- 6.0 lbs. per foot
Compliance
- cULus listed for damp locations, 25°C ambient environments
- RoHS compliant
- Tested to IESNA LM-79 and LM-80
- Stated life per TM21 standards
- Can be used for State of California Title 24 high efficacy luminaire
- DesignLights Consortium™ Qualified and classified for DLC Standard and DLC Premium, refer to www.designlights.org for details
Warranty
- Five year warranty standard www.cooperlighting.com/legal

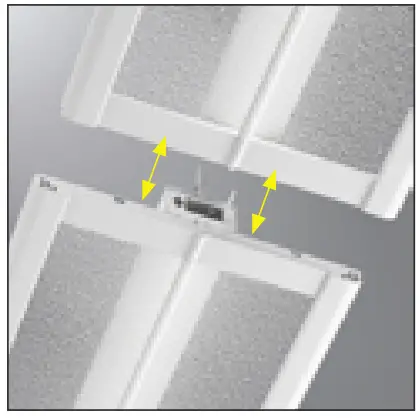

Quick-Tab Alignment
Corelite’s patented quick-tab alignment system creates a seamless and simple installation every time. Simply align the tabs into the corresponding slots. The fixture can then hang freely while a single contractor makes the final connections; it all slides back together and is securely fastened in place.

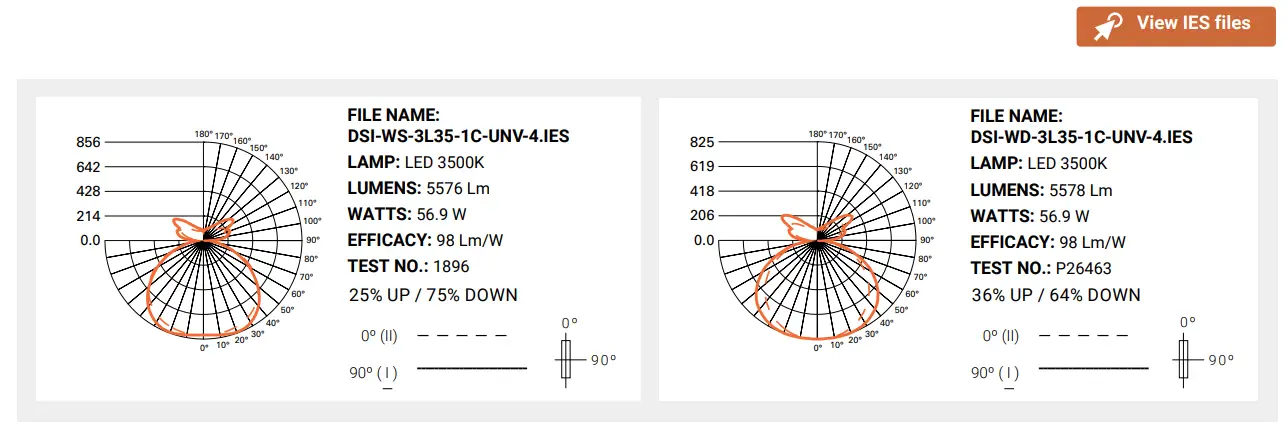

Photometric Data
Note: Refer to IES files for more product data.
Energy and Performance Data
| Divide Suspended LED Light Level Outputs and Distribution (3500K, 80 CRI) | ||||||||
| Series | Lumen Package | Delivered Lumens | Wattage | Efficacy LPW | Distribution | |||
| 4FT | Per FT | 4FT | Per FT | % Up | % Down | |||
| DSI-WS | 20L | 2069 | 517 | 15.2 | 3.8 | 136 | 27% | 73% |
| 30L | 3000 | 750 | 22.4 | 5.6 | 134 | |||
| 40L | 3995 | 999 | 29.9 | 7.5 | 134 | |||
| 50L | 5039 | 1260 | 37.8 | 9.5 | 133 | |||
| 60L | 5968 | 1492 | 46.7 | 11.7 | 128 | |||
| DSI-WD | 20L | 2123 | 531 | 15.2 | 3.8 | 140 | 9% | 71% |
| 30L | 3079 | 770 | 22.4 | 5.6 | 137 | |||
| 40L | 4100 | 1025 | 29.9 | 7.5 | 137 | |||
| 50L | 5172 | 1293 | 37.8 | 9.5 | 137 | |||
| 60L | 6125 | 1531 | 46.7 | 11.7 | 131 | |||
Color Data (3500K)
| 80CRI | ||
| TM-30-15 | Rf | 82.3 |
| Rg | 94.4 | |
| CRI/CIE | Ra | 84.0 |
| R9 | 17.2 | |
Lumen Adjustment Factors
| CCT | 80 CRI | 90 CRI |
| 3000K | 0.955 | 0.830 |
| 3500K | 1.000 | 0.861 |
| 4000K | 1.012 | 0.883 |
Example Calculation:
WS / 40L / 3500K / 80 CRI
Lumen Output selected = 999 lms/ft
3500K / 90 CRI Desired
Lumen Adjustment Factor = 0.861
Adjusted Lumen Output = 999 lms/ft x 0.861 = 860 lms/ft
Lumen Maintenance
| Ambient Temperature | TM-21 Lumen Maintenance (60,000 hours) | Theoretical L70 (Hours) |
| 25°C | >87% | 256,000 |

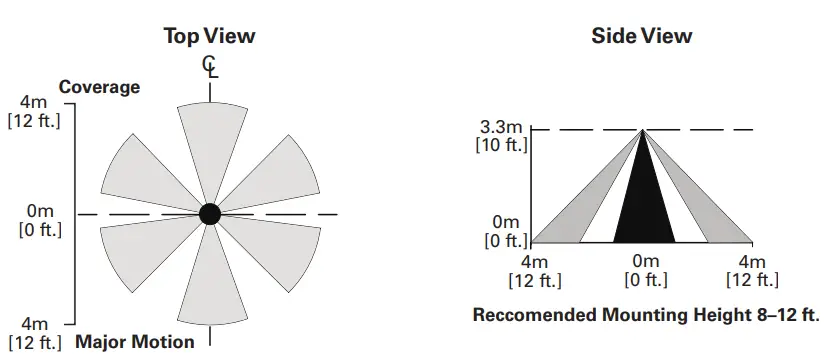

Control Systems
- WaveLinx Wireless
- WaveLinx Wired
- WaveLinx Lite
- Enlighted
- iLumin Plus
- VividTune
The Divide with Integrated Sensor technology provides automatic energy savings without sacrificing performance. The Divide delivers superior lighting with integrated occupancy and daylighting controls. For standalone and controlled applications, the WaveLinx Lite integral sensor provides out-of-the-box functionality with no gateways required and factory startup is not needed. When more connectivity is required, the WaveLinx Wireless sensor meets modern code and utility requirements, delivers energy and cost savings, while enabling buildings to become smart buildings. The WaveLinx Wireless Connected Lighting System combined with Trellix provides an open IoT platform and infrastructure that connects intelligent sensors leveraging the real-estate of the physical light fixture to solve higher complexity problems to deliver actionable insights through the aggregation of valuable data.
For additional information integrated sensors and connected lighting, please visit Cooper Lighting Solutions’ Connected Lighting Website.

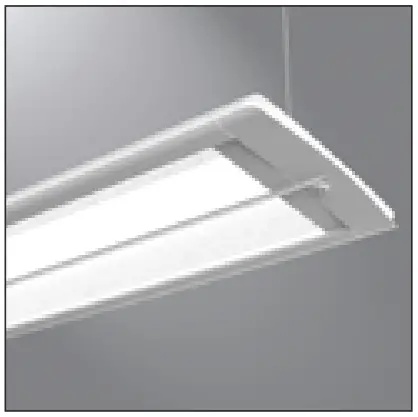

Sensor Integration
Integrated sensors are located in the middle of each 8′ section and on the end of 4′ sections for individual and continuous runs.
Each section can be individually controlled or grouped together with the integrated sensors.

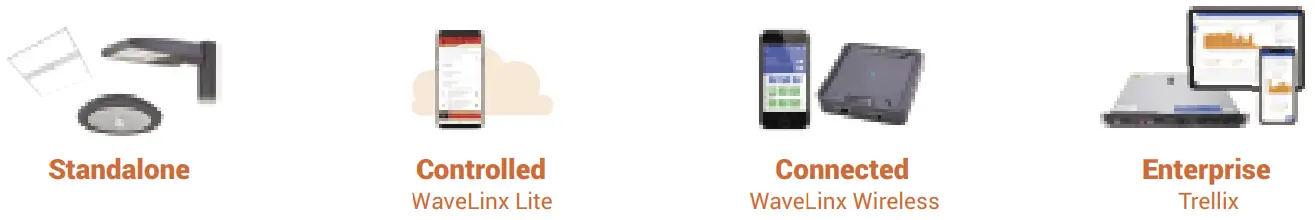

Systems comparison chart
Cooper Lighting Solutions provides many lighting system solutions designed to satisfy code requirements and meet the unique needs of any project.
| Standalone | Controlled | Connected | Enterprise | |
| Occupancy | Yes | Yes | Yes | Yes |
| Daylighting | Yes | Yes | Yes | Yes |
| Gateways | – | – | 1 WAC | 300 WACs |
| Devices | – | 50 per Area (1400 per site) | 150 per WAC | 45,000 per Core Enterprise |
| Software | – | WaveLinx Lite Mobile App | WaveLinx Mobile App | Trellix Core |
| Areas | – | 28 per Site | 16 per WAC | up to 4,800 |
| Zones | – | 16 per Area | 16 per Area | up to 76,800 |
| Scheduling | – | – | Local | Global |
| VividTune™ | – | – | Yes | Yes |
| Plug-Load Control | – | – | Yes | Yes |
| Integration | – | – | – | BACnet, API |
| Dashboards | – | – | – | Energy, Occupancy |
| Configuration | – | Installer | Technician | Technician / IT |

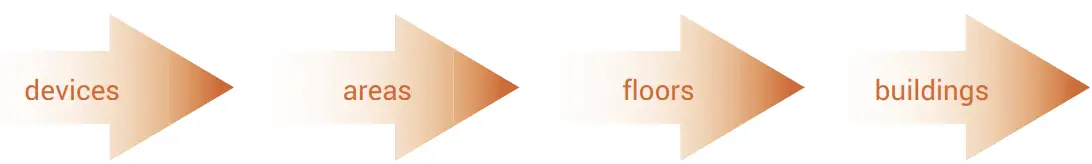

SCALABILITY
