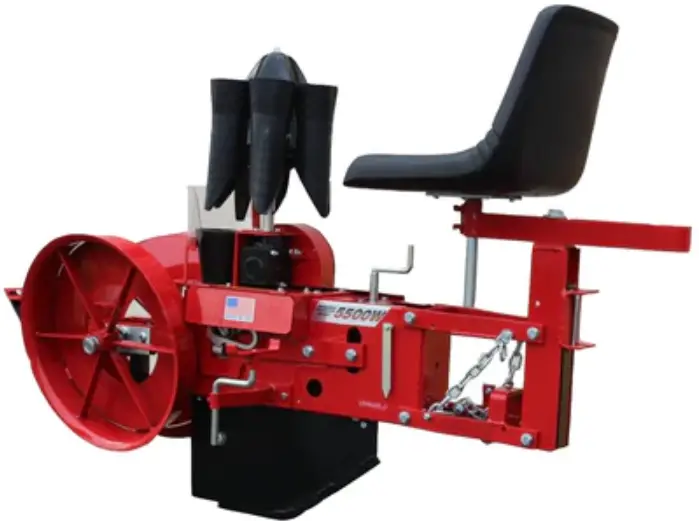

Mechanical Transplanter Company 5500H Carrousel Type Transplanter User Manual

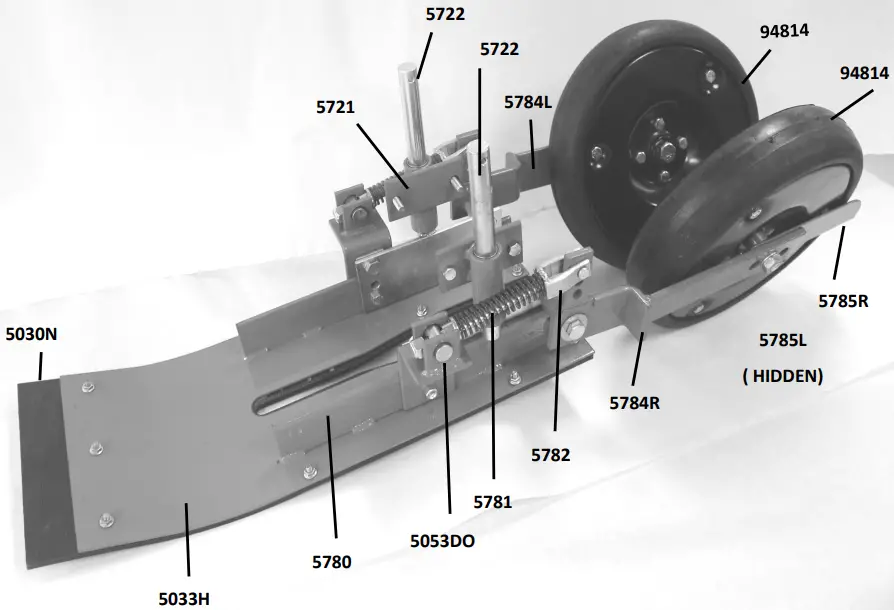

Parts Description
| Part # | Description: |
| 5030N | 10″ wide ski plastic |
| 5033H | Metal top of skis |
| 5053D0 | Hybrid spring sleeve |
| 5721 | Model 5500 ski adjustment sleeve |
| 5722 | Model 5500 ski adjustment post |
| 5780 | Hybrid spring bracket |
| 5781 | Hybrid compression spring |
| 5782 | Hybrid spring arm |
| 5784L | Left packing wheel arm |
| 5784R | Right packing wheel arm |
| 5785L | Left 5500H scraper |
| 5785R | Right 5500H scraper |
| 94814 | 3 X 13 -Packing wheel |
CUSTOMER SUPPORT
Mechanical Transplanter Co. 1150 Central Ave Holland, MI 49423 Phone 616-396-8738 ~
Fax: 616-396-3619
Website: www.mechanicaltransplanter.com
E-Mail: [email protected]
