nVent ELA02SF LED Enclosure Lights
Product Information
- Product Name: Art.-Nr.: ELA02SF
- Manufacturer: nVent
- Manufacturer Address: 2100 Hoffman Way Anoka, MN 55303-1745
- Website: www.nvent.com
- Product Code: 89183937
Product Usage Instructions
- Start by unpacking the product and ensuring that all the components are present.

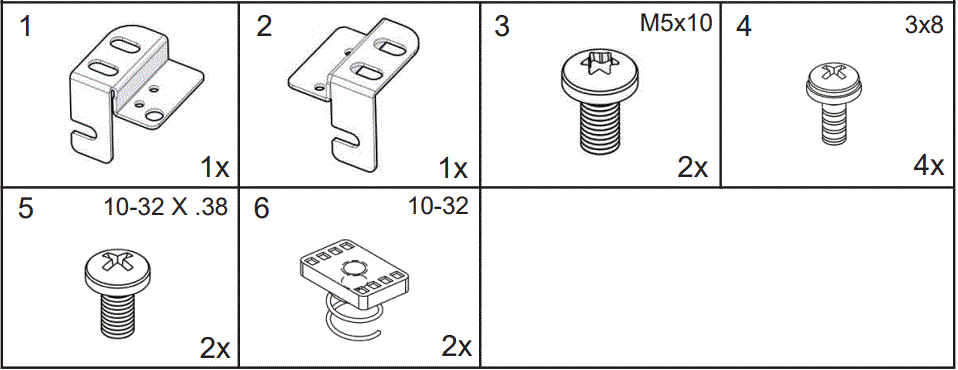

- Identify the required screws and their sizes: M5x10, 3×8, 10-32 X .38.
- Using appropriate tools, fasten the screws as indicated in the user manual.

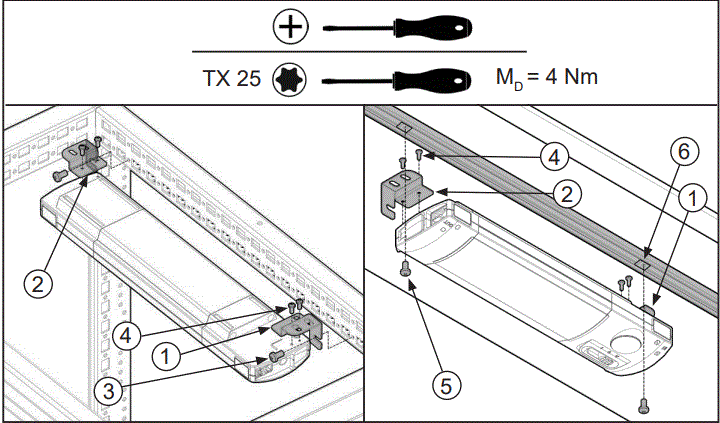

- Tighten the screws to a torque of 4 Nm using a TX 25 screwdriver.
- Follow the instructions for profile mounting or channel mounting, depending on your specific application.
- Refer to the user manual for detailed steps and diagrams on how to mount the product on a profile or channel.

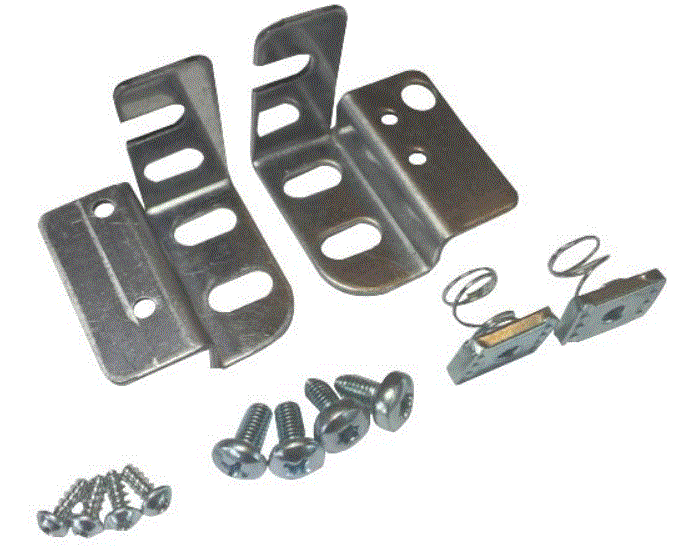

Screw Fixation Kit
- Profile mounting
- Channel mounting
- nVent
- 2100 Hoffman Way
- Anoka, MN 55303-1745
- www.nvent.com 89183937
