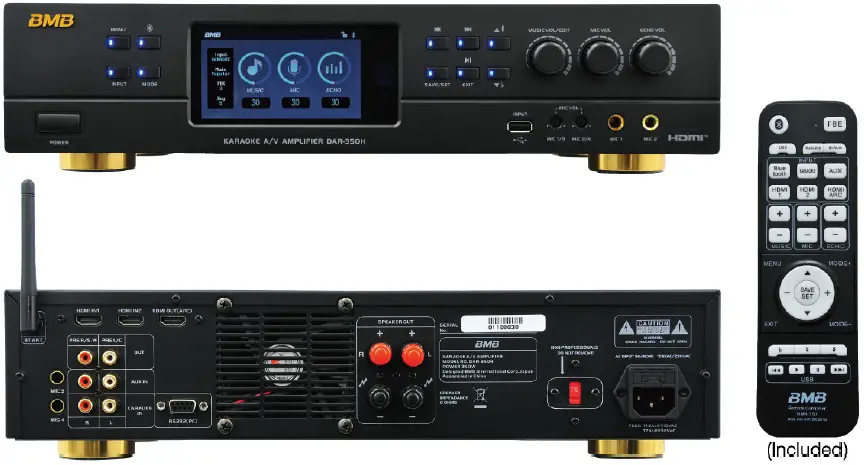

BMB DAR-350H Power Amplifier Karaoke

BMB-DAR-350H-Power-Amplifier-Karaoke-product-img

High power Karaoke amplifier with useful new functions

  • 350W x2ch outputs, enough high power to meet commercial use.
  • Double Bluetooth function: You can connect two smartphones and play songs while switching smoothly.
  • HDMI port 2in 1out(ARC): You can connect HDMI devices such as Karaoke song machines,
  • DVD Player, etc. If your TV has an HDMI ARC function, TV sound can come into DAR-350H.
  • USB Play: Can connect USB memory, and play songs.
  • Mobile/PC app: Set up the parameter of DAR-350H by Mobile or PC app.
  1. 4 useful New functions (Double Bluetooth, HDMI, USB Play, Mobile app)
  2. Powerful 350W > 2ch, suitable for both of Commercial / Home use.

CONNECTION

BMB-DAR-350H-Power-Amplifier-Karaoke-fig-1BMB-DAR-350H-Power-Amplifier-Karaoke-fig-2BMB-DAR-350H-Power-Amplifier-Karaoke-fig-3BMB-DAR-350H-Power-Amplifier-Karaoke-fig-4

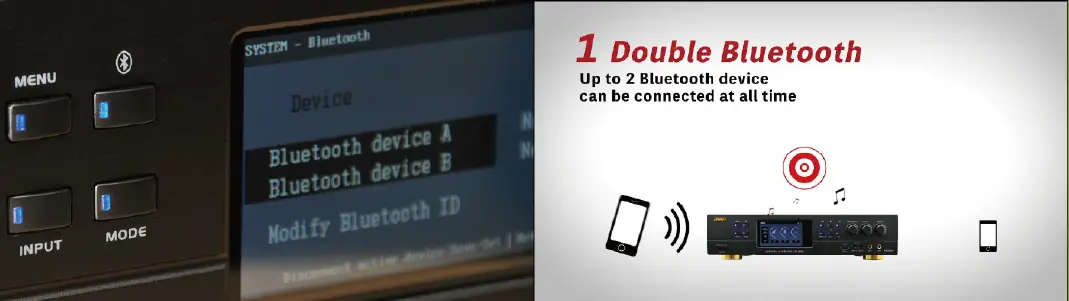

  • Double Bluetooth

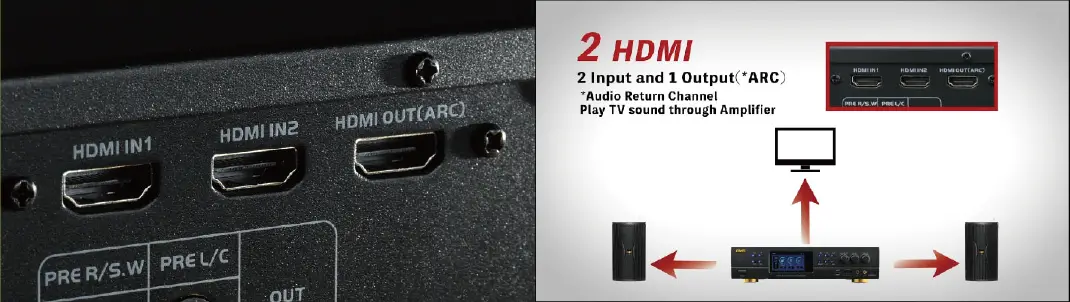

  • HDMI (ARC available)

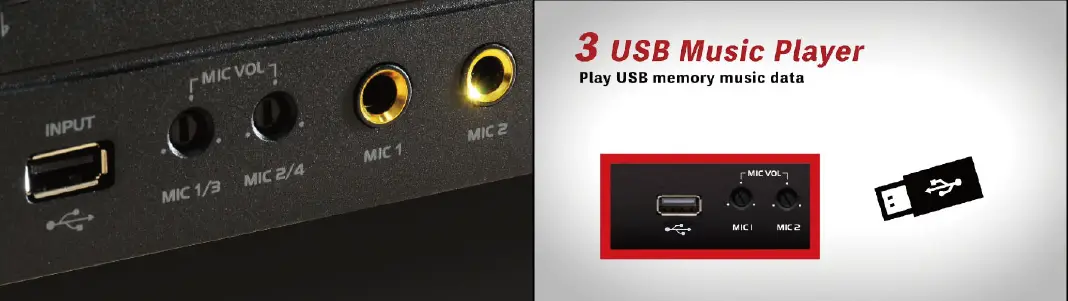

  • USB Play

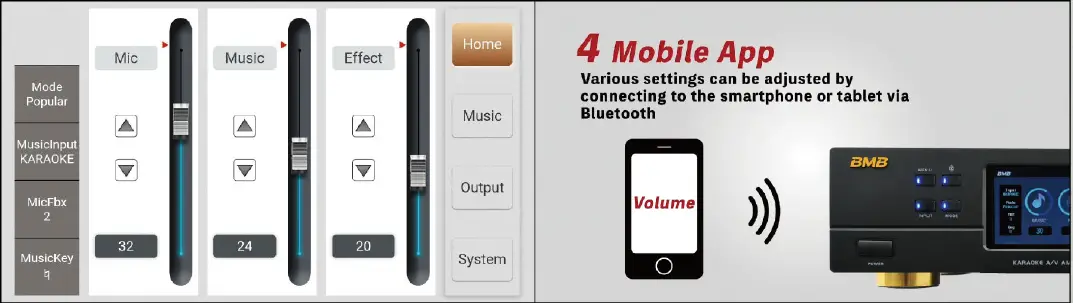

  • PC/Mobile App control

SPECIFICATIONS

  • Max Output Power:  350W × 2CH (8BMB-DAR-350H-Power-Amplifier-Karaoke-fig-5) : 2 speakers system
  • Audio Input: 4 systems (KARAOKE, AUX, Bluetooth, USB)
  • HDMI Input: 2 systems
  • Mic Input: 4 systems: front 2, rear 2
  • USB Input: 1 port (For play music)
  • Audio Output: 1 system (RCA)L/R (Can be switched to pre-out / subwoofer out)
  • HDMI Output: 1 system (with ARC Function)
  • Equalizer: 5 bands Music, 12 bands Mic, 6 bands Output L/R
  • Echo: Delay, Reverb
  • FBE(Anti-Feedback): 5 levels / OFF
  • LCD Display: 4.3 inch TFT Color LCD
  • AC Input: AC110V ~ 120V (50/60 Hz) : DAR-350H (SE)-100 AC220V ~ 240V (50/60 Hz) : DAR-350H (SE)-200
  • Dimensions (mm): 420(W) × 102(H) × 290(D)
  • Weight: 10.5kg
  • Remote Control (RMR-350): Including in the product
