Eks213/4-bt Easy Karaoke Instruction Manual

EKS213/4-BT Easy Karaoke Instruction Manual

Check the Contents

1. Tablet Cradle

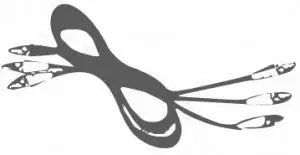

2. AV Cable

3. Pre-recorded Karaoke CD+G Disc

4. CD+G Karaoke System

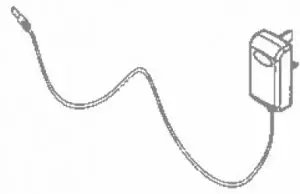

5. AC Power Adaptor

6. Dynamic Microphone

7. Instruction Manual

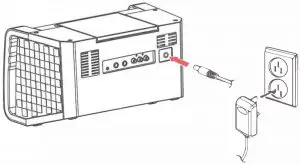

Connect to the mains

Turn ON the Power

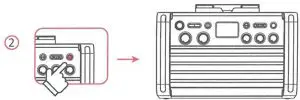

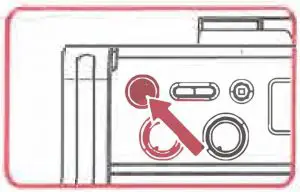

1. Press the POWER Button

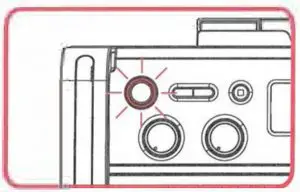

2. ON/OFF LED indicator will light up

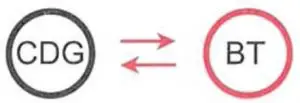

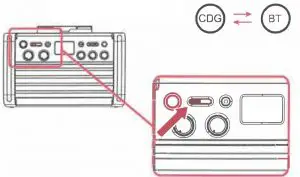

FUNCTION Button

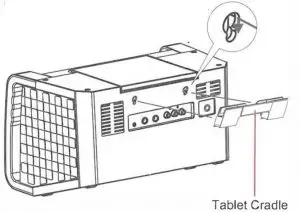

Tablet Operation

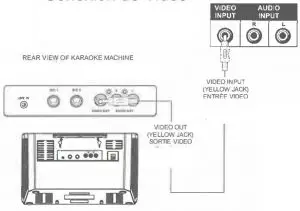

Video Connection

REAR VIEW OF TV OR VCR/ HOME THEATER

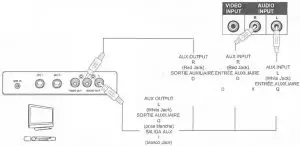

Audio Connection
REAR VIEW OF KARAOKE MACHINE
REAR VIEW OF TV OR VCR/ HOME THEATER

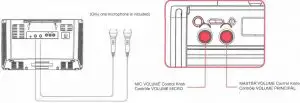

Setting up Your Microphone

Insert a CDG

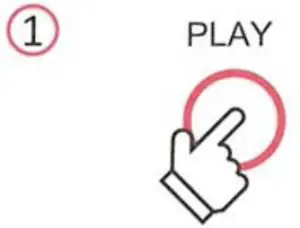

To start playing , press the PLAY/PAUSE button.

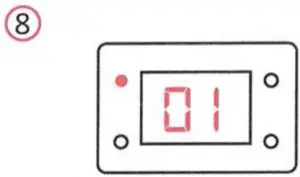

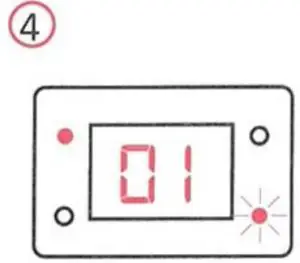

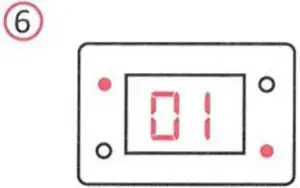

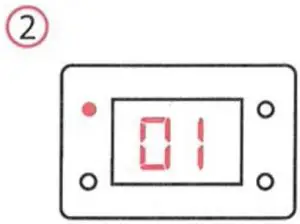

Program Track

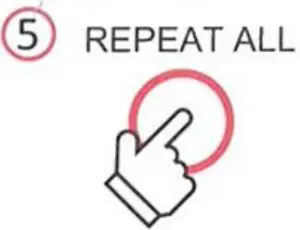

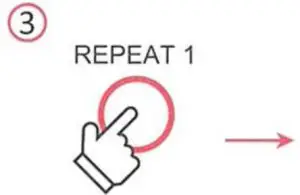

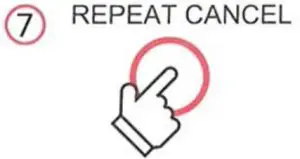

Repeat Function

Echo/A.V.C/Balance Control Knob

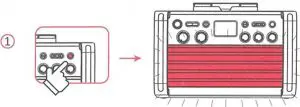

Light ON/OFF Button

Press the Light on/off button once

Press the Light on/off button again

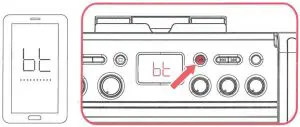

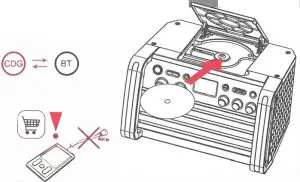

Bluetooth Connection

To start playing , press the PLAY/PUSE button

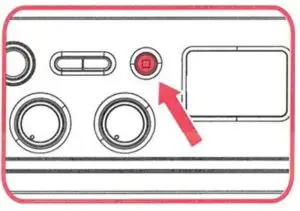

Press and hold pair button to disconnect BT connection

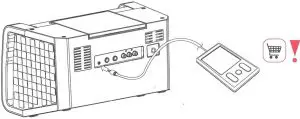

Aux Connection

Specifications

Audio Section:
Output Power (MAX): 1W + 1W (RMS) Output Impedance: 8 OHMS

Power Section:
Input: AC 100-240V-50/60Hz Output: DC 9V-800mA

CD Player Section:
Frequency: 100Hz – 20 kHz
Signal – To – Nois Ratio: 50 dB Number of programs: 20 Steps Random Access Programming Sampling System: 8 Times Over Sampling

Microphone:
-73 dB 600 OHMS Impedance with 0 6.3 MM Dynamic Microphone

Dimensions
(W X H X D): 12.5 x 7.8 x 11.1 inches / 31.7 x 19.6 x 28.0 cm

Weight:
4.3 lbs / 2.0 kg

Dimensions (W x H x D): 12.5 x 7.8 x 11.1 inches / 31.7 x 19.6 x 28.0 cm

Peso: 4.3 lbs / 2.0 kg
EKS213/4BT-20-07-24
