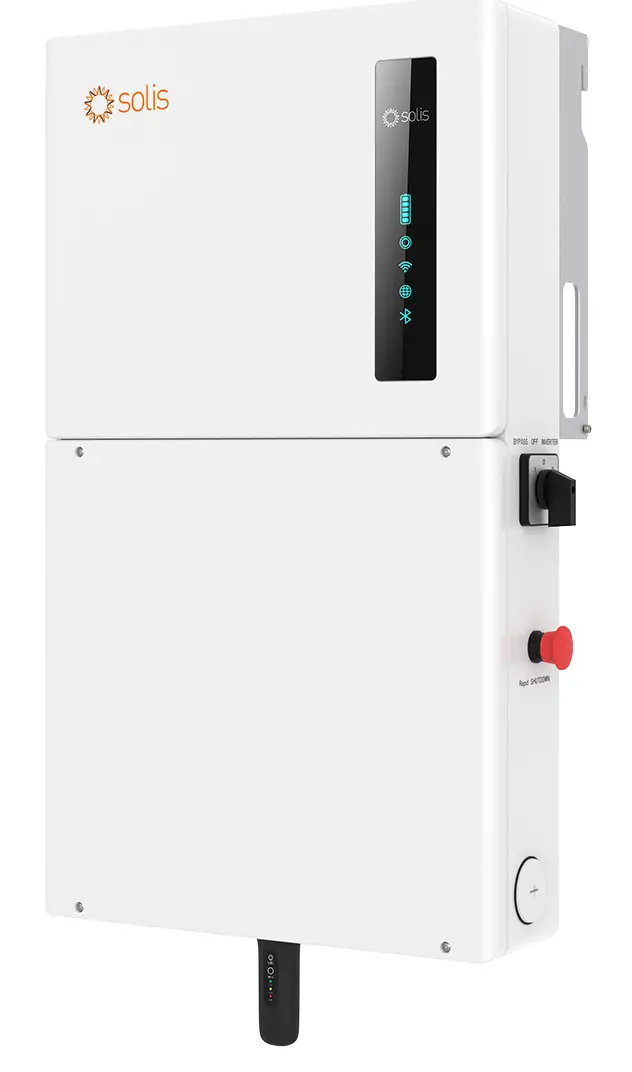

solis S6-EH1P Hybrid Inverter User Manual
Feature
- Supports whole-home & partial-home backup
- 4 MPPTs maximum DC input current 16A per MPPT
- Backup output power up to 11.4kW (50A) continuous
- UL 9540 certified with multiple battery vendors
- UL 1741 SB certified, CEC & HECO listing (pending)
- Split-phase backup power with no additional components
- Optimization & module-level monitoring are optional features
- Integrated module-level rapid shutdown transmitter options
- WiFi, LAN, & WiFi with cellular data logger options available
Specification
| Baery Brand | Baery Model | Interoperable | UL 9540 |
| Pylontech | Force H1 | Yes | Q1 2023 |
| Soluna | (6-15)K Pack HV | Yes | Q1 2023 |
| (10-15)K Pack HV (L) | Yes | Q1 2023 | |
| (6-15)K Pack HV (L-E) | Yes | Q1 2023 | |
| Fortress | Arrow-Ultra-Thin HV | Q1 2023 | Q1 2023 |
| LG Energy Soluons | RESU 10H | X | X |
| 10H & 16H Prime | Q2 2023 | Q2 2023 | |
| CATL (Jinko Only) | HV | Q2 2023 | Q2 2023 |
| BYD | B-Box HV | X | X |
| HVL | Q2 2023 | TBD | |
| AlphaESS | SMILE-BAT-8.2.1PHA | Q3 2023 | Q4 2023 |
- Interoperable means that the inverter and the battery will work together but does not equate to certification
- UL 9540 is the system-level certification (inverter + battery) and should not be confused with UL 9540A (battery only)
- An “X” means that it has not been done and there is no plan to do it in the future
- The batteries are all sold separately. Please contact your local supplier for battery procurement.
- Interoperable means that the inverter and the battery will work together but does not equate to certification
- Solis is not responsible for the quality or the warranty of the battery.
- A battery is required for backup power, but the inverter can operate as a grid-tie inverter with PV only
- Installing a battery with the inverter that is not on this list or has an “X” will void the inverter warranty.
