GLR43301240 Relay Out RX 433MHz 240V Supply & Relay
Owner’s Manual

1-Channel 433MHz Receiver with 16A
Relay Output- GLR43301240
GLR43301240
1-Channel 433MHz Gigalink, Receiver with Mains AC Supply

Contents hide

7 Documents / Resources

8 Related Posts

Features

Supply voltage 240VAC (also available in 110-120VAC supply for international markets)
High-efficiency toroidal transformer
High capacity output relay
Pluggable type terminal blocks for easy installation
Test push buttons for the relay
Momentary, latching, timed and security latching output modes can be selected by the user.
Optional QM150 bracket available for easy mounting to cases or walls
Also available in an IP66-rated case for outdoor installations
Power ON LED indicator

Applications

Pump Control
Long-distance light control
On/Off applications in agricultural devices
Basic Telemetry eg. Water level indication
Security alarm

Description

The GIGALINK™ , GLR43301240 is the most advanced Remote Control technology available in the world today.
GIGALINK™ is an invention that has revolutionized the entire Remote Control technology including Elsema’s earlier version of the FMT- … and FMR- … series. The GLR43301240 state-of-the-art invention brings a new dimension to the world of Remote Control technology in domestic, commercial, and industrial applications.
The toroidal transformer on this receiver is 25-30% more efficient than the conventional types. It has a low operating temperature, low hum, and low stray magnetic field.

Available with Options


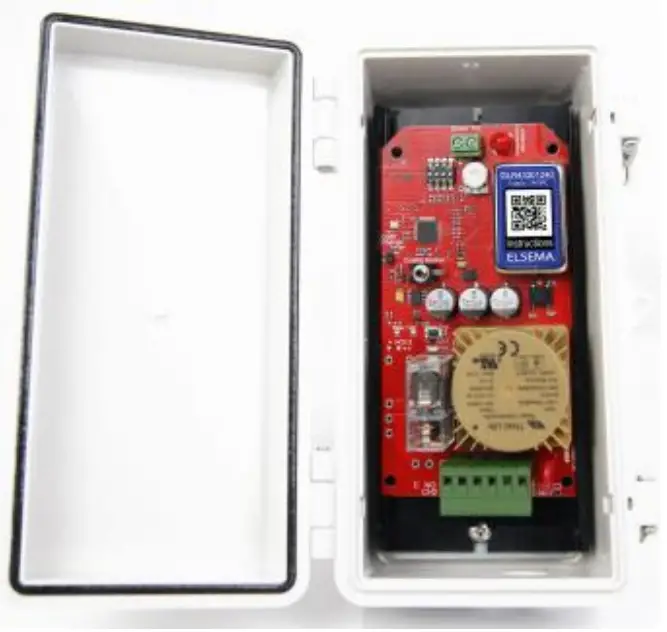

GLR43301240 1- Channel 240VAC Supply	GLR43301240E 1- Channel 240VAC Supply IP66 Rated enclosure

Code Programming

For code programming, please refer to the separate programming instructions.
When programming is completed and the GIGALINK cable is removed from the receiver-coding socket, the 3-way dip switch is used to select different output modes. This is described below.
Different Modes for the Output
3-Way DIP Switch Mode Settings
The output relay will respond in the following manner when receiving the correct signal from a transmitter

	“Momentary”: Relay on, only while the correct signal is received
	“Latching”: Relay alternates at every correct incoming signal
	“Delayed Off 1”: Relay on, but delayed off for 1-10 seconds, adjustable by trimpot
	“Delayed Off 2”: Relay on, but delayed off for 10-300 seconds, adjustable by trimpot
	“Security latching “: Relay will energize until supply to the receiver is momentarily interrupted
	“On-Off”: This mode requires a 2-channel Tx. Channel 1 will always energize the relay Channel 2 will always de-energize the relay To use this mode you need to do channelized code programming. Do not use single-code programming.
	“On-Off”: This mode requires a 4-channel Tx. Channel 3 will always energize the relay Channel 4 will always de-energize the relay To use this mode you need to do channelized code programming. Do not use single-code programming.

Momentary – Output is active for as long as the transmitter button is pressed.
This is a standard mode on most automatic gates or garage door openers.
Latching – Output remains active until the next press of the transmitter button.
Similar to switching “on” and “off” a light.”
Security Latching – Output remains active until power to the receiver is removed. Similar to security alarms and fire alarms.
Customized Software
Custom output modes can be programmed to do special functions. Call Elsa for more details.

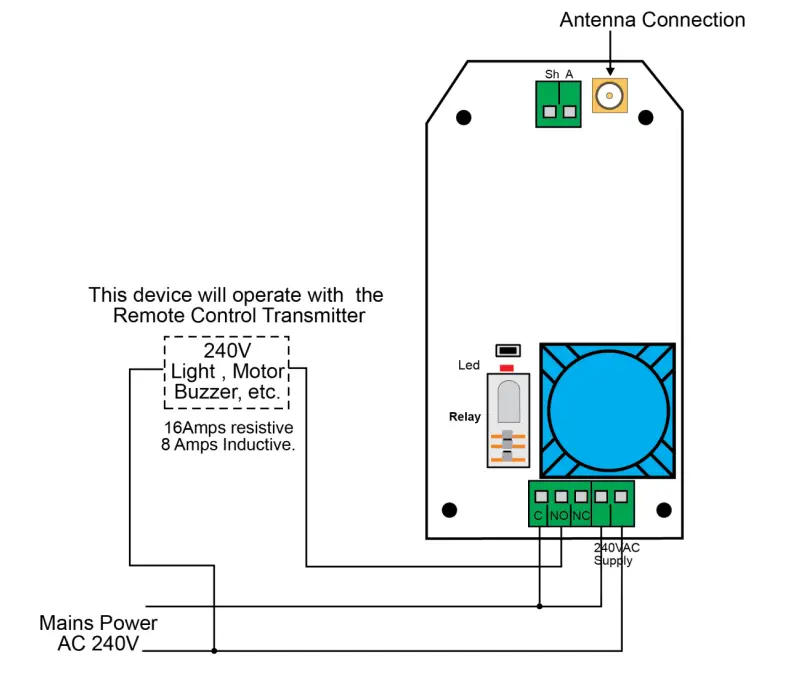

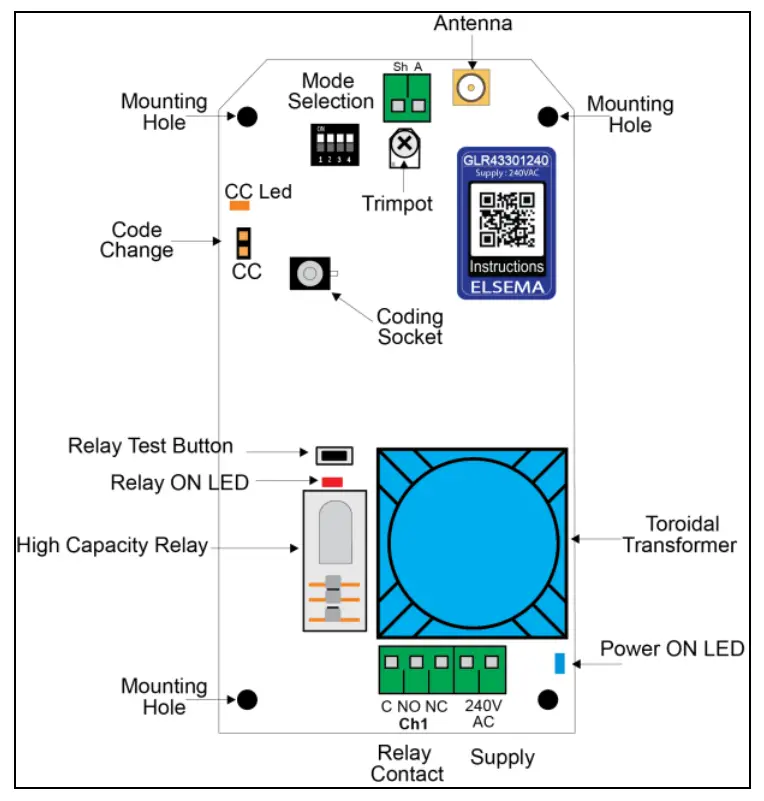

240 AC Supply, Antenna, and Relay Connections
AC power supply and relay connections are via the pluggable type terminal block. The antenna is via a two-way pluggable type terminal block. Do not connect the supply to the 2.5-mm coding socket since the connection will damage the microcontroller.
Applications
The receiver output can be set to different modes which allow it to be used in many diverse applications such as automatic gates, security, timer-controlled outputs, and simple on/off functions, etc.
Unique Code System
The microcontroller EEPROM allows large volume users to have a unique code. This enables Elsema to offer everyone “your own” radio control.

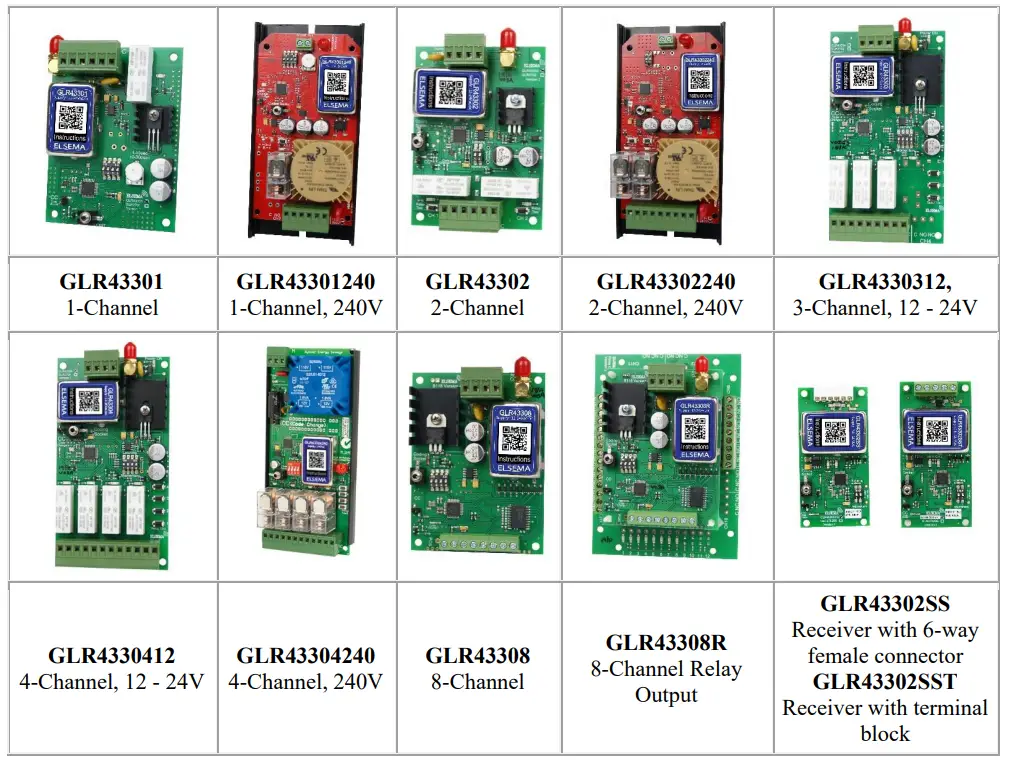

Products in the Range

Technical Data

Supply Voltage	240Volts AC Mains (110-120VAC available on request)
Current Consumption	18mA, on 240V AC
Receiving Freq	433.920MHz (Other frequencies are available on request. Refer to the table below )
Operating Temperature Range	_5 to 50°C
Outputs	Cho over relay output, rated at 16 Amps of resistive load and up to 8 Amps of inductive load.
Connections	Supply & Outputs – pluggable type terminal blocks
Antenna	Elsa’s ANT433MHz series antennas or pieces of approximately 690 mm long wire for short-range applications.
Dimensions	130 x 70 x 37mm
Mounting hole size	3.97 mm or 5/32″
Useable Transmitters	All Elsema Type 433MHz OLT-… series

Available Frequencies

SF2	433.664 MHz
SF3	433.408 MHz
SF4	433.152 MHz
SF5	434.688MHz
SF6	434.432 MHz

Special Frequency products can be made upon request. There is a minimum quantity order of 20. Please quote the Correct SF number when ordering transmitters on special frequencies.
