Foot Switches
Safety Lock Plus Manual Release
User Manual

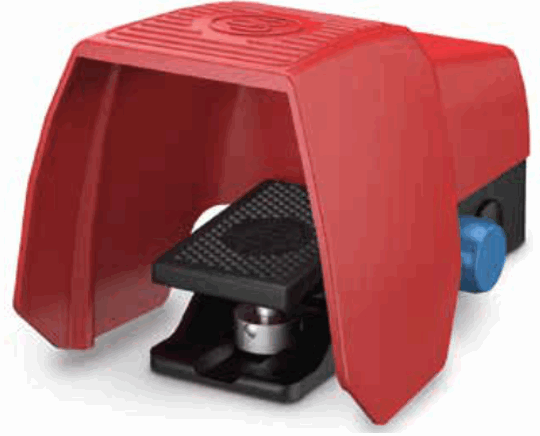

616.1000.532 Foot Switches with Safety Lock Plus
Ordering Instructions for foot switches with safety lock plus manual release

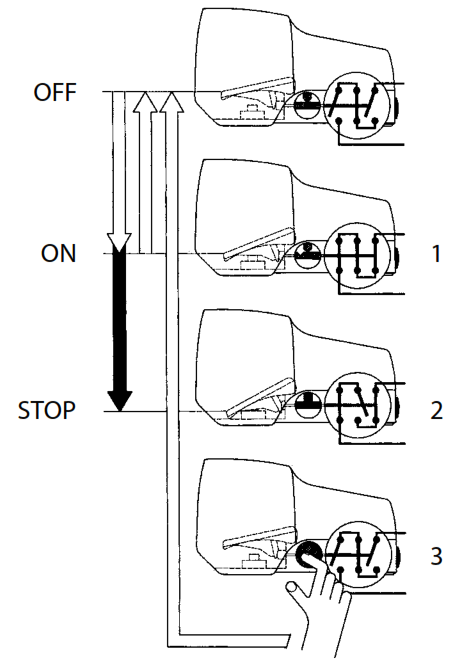

Pedal pressed up to pressure point
The make contact is closed and the work process is started.
Pedal pressed beyond resistance of the pressure point in an emergency situation The make contact is interrupted and locked, the work process is interrupted. In this phase the lock remains in the Off position even when the pedal is not pressed. This reliably prevents uncontrolled restart of the machine or moving parts.
Release
Only after the hazardous situation has been remedied does manual release (pushbutton on the side of the enclosure) release the contacts again and the work process can be restarted by pressing the pedal as far as the pressure point.
Safety function on foot switches with mechanical lock (SiPf)
Single pedal foot switch F1
| Article number | Designation | Switching contacts | Pressure point | Special feature |
| 6.16E+09 | F1-SU1ZUV1ZDR UN | 2NC / 2NO | 200 N | Pressure point D, Latching, Prot. shroud UN |
| 6.16E+09 | F1-SU1Z/UV1ZD UN | 1NC / 2NO | 200 N | Pressure point D, Latching, Prot. shroud UN |
| 6.16E+09 | F1-SU1ZCA2ZDR UN | 3NC / 1NO | 200 N | Pressure point D, Latching, Prot. shroud UN |
| 6.16E+09 | F1-UV1Z/UV1ZD | 2NC / 2NO | 200 N | Pressure point D, Latching |
| 6.16E+09 | F1-UV1Z/UV1ZD UN | 2NC / 2NO | 200 N | Pressure point D, Latching, Protective unlatch button, Prot. shroud UN |
Two pedal foot switch F2
| Article number | Designation | Switching contacts | Pressure point | Special feature | ||
| Pedal 1(l.) | Pedal 2 (r.) | Pedal 1(l.) | Pedal (r.) | |||
| 6.16E+09 | F2-SU1ZUV1ZD/SU1Z UN | 2NC / 2NO | 1NC / 1NO | 460 N | Latching (Pedal 1), Pressure point D (Pedal 1) Prot. shroud UN | |
| 6.16E+09 | F2-SU1ZSU1ZD/SU1Z UN | 2NC / 2NO | 1NC / 1NO | 200 N | Latching (Pedal 1), Pressure point D (Pedal 1) Prot. shroud UN | |
| 6.16E+09 | F2-SU1ZUV1D/SU1ZUV1D UN | 2NC / 2NO | 2NC / 2NO | 200 N | 200 N | Latching (Pedal 1+2), Press. point D (Pedal 1+2) Prot. shroud UN |
| 6.16E+09 | F2-SU1ZUV1D/SU1ZUV1D UN | 1NC / 2NO | 1NC / 2NO | 200 N | 200 N | Latching (Pedal 1+2), Press. point D (Pedal 1+2) Prot. shroud UN |
| 6.16E+09 | F2-SU1ZCA2ZD/SU1ZCA2ZD | 3NC / 1NO | 3NC / 1NO | 200 N | 200 N | Latching (Pedal 1+2), Press. point D (Pedal 1+2) Prot. shroud UN |
| 6.16E+09 | F2-UV1ZD/UV1ZD UN RAST | 1NC / 1NO | 1NC / 1NO | 200 N | 200 N | Latching (Pedal 1+2), Press. point D (Pedal 1+2) Prot. shroud UN |
Three pedal foot switch F3
Slow-action con
| Article number | Designation | Switching contacts | Pressure point | Special feature | |
| Pedal 1 Pecla121m.) | Pedal 3 lel | Peda110.1 Pedal 2 OP | Pedal 31r.) | ||
| 6163500703 | P3501ZA2730511225/5111D12312 Past | 3NC / INO 2NC /2NO | 3NC/ I NO | 200 N 30N | Pressure point13 (Pedal 1+2+3), 200N Latching (Pedal I,) |
