1 IPCAM RI-03 Indoor Rotating HD WiFi Camera

2 Packing list

3 Product description

4 Camera conﬁguration

5 Speciﬁcations

6 Documents / Resources

6.1 References

7 Related Posts

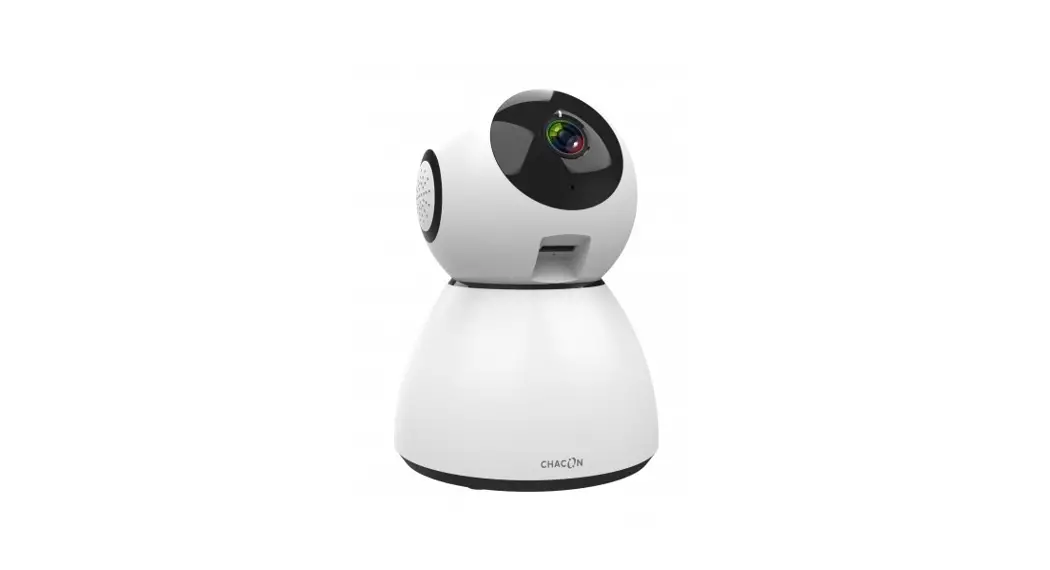

IPCAM RI-03 Indoor Rotating HD WiFi Camera

Packing list
Product description
Device conﬁguration
Legal notice

Packing list

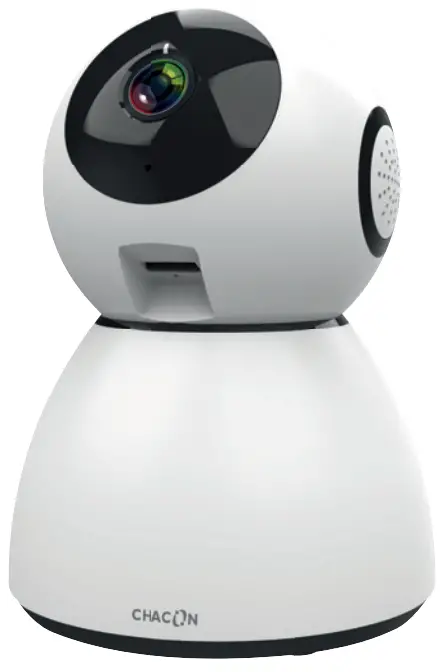

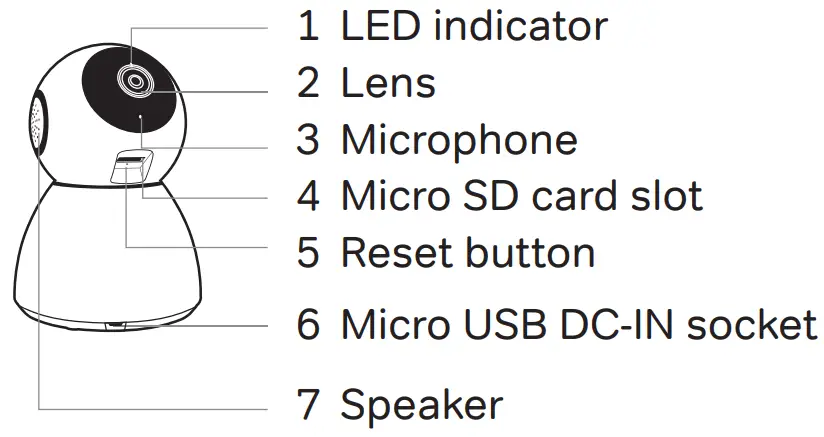

Product description

Notice
To reset the device, press and hold the reset button for 5 seconds.
The camera beeps when the operation is complete.

Flashing red light (slow)	Waiting conﬁguration
Flashing red light (fast)	Searching WiFi network
Fix blue light	Camera connected to WiFi
Flashing blue light	Access point mode

Camera conﬁguration

Step 1 Turn on your camera by plugging in the power adapter.
Step 2 Connect your smartphone to the Wi-Fi network.
Step 3 Download My Chacon app from the Apple Store or Android Play Store depending on your device.
Step 4 Launch My Chacon app and sign up for the ﬁrst use.

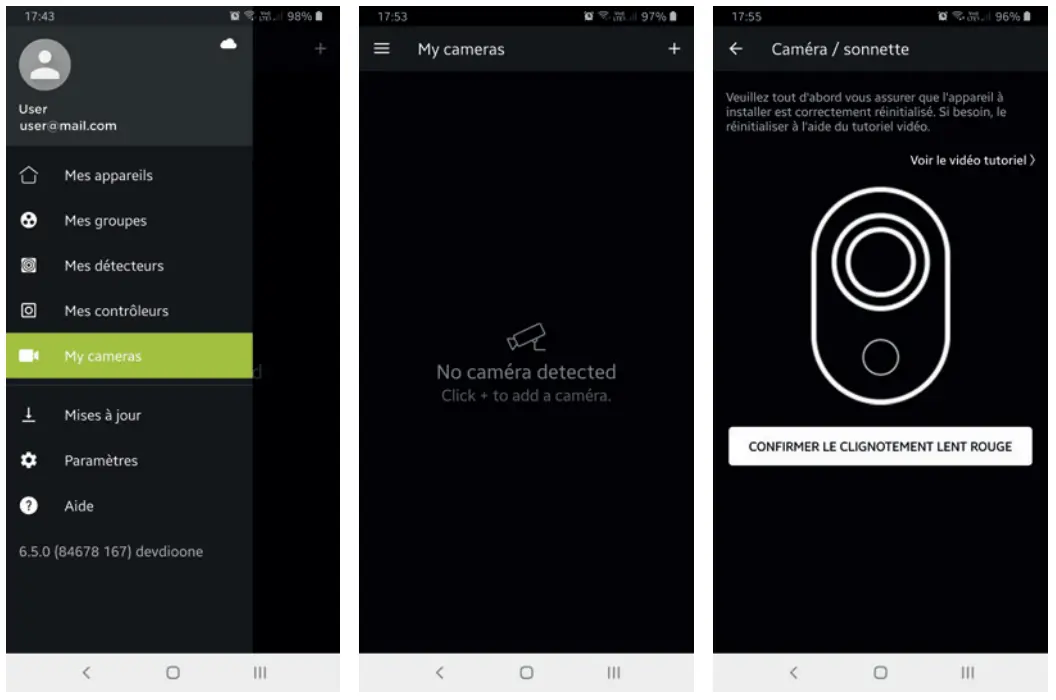

Step 5 Follow the steps below to add your camera, then follow the on-screen instructions.

Note
– If you have multiple cameras, please follow step 5 again to add devices one by one.
– To change Wi-Fi network, please restore the camera to factory settings and follow step 5 to add the camera.
For more information, please download the user manual at www.chacon.com

Speciﬁcations

Sensor type	1/3″ CMOS
Min. Brightness	Color [email protected]
	Black and white [email protected]
Resolution	2 Mega pixels
Lens	3.6mm F2.0
Shutter	1/25-1/100,000 per second
Infrared	High power LED with ICR
Infrared distance	10 metres
Pan/Tilt	00-3559-100-75°
Video compression	H.264
Bit rate	32Kbps-2Mbps
Max resolution	1920 x 1080
Framerate	1-25 per second
Picture settings	Support HD/SD;support flip;
Storage	SD card(Max 128G)
Audio	Two-way audio
Protocols	HTTP,DHCP,DNS,RTSP
WiFi standard	IEEE802.11b/g/n
Frequency	2.4 GHz — 2.4835 GHz
Bandwidth	20/40MHz
WiFi encryption	WPA-PSK/WPA2-PSK
Security	AES128
Working temperature	-20°C-55°C
Power	DC5V,1A
Consumption	2.5W MAX
Size(mm)	87×123
Model	TPA-67F050100VU01
Input voltage	100-240Vac
input frequency	50-60Hz
Output voltage	+5Vdc
Output current	1A
Output power	5W
Efficiency	73,62%
No-load Consumption	< 0.1W

Support
www.chacon.com/support
Symbols

Direct current (DC)
Don’t throw batteries or out of order products with the household waste (garbage). The dangerous substances that they are likely to include may harm health or the environment. Make your retailer take back these products or use the selective collect of garbage proposed by your city.
Hereby, Chacon, declares that the radio equipment type ‘IPCAM-RI03’ is in compliance with the
Directive 2014/53/EU.
The full test of the EU declaration of conformity is available at the following Internet address: http://chacon.com/conformity
For indoor use only

Warning
– The AC adapter must be connected inside the house and in a dry room only.
– Do not install near heat sources.
– Keep the AC adapter accessible so that it can be easily disconnected if necessary.
– If you need to clean the product, use a soft cloth.
Tip:
Any material between the product and your Wi-Fi router reduces the operating distance (mainly: reinforced concrete wall, concrete wall, metal surfaces). Take this into account when determining the positioning of your camera.

Chacon S.A. Avenue Mercator 2 • 1300 Wavre • Belgium
www.chacon.com
V1.1 221221
