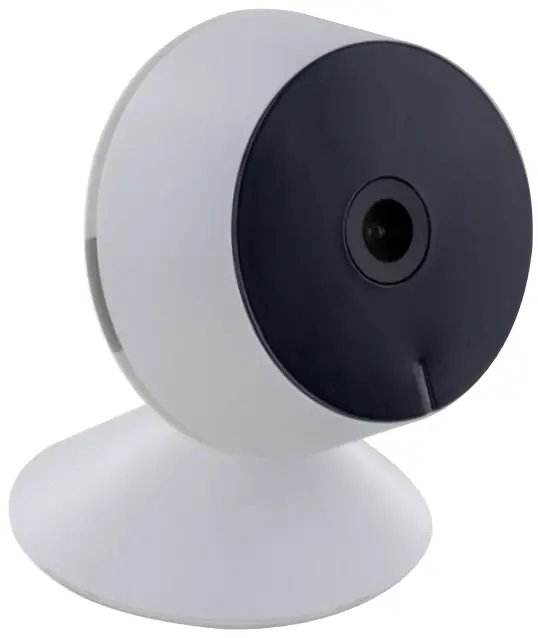

Chacon IPCAM FI-02 Mini Indoor IP WiFi Camera User Guide
Quick start guide
- Packing list
- Product description
- Device configuration
- Legal notice

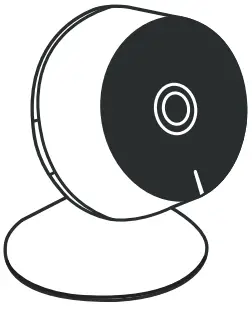

Packing list
- Camera 1X
- Adapter 1X
- Adhesive 1X
- Pin 1X
- USB Cable 1X
- Quick start guide 1X

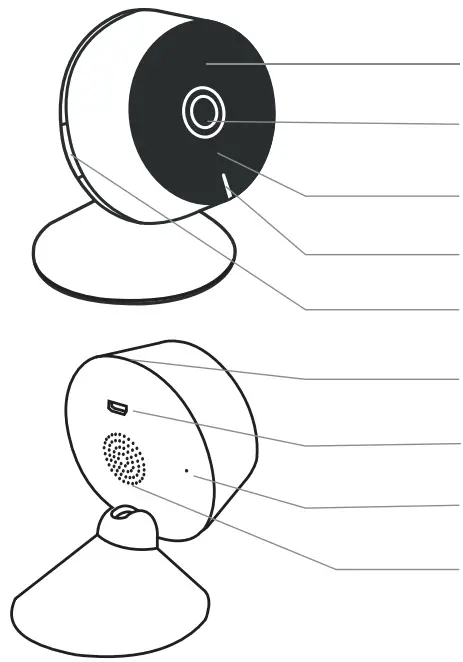

Product description
- Night Vision
- Lens
- Motion detection
- LED indicator
- Micro SD card slot
- Microphone
- 5V USB port
- Reset button
- Speaker
Notice
To reset the device, press and hold the reset button for 5 seconds. The camera beeps when the operation is complete.
| Flashing red light (slow) | Waiting configuration |
| Flashing red light (fast) | Searching WiFi network |
| Fix blue light | Camera connected to WiFi |
| Flashing blue light | Access point mode |
Camera configuration

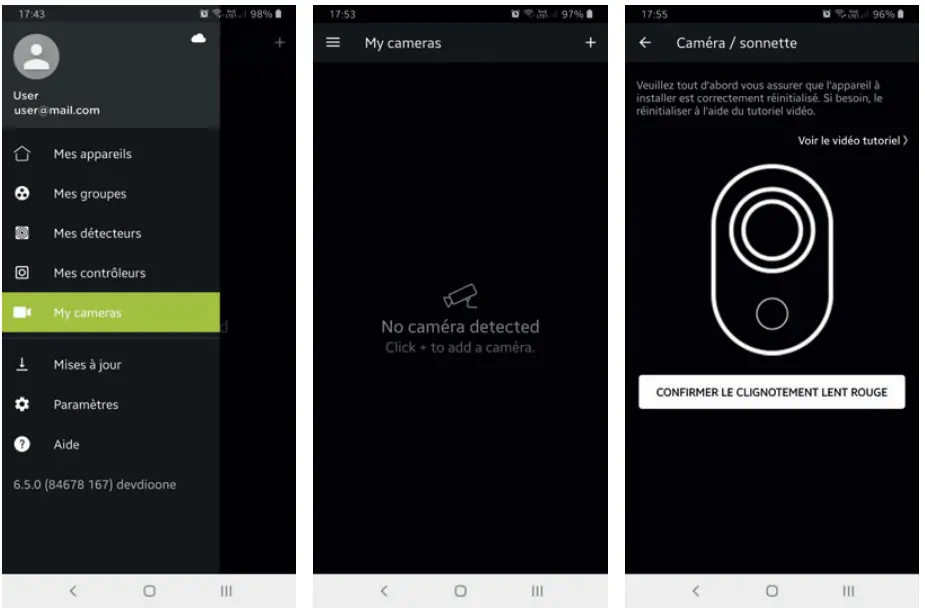

Step 1 Turn on your camera by plugging in the power adapter.
Step 2 Connect your smartphone to the Wi-Fi network.
Step 3 Download My Chacon app from the Apple Store or Android Play Store depending on your device. Also compatible with the DiO One App.
Step 4 Launch My Chacon app and sign up for the first use.
Step 5 Follow the steps below to add your camera, then follow the on-screen instructions.
Note
- If you have multiple cameras, please follow step 5 again to add devices one by one.
- To change Wi-Fi network, please restore the camera to factory settings and follow step 5 to add the camera.
For more information, please download the user manual at www.chacon.com
Specifications
| Sensor type | 1/3″ CMOS |
| Min. Brightness | Color [email protected] |
| Black and white [email protected] | |
| Resolution | 2 Mega pixels |
| Lens | 3.6mm F2.0 |
| Shutter | 1/25~1/100,000 per second |
| Infrared | High power LED with ICR |
| Infrared distance | 10m |
| Wide Angle | 100° |
| Video compression | H.264/H.265 |
| Bit rate | 32Kbps~2Mbps |
| Max resolution | 1920 × 1080 |
| Framerate | 1~25 per second |
| Picture settings | Support HD/SD;support flip; |
| Storage | SD card(Max 128G) |
| Audio | Two-way audio |
| Protocols | HTTP,DHCP,DNS,RTSP |
| WiFi standard | IEEE802.11b/g/n |
| Frequency | 2.4 GHz ~ 2.4835 GHz |
| Bandwidth | 20/40MHz |
| WiFi encryption | WPA-PSK/WPA2-PSK |
| Security | AES128 |
| Working temperature | -20°C~50°C |
| Power | DC5V,1A |
| Consumption | 2,5W MAX |
| Size(mm) | 59X62X104 |
| Model | GTA92-0501000EU |
| Input voltage | 100-240Vac |
| input frequency | 50-60Hz |
| Output voltage | +5Vdc |
| Output current | 1,0A |
| Output power | 5,0W |
| Efficiency | 74,13% |
| No-load Consumption | < 0.07W |
Support
Symbols
Direct current (DC)
Don’t throw batteries or out of order products with the household waste (garbage). The dangerous substances that they are likely to include may harm health or the environment. Make your retailer take back these products or use the selective collect of garbage proposed by your city.
Hereby, Chacon, declares that the radio equipment type ‘IPCAM-FI02’ is in compliance with the Directive 2014/53/EU. The full test of the EU declaration of conformity is available at the following Internet address:
http://chacon.com/conformity
For indoor use only
Warning
- The AC adapter must be connected inside the house and in a dry room only.
- Do not install near heat sources.
- Keep the AC adapter accessible so that it can be easily disconnected if necessary.
- If you need to clean the product, use a soft cloth.
Tip:
Any material between the product and your Wi-Fi router reduces the operating distance (mainly: reinforced concrete wall, concrete wall, metal surfaces). Take this into account when determining the positioning of your camera.
