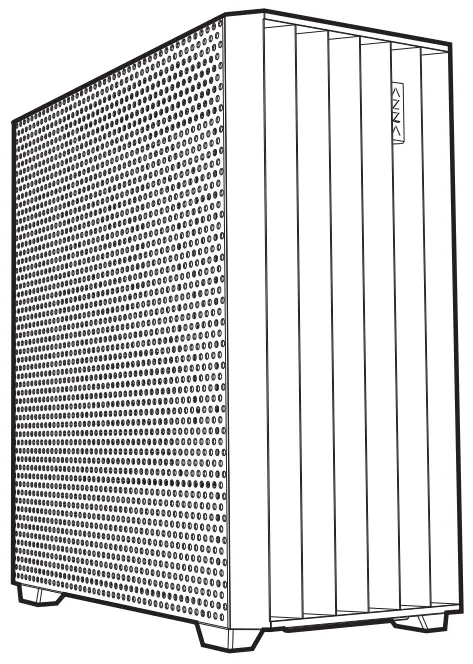

Azza Csaz-470 Legionaire Midi Tower Instruction Manual (+ PDF)

Type:	ATX Mid Tower
Color:	Black/Black(interior)
Side Panel Window:	Left side panel: slidable iron mesh side panel
Max CPU Cooler Height:	UP to 170 mm
Max Video Card Length:	Up to 400 mm long video card
Power Supply:	Not included
Motherboard Compatibility:	E-ATX 、ATX 、Micro ATX 、ITX

Expansion

External 5.25″ Drive Bays:	0
Internal 2.5″ Drive Bays:	Up to 4
Internal 3.5″ Drive Bays:	Up to 2
Expansion Slots:	7
Top Ports:	The power button, LED button, HD Audio, USB 3.0 x 2

Physical Specifications

Case Dimension (HxWxD)	483x220x440mm/19×8.7×17.3 inches
Weight:	6.1Kg /13.5lbs

Features

Mesh side panel:	The full mesh side windows allow for clear visuals to inner components and increased air intake, having maximum airflow performance.
Addressable RGB Light Effects:	ARGB fans are controlled using the LED button. All addressable RGB devices can sync with the motherboard, allowing the motherboard software to control lighting directly.
Available Fan Ports:	3x120mm or 3x140mm fan ports in the front (3x120mm LFO-3812D addressable ARGB fan included) 3x120mm or 2x140mm fan ports on the top 1x120mm fan port in the rear (1x120mm LFO-3812D addressable ARGB PWM fan included) 2x120mm fan ports on the Power Supply Shroud
Water Cooling:	Supports radiators up to 280/360mm in the front Supports radiators up to 240/280mm in the top
Dust Filters:	Removable (magnetic) dustproof net on the top, dust filter on the bottom of chassis.
Power Supply Support:	Bottom-mounted ATX Power Supply

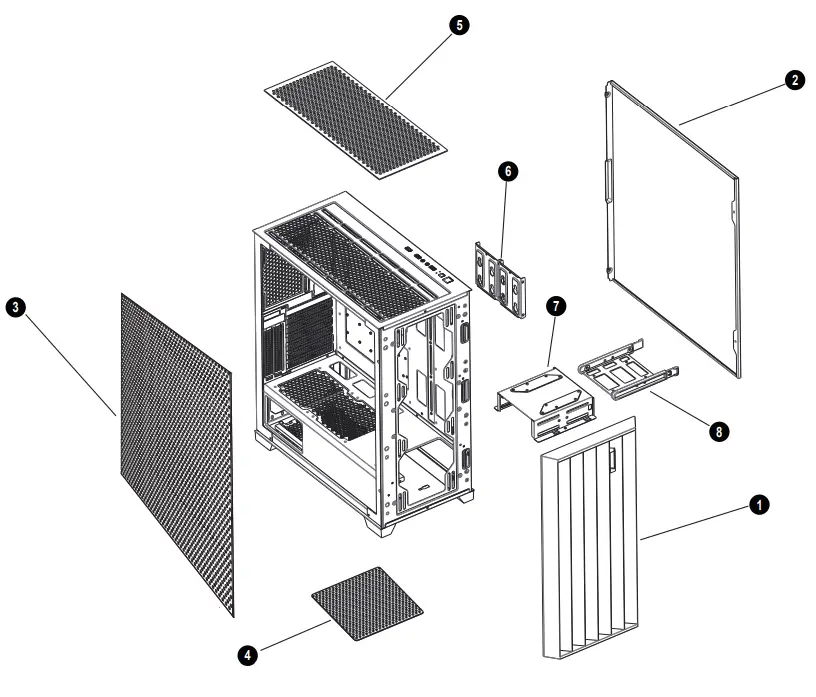

Chassis Parts

1	Front panel
2	Metal side panel
3	Mesh side panel
4	Removable dust filter
5	Removable magnetic mesh
6	2.5” SSD tray x 2
7	Hard disk cage
8	3.5” HDD/ 2.5” SSD brackets

Control Panel Functions

	POWER
	LED
	Mic
	Audio
	USB 3.0
	USB 3.0

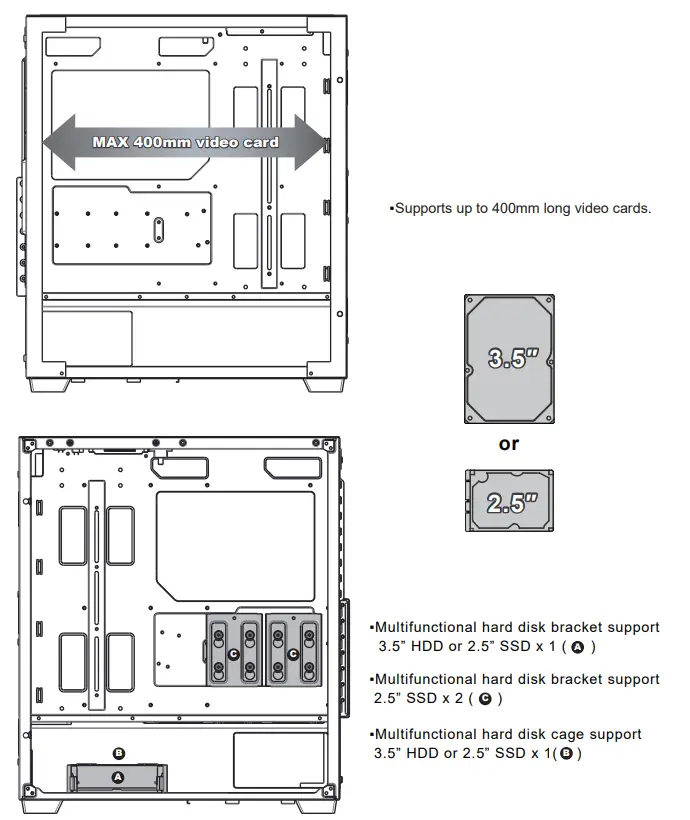

3.5 ˝/ 2.5˝ HDD/SSD Installation

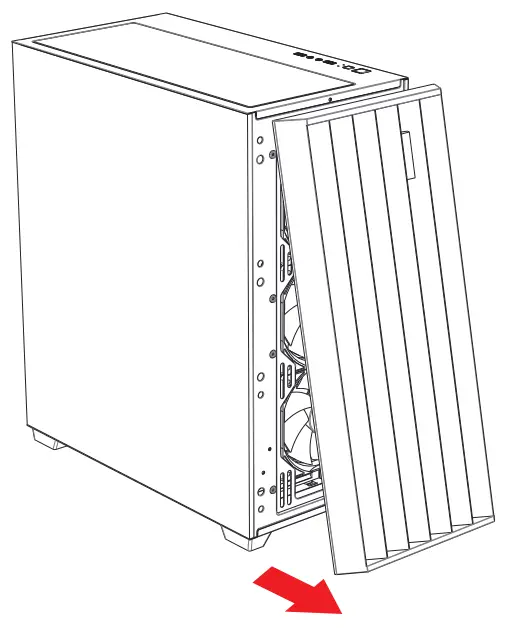

Remove the Front Panel Instructions

Cooling System Installation

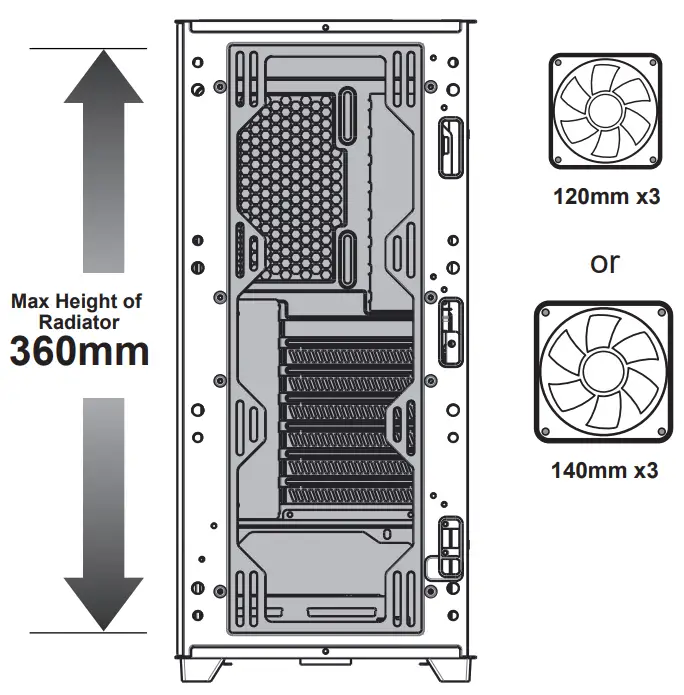

Front

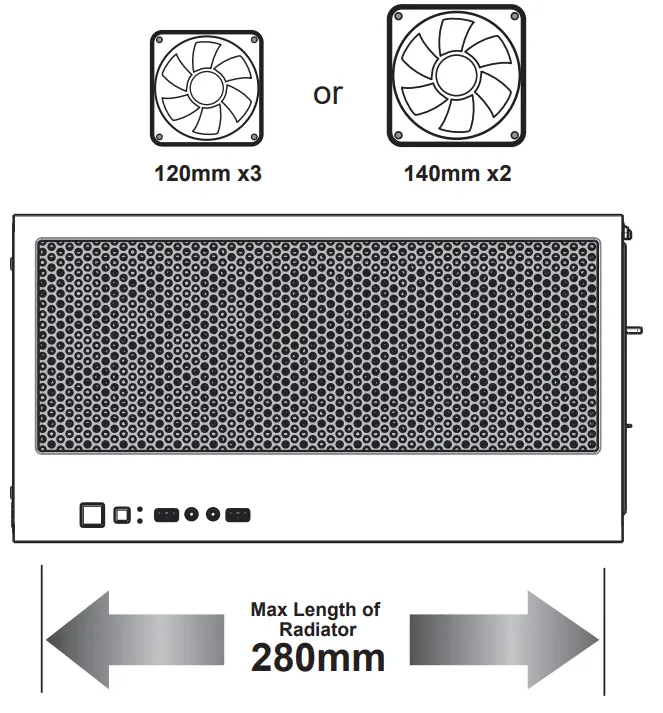

Top

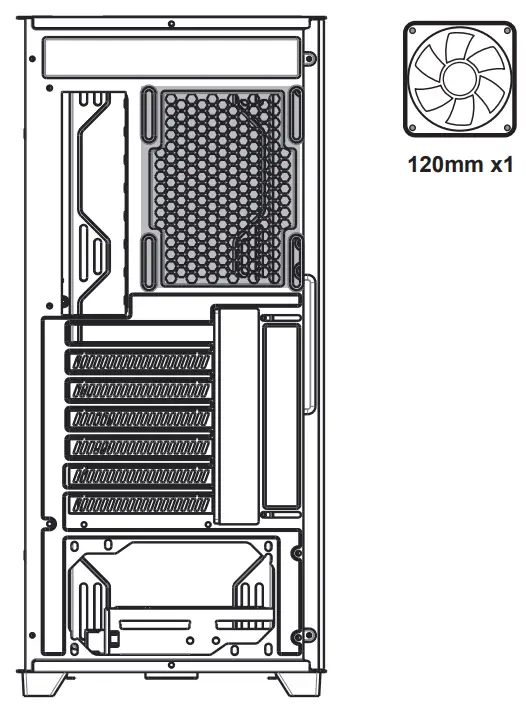

Rear

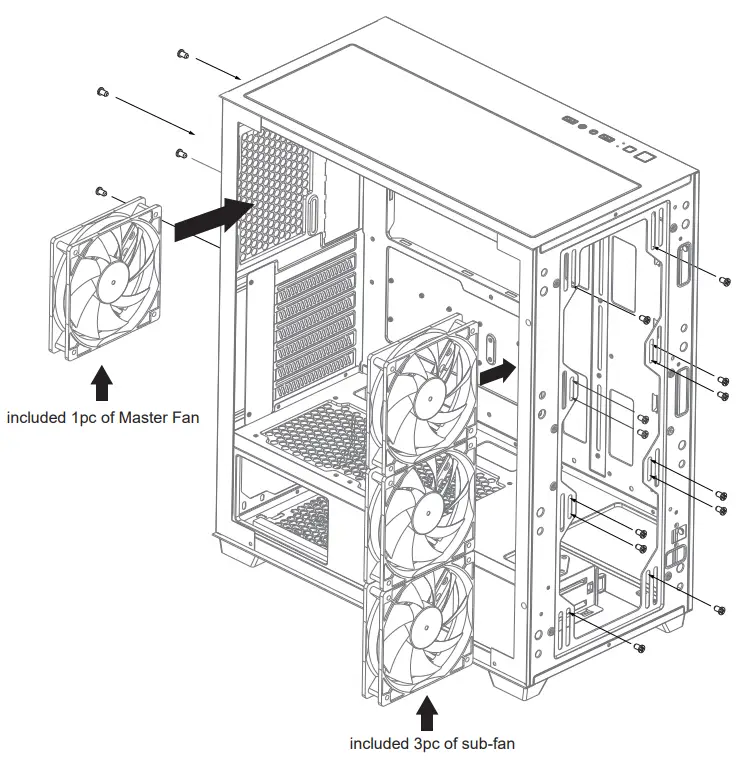

Master Fan & Sub-fan Installation

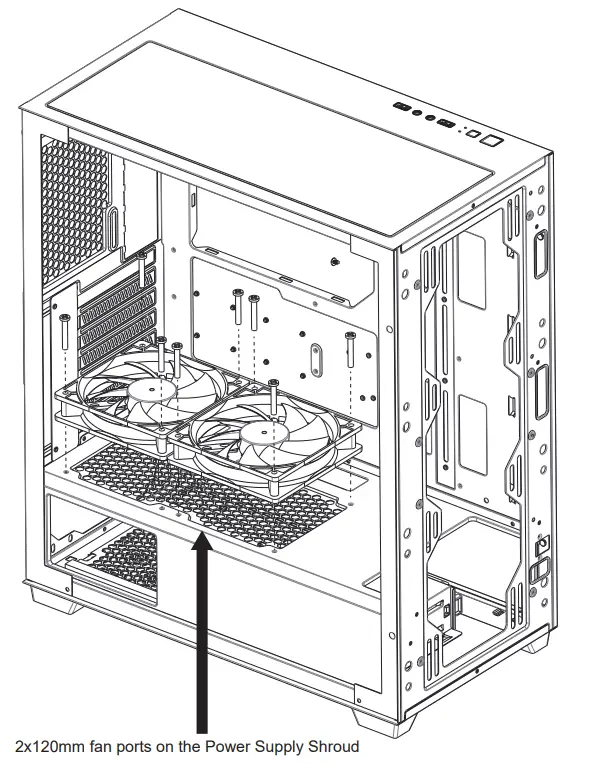

PSU Fans Installation

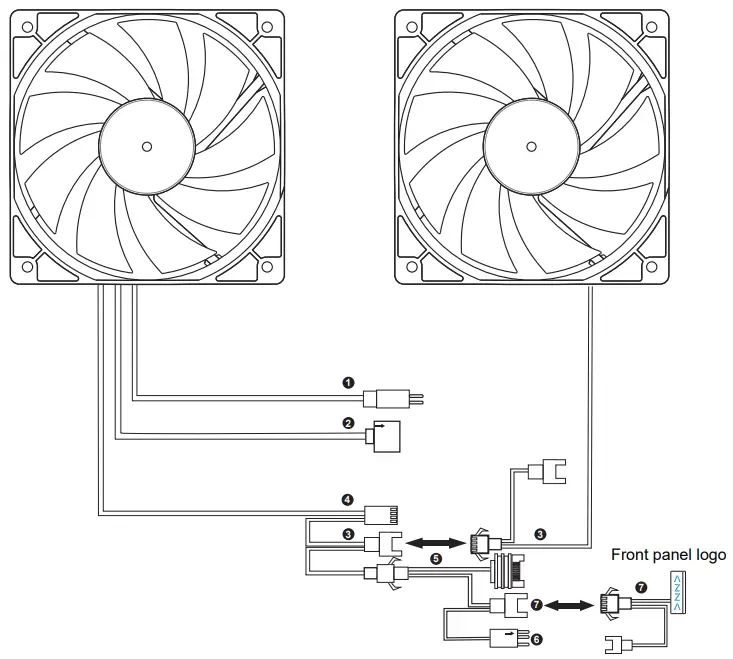

Fan Installation

	CONNECTOR	CONNECTION
①	ARGB LED 5V (3pin) female connector	LED Button
②	Reset (LED) S/W (2pin)	The 5V/3pin ARGB socket of the motherboard
③	ARGB LED 5V (3pin) male connector	The master Fan connects to the sub-fan
④	Fan Connector	CHA_FANx socket of the motherboard
⑤	Fan Connector PWM (4pin)	Power Supply
⑥	SANTA	Other 5V/3pin ARGB devices
⑦	Logo ARGB LED connector	The last sub-fan female connector

※Before the fan starts, please make sure the PWM connector and ④SATA connector ⑤each are connected.

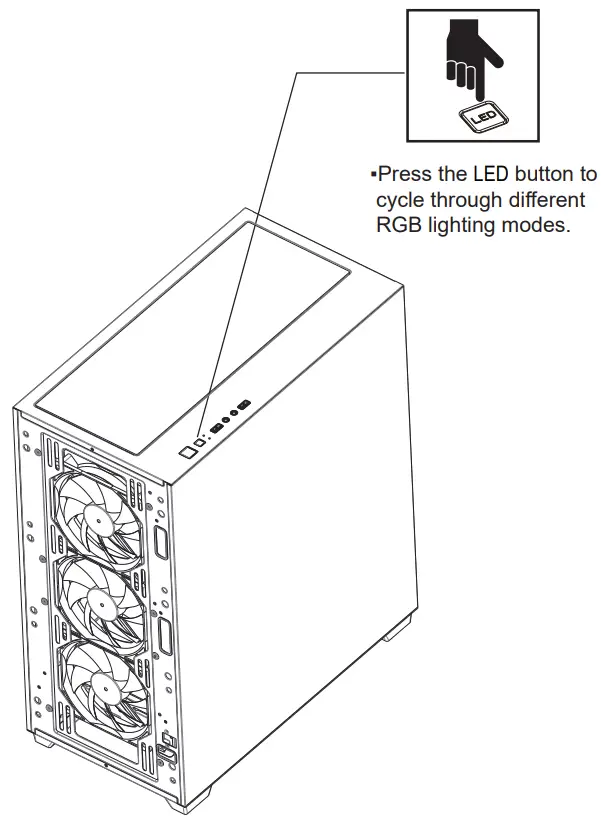

※Press the LED button to cycle through different RGB lighting modes, all ARGB devices are controlled by the LED button. (make sure the other 3pin ARGB devices are connected with ⑥ )
※Ensure ② insert the motherboard and hold the LED button for 3 seconds to switch the RGB control function between motherboard RGB software and LED button.
