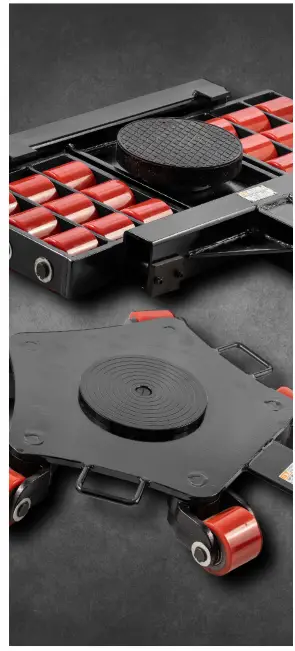

VRS4 Machinery Moving Skate

Set Capacities 2 through to 64 tonnes

Note: Operator must read and fully understand the operating instructions before using this product.

Safety Information

All of the information reported herein is based on data available at the time of publishing. We reserve the right to modify the products at any time without notice. Please verify with us for possible updates.

GENERAL

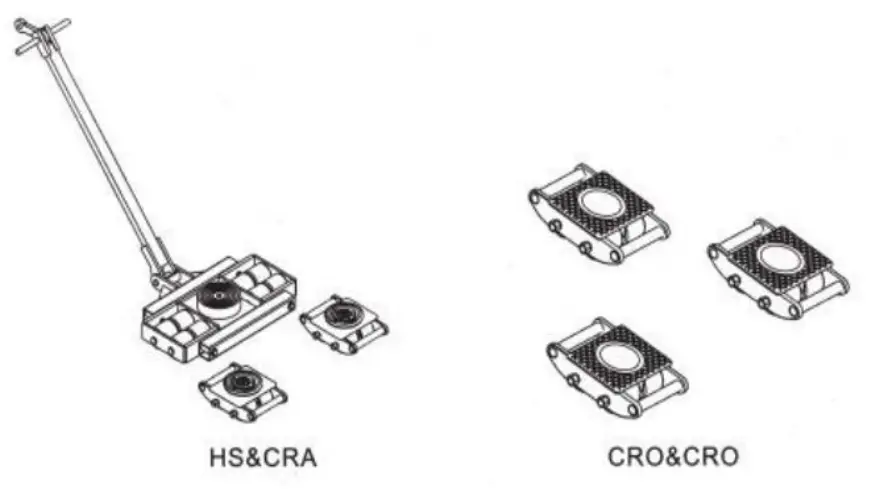

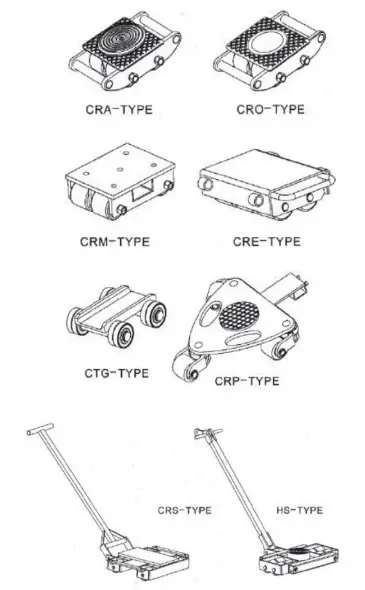

Hi-tech machinery skates have load bearing centres and are capable of moving large capacities. In saving time and straing, they are the ideal tool for carrying and shifting equipment, from small to heavy loads. Detailed below are various options available:

For your safety and correct operation, please carefully read the manual before use.

After lifting the cargo, please the skates in the appropriate place to support the load.
Gently lower the cargo onto the skate. Pull the draw bar or push the skate to move the load.
After the load has been repositioned, lift the cargo off the skates and move them out of the way before lowering the load back into place.

REMARKS

Ensure the load is always in uniform position on the bearing centre plate of the skates.
Always keep the surface on which the skate is placed, clean and smooth. DO NOT USE ON UNEVEN SURFACES.
Never exceed the maximum load of any skate. Always use the correct equipment to load the skate, such as toe jacks etc.
When loading the skate set, make sure the load is distributed in such a way that each individual skate is not overlooked.
Make sure the load will not tip over from the skate.
Make sure the load is not unstable on the skate and avoid any risk of the load tipping over or falling from the skate.
When moving loads on a floor that has a slope make sure you have means of controlling the movement of the load once it starts moving.
Always ensure the floor is clean and free from any items that could damage the wheels of the skates.

PERSONAL PROTECTION

Always wear safety boots when moving heavy loads.
Do not put feet or hands under the load once it is placed on the skates.
When handling the skates, only lift the skates by the handles on the 16 and 36 tonne sets to avoid any risk of trapped fingers.
When moving the load on the skate, always ensure that there is no risk of any person becoming trapped by the moving load.

SET SPECIFICATIONS

8 tonne (X4+Y4) =
1 x 4-tonne steering skate with turntable (X4)
2 x 2-tonne trailing skates (Y4)
16 tonne (X8+Y8) =
1 x 8-tonne steering skate with turntable (X8)
2 x 4-tonne trailing skates (Y8)
24 tonne (X12+Y12) =
1 x 12-tonne steering skate with turntable (X12)
2 x 6-tonne trailing skates (Y12)
32 tonne (X16+Y16) =
1 x 16-tonne steering skate with turntable (X16)
2 x 8-tonne trailing skates (Y16)
36 tonne (X18+Y18) =
1 x 18-tonne steering skate with turntable (X18)
2 x 9-tonne trailing skates (Y18)
48 tonne (X24+Y24) =
1 x 24-tonne steering skate with turntable (X24)
2 x 12-tonne trailing skates (Y24)
64 tonne (X32+Y32) =
1 x 32-tonne steering skate with turntable (X32)
2 x 16-tonne trailing skates (Y32)

MAINTENANCE

Inspect the skates on a regular basis and before use, to ensure they are in a safe to-use condition.
Keep the wheels clean and remove any metal items that have become embedded in the wheels.
Lubricate the wheels to allow the skates to continue to move freely, making moving the load easier.

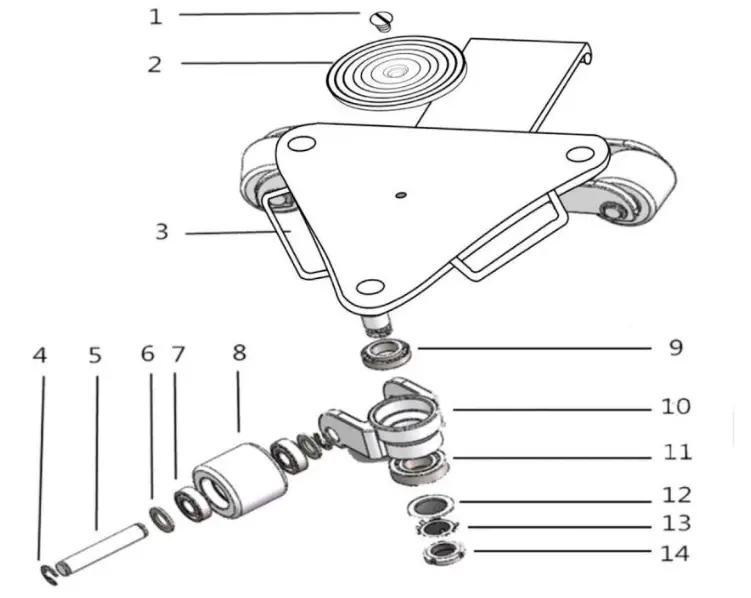

Spare Parts Breakdown VRS – 2 tonne

Fig. No.	Description	Qty	Fig. No.	Description	Qty
1.	Turntable Screw	1	8.	Roller	3
2.	Turntable	1	9.	Bearing 2	3
3.	Frame	1	10.	Wheel Frame	3
4.	Open Ring	6	11.	Bearing 3	3
5.	Roller Shaft	3	12.	Washer	3
6.	Flat Washers	6	13.	Locking Washers	3
7.	Bearing 1	6	14.	Locking Nuts	3

Spare Parts Breakdown VRS – 4 tonne

Fig. No.	Description	Qty	Fig. No.	Description	Qty
1.	Turntable Screw	1	8.	Roller	5
2.	Turntable	1	9.	Bearing 2	5
3.	Frame	1	10.	Wheel Frame	5
4.	Open Ring	10	11.	Bearing 3	5
5.	Roller Shaft	5	12.	Washer	5
6.	Flat Washers	10	13.	Locking Washers	5
7.	Bearing 1	10	14.	Locking Nuts	5

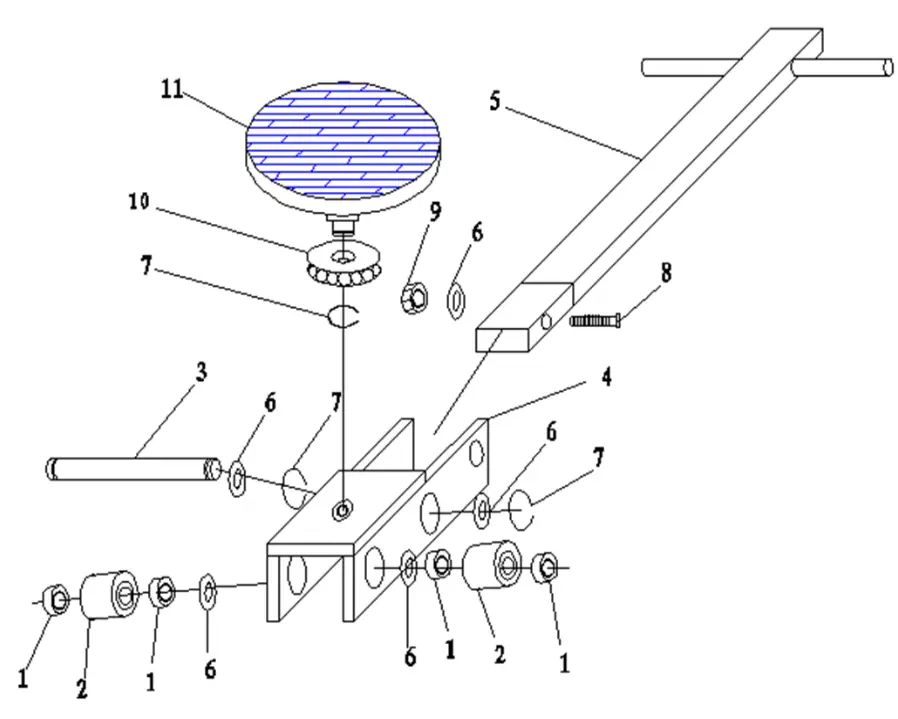

Spare Parts Breakdown – X4 VMMS8 – Steering Skate

Fig. No.	Description	Qty	Fig. No.	Description	Qty
1.	Bearing	8	7.	Retaining Ring	5
2.	Wheel	4	8.	Bolt	1
3.	Axle	2	9.	Nut	1
4.	Frame	1	10.	Bearing	1
5.	Handle	1	11.	Crest Plank Arts	1
6.	Washer	9

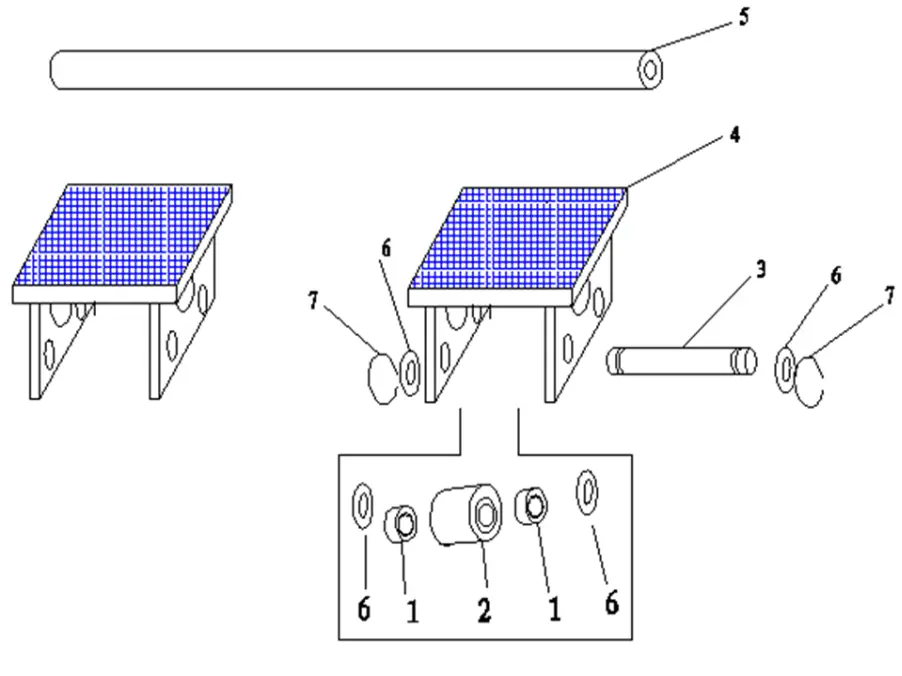

Spare Parts Breakdown – Y4 VMMS8 – Trailing Skate

Fig. No.	Description	Qty	Fig. No.	Description	Qty
1.	Bearing	8	5.	Connect Rod	1
2.	Wheel	4	6.	Washer	9
3.	Axle	2	7.	Retaining Ring	5
4.	Frame	1

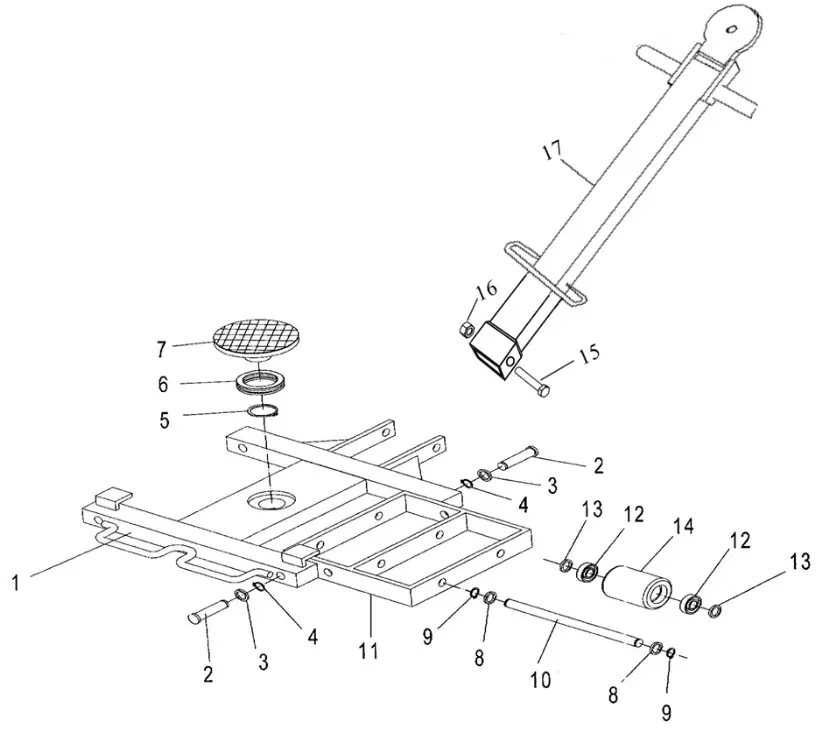

Spare Parts Breakdown – X8 VMMS16 – Steering Skate

Fig. No.	Description	Qty	Fig. No.	Description	Qty
1.	Frame	1	10.	Axle	4
2.	Shaft	4	11.	Frame of Roller	2
3.	Washer	4	12.	Bearing	16
4.	Retaining Ring	4	13.	Washer	16
5.	Retaining Ring	1	14.	Wheel	8
6.	Bearing	1	15.	Bolt	1
7.	Crest Plank Arts	1	16.	Nut	1
8.	Washer	8	17.	Handle	1
9.	Retaining Ring	8

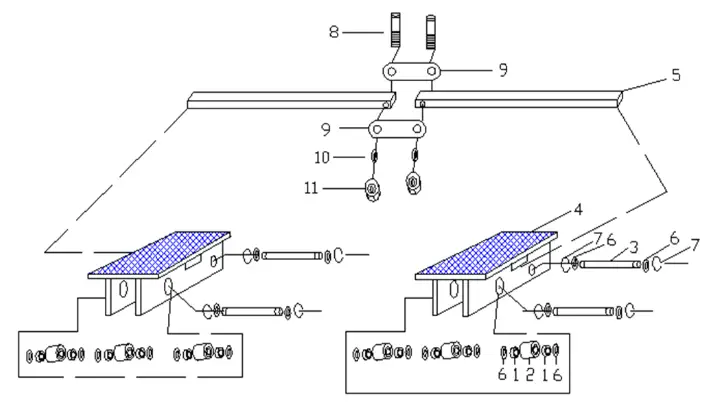

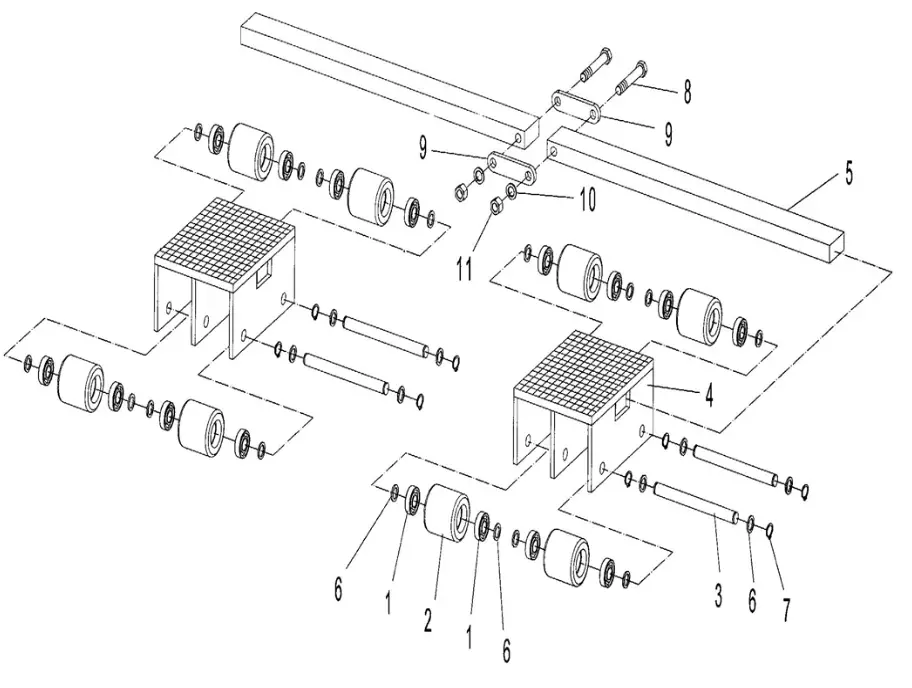

Spare Parts Breakdown – Y8 VMMS16 – Trailing Skate

Fig. No.	Description	Qty	Fig. No.	Description	Qty
1.	Bearing	16	7.	Retaining Ring	8
2.	Wheel	8	8.	Bolt	2
3.	Axle	4	9.	Connect Plank	2
4.	Frame	2	10.	Elastic Washer	2
5.	Connect Rod	2	11.	Nut	2
6.	Washer	26

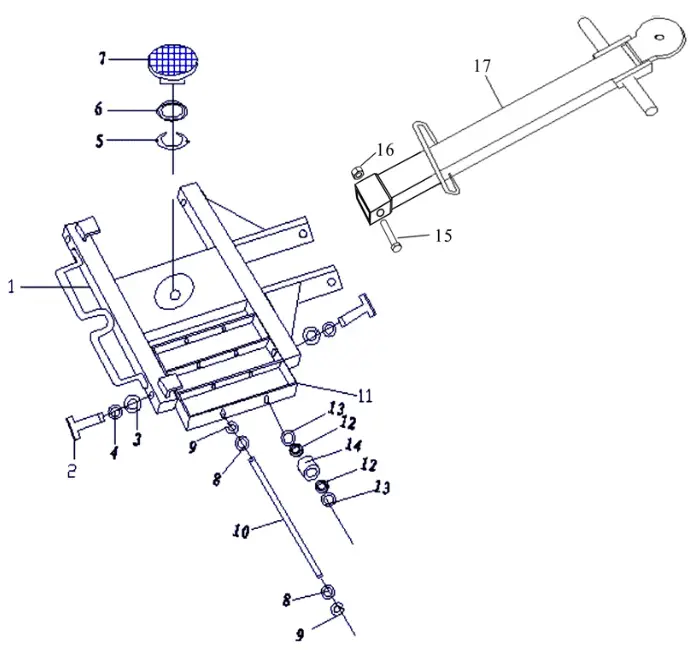

Spare Parts Breakdown – X12 VMMS24 – Steering Skate

Fig. No.	Description	Qty	Fig. No.	Description	Qty
1.	Frame	1	10.	Axle	4
2.	Shaft	4	11.	Frame of Roller	2
3.	Washer	4	12.	Bearing	24
4.	Retaining Ring	4	13.	Washer	24
5.	Retaining Ring	1	14.	Wheel	12
6.	Bearing	1	15.	Bolt	1
7.	Crest Plank Arts	1	16.	Nut	1
8.	Washer	8	17.	Handle	1
9.	Retaining Ring	8

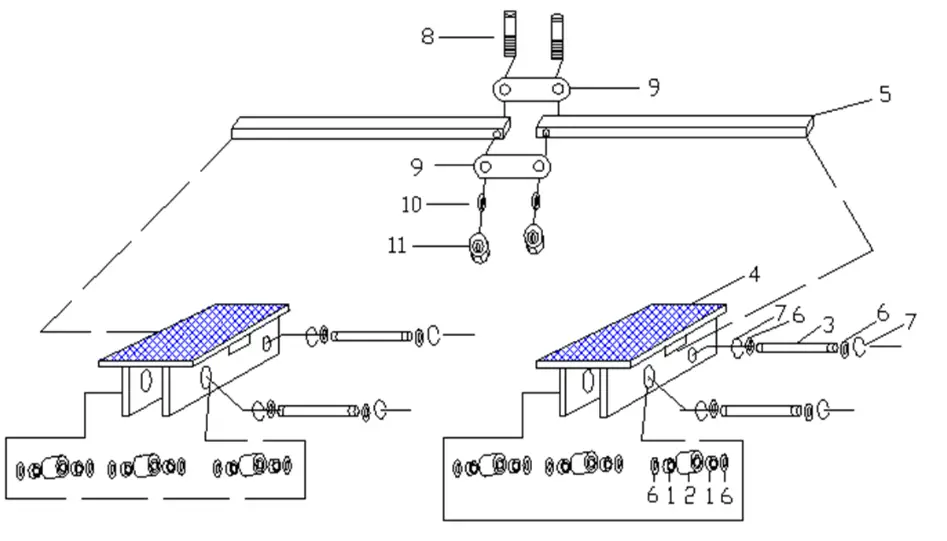

Spare Parts Breakdown – Y12 VMMS24 – Trailing Skate

Fig. No.	Description	Qty	Fig. No.	Description	Qty
1.	Bearing	24	7.	Retaining Ring	4
2.	Wheel	12	8.	Bolt	2
3.	Axle	4	9.	Connect Plank	2
4.	Frame	2	10.	Elastic Washer	2
5.	Connect Rod	2	11.	Nut	2
6.	Washer	24

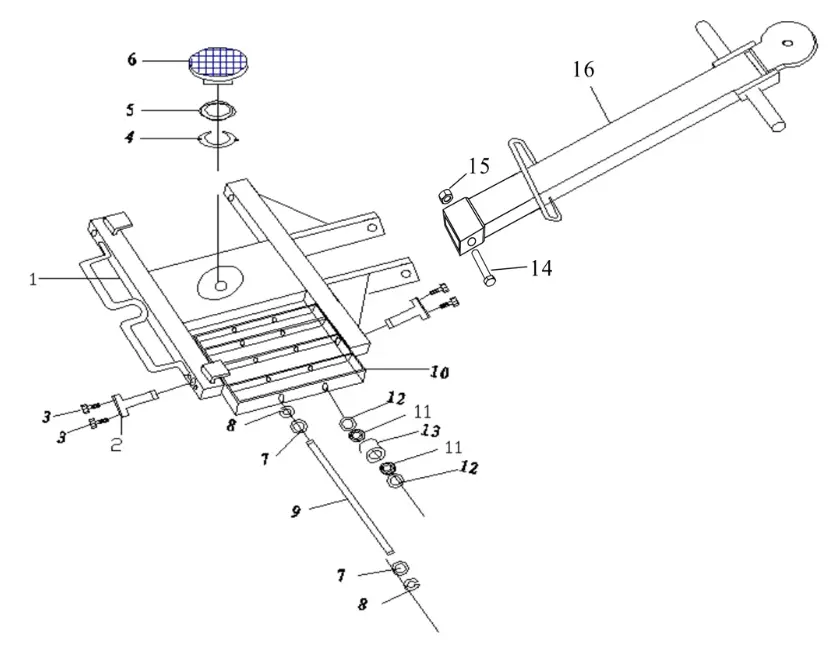

Spare Parts Breakdown – X18 VMMS36 – Steering Skate

Fig. No.	Description	Qty	Fig. No.	Description	Qty
1.	Frame	1	9.	Axle	4
2.	Shaft	4	10.	Frame of Roller	2
3.	Bolt	4	11.	Bearing	36
4.	Retaining Ring	1	12.	Washer	36
5.	Bearing	1	13.	Wheel	18
6.	Crest Plank Arts	1	14.	Bolt	1
7.	Washer	8	15.	Nut	1
8.	Retaining Ring	8	16.	Handle	1

Spare Parts Breakdown – Y18 VMMS36 – Trailing Skate

Fig. No.	Description	Qty	Fig. No.	Description	Qty
1.	Bearing	36	7.	Retaining Ring	4
2.	Wheel	18	8.	Bolt	2
3.	Axle	4	9.	Connect Plank	2
4.	Frame	2	10.	Elastic Washer	2
5.	Connect Rod	2	11.	Nut	2
6.	Washer	36

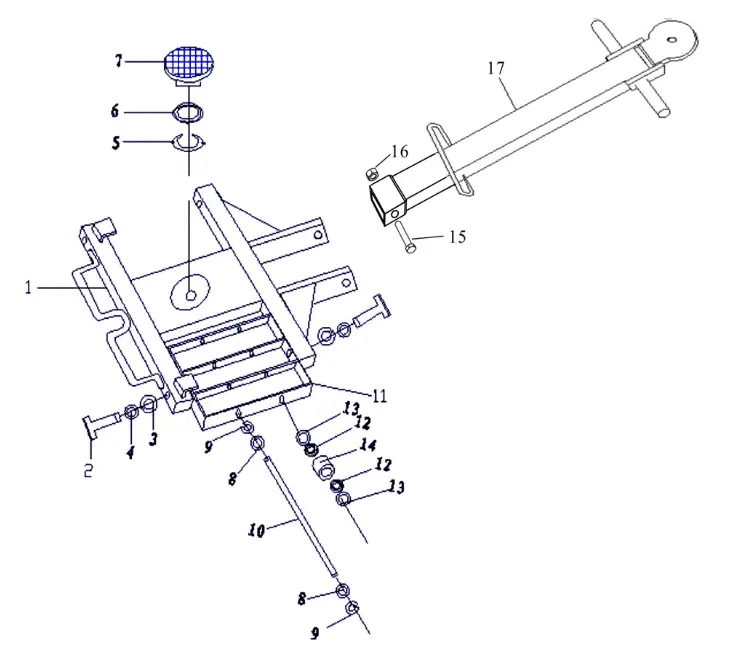

Spare Parts Breakdown – X24 VMMS48 – Steering Skate

Fig. No.	Description	Qty	Fig. No.	Description	Qty
1.	Frame	1	10.	Axle	4
2.	Shaft	4	11.	Frame of Roller	2
3.	Washer	4	12.	Bearing	24
4.	Retaining Ring	4	13.	Washer	24
5.	Retaining Ring	1	14.	Wheel	12
6.	Bearing	1	15.	Bolt	1
7.	Crest Plank Arts	1	16.	Nut	1
8.	Washer	8	17.	Handle	1
9.	Retaining Ring	8

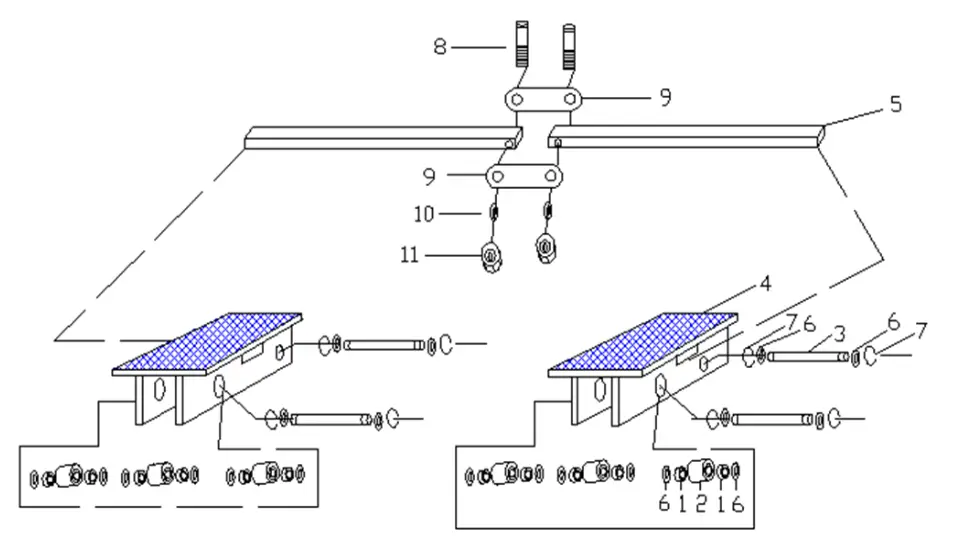

Spare Parts Breakdown – Y24 VMMS48 – Trailing Skate

Fig. No.	Description	Qty	Fig. No.	Description	Qty
1.	Bearing	24	7.	Retaining Ring	4
2.	Wheel	12	8.	Bolt	2
3.	Axle	4	9.	Connect Plank	2
4.	Frame	2	10.	Elastic Washer	2
5.	Connect Rod	2	11.	Nut	2
6.	Washer	24
