Lifting365 Orit Abh Brick Handle User Manual

User manual of ORIT ABH Brick Handle

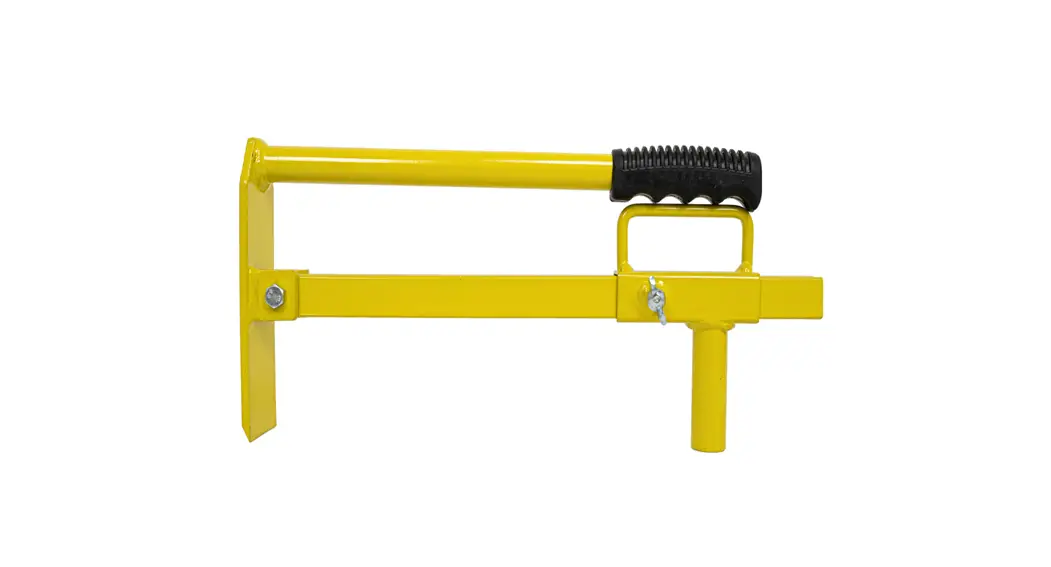

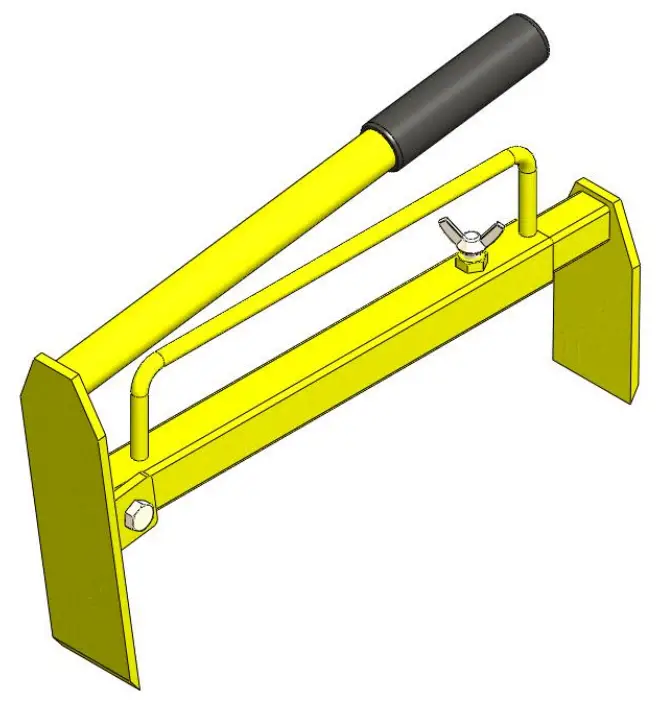

ORIT ABH Brick Handle

1. Choose the needed distance
2. The next sizes can be lifted: 290 – 530mm
3. Make sure the clamp has several mm of extra space
4. While lifting, the clamp will clamp automatically
5. The grip depth is 75 mm
6. The own weight is 1,7 KG
7. The maximum weight load is 30 KG
8. CE approved

CE-declaration of conformity ORIT ABH

ORIT B.V. , Bruijellestraat 8 , 5048 AE Tilburg
Herewith declares that
ORIT Brick handle type ABH
Is in conformity with the provisions of the Machinery Directive and with national implementing legislation
Directive: 2006/42/EG
This statement is valid considering this manual
Tilburg, Tuesday 12 April 2011
ORIT B.V.
Drs. F.A.M. Reijnen
Director
