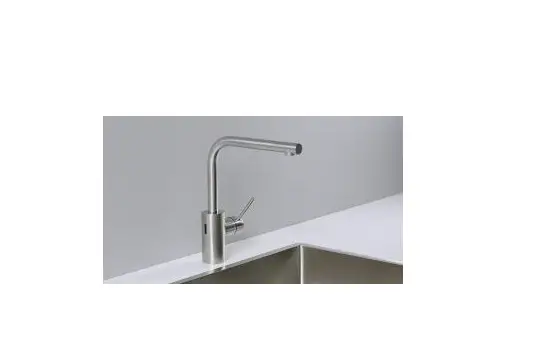

IKEA 903.594.95 TAMNAREN Kitchen Mixer with Sensor

IKEA-903.594.95 -tAMNAREN Kitchen-Mixer-with-Sensor

INSTALLATION

Installation must be performed in compliance with current local construction and plumbing regulations. If in doubt, contact a professional.

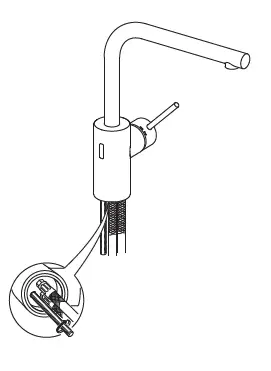

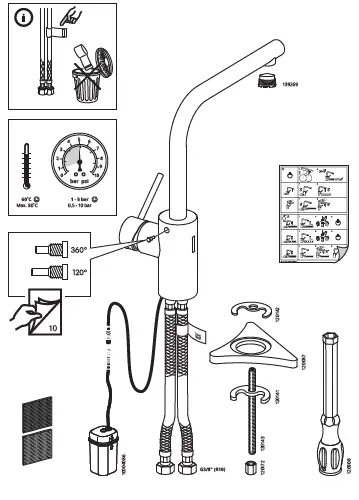

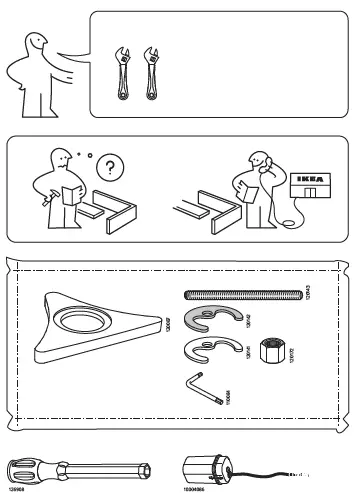

Switch off the main shut-off valve before changing mixer tap.IKEA-903.594.95 -tAMNAREN Kitchen-Mixer-with-Sensor-fig-1IKEA-903.594.95 -tAMNAREN Kitchen-Mixer-with-Sensor-fig-2IKEA-903.594.95 -tAMNAREN Kitchen-Mixer-with-Sensor-fig-3

Seal the open surfaces with silicone to prevent water from penetrating the worktop upon any leaks. Silicone is not included.

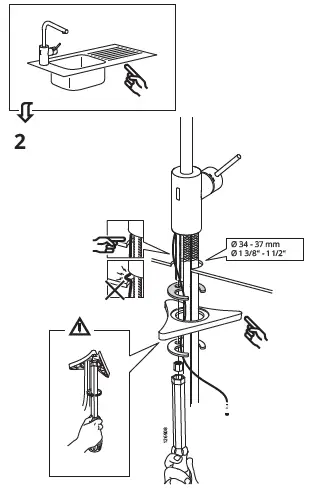

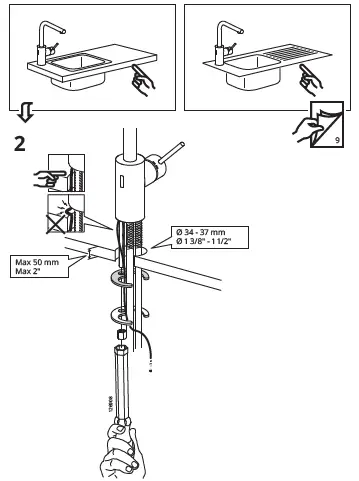

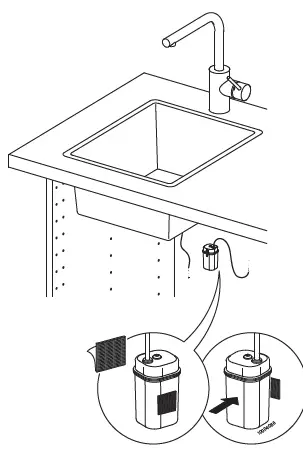

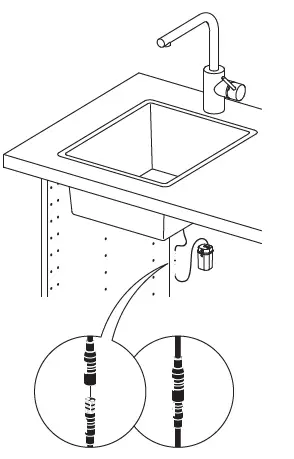

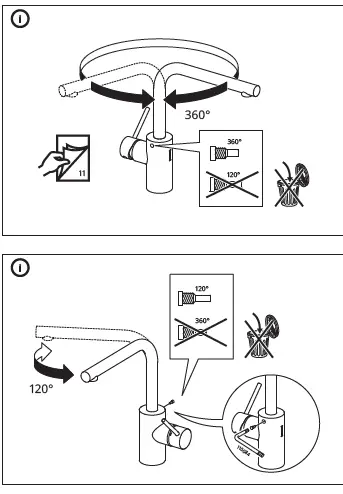

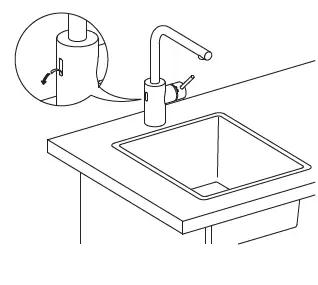

IKEA-903.594.95 -tAMNAREN Kitchen-Mixer-with-Sensor-fig-4IKEA-903.594.95 -tAMNAREN Kitchen-Mixer-with-Sensor-fig-5IKEA-903.594.95 -tAMNAREN Kitchen-Mixer-with-Sensor-fig-6IKEA-903.594.95 -tAMNAREN Kitchen-Mixer-with-Sensor-fig-7IKEA-903.594.95 -tAMNAREN Kitchen-Mixer-with-Sensor-fig-8IKEA-903.594.95 -tAMNAREN Kitchen-Mixer-with-Sensor-fig-9IKEA-903.594.95 -tAMNAREN Kitchen-Mixer-with-Sensor-fig-10

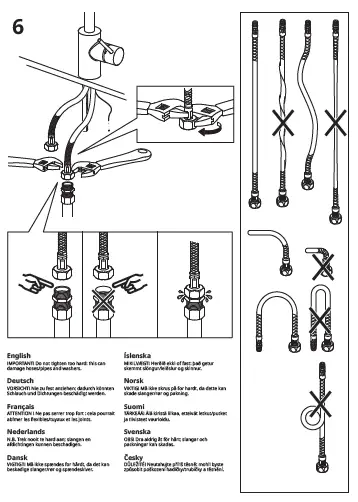

IMPORTANT! Do not tighten too hard: this can damage hoses/pipes and washers. IKEA-903.594.95 -tAMNAREN Kitchen-Mixer-with-Sensor-fig-11

Before use: Unscrew the Aerator/Flow Guide with a coin and allow the water to run freely for a few minutes. Then screw the Aerator/Flow Guide back in place up to the stop DO NOT OVERTIGHTEN.

Check at regular intervals to make sure that the installation is not leaking.
