Quick Installation Guide
If your internet connection is through an ethernet cable directly from the wall instead of through a DSL/Cable/Satellite modem, connect the ethernet cable to the router’s Port #1, and skip steps 1, 2 ,3.
Power off your modem.
Connect Port #1 of Cuddy to your modem’s LAN port.
Cody
Power on the modem and wait about 2 minutes for it restart.

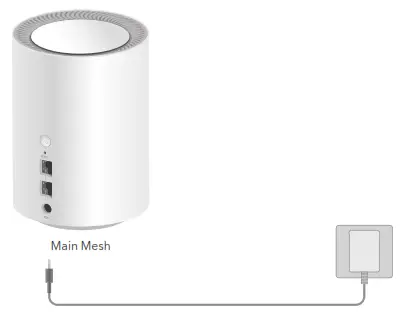

Power on Cudy and wait about 1 minute until the system LED changes from flashing to solid on(red or white).
Connect your computer to the router (Wired or Wireless)
Wired

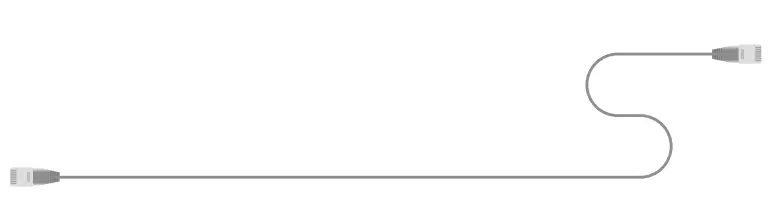

Turn off the Wi-Fi on your computer and connect it to the router’s Port #2 via an ethernet cable.
Wireless

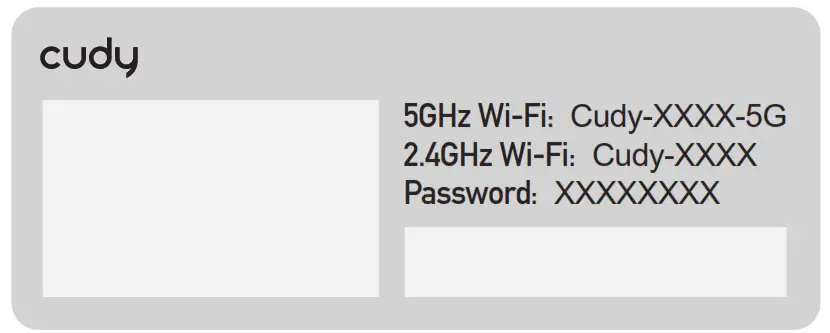

Connect your device to the router’s Wi-Fi using the SSID (network name) and Password printed on the bottom of the router.

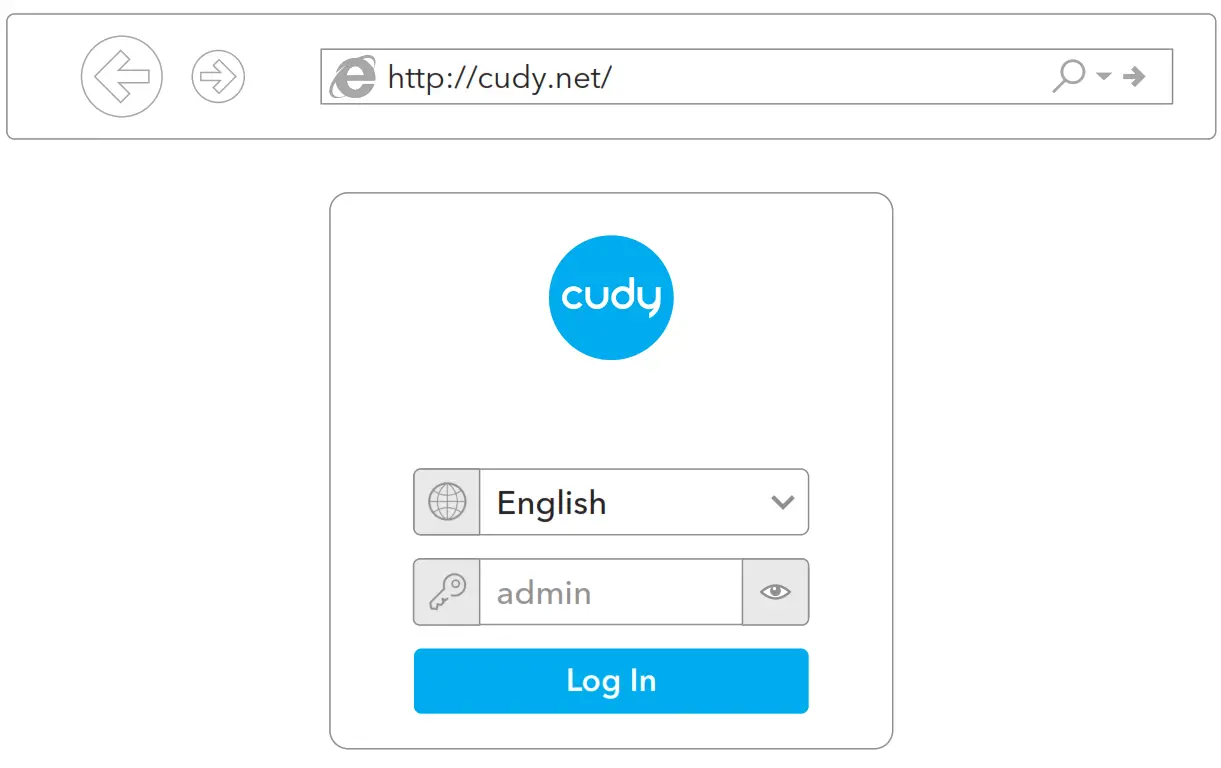

6 Launch a web browser and enter http://cudy.net/ in the address bar. Use admin for a password to log in.
Note: If the login window does not appear, please refer to FAQ > Q1.

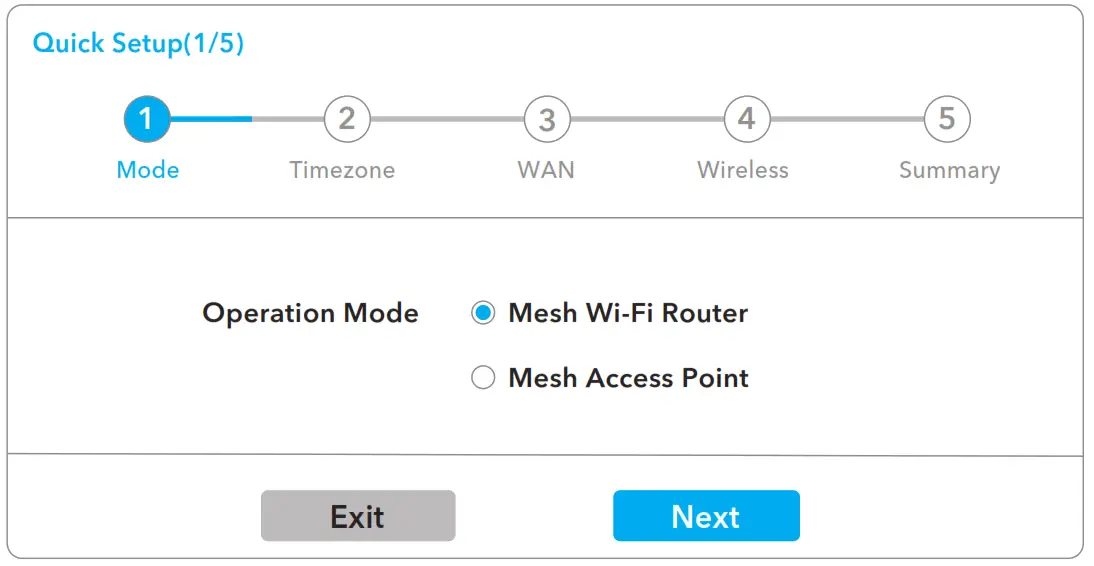

7 Then below popup will appear, please follow step by step instructions to set up the internet connections.
When all the configurations are completed, the router will restart. Wait for the LED to turn solid white, which means that the configuration is successful and connected to the Internet.
Note: If the pop-up window does not appear, please click Quick Setup on the status page.
Add more mesh units
Power on the add-on mesh unit, waiting for its system LED becomes solid on.

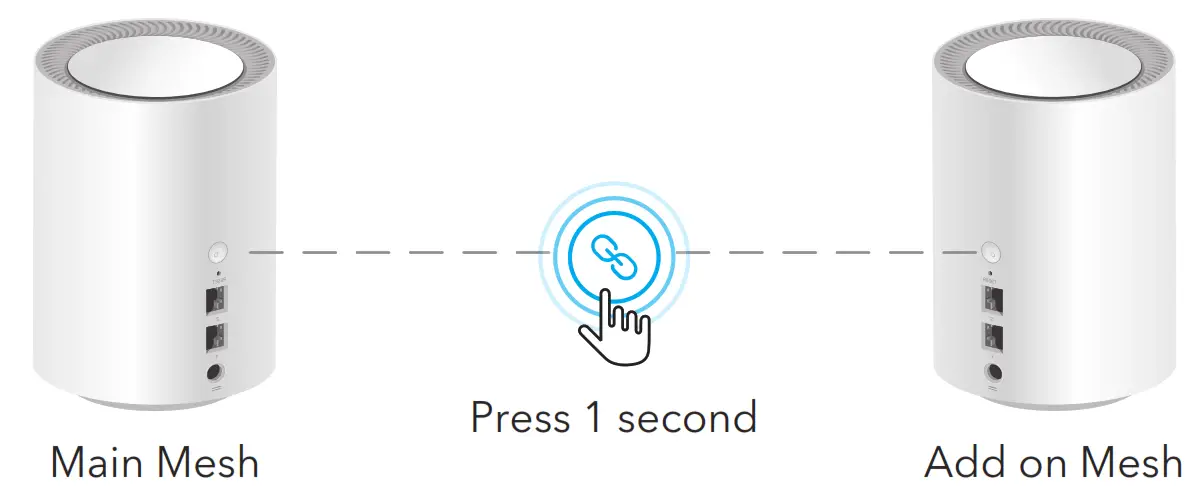

Within 2 minutes, press the pair button of both the add-on mesh unit and the main mesh(the one you already configured).
Waiting for the system LED of the add-on unit becomes solid white, means successfully.
Note: For other LED status, please check the LED status explanation. Or you can contact our support team [email protected]
LED Explanation
| LED Status | Main Mesh | Add on Mesh | |
| Red | Flash | Starting up | Starting up |
| Solid | System ready, no Internet | System ready, not connected to main mesh | |
| White | Flash | Pairing | Connected to main mesh, signal not good |
| Solid | Connected to Internet | Connected to main mesh, signal good | |
| Red White | Red | N/A | Pairing |
Button Explanation
| Button |  | Press and hold 1 second to start pairing. |
| Reset | Press and hold 6 seconds to reset the router to its factory default settings. |
Frequently Asked Questions (FAQ)
Q1: What can I do if the login window does not appear?
A1: If the computer is set to a static IP address, change its settings
to obtain an IP address and DNS server address automatically.
A2: Verify that http://cudy.net/ or 192.168.10.1 is correctly entered in the web browser.
A3: Use another web browser and try again.
A4: Reboot your router and try again.
A5: Disable and then enable the network adapter being used.
Q2: What should I do if i can not find Wi-Fi signal?
A: Please make sure the router is connected, power, and the broadband interface has no loose. If everything is normal but still no signal, please try to use a computer to set, or restore the router to factory settings. If after restoring factory settings but still no signal, you can restart the router, if it still doesn’t work, maybe the router has a fault.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
· Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not
explicitly approved by the manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
RF Exposure Information
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body.
Email:
[email protected]
Driver & Manual:
www.cudy.com/download
