Acuity Brands Evo 2 Inch Round Downlight Instructions

Brands EVO 2 Inch Round Downlight Instructions

LED IMPORTANT SAFETY INSTRUCTIONS

READ AND FOLLOW ALL SAFETY INSTRUCTIONS! SAVE THESE INSTRUCTIONS AND DELIVER TO OWNER AFTER INSTALLATION

• To reduce the risk of death, personal injury or property damage from fire, electric shock, falling parts, cuts/abrasions, and other hazards please read all warnings and instructions included with and on the fixture box and all fixture labels.
• Before installing, servicing, or performing routine maintenance upon this equipment, follow these general precautions.
• Installation and service of luminaires should be performed by a qualified licensed electrician.
• Maintenance of the luminaires should be performed by person(s) familiar with the luminaires’ construction and operation and any hazards involved. Regular fixture maintenance programs are recommended.
• It will occasionally be necessary to clean the outside of the refractor/lens. Frequency of cleaning will depend on ambient dirt level and minimum light output which is acceptable to user. Refractor/lens should be washed in a solution of warm water and any mild, non-abrasive household detergent, rinsed with clean water and wiped dry. Should optical assembly become dirty on the inside, wipe refractor/lens and clean in above manner, replacing damaged gaskets as necessary.
• DO NOT INSTALL DAMAGED PRODUCT! This luminaire has been properly packed so that no parts should have been damaged during transit. Inspect to confirm. Any part damaged or broken during or after assembly should be replaced.
• Recycle: For information on how to recycle LED electronic products, please visit www.epa.gov.
• These instructions do not purport to cover all details or variations in equipment nor to provide every possible contingency to meet in connection with installation, operation, or maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser’s or owner’s purposes, this matter should be referred to Acuity Brands Lighting, Inc.

WARNING
RISK OF ELECTRIC SHOCK
✓ Disconnect or turn off power before installation or servicing.
✓ Verify that supply voltage is correct by comparing it with the luminaire label information.
✓ Make all electrical and grounded connections in accordance with the National Electrical Code (NEC) and any applicable local code requirements.
✓ All wiring connections should be capped with UL approved recognized wire connectors.
WARNING
RISK OF BURN
✓ Allow lamp/fixture to cool before handling. Do not touch enclosure or light source.
✓ Do not exceed maximum wattage marked on luminaire label.
✓ Follow all manufacturer’s warnings, recommendations and restrictions for: driver type, burning position, mounting locations/methods, replacement and recycling.

CAUTION
RISK OF INJURY
✓ Wear gloves and safety glasses at all times when removing luminaire from carton, installing, servicing or performing maintenance.
✓ Avoid direct eye exposure to the light source while it is on.
CAUTION
RISK OF FIRE
✓ Keep combustible and other materials that can burn, away from lamp/lens.
✓ Do not operate in close proximity to persons, combustible materials or substances affected by heat or drying.

CAUTION: RISK OF PRODUCT DAMAGE

✓ Never connect components under load.
✓ Do not mount or support these fixtures in a manner that can cut the outer jacket or damage wire insulation.
✓ Controls for dimming, auto-sensing, or remote control of a luminaire that are not factory-wired to the luminaire must be checked for compatibility with the luminaire prior to installation. LED fixtures must be powered directly off a switched circuit.
✓ Unless individual product specifications deem otherwise: Do not restrict fixture ventilation. Allow for some volume of airspace around fixture. Avoid covering LED fixtures with insulation, foam, or other material that will prevent convection or conduction cooling.
✓ Unless individual product specifications deem otherwise: Do not exceed fixtures maximum ambient temperature.
✓ Only use fixture in its intended location.
✓ LED products are Polarity Sensitive. Ensure proper Polarity before installation.
✓ Electrostatic Discharge (ESD): ESD can damage LED fixtures. Personal grounding equipment must be worn during all installation or servicing of the unit.
✓ Do not touch individual electrical components as this can cause ESD, shorten lamp life, or alter performance.
✓ Some components inside the fixture may not be serviceable. In the unlikely event your unit may require service, stop using the unit immediately and contact an ABL representative for assistance.
✓ Always read the fixtures complete installation instructions prior to installation for any additional fixture specific warnings.
✓ Always ensure that the electrical distribution system is up to NEC (and any applicable local code) requirements.
✓ Verify that power distribution system has proper grounding. Lack of proper earth ground can lead to fixture failure and may void warranty.

Choose either Part 15 OR Part 18 and move to Page 3 Installation Instructions under Delivery. Lithonia Outdoor will always use Part 15.
All luminaires that contain electronic devices that generate frequencies above 9kHz from any component within the luminaire comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause undesired operation
This device complies with Part 18 of the FCC Rules but may cause interference with cordless and cell phones, radios, televisions, and other electronic devices. To correct the problem, move the device away from the luminaire or plug into a different outlet. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communications equipment operating between 0.45-30MHz.
Failure to follow any of these instructions could void product warranties. For a complete listing of product Terms and Conditions, please visit www.acuitybrands.com.

Our Brands

Acuity Brands Lighting, Inc. assumes no responsibility for claims arising out of improper or careless installation or handling of its products.
ABL LED General Warnings, Form No. 503.203 © 2010, 2016 Acuity Brands Lighting, Inc. All rights reserved. 12/01/10

ICO & EVO 2” Instruction Sheet

These installation instructions are used for installing the following luminaires and kits

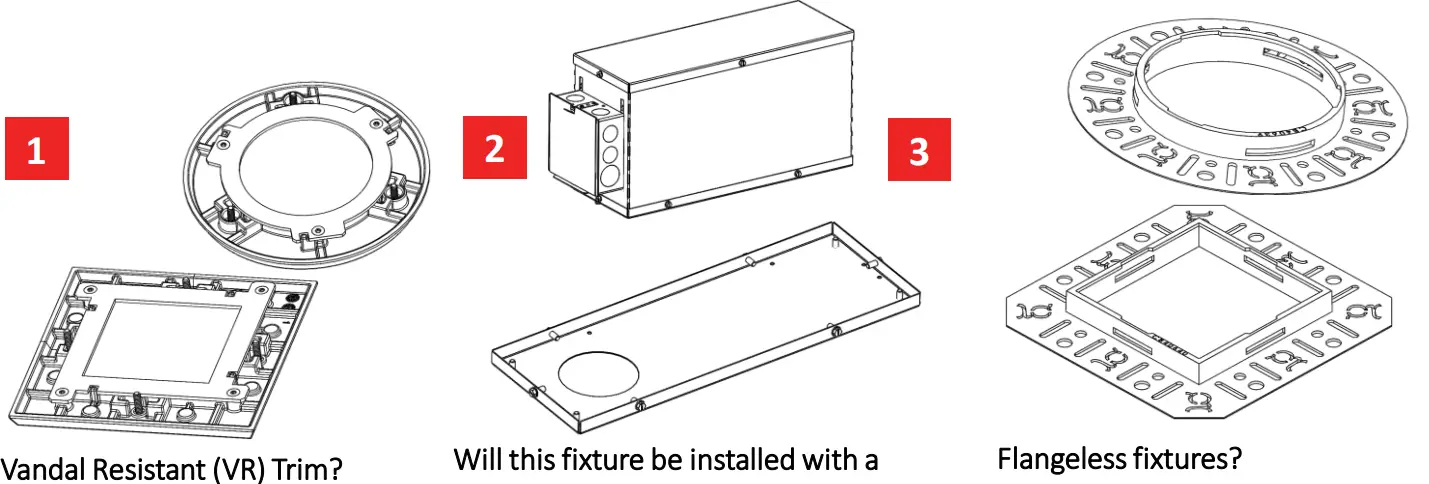

A) Identify Options

GO TO installation instructions that came with the Vandal Resistant Trim THIS INSTRUCTION SHEET DOES NOT APPLY TO VANDAL RESISTANT FIXTURES	• Structural reinforcement pan (NCH) • IC/Airtight housing construction (ICAT) • Chicago Plenum (CP) GO TO to the installation instructions that came with the box/pan RETURN TO NEXT TO CONTINUE INSTALLATION	GO TO installation instructions that came with the mudring RETURN TO STEP D TO FINISH INSTALLATION

B) Identification of Luminaire Variants

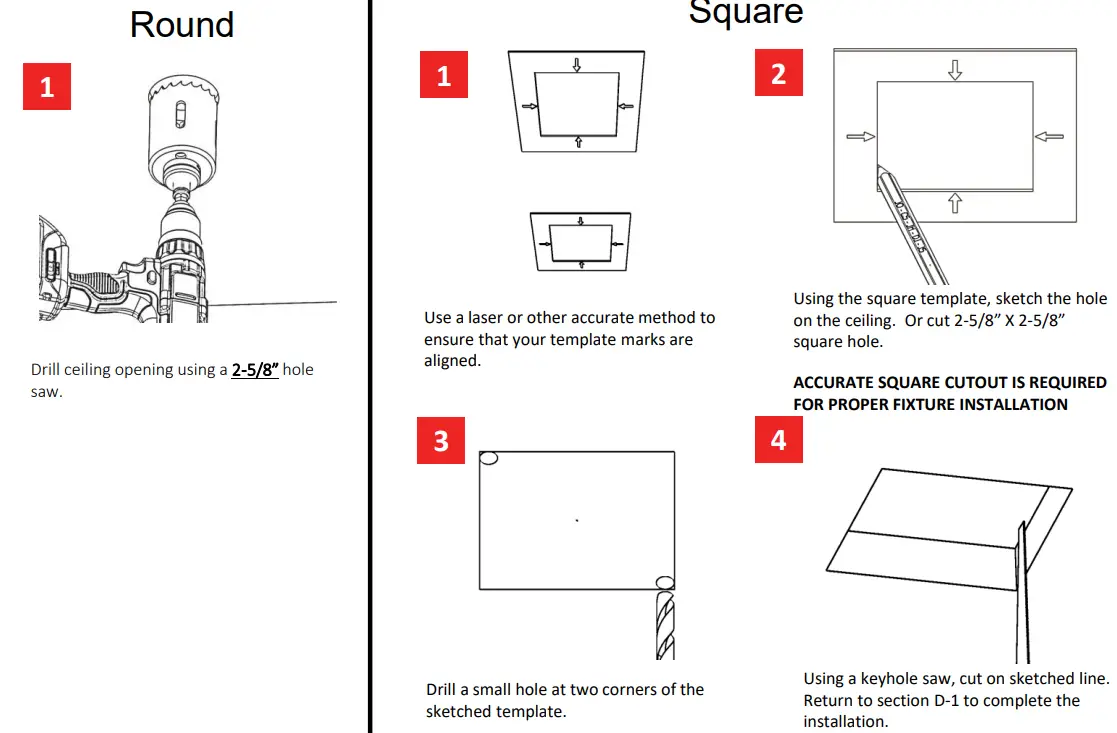

C) Prepare Ceiling Cutout (Flanged Version)

After cutting hole:
Pull branch circuit (at least 12” flex) from ceiling. supply wire must meet applicable electrical codes and be rated for a minimum of 90⁰C. The driver is capable of dimming the luminaire with commercial grade 0-10V devices or residential line dimmers.

D) Wire Fixture

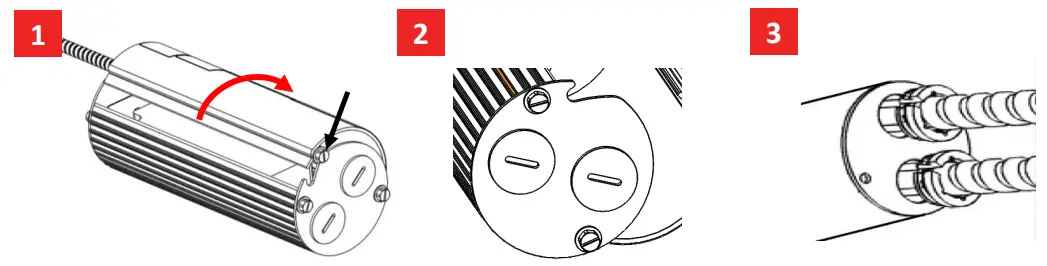

Loosen screw and swing open driver compartment	Twist out one or more knock-outs using a flat bladed screwdriver. Discard the knockout(s).	Attach the branch circuit to the cover plate with a snap in connector.

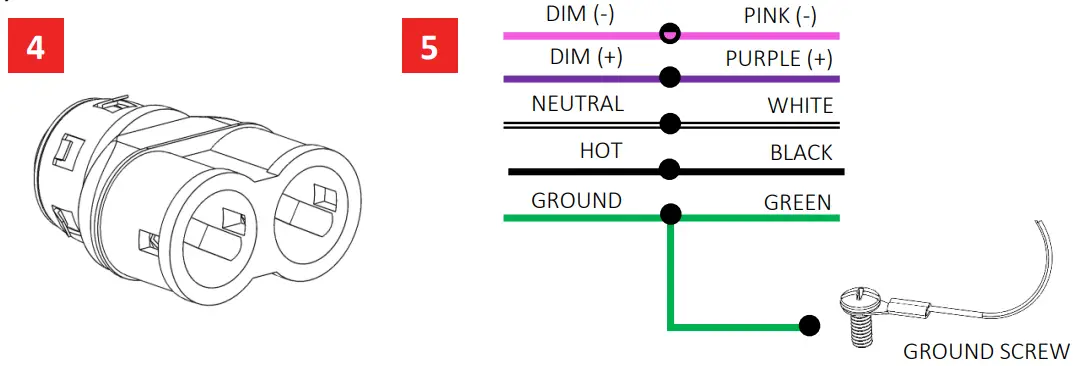

If daisy chaining multiple fixtures, the required conduit fitting is Push-In Duplex (ref. McMaster Carr #7969K31, by others)	Complete necessary splices. Fixture inputs are black, white and green. Dimming inputs are purple (+) and gray (-). If a residential phase-cut dimmer is used, cap off the purple and gray separately.

E) Install Fixture – Downlight

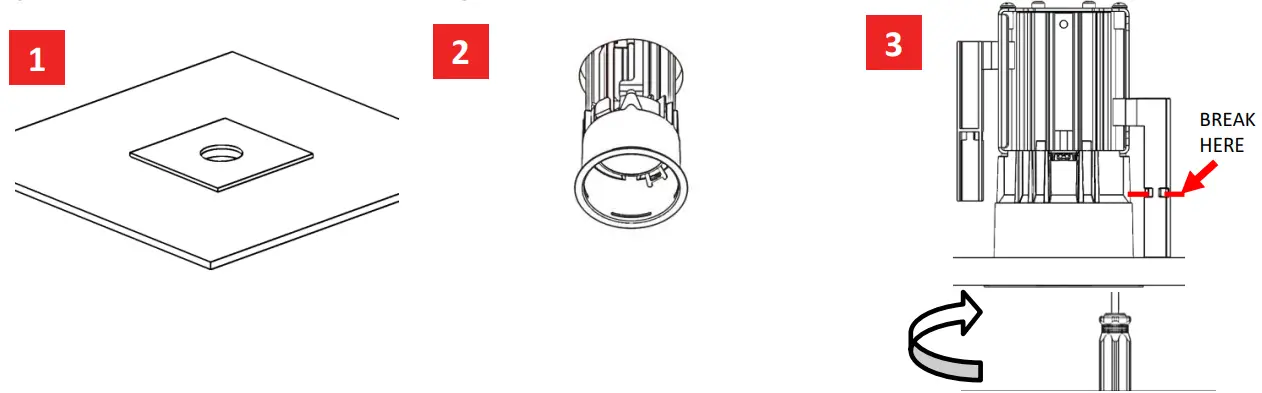

If ceiling is not durable, or thinner than 3/8”, we recommended adding additional material above the ceiling, such as a square of drywall or plywood.	Insert the assembly into the ceiling. Abide by the markings on the luminaire regarding insulation contact. Remove the paint plug – but DON’T throw it away. It will be reinstalled in step 5.	Lower the wing clamps by turning the adjustment screws (7/64 Allen) clockwise until mounting collar is flush with ceiling. DO NOT OVER-TIGHTEN OR USE A POWER DRIVER

For installation in thicker ceilings, break away the bottom of the wing clamp at the seam (shown in step 3).

E) Install Fixture – Adjustable

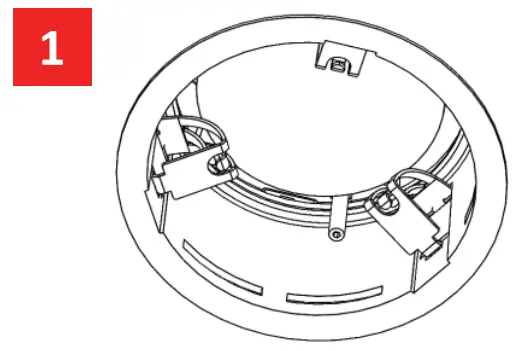

Once the luminaire is flush with the ceiling, push the installed springs outward with flat bladed screwdriver until the snap into place.
Standard springs accommodate ceiling thicknesses from ½” – ¾”

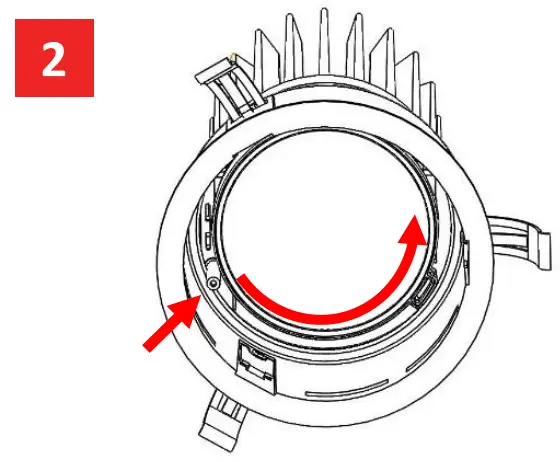

To Adjust ROTATION:
With Allen wrench inserted into screw push or pull in a circular motion to desired position. This luminaire has 365° of azimuthal rotation.

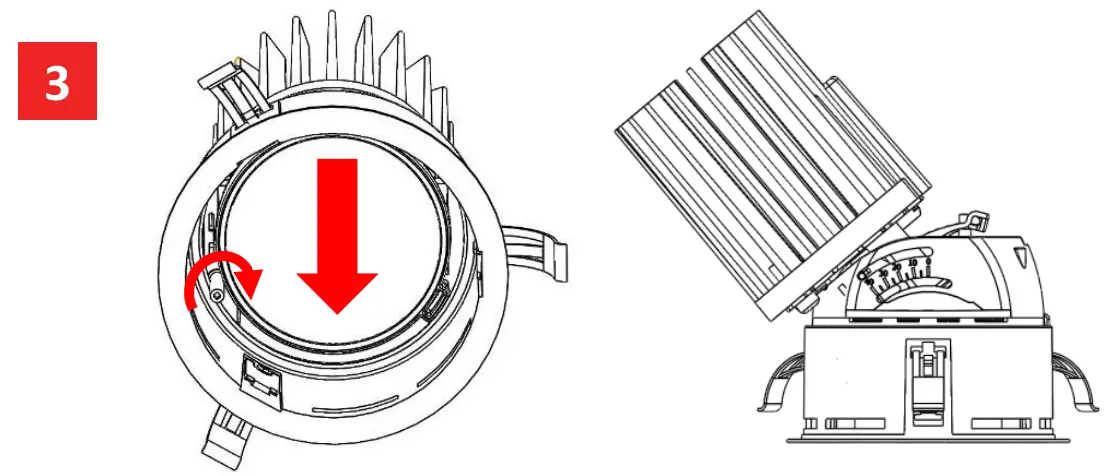

To Adjust TILT:
Insert .050 Allen wrench into screw shown, turning clockwise to increase tilt angle, counter-clockwise to decrease tilt angle. Maximum tilt angle is 40 degrees.
DO NOT OVER TIGHTEN IN EITHER DIRECTION OR THE SCREW WILL DISLODGE. This will then require that you pull the luminaire back through the ceiling to re-engage the tilt screw in the Gotham bracket prior to tilting again.

Reinstall the paint plug ensuring that it is flush with the fixture collar.

Refer to trim installation instructions for trim install after painting

GOTHAM ARCHITECTURAL DOWNLIGHTING
1400 Lester Road Conyers Georgia 30012
P 800-705-SERV (7387)
www.gothamlighting.com

CJ52308-NOM Rev. A
© Acuity Brands Lighting, Inc. 2019
All Rights Reserved.
