InWin Case Monsters Modular and Monster Cabinets User Manual
Product Video Information
Product Video
Assembly Video
Installation Video
Product Story
Somewhere in the universe and beyond the numbered nebulas, there is a mysterious planet nicknamed, Case Monsters World. The planet emitted a continuous echoing sound. Bippp… Bippp… Bippp… If you follow the sounds, you can reach the source, which is a hightech building called CML (Case Monsters Lab). The CML is responsible for the creation of four A.I. robots
- ROBERT, PLANNIE, FRANK, and AIDO. They were created to develop skills to assist all living creatures.
They one day hope to visit the human world to help and become friends with humans.
Specifications

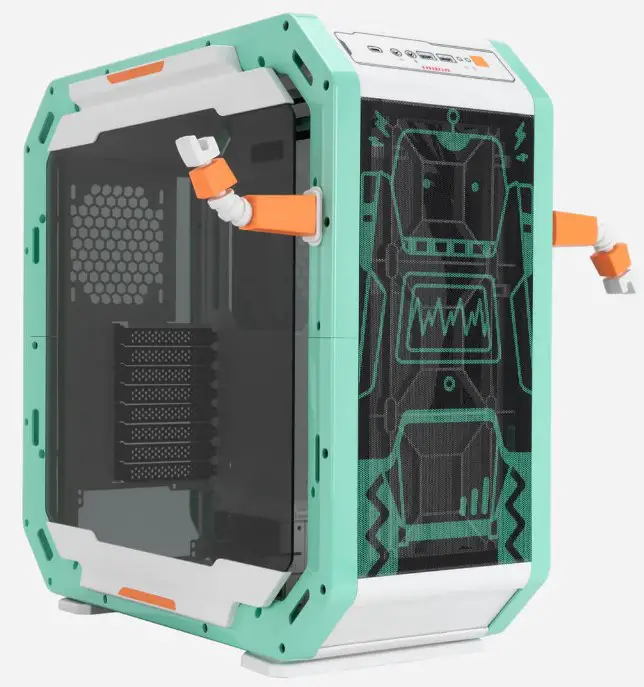

InWin Case Monsters-A: Lab Series Chassis
| Model | Case Monsters – A: Lab Series |
| Model Number | W-CS-CASEMONSTERS-001, IW-CS-CASEMONSTERS-002, IW-CS-CASEMONSTERS-003, IW-CS-CASEMONSTERS-004 |
| Colors | 001-ROBERT, 002-PLANNIE, 003-FRANK, 004-AIDO |
| Case Type | Mid Tower |
| Materials | Tempered Glass, SECC, ABS |
| M/B Compatibility | 12” x 13” (305 x 330 mm) E-ATX, ATX, Micro-ATX, Mini-ITX |
| Expansion Slots | 8 x PCI-E |
| Maximum Compatibility | GPU Length: 390mm CPU Heatsink Height: 170mm |
| I/O Ports | 1 x USB 3.2 Gen 2×2 Type-C 2 x USB 3.2 Gen 1 HD Audio |
| Internal Drive Bays | 4 x 2.5″ 2 x 3.5″ |
| Thermal Solution Compatibility | Air Cooling Fans: Front: 3 x 120mm Top: 3 x 120mm Rear: 1 x 120mm (4 InWin ASL120 Fans Included) Water Cooling Radiator: Front: 1 x 360mm Top: 1 x 360mm |
* Number of fans pre-installed may vary based on different regions.
| Power Supply Compatibility | PSII: ATX12V- Length up to 180mm |
| Product Dimensions (H x W x D) | 537 x 270 x 528mm 21.1 x 10.6 x 20.7” |
| Package Dimensions (H x W x D) | 590 x 550 x 240mm 23.2 x 21.6 x 9.4 |
| Net Weight | 6.9 kg / 15.2 lbs. |
| Gross Weight | 11.2 kg / 24.7 lbs. |
InWin Sirius Loop ASL120 Fans
| Model | Sirius Loop ASL120 |
| Quantity Included | Single Pack: Triple Pack |
| Model Number | IW-FN-ASL120-1PK: IW-FN-ASL120-3PK |
| Colors | Black |
| Fan Size | 120 x 120 x 25mm |
| Materials | PC, PBT |
| Rated Voltage | DC 12V |
| Rated Power | 3.96W |
| Rated Current | 0.33A |
| ADD RGB Rated Voltage | DC 5V |
| ADD RGB Rated Power | 1.5W |
| ADD RGB Rated Current | 0.3A |
| Speed Mode | PWM 500-1800 +/-10% RPM |
| Air Flow | 50 CFM |
| Air Pressure | 1.67mm/H2O |
| LED | Addressable RGB |
| Connector (Fan to Fan) | Non-Modular Cables |
| Connector to M/B | 4-Pin (PWM, 12V), 3-Pin (ARGB, 5V) |
| Noise Level | 27 dB(A) (Max) |
| Bearing Type | Long Lifespan Sleeve Bearing |
| Net Weight | 200g: 600g |
| Gross Weight | 169g: 484g |
| Package Dimensions (L x W x H) | 185 x 125 x 30mm 7.3 x 4.9 x 1.2”: 185 x 125 x 82mm 7.3 x 4.9 x 3.2” |
| Warranty | 2 Years |
- InWin’s products comply with RoHS regulation.
- Specifications may vary based on different regions.

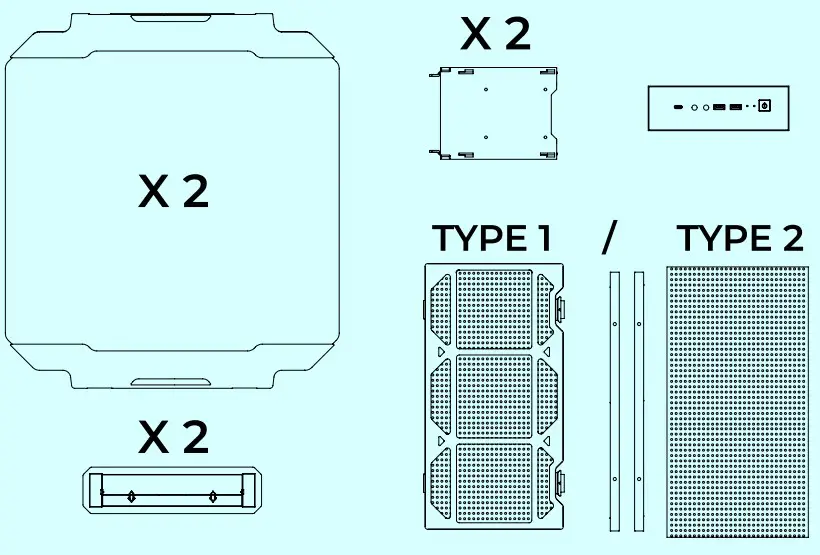

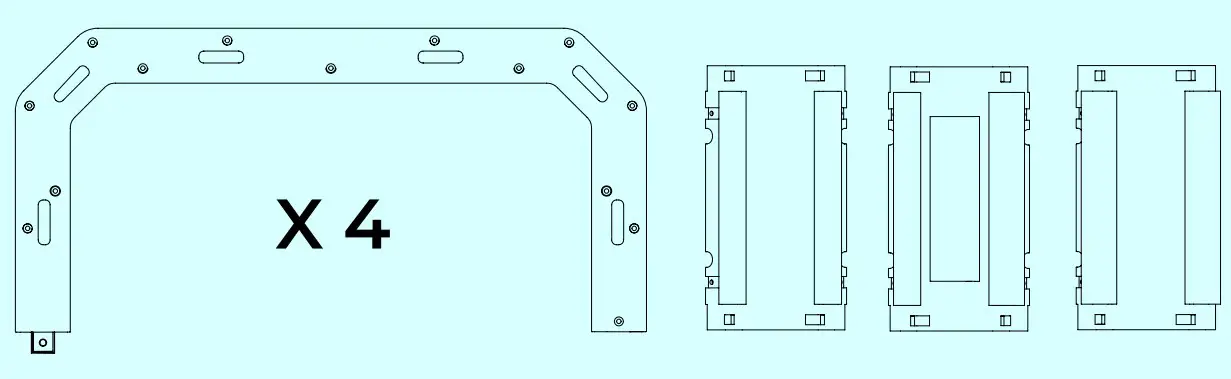

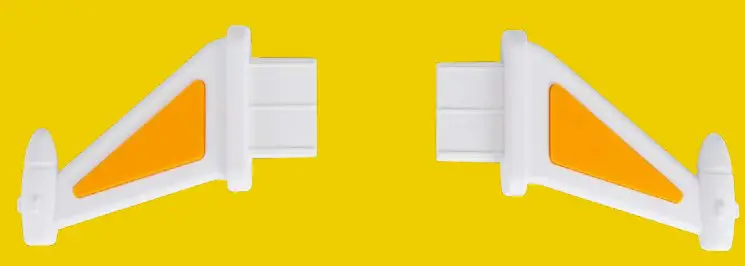

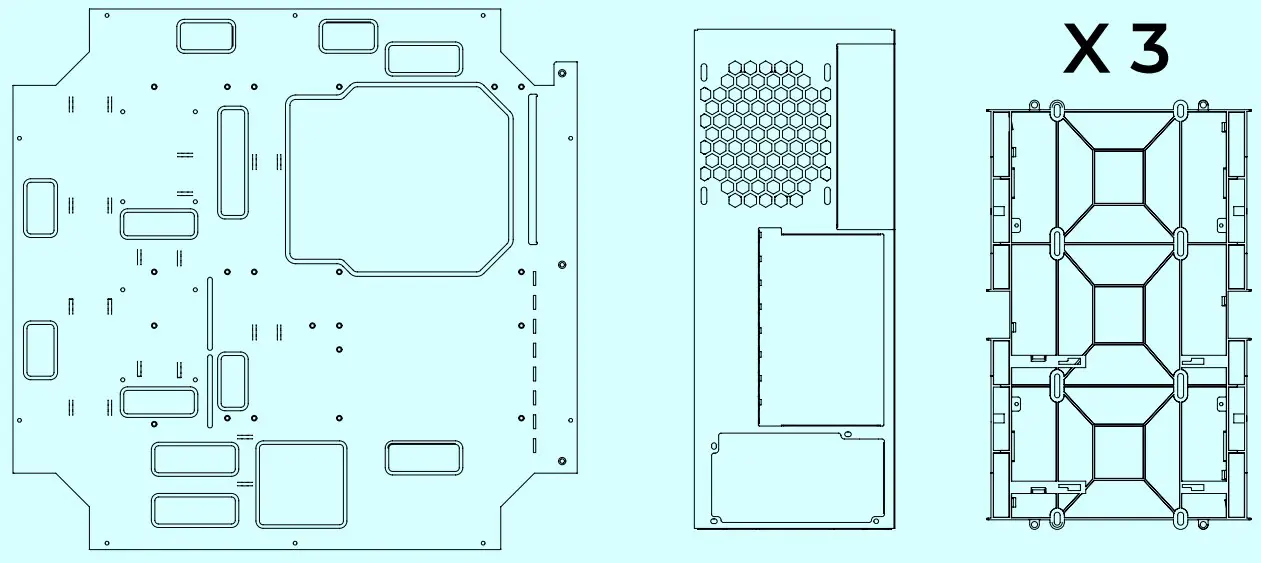

Package Contents

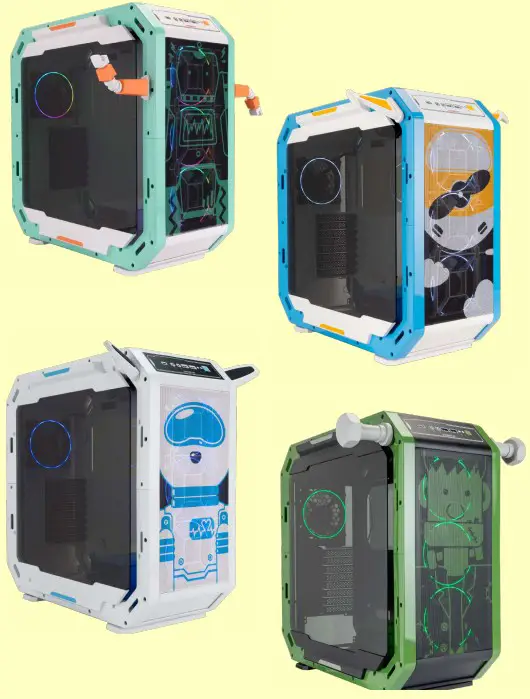

AIDO
FRANK
ROBERT
PLANNIE

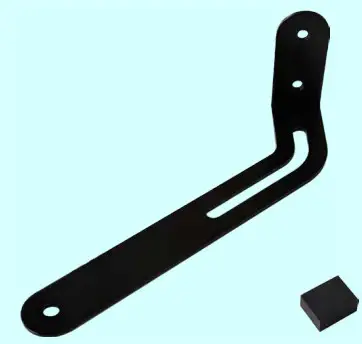

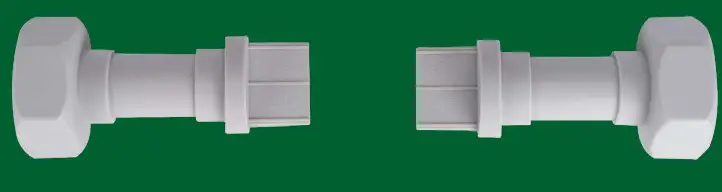

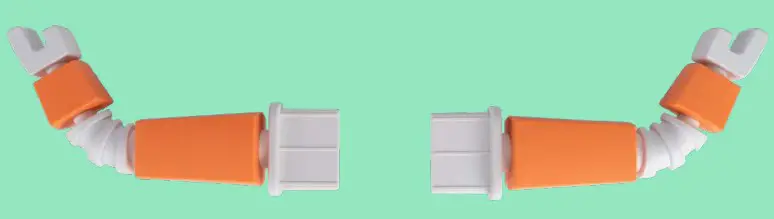

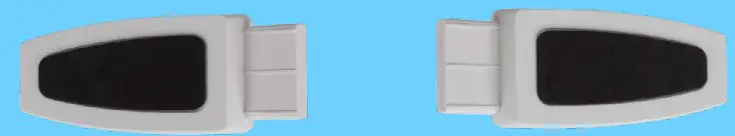

Accessories Bag
- a. S-1 Screws
x 50 - b. S-2 Screws
x 5 - c. Hexagon Head Screws
x 26 - d. Motherboard Stand-offs
x 15 - e. Motherboard Stand-off Socket
x 1 - f. 2.5” HDD Screws
x 16 - g. 3.5” HDD Screws

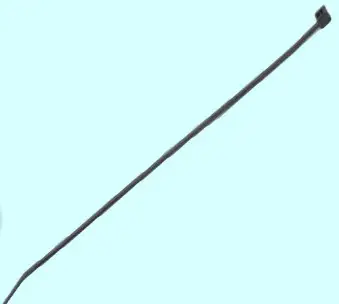

x 8 - h. Cable Ties
x 10 - i. Graphic Cards Holder

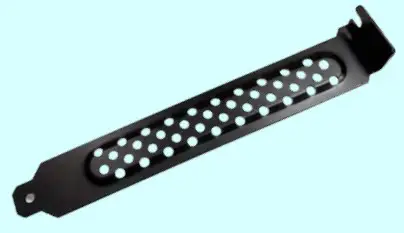

x 1 - j. PCI-E Slot Brackets
x 8

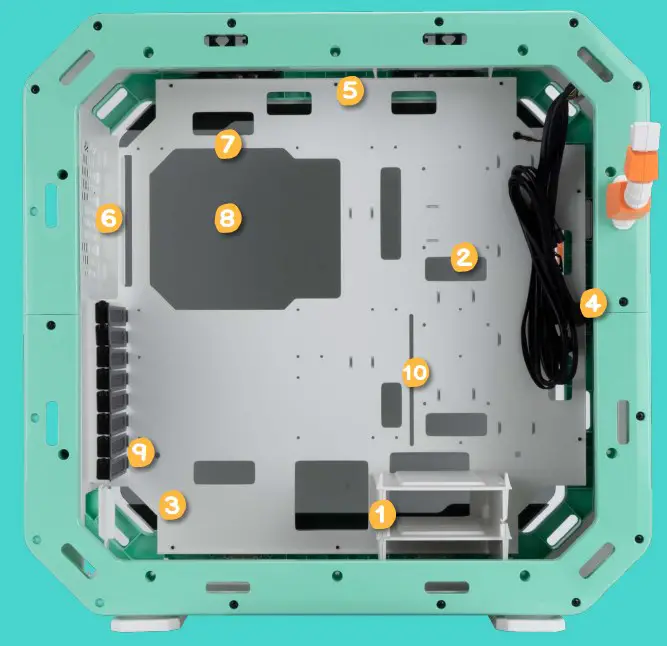

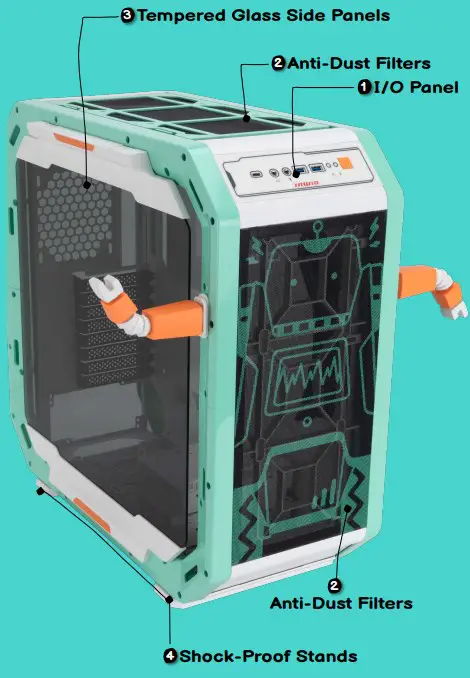

Case Structure

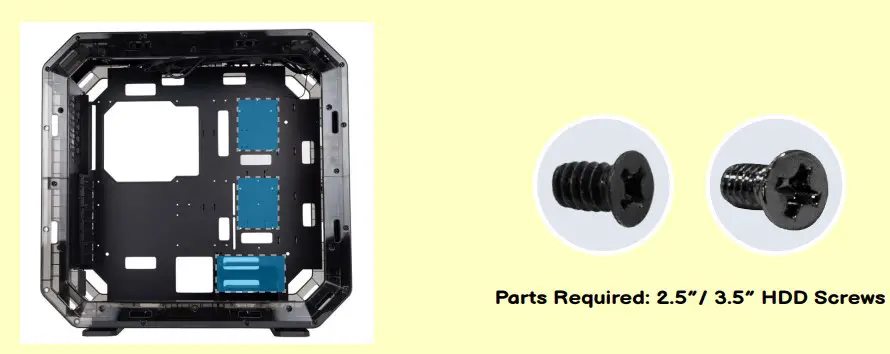

- 2.5”/3.5” HDD Quick Release Drive Bay
- 2.5” SSD Mounting Area
- Power Supply Mounting Area
- Front Fans/Radiator Mounting Area
- Top Fans/Radiator Mounting Area
- Rear Fan Mounting Area
- Motherboard Mounting Area
- CPU Cooler Installation Cut-Out Hole
- PCI-E Expansion Slots
- Graphic Cards Holder Mounting Area
Installation
- Please follow the related chapters to assemble.
- Please only use original provided accessories to avoid damage to the product.

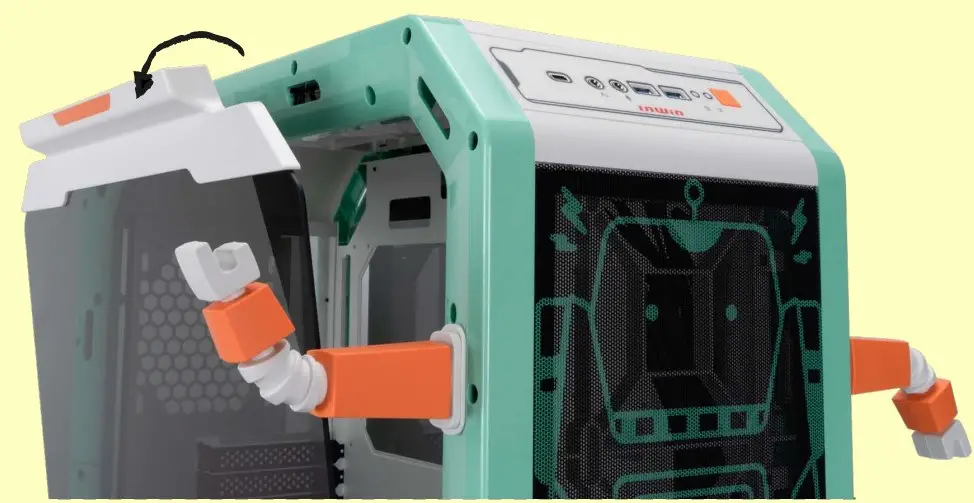

- Opening the Chassis

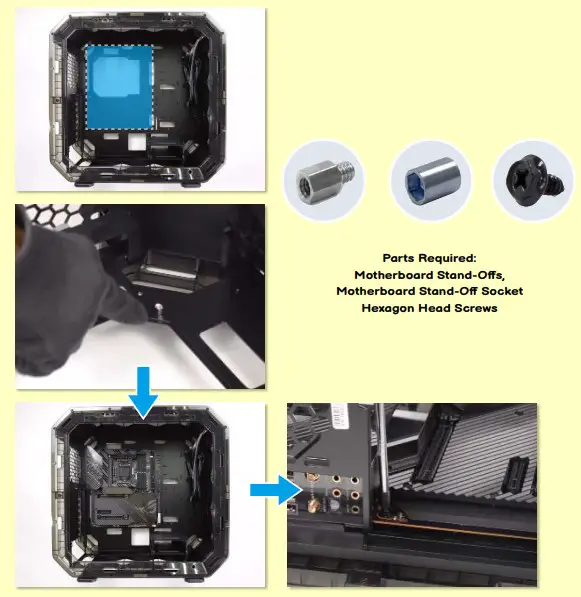

- Motherboard Installation
- Expansion Card Installation

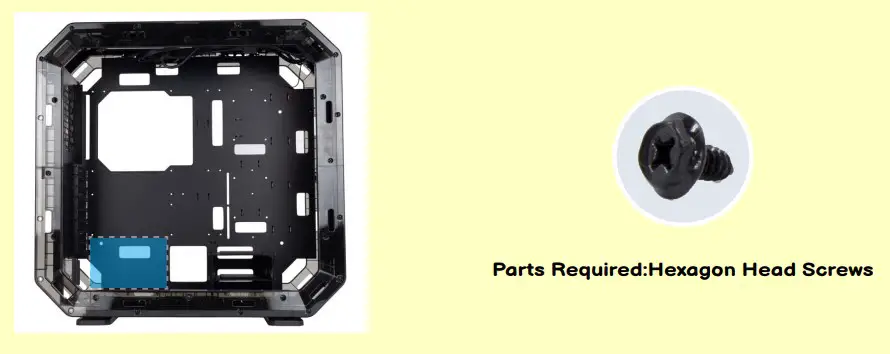

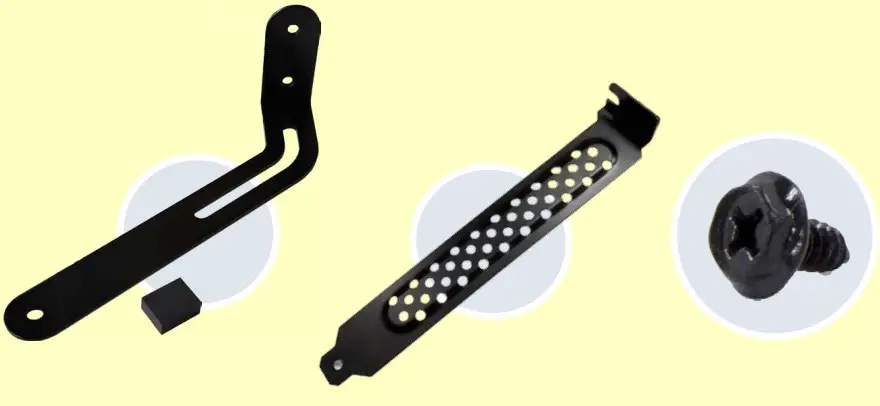

Parts Required:Hexagon Head Screws, Graphics Card Holder,PCI-E Slot Brackets

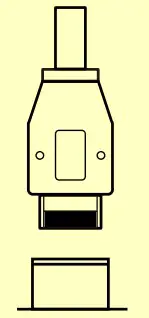

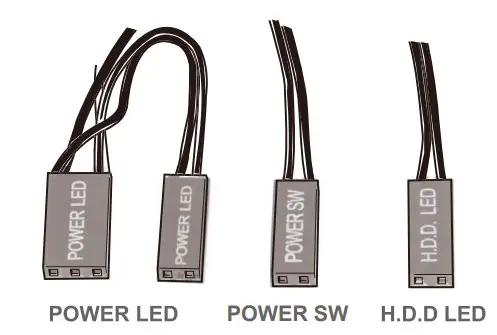

- Connection Cables
I/O Wires
(Depends on Motherboard)

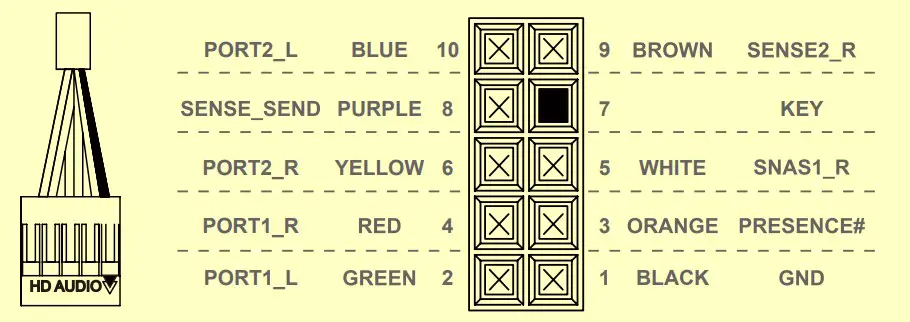

HD Audio Header
USB3.2 Gen 1 Header

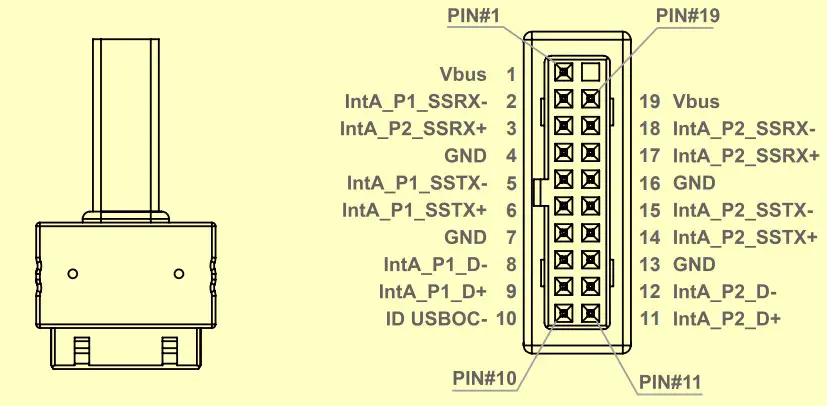

USB3.2 Gen 2×2 Type-C Header

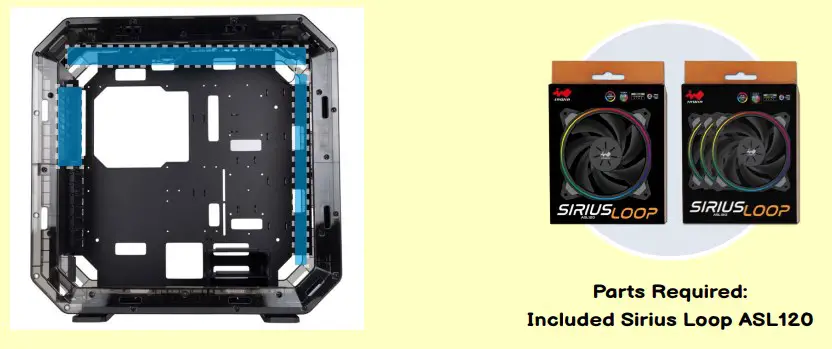

- Fan / Liquid Cooling Radiator Installation
Fan Installation Instructions: https://youtu.be/_S_LLcqe0KI - 2.5”/ 3.5” Drive Bays Installation
- Power Supply Installation
- Installation Complete
Notices and Warranty
Notices
- Please follow the user manual for installation guidelines.
- When installing the computer components, please use antistatic precautions
to prevent ESD (electrostatic discharge) damage. Failure to take the necessary precautions may result in injury to the installer and/or damage to the machine. Incorrect installation may burnout the motherboard and other system components. - To avoid any damages, please do not use this product for any other purpose than its intended use.
- Any modifications may damage the product.
- Please remove all internal devices before shipping or moving. (Including power supply, hard drives, motherboard, CPU, etc.)
- When storing the case, please keep this product away from high temperatures. Keep away from machines such as heaters that might cause high temperatures
Warranty
- For more detailed warranty information, please visit the InWin retail website at
www.in-win.com. - The actual product is subject to change without prior notice.
In Win Development Inc. reserves the right to make final modifications.
Copyright © 2022 In Win Development Inc. All Rights Reserved.
InWin
