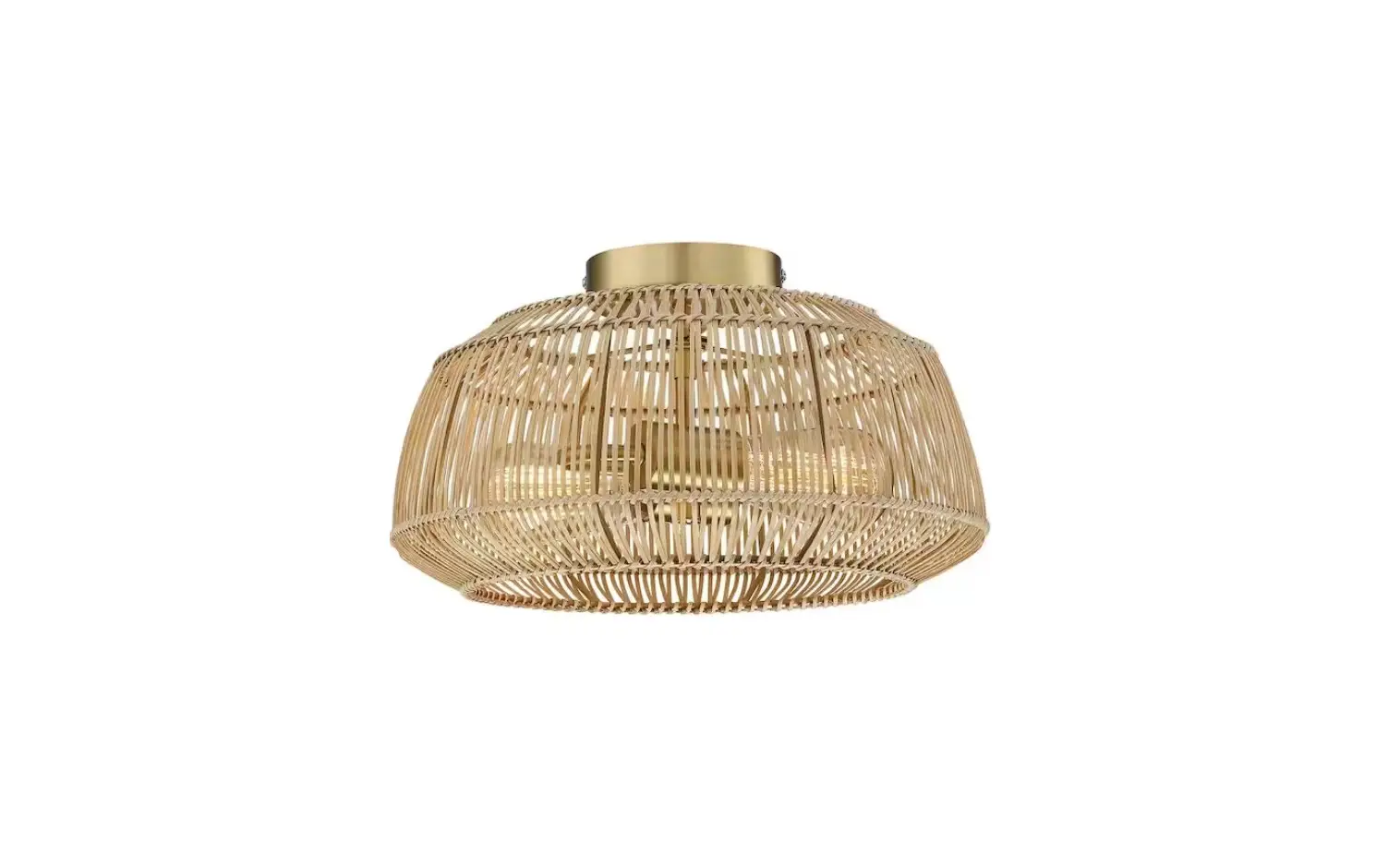

TD90031FL Bohemian Rattan Semi Flush Mount Ceiling Light

Product Information

The Flush Mount Lighting product is a lighting fixture that is
designed to be mounted onto an outlet box. The product has a
fixture body (A), shade (B), socket ring (C), mounting strap (E),
and canopy (D). The wiring of the product follows a group system
where [GROUP A] consists of wires that need to be connected to the
black house wire and [GROUP B] consists of wires that need to be
connected to the white house wire. The product has an input voltage
of 120V and a rated power of 40W MAX. The product uses an E26 lamp
socket.

Product Usage Instructions

1. Attach the shade (B) onto the socket and tighten it with the
   socket ring (C).
2. Fix the mounting strap (E) to the outlet box using the long
   screw (F).
3. Connect the wires according to the picture above, making sure
   to follow the wiring instructions for details.
   • Insert the green grounding screw into the hole with two raised
     dimples on the mounting bar.
   • Wrap the ground wire from the fixture (if supplied) around the
     green grounding screw, then connect it to ground wire from the
     outlet box (if not fixed on the outlet box) using a wire connector
     (not supplied).
   • If ground wire from the fixture is not supplied, wrap the
     ground wire (if not fixed on the outlet box) from the outlet box
     around the green grounding screw and tighten it.
   • Take note of the color of the wire(s) on your fixture. Identify
     which group your fixture wire(s) falls into and connect the wires
     according to the directions provided.
   • Connect the fixture wire from [Group A] to the black wire from
     the outlet box.
   • Connect the fixture wire from [Group B] to the white wire from
     the outlet box.
   • Make sure no bare wires can be seen outside wire
     connectors.
   • Never connect ground wire to black or white power supply
     wires.
4. Place the canopy (D) onto the outlet box and secure it with the
   short screw (G).

Cleaning Instructions

To clean the Flush Mount Lighting product, wipe the fixture with
a soft cloth. Clean the glass with a mild soap. Do not use abrasive
materials such as scouring pads or powders, steel wool, or abrasive
paper.

Safety Information

Always switch off the electricity supply and allow to cool for
10 minutes before changing the light bulbs. For any queries or
concerns, please contact us at [email protected].

Instruction Manual
Flush Mount Lighting

Overview
Outlet box Black
Wire nuts Smooth
[GROUP A] F.Long screw G.Short screw
A.Fixture body
B.Shade
C.Socket ring

Green(Ground)

White Ribbed

Bare copper wire(Ground)

E.Mounting strap

D.Canopy

Assembly Instruction
1.Attach Shade (B) up onto the socket , then tighten with Socket ring (C).
2.Fix Mounting strap (E) to outlet box with Long screw (F). 3.Connect the wires according to the picture above.
(Please refer to the wiring instruction for details ) 4.Place Canopy (D) onto the outlet box, secure with Short screw (G).

Wiring Instruction

1. Insert the green grounding screw into the hole with two raised dimples on the mounting bar. Wrap the ground wire from the fixture (if supplied) around the green grounding screw, then connect it to ground wire from the outlet box (if not fixed on the outlet box) using a wire connector(not supplied). If ground wire from the fixture is not supplied, wrap the ground wire (if not fixed on the outlet box) from the outlet box around the green grounding screw and tighten it.

NEVER CONNECT GROUND WIRE TO BLACK OR WHITE POWER SUPPLY WIRES.

2.Take note of the color of the wire(s) on your fixture. Identify which group your fixture wire(s) falls into and connect the wires according to the directions below:

BLACK

WHITE

*PARALLEL WIRE (round & smooth) *PARALLEL WIRE (square & ridged)

WHITE OR GREY WITH TRACER WHITE OR GREY WITHOUT TRACER

BROWN, GOLD OR BLACK WITHOUT TRACER

BROWN, GOLD OR BLACK WITH TRACER

3.Take your fixture wire(s) from [Group A] and place evenly against the black wire from the outlet box. Do NOT twist wires together before using wire connectors. 4.Fit a wire connector over the wires and screw the connector clockwise until you feel firmness. 5.Try gently to pull the connector off the wires. If you can pull the connector off, carefully re-do steps 3 and 4 as above, and check again for a firm connection.
6.Connect the fixture wire from [Group B] to the white wire from the outlet box in the same manner. Make sure no bare wires can be seen outside wire connectors.

Product Specifications

Input voltage 120V Rated power 40W MAX Lamp socket E26
Product Packaging
Fixture body × 1 Mounting strap × 1 Screw × 2 & Wire nut × 3 Shade × 1 Lamp instruction × 1
Cleaning
To clean, wipe fixture with a soft cloth. Clean glass with a mild soap. Do not use abrasive materials such as scouring pads or powders, steel wool or abrasive paper.
Safety Information
Always switch off the electricity supply and allow to cool for 10 minutes before changing the light bulbs.

CONTACT US
E-mail:[email protected]
