Ngs Roller Nitro 3 Outdoor Wireless Portable Speaker User Manual

NGS Roller Nitro 3 Outdoor Wireless Portable Speaker

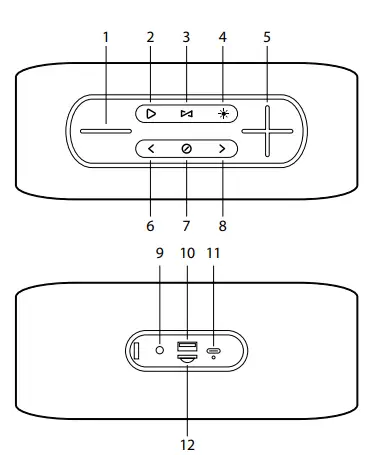

CONTROL BUTTONS

1. Volume –
2. Play / Pause button
   Short press: play/pause / Long press to exit wireless connect
   In FM mode: long press to search the programm
3. Mode button
   Short press: switch function / Long press: TWS
4. Light button
   Click to switch the light / Long press to turn on/off the light
5. Volume +
6. Previous song
   In FM mode: short press to the previous channel
7. Power button
   Long press turn on/off for about 3 seconds
8. Next song
   In FM mode: short press to the next channel
9. AUX interface
10. USB interface
11. Type-C interface
    USB type-C charging port
12. TF card interface

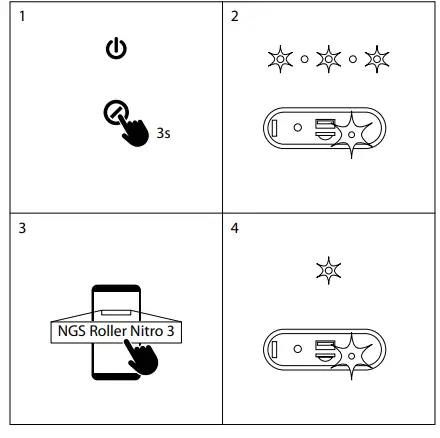

BLUETOOTH MODE

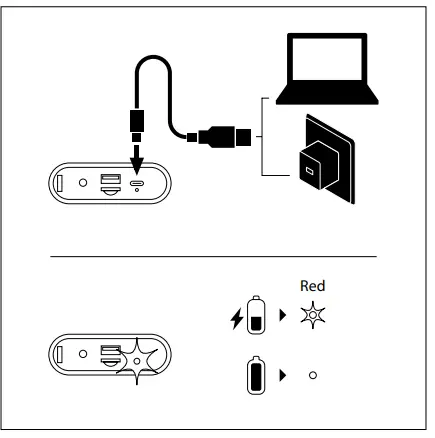

HOW TO CHARGE

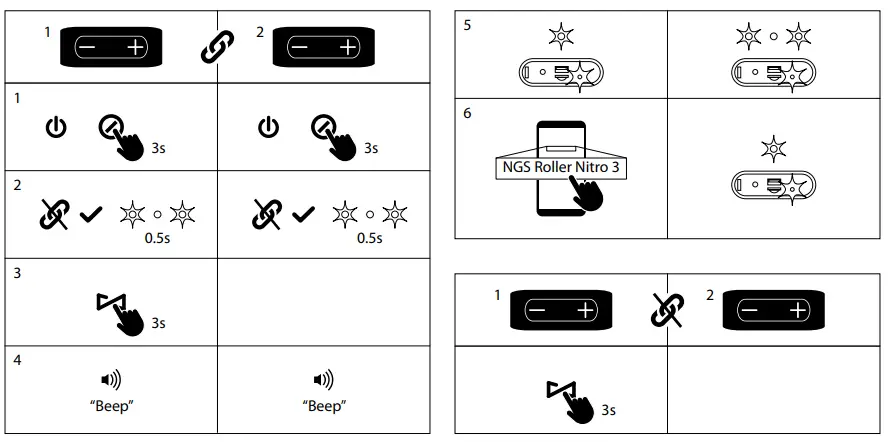

TWS

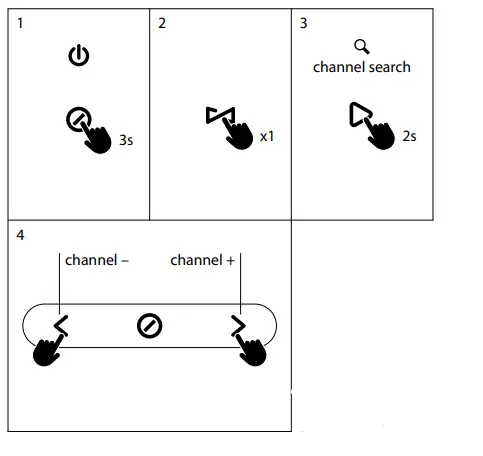

RADIO MODE

Note: Connect the audio cable for a better radio signal

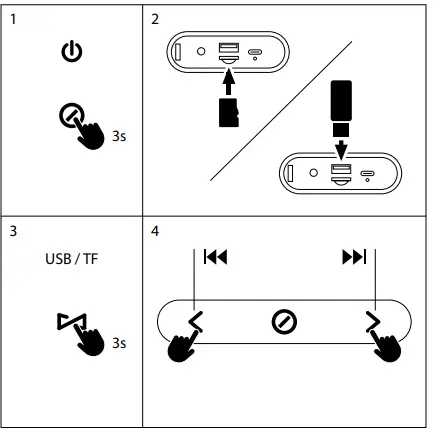

USB/TF MODE

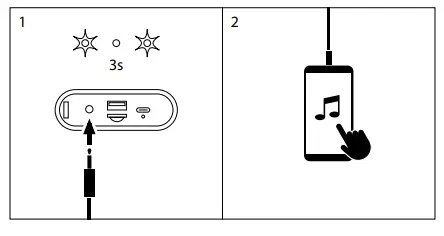

AUX IN MODE

TECHNICAL SPECIFICATIONS

• Compatible with bluetooth 5.0 Yes
• TWS (get double power connecting 2 speakers at the same time without cables) Yes
• Output power 30W
• RMS power 20W
• AUX audio input Yes
• USB audio input Yes
• TF audio input Yes
• Volume control Yes
• Battery Ion-Li 1500mAh x2
• Battery life 10 hours*
• Waterproof IPX5
• 4 hours at 100% volume
• 10 hours at 70% volume
• 18 hours at 50% volume

Battery warranty

The battery is a consumer product, and as such it is under warranty for 12 months. If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)

DECLARATION OF CONFORMITY

WE, AUTHORIZED REPRESENTATIVES, OF LURBE GRUP S.A, SAN SEBASTIÁN, SPAIN, DECLARE UNDER OUR SOLE RESPONSIBILITY THAT THE FOLLOWING PRODUCT:

NGS: BLUETOOTH SPEAKER NGS MODEL: ROLLER NITRO 3

HAS BEEN TESTED AND FOUND IN CONFORMITY WITH THE FOLLOWING HARMONIZED EUROPEAN STANDARDS:

• ETSI EN 301489-1 V2.1.1 (2017-02)
• ETSI EN 301 489-17 V3.1.1 (2017-02)
• ETSI EN 300 328 V 2.1.1 (2016-11)
• ETSI EN 303 345 V 1.1.7 (2017-03)
• EN 62479: 2010
• EN 60065: 2014
• IEC 62321-4:2013
• IEC 62321-5:2013
• IEC 62321-7-1:2015
• IEC 62321-7-2:2017
• IEC 62321-6:2015

AND THEREFORE COMPLY WITH THE ESSENTIAL REQUIREMENTS AND PROVISIONS OF THE FOLLOWING DIRECTIVES OF THE EUROPEAN PARLIAMENT AND EUROPEAN COUNCIL:

RADIO EQUIPMENT DIRECTIVE 2014/53/EU ROHS DIRECTIVE 2011/65/EU & (EU) 2015/863

AUTHORIZED REPRESENTATIVE: LURBE GRUP S.A
PORTUETXE 27
20018 SAN SEBASTIÁN (GUIPÚZCOA)
SPAIN

technical support: www.ngs.eu/support
www.ngs.eu
