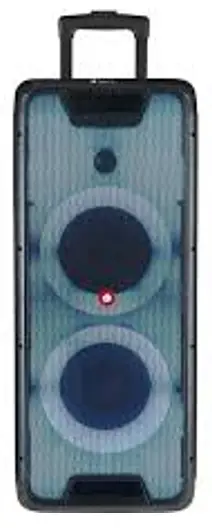

Wild Rave Portable Wireless Party Speaker

USER’S MANUAL

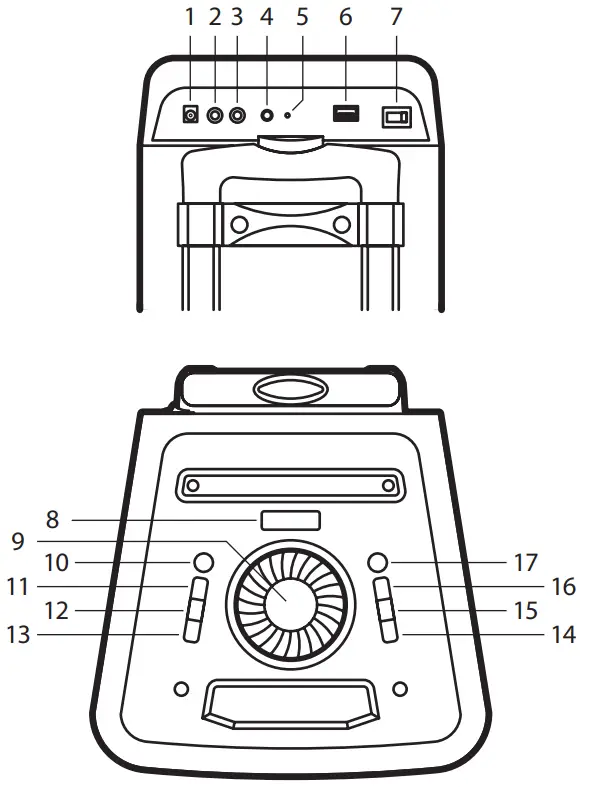

DESCRIPTION OF TOP AND BACK PANEL

1. DC INPUT: DC input socket
2. MIC: Wired microphone input socket
3. GUITAR: Guitar input socket
4. LINE IN: Line input socket
5. CHARGING: Charging light
6. USB: USB input socket
7. Power switch: Switch power between ON or OFF
8. LED display
9. VOLUME/MULTI: Increase or decrease the speaker’s main volume.
10. STANDBY
11. SOURCE: Press to charge the source between USB, BT, LINE
12. LIGHT FX: Press to change the source between LED1, LED2, LED3, LED4, LED5, LED6, OFF
13. X-DRIVE: Press to turn the extra bass effect ON/OFF. Press for 2 seconds to unpair the Bluetooth device.
14. PREV: Press this key to go to the previous track in USB/BT mode.
15. PLAY/PAUSE: Press to play/pause a track.
16. NEXT: Press this key to go to the next track in USB/BT mode.
17. MENU: Press this key to change the menu between mic/ guitar volume, echo volume, bass, and treble.
    · Display “ ” mean for MIC/GUITAR VOL 10, rotate the VOLUME/MULTI knob to adjust 0-30.
    · Display “ ” mean for ECHO VOL 10, rotate the VOLUME/ MULTI knob to adjust 0-30.
    · Display “ ” mean for BASS 00, rotate VOLUME/MULTI knob to adjust ± 6dB.
    · Display “ ” mean for TREBLE 00, rotate VOLUME/MULTI knob to adjust ± 6dB.

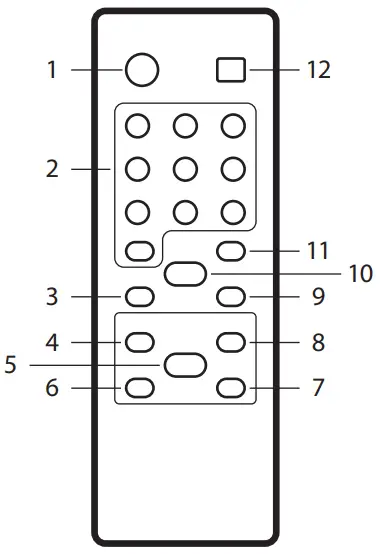

DESCRIPTION OF REMOTE CONTROL

1. STANDBY: Standby ON/OFF
2. 0-9 numeric keys: These keys are used to play a track directly in USB source mode.
   Eg: To play the 12th track in the USB playlist press the numeric key “1” followed by “2”.
3. VOL–: To decrease the volume
4. : Play the previous song
5. : Play / pause
6. : Fast rewind a song by pressing, only in USB input mode.
7. : Fast forward song by pressing, only in USB input mode.
8. : Play the next song
9. VOL+: To increase the volume.
10. MUTE: Press to switch mute ON/OFF.
11. REPEAT: To choose repeat mode in USB input mode: repeat one (ONE), repeat all (ALL), repeat randomize (RAN).
12. SOURCE: Press to change the source between USB, BT, and LINE.

TWS MODE
(TRUE WIRELESS STEREO)

A. Turn on 2 speakers and select both INPUT modes as Bluetooth.
B. Press “ ” key on the speaker set for 2 seconds and “” will be displayed. When the display light is “ ” or a tone is heard from another device, the TWS is established.
C. Turn on the Bluetooth feature on your mobile phone to search for Bluetooth devices and select “NGS WILDRAVE” from the search result. Select OK o YES to pair this unit with your mobile phone and steady blue light indicate a successful connection. Once connected you can play music from your mobile phone.
D. Press “ ” key on the speaker unit for 2 seconds. Turn off the TWS features when “ ” is displayed.

USB CARD / BLUETOOTH

USB CARD PLAYING
When power ON the product, if a USB card is inserted, it can play the MP3 / AMR / WAV / WMA / FLAC format music from the USB. Press PREV/NEXT buttons to select the song you want. Press the play/ pause button to pause/resume the music.
BLUETOOTH MODE
A. Press the SOURCE button until the screen displays the word BL. In Bluetooth mode, the device goes into searching/paring / reconnect mode for the pair.
B. Now, turn ON the Bluetooth function on your mobile phone.
C. Search for “NGS WILDRAVE” and select it to pair (for first-time pairing or pairing a new mobile device).
D. The Bluetooth speaker will be reconnected automatically if your mobile phone has been paired (depending on the mobile phone’s type and configuration, manual reconnection may require on some devices).
E. To unpair the speaker from the mobile phone, press and hold the X DRIVE button for 2 seconds.

LINE IN

You can connect the device with the external multimedia audio sources through the port “LINE IN”. After connection, just set the mode to LINE by pressing the “SOURCE” button on the device. The device can play the audio files from multimedia sources like PC, mobile phones, MP3 and MP4, etc.

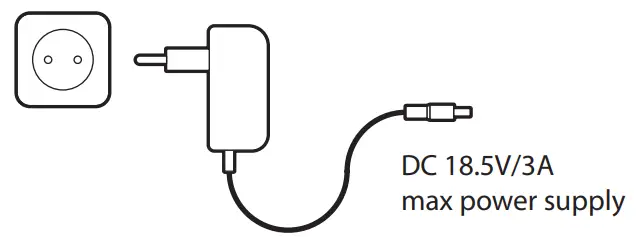

CHARGING INSTRUCTIONS

During playback, if the battery is low, the red light will turn on indicating that the speaker should be charged or else it will turn off soon.

1. Set the switch in the OFF position.
2. Connect the power adapter to the speaker.
3. Connect the adapter to electrical power.
4. When the charge LED turns from red to green, it indicates that it’s fully charged. Disconnect the charger from the mains and disconnect the adapter from the speaker.

TECHNICAL SPECIFICATIONS

* 4 hours at 100% volume (lights and super-bass off)
6 hours at 70% volume (lights and super-bass off)
10 hours at 50% volume (lights and super-bass off)

DC CHARGING

If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)

DECLARATION OF CONFORMITY

WE, AUTHORIZED REPRESENTATIVE, LURBE GRUP S.A, SAN SEBASTIAN, SPAIN, DECLARE UNDER OUR SOLE RESPONSIBILITY THAT THE FOLLOWING PRODUCT:
NGS: BLUETOOTH SPEAKER NGS / MODEL: WILDRAVE 1 /2
HAS BEEN TESTED AND FOUND IN CONFORMITY WITH THE FOLLOWING HARMONIZED EUROPEAN STANDARDS:

AND THEREFORE COMPLY WITH THE ESSENTIAL REQUIREMENTS AND PROVISIONS OF THE FOLLOWING DIRECTIVES OF THE EUROPEAN PARLIAMENT AND EUROPEAN COUNCIL:
RADIO EQUIPMENT DIRECTIVE 2014/53/EU
ROHS DIRECTIVE 2011/65/EU & (EU) 2015/863
AUTHORIZED REPRESENTATIVE: LURBE GRUP S.A
SAN SEBASTIAN, MAY 14TH, 2021

technical support: www.ngs.eu/support
www.ngs.eu
