Phonic Xtrix 2150 Professional Digital Power Amplifier User Manual (+ PDF)

The apparatus shall not be exposed to dripping or splashing and that no objects with liquids, such as vases, shall be placed on the apparatus. The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.

Warning: the user shall not place this apparatus in the can be easily accessible. area during the operation so that the mains switch

1. Read these instructions before operating this apparatus.

2. Keep these instructions for future reference.

3. Heed all warnings to ensure safe operation.

4. Follow all instructions provided in this document.

5. Do not use this apparatus near water or in locations where condensation may occur.

6. Clean only with dry cloth. Do not use aerosol or liquid cleaners. Unplug this apparatus before cleaning.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including .

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plug, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip over.

13. Unplug this apparatus during lighting storms or when unused for long periods of time.

14. Refer all servicing to service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’ magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: To reduce the risk of or electric shock, do not expose this apparatus to rain or moisture.

CAUTION: Use of controls or adjustments or performance of procedures other than those may result in hazardous radiation exposure.

It is suitable for use in areas with an altitude of 5000m or less

Suitable for use in tropical climates

XP6000

INTRODUCTION

The Xtrix series digital power amplifiers feature constant resistance and constant voltage output, an integrated DSP, an integrated switch, support for the UDP protocol, and the ability to monitor the power amplifier through an ethernet network cable.

The Xtrix series power amplifiers utilize the company’s proprietary multi-loop regulation technology and boast excellent technical specifications, particularly the power amplification technology optimized for low impedance and high current, which results in a power amplifier with a greater than 90% efficiency and excellent stability.

The switching power supply utilizes active PFC and soft switching technology.

FEATURES

The input delay of each channel is 30ms, the output delay is 20ms, and the step is 0.01ms;
Audio input level matching +-18db;
4×4 audio route mixing, mixing ratio – 80dB + 18dB;
8-segment input parameter EQ, 5-segment output parameter EQ, high-low pass filter;
Support FIR filters of order 512 and below;
Volume, mute, phase adjustment, and mode selection;
Output average value, peak limiter;
Save / retrieve parameters between machines;
Speaker parameter configuration;
User / parameters / factory permission setting.

PREPARATION

Before turning on the power supply, be sure to adjust all the volume of the power amplifier to the minimum to prevent damage to the equipment or harsh noise caused by incorrect wiring. When turning on the volume, adjust it slowly until the effect is stable.
Please check the AC voltage before connecting the AC power supply.
When the current is overloaded, this series of power amplifiers can protect the circuit automatically.

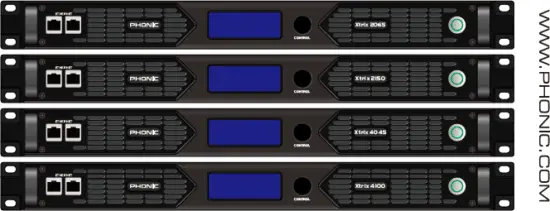

FRONT PANEL

1. Ethernet interface: dual RJ45 network interface, built-in switch and support UDP protocol.
2. Cooling vent: the forced air flow from front to back passes through the dust screen.
3. LCD control panel: integrated LCD control panel with backlight.
4. Control knob: rotate to select DSP menu and press to confirm.
5. Power switch: used to turn the power supply on and off.
The power is turned on when the switch is pressed, and the light ring on the switch is always on.

Adjust all volume controls to the lowest setting before turning on the power
to prevent damage to the machine caused by incorrect wiring.

REAR PANEL

6. AC Power input: configure different specifications of power line depending on the amplifier’s output power.

7. Fan: provide forced ventilation from front to back for cooling

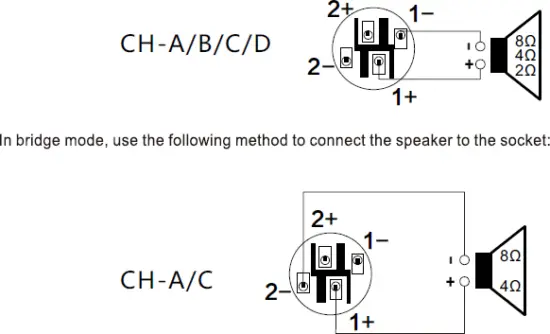

8. Output interface: speaker socket. In stereo or single channel mode, use the following method to connect the speaker to the socket:

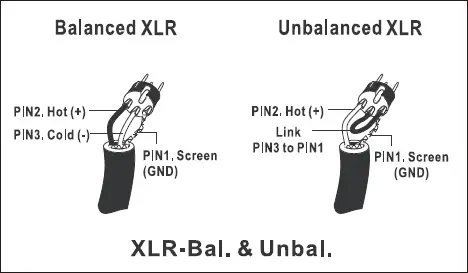

9. Analog audio interface: balanced sound signal input plug. XLR input can be connected as fallows:

SPECIFICATION

Xtrix 2150		Xtrix 4100	Xtrix 2065	Xtrix 4045
8Ω/Stereo	2X1500W	4X1000W	2X650W	4X450W
4Ω/Bridge*	2X2550W	4X1700W	2X1100W	2X765W
4Ω/Stereo	1X3000W	2X2000W	1X1300W	1X900W
2Ω/Stereo*	1X5100W	2X3400W	1X2200W	1X1530W
16Ω/Bridge	109.5V	89.4V	72.1V	2X1300W
8Ω/Bridge	2X3580W	4X2990W	2X1880W	1X2600W
4Ω/Bridge*	1X7140W	2X5780W	1X3740W	1X2600W
100VHi-Z	2X2500W	–	–	–
70VHi-Z	2X2400W	4X1700W	4X1700W	–
Output RMS voltage (Rated Power,1kHz)	109.5V	89.4V	72.1V	60.0V
Maximum input level		8.7Vrms(+21dBu)(Default Gain)
Gain(Rated Power,1kHz)	23dB	21dB	19dB	18dB
Default Gain (Rated Power,1kHz)	23dB~41dB	21dB~39dB	19dB~37dB	18dB~36dB
THD+N		Typical:0.05% (10% Rated Power,1kHz,8Ω)
Crosstalk		≥90dB(20Hz-1kHz,below Rated Power,8Ω)
Frequency response		Typical:+0,-0.5dB(10% Rated Power,20Hz-20kHz,8Ω)
Input impedance		20kΩ(Balance),10kΩ(Unbalance)
Damping factor		≥1000(8Ω,20Hz-200Hz)
SNR		≥105dB(Default Gain, A weighted,20Hz-20kHz,8Ω)
Main power		100∽240VAC±10%,50/60Hz
Protection	Protection: Under voltage, DC, Over temperature; Limiter: Over temperature, Over load, Short .
Size(WxHxD)	483x45x465mm 19″x1.77″x18.3″	483x45x370mm 19″x1.77″x14.56″	483x45x370mm 19″x1.77″x14.56″	483x45x370mm 19″x1.77″x14.56″
Net weight	12kg/26.5lbs	9kg/19.9lbs	9kg/19.9lbs	9kg/19.9lbs

* This power is measured using 20ms pulse 1kHz sine wave at 1% total harmonic distortion.

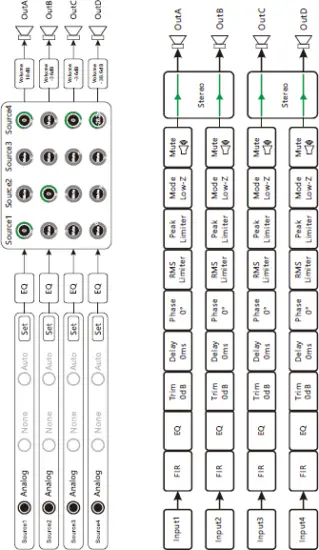

DSP SIGNAL PROCESSING FLOW

Service and maintenance

For replacement parts, service and repair, please contact the phonic
agent in your country. Phonic doesn’t work The user shall provide the
maintenance manual and advise the user not to repair the machine
without authorization, otherwise he will not be able to obtain any
warranty service. You can log in http:/!www .phonic. COM / where /
find your nearest agent.

Guarantee

Phonic promises to provide perfect warranty service for each product.
Depending on the region, the warranty period or There is an extension.
Since the date of original purchase, phonic has strictly followed the
operation specifications of the operation manual, Provide at least
1-year warranty service for problems caused by product material and
‘workmanship. PHeni C according to the warranty Example: repair or
replace defective products at your own choice. Please be sure to keep
the purchase certificate properly in order to obtain warranty service.
For applications without RM a number (return authorization), phonic
will not handle return or repair services. guarantee The service is only
applicable fo problems arising from normal use. Users should use the
product correctly in strict accordance with the operating instructions,
Any problems caused by wanton damage, unauthorized maintenance.
accidents, wrong use or human negligence are not allowed Within the
scope of warranty acceptance. In addition, warranty repair only applies
to valid purchases at authorized agents. if need For all warranty
Information, please log in http://www.phonic.com warranty!

Customer service and technical support

Please visit http://www.phonic.com/support/. From this website, you
can get various common information Answer questions, technical
guidance, Download product drivers, get return guidance and other
useful letters Rest.

[email protected]
http://www.phonic.com
PHONIC
