Features and Controls

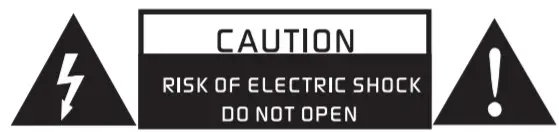

CAUTION: DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE.
CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE REPLACE ONLY WITH THE SAME TYPE FUSE.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS IPOLARIZEO)PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE

MADE IN CHINA
www.pyleusa.corn

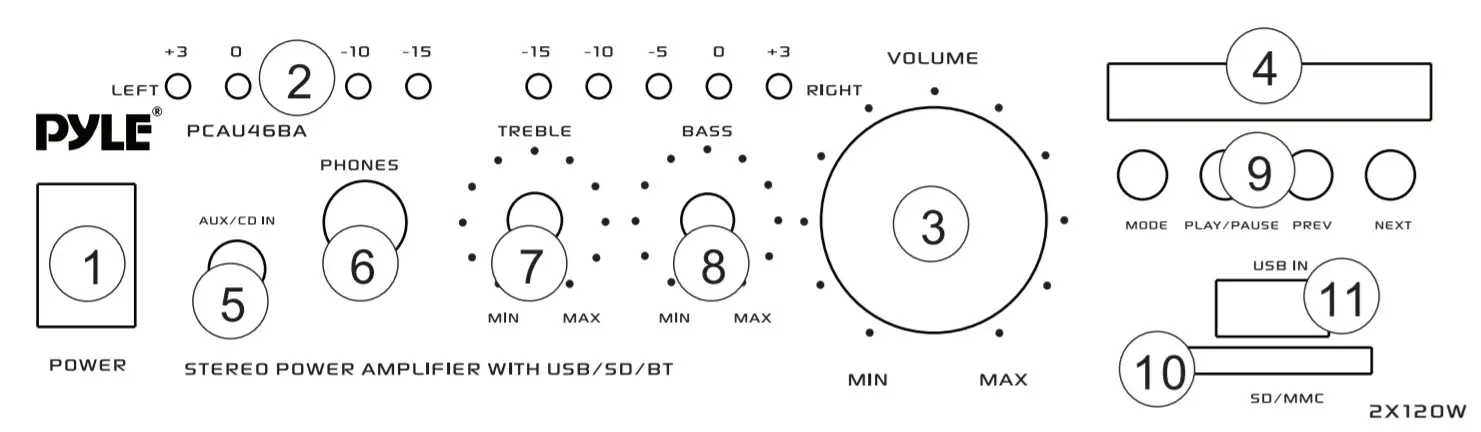

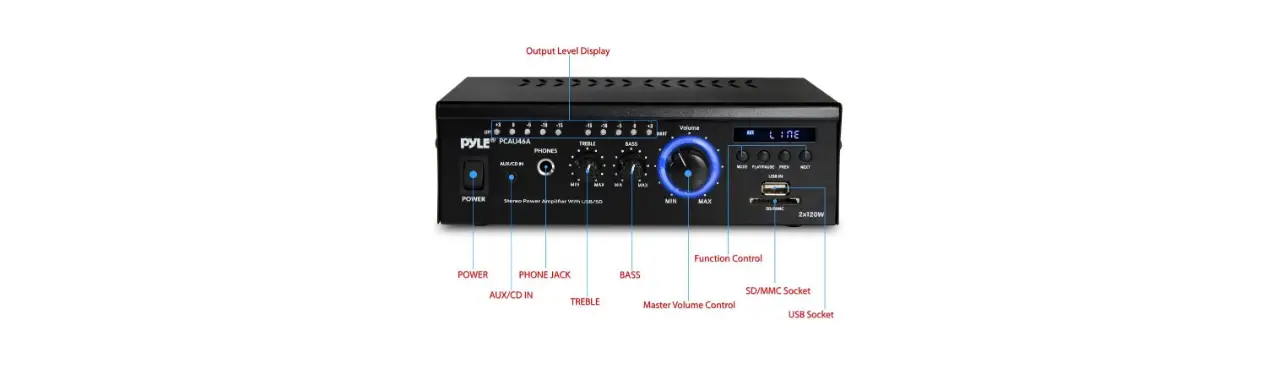

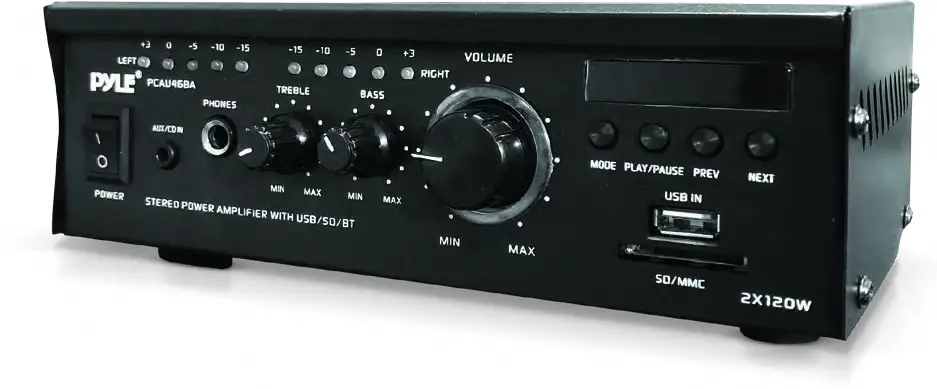

Power ON LED Indicator: Lights to indicate power is turned on.
Blue LED Output Level Display
Master Volume Control: This lets you adjust the overall sound level, turn the knob clockwise to increase the volume.
Function Blue LED Display Window
AUX/CD IN: This Lets you easily connect the computerized MP3 Device (player) sources, such as PC (CD ROM), laptop, Walkman, iPod, and cell phone.
1/4” PHONE JACK: Accept headphones with 1/ 4” plug.
TREBLE: Let’s you adjust the TREBLE volume to high or low.
BASS: Let’s you adjust the BASS volume to high or low.
Buttons for MP3(USB/SD/MMC) Function Control
• Mode: For audio input selection.
• Play/Pause: Play and pause control.
• Prev./Next: Quick backward or next song.
SD/MMC: Socket for playing SD/ MMC cards
USB: Socket for playing the USB function.

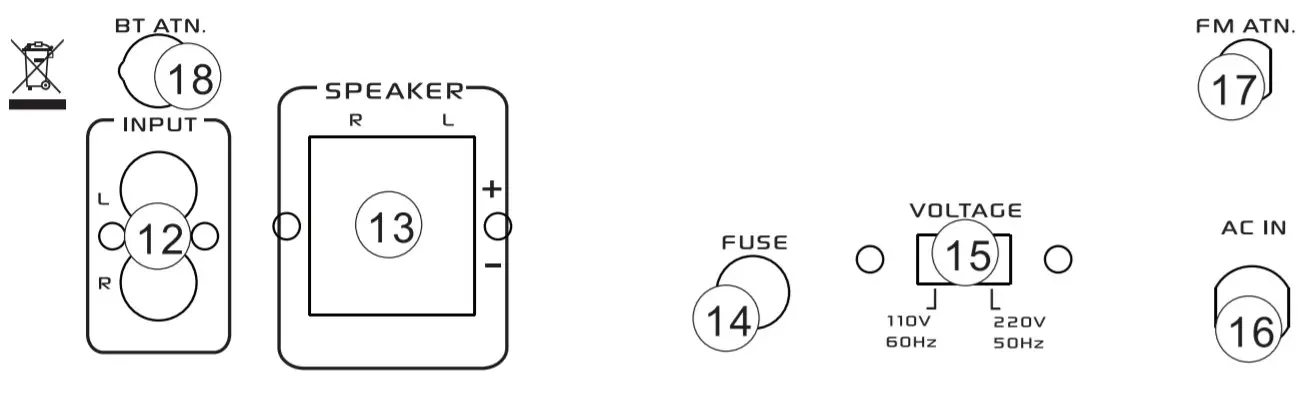

RCA L/R LINE Input: Let you connect to the desired LINE input source
Push Type Speaker L/RTerminals: Let you easily connect the speakers’ wires directly to the amplifier.
Fuse: The amplifier uses a fuse for protection against surges and short circuits. If the amplifier suddenly turns off and will not turn on, check the fuse. If necessary, replace it with a 1- amp, 250-volt, fast-acting, 5x20mm fuse (not supplied)
110V/220V Switch: According to power voltage, push this button to the correct station of the 110V or 220V.
AC IN PowerCord: Connect to AC 110V/60Hz or 220V/50Hz
FM ANTENNA CONNECTOR: Connect for FM antenna; please connect it when using FM Radio inputs.
WIRELESS BT ANTENNA: Please pull the antenna out when using Wireless BT input.

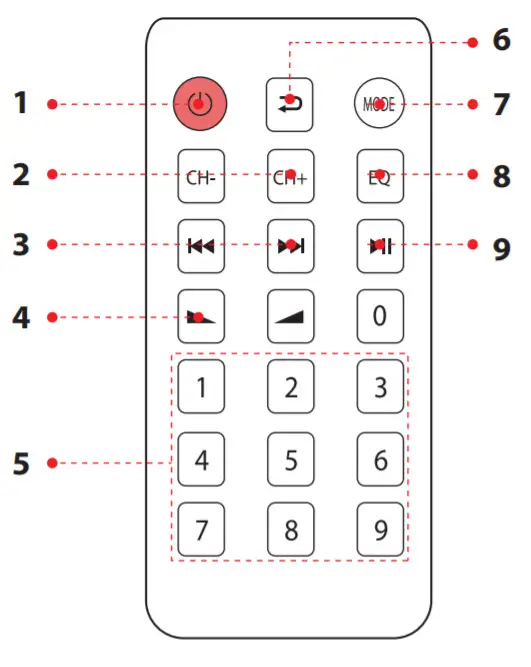

REMOTE CONTROL

Press this button to turn on the MP3.
When in FM mode, press these two buttons to select the previous
or next station.
Press these two buttons to select the previous or next track in USB or SD or BT mode.
Volume up or down.
Press the numbers to select the tracks directly. The Unit takes
1-2 seconds to response
Press this button to select the different repeat modes.
Press this button to select the playing mode, such as USB/SD/
FM/BT/LINE
EQ function
Play and pause function for MP3 and BT.

CARE AND MAINTENANCE

Your Pyle Pro Amplifier is an example of superior design and craftsmanship.
The following suggestions will help you care for your amplifier so you can enjoy years of use.

Keep the amplifier dry. If it gets wet, wipe immediately.
Use the amplifier only in well-ventilated installations.
Handle the amplifier gently and carefully! DO NOT DROP!
Keep the amplifier away from dust and dirt.
Wipe occasionally with a damp cloth to keep it looking new.

DO NOT Use harsh chemicals, solvents, or detergents!

PCAU46BA

Audio Speaker Power Amplifier System
2×120 Watt Digital Amp w/ Headphone Jack, MP3/USB/SD/MMC Card Reader/FM Radio/Bluetooth Receiver w/AUX, CD Inputs & Blue LED Display

Features:

1/4” Headphone Jack
2 x 120 Watt Peak at 4-Ohm
Blue LED Display for Media Playback Information
Double Decoder Digital Media Function with Remote Control
Built-in USB/SD Memory Card Readers
Compatible with MP3/WMA Files
FM Radio
Bluetooth Receiver

Blue LED Output Level Indicators
Power On/Off Switch LED Indicator
Bass, Treble, Master and Volume Controls
RCA Cable L/R Input, Four Push Type Speaker L/R Terminals
Fuse for protection against Surges and Short Circuit
Connect More Audio/Computer Devices via 3.5mm to RCA Converter
Bluetooth external antenna
Bluetooth Network Name: ‘PyleUSA’

Technical Specs:

Battery Operated Remote, Requires (1) x CR-2025 Button Cell Battery, Included
AUX Input Jack for iPod/iPhone/iPad/CD/MP3 Players: 3.5mm/1/8’’
Compatible with Audio/Computer (Device MP3 Players) Via 3.5mm to RCA Converter

AC IN Power Cord – Connect to AC 110V/60Hz or 220V/50Hz
Frequency Response: 20Hz-20 kHz
Voltage Selector: 120/240V
Product Dimension ( L x W x H): 5.39’’ x 2.87’’ x 8.41’’ -inches
