TN21L1
Micro Pinner

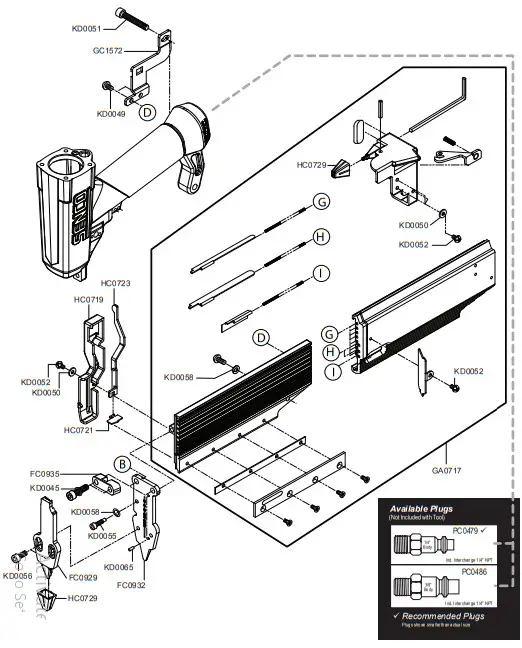

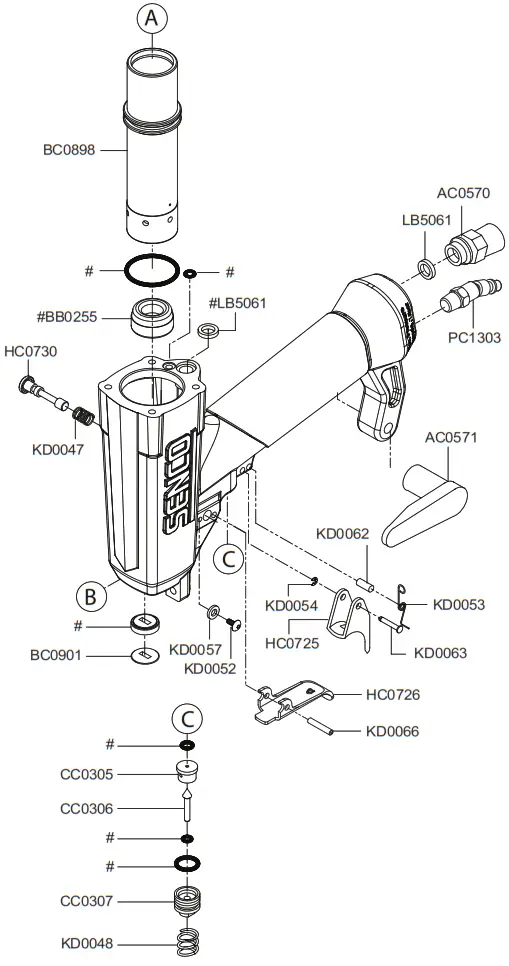

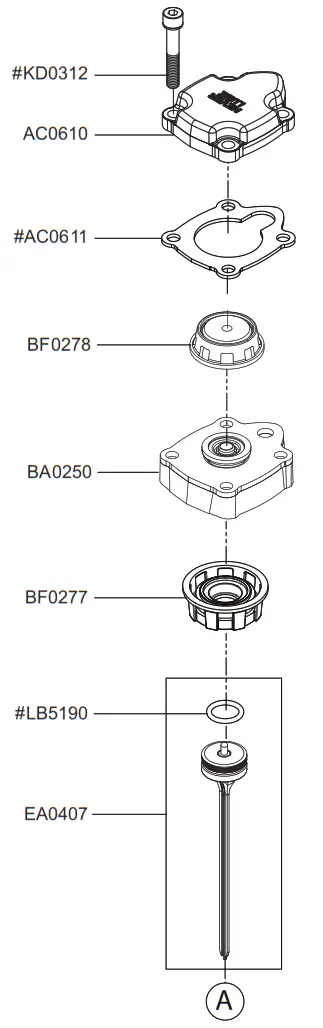

Parts Reference Guide
Repair Kit
YK0889
KYOCERA-SENCO Industrial Tools, Inc.
8450 Broadwell Road
Cincinnati, OH 45244
1-800-543-4596
www.senco.com
NFG011B • September 10, 2021 (Replaces 3/29/21)
Questions? Comments? call SENCO’s toll-free Action-Line: 1-800-543-4596
(North and South America Only) or email: [email protected]
 |  |

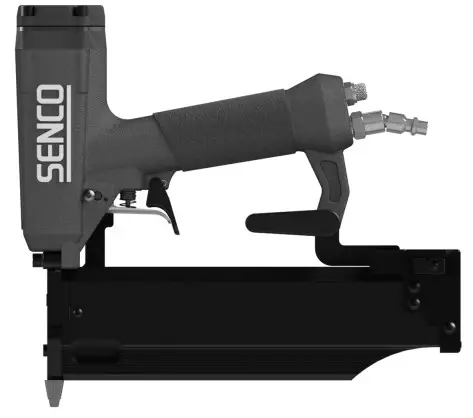

Micro Pinner
TN21L1
| PART NO. | DESCRIPTION |
| AC0570 AC0571 AC0610 AC0611 BA0250 BB0255 BC0898 BC0901 BF0277 BF0278 CC0305 CC0306 CC0307 EA0407 FC0929 FC0932 FC0935 GA0717 GC1572 HC0719 HC0721 HC0723 HC0725 HC0726 HC0729 HC0730 KD0045 KD0047 KD0048 KD0049 KD0050 KD0051 KD0052 KD0053 KD0054 KD0055 KD0056 KD0057 KD0058 KD0062 KD0063 KD0065 KD0066 LB5061 LB5190 PC1303 | SILENCER BELT HOOK CAP CAP GASKET VALVE ASSEMBLY BUMPER CYLINDER PLATE SLEEVE RETAINER. EXHAUST SEAL TRIGGER VALVE SEAT TRIGGER VALVE STEM TRIGGER VALVE GUIDE DRIVER UNIT COVER PLATE GUIDE PLATE DRIVER GUIDE B MAGAZINE ASSEMBLY SUPPORT LOCK-OUT COVER LOCK-OUT PLATE LOCK-OUT RELEASE BRACKET SAFETY TRIGGER TRIGGER NOSE PROTECTOR PIN SCREW WITH WASHER. SPRING TRIGGER SPRING SCORE WASHER SCREW SCREW SAFETY TRIGGER SPRING E-RING SCREW SCREW WASHER SPRING WASHER. PIN PIN PIN SPRING PIN DEFLECTOR.. 0-RING SWIVEL FITTING. |
Questions? Comments? call SENCO’s toll-free Action-line: 1-800-543-4596 (North & South America only) or e-mail: [email protected]
