Raspberry Pi Pico 2-Channel RS232
Raspberry Pi Pico Header Compatibility

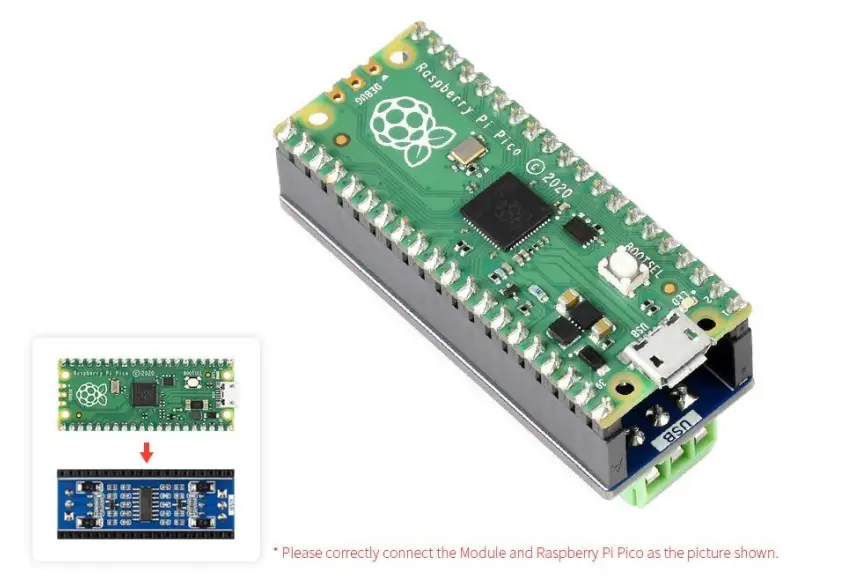

Onboard Female Pin Header for Direct Attaching To Raspberry Pi Pico
Raspberry Pi Pico is not included

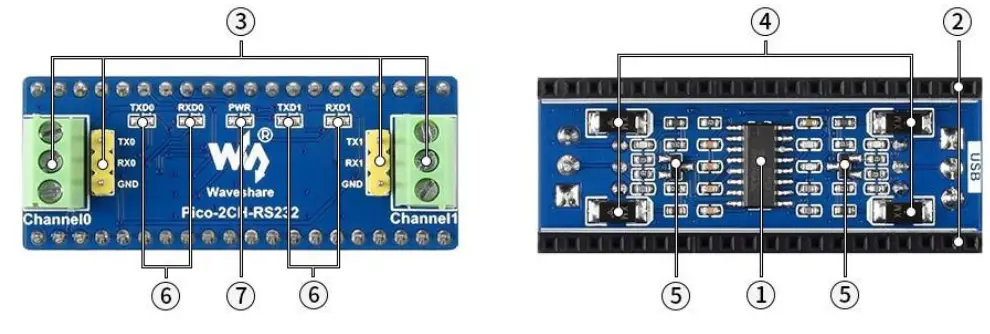

What’s on Board
- SP3232 RS232 transceiver
- Raspberry Pi Pico header
- RS232 bus interface

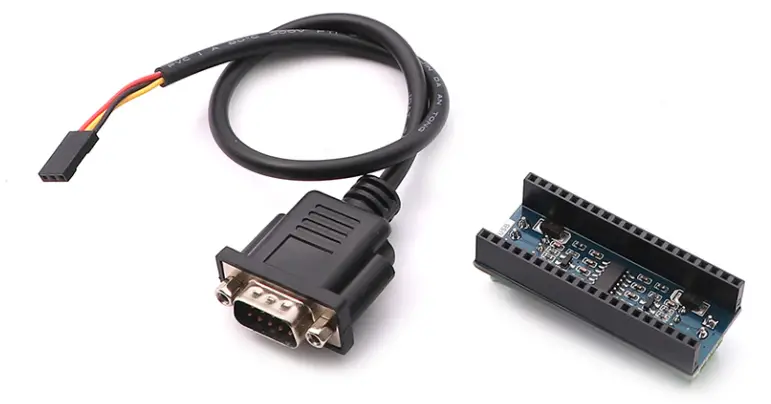

2-channel RS232 (DB9 male connector is also available through adapter cable) - TVS diode
- ESD diode
- UART status indicators

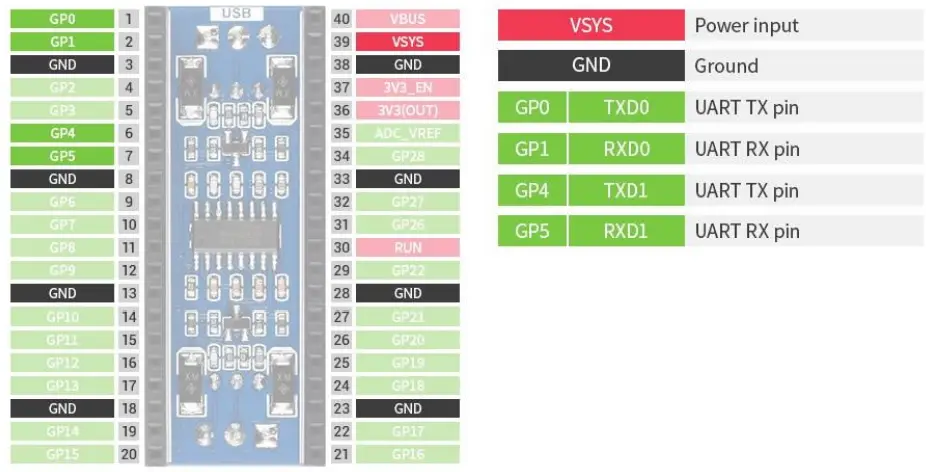

RXD0/TXD0: Channel 0 RX/TX indicators
RXD1/TXD1: Channel 1 RX/TX indicators
