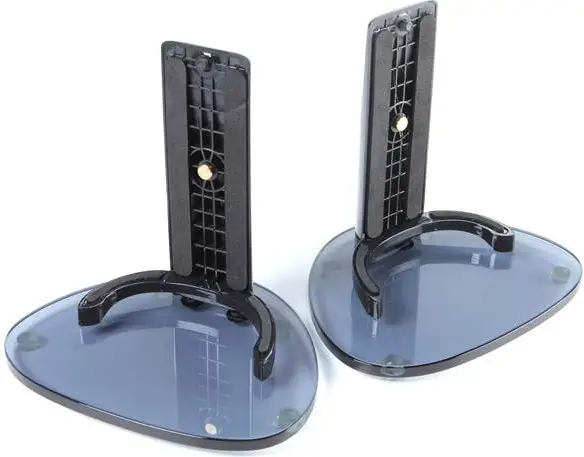

GoldenEar Technology 317SAT50TS SuperSat 50 Table Stands
PARTS NAME
| Item | Part Name | Q’ty |
| 1 | Speaker Bracket | 2 |
| 2 | Glass Base (with rubber feet) | 2 |
| 3 | Square Nut | 2 |
| 4 | Screw M4 x 10mm L | 2 |
| 5 | Plastic Washers | 4 |
| 6 | Screw 1/4″-20 x 3″ L | 4 |
| 7 | Plastic Washers | 2 |
| 8 | Screw 1/4″-20 x 1/2″ L | 2 |
| 9 | Wire Management Clip | 2 |
ASSEMBLING INSTRUCTION

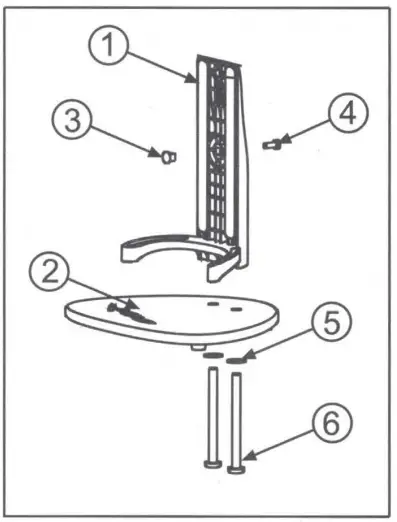

- Step 1: Assemble Shelf/TableStandT” 50

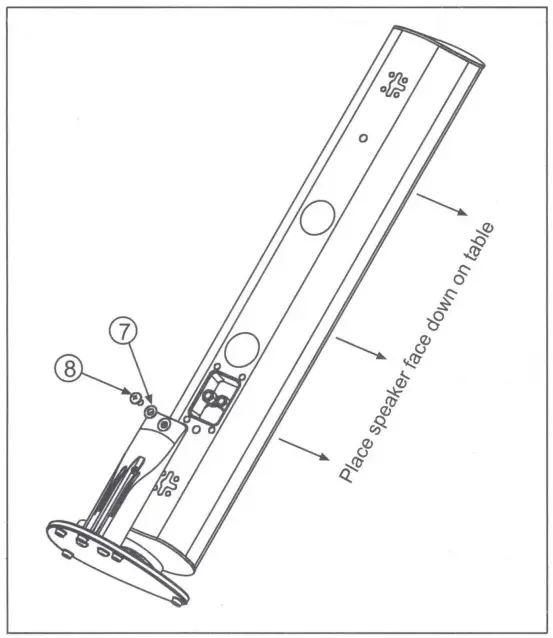

- Step 2: Assemble SuperSaf 50 to Shelf/TableStand'” 50
Place the speaker face down on a table to attach the stand

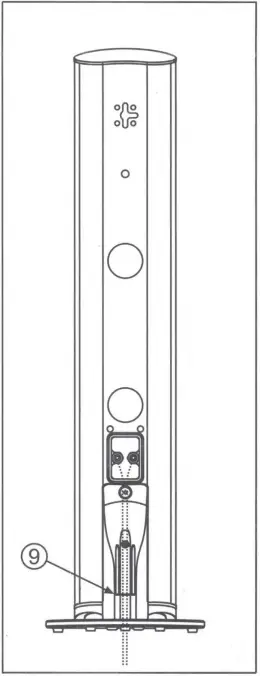

- Step 3: Wire speaker and install wire management clip
Foot Mount Template
- Clean bottom surface of glass base with non-abrasive cleaner
- Place base, bottom surface up, on outline shown below
- Attach self-adhesive rubber feet in the 5 dashed circles & press firmly.
- Flip over base and continue assembling the stand
